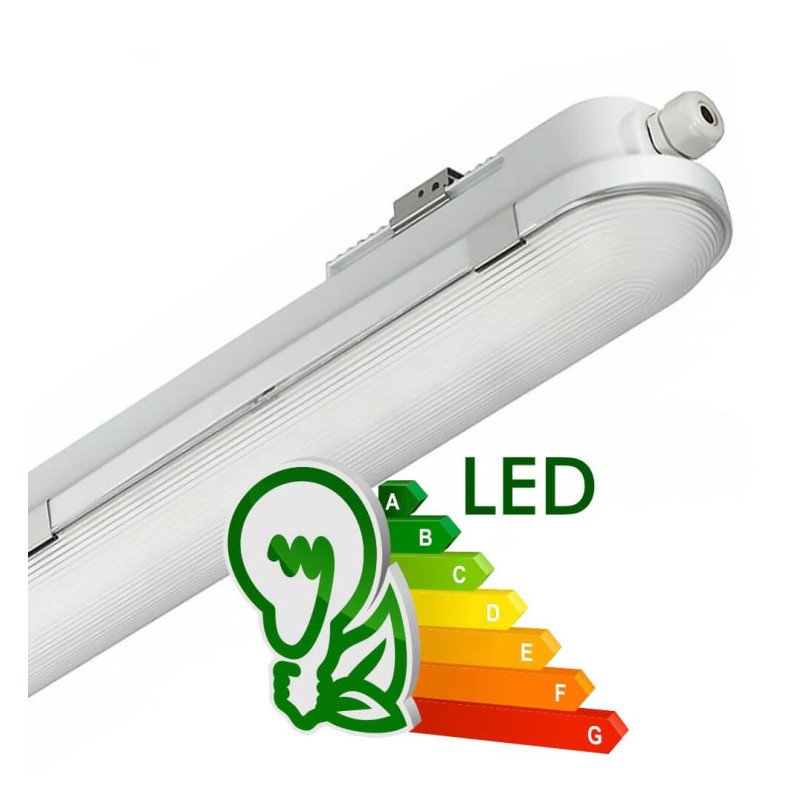

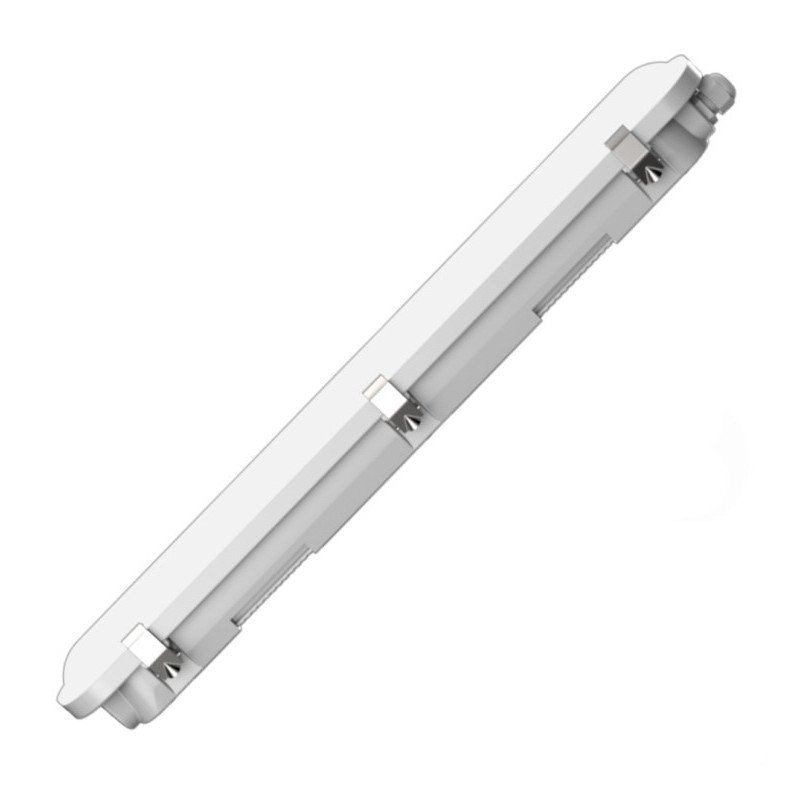

LED Waterproof Batten 40W 120cm 3CCT IP65 COREPLUS

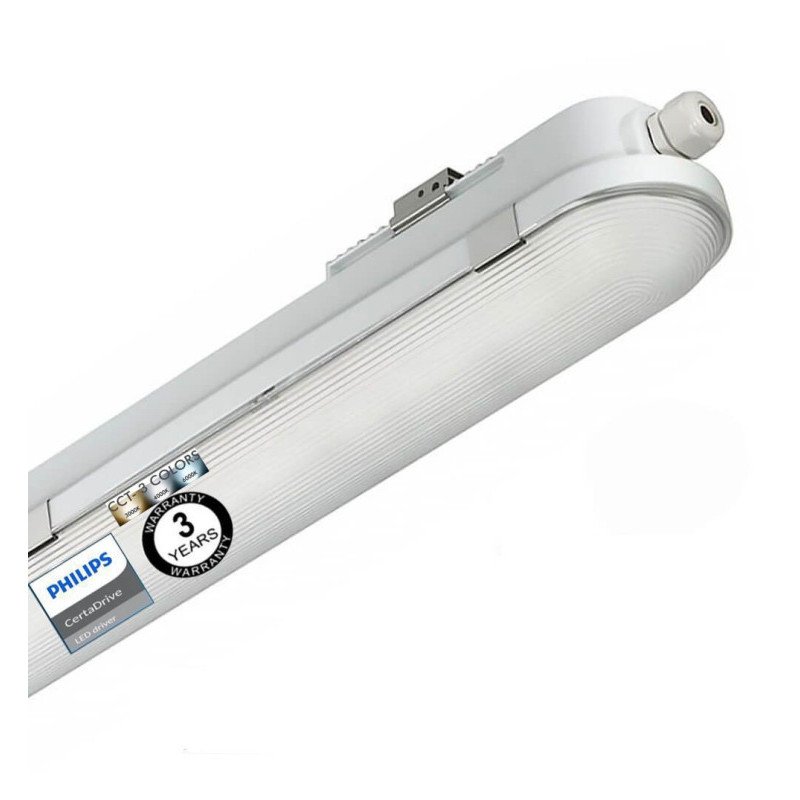

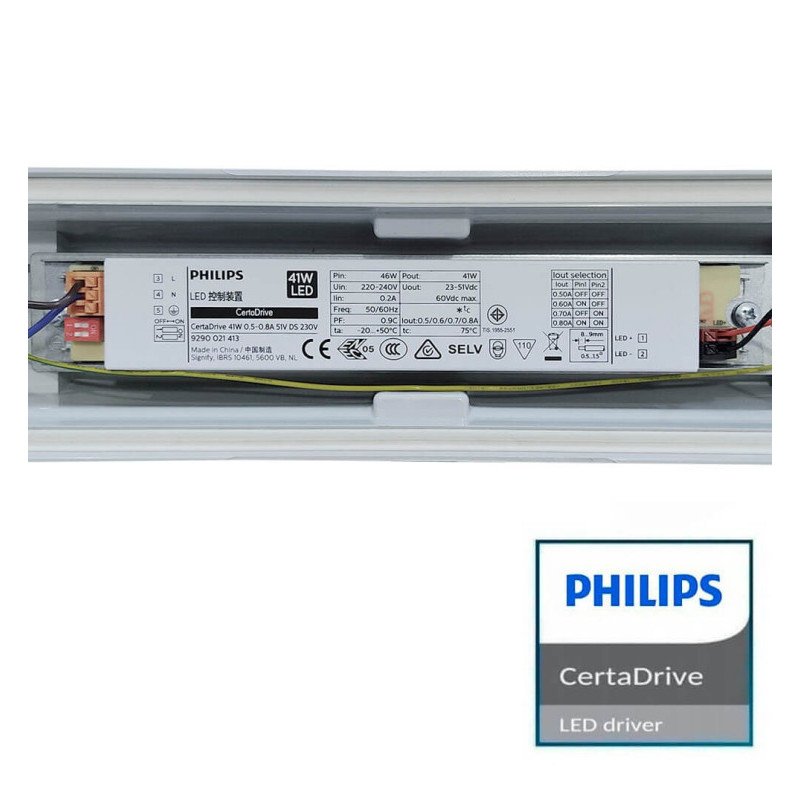

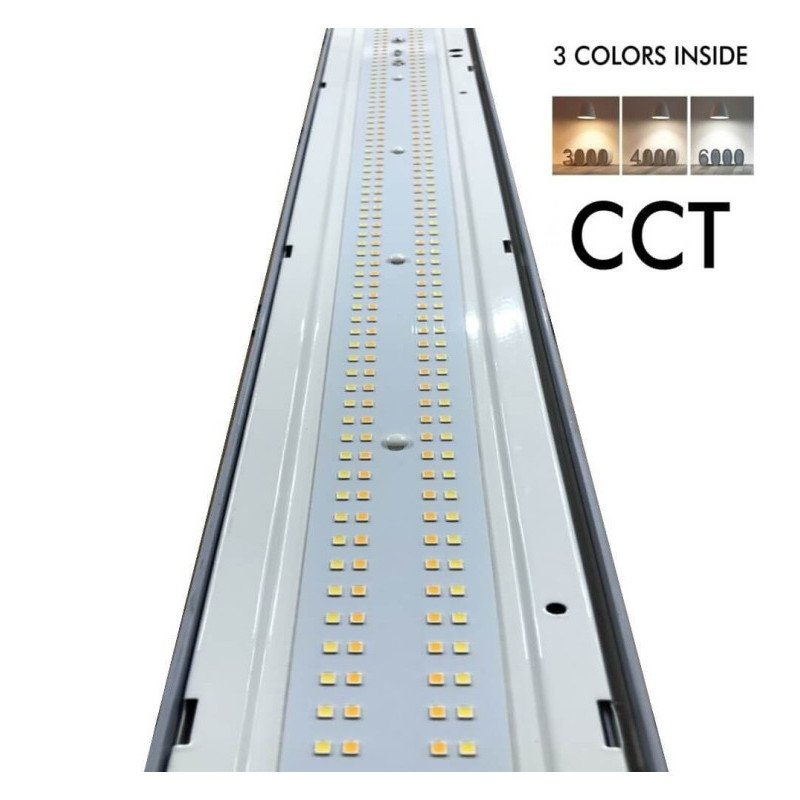

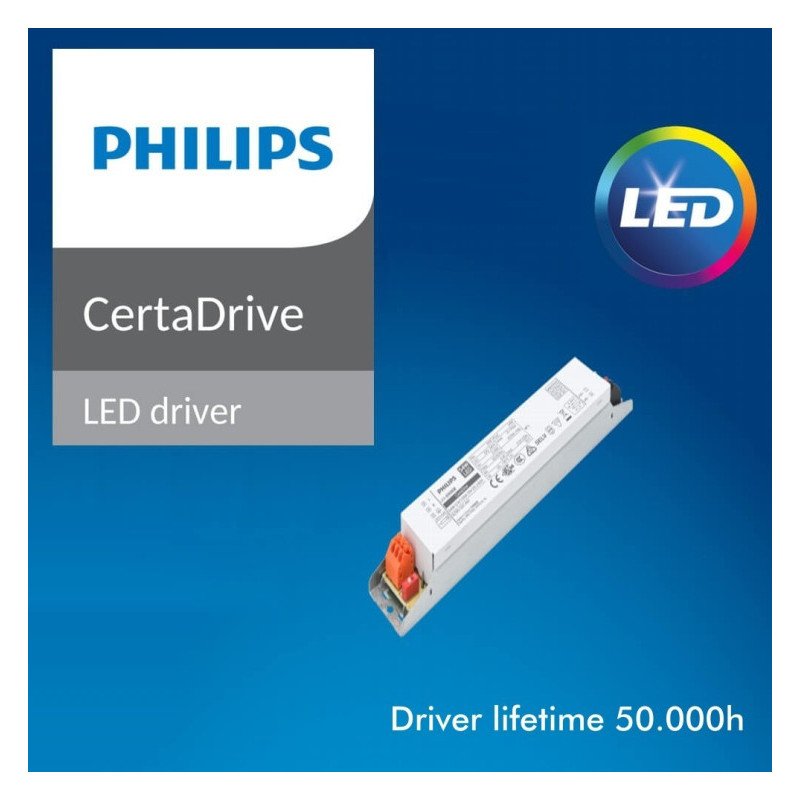

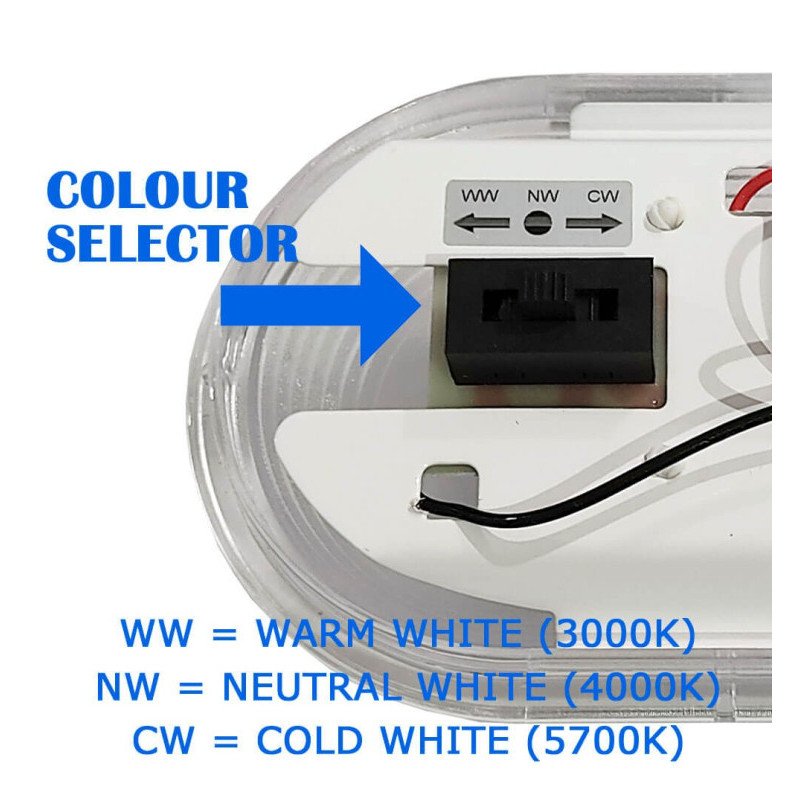

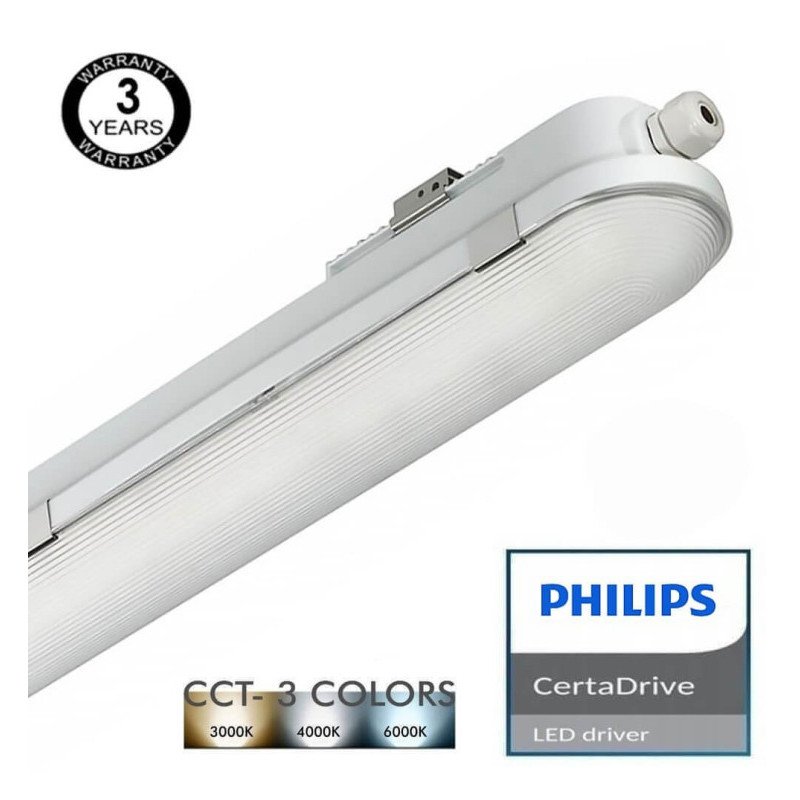

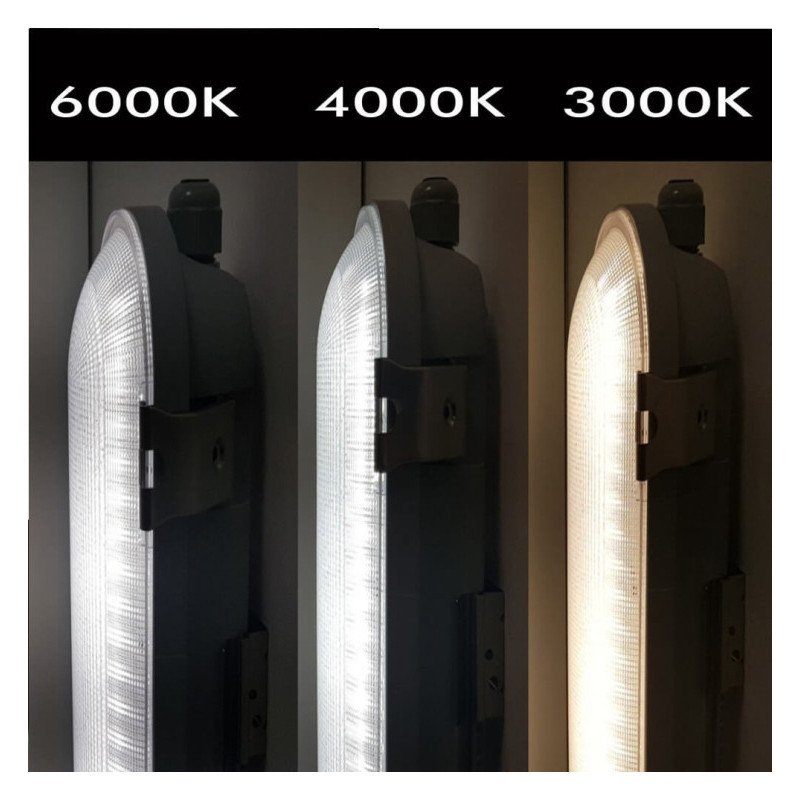

The COREPLUS LED waterproof batten (120 cm) is a robust, efficient solution for demanding environments. It features selectable power settings 25W / 30W / 40W and selectable 3CCT color temperatures: 3000K (warm), 4000K (neutral) and 5700K (cool). Equipped with a Philips CertaDrive driver and high-performance SMD2835 LEDs (140 lm/W), it delivers uniform, reliable lighting. With an IP65 protection rating, it is ideal for installations where resistance and durability are required.

Durability and Build Quality

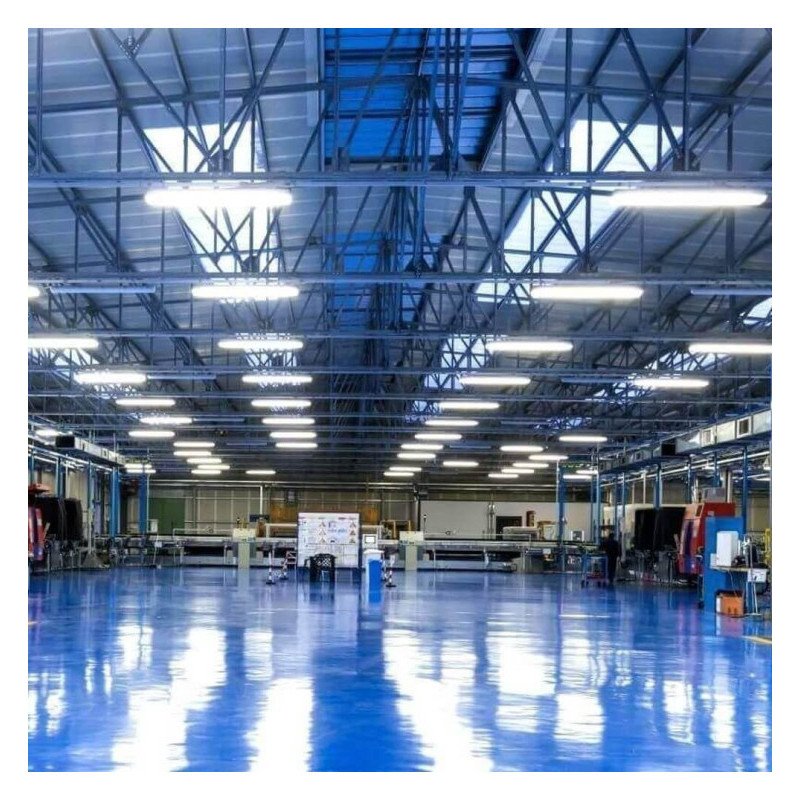

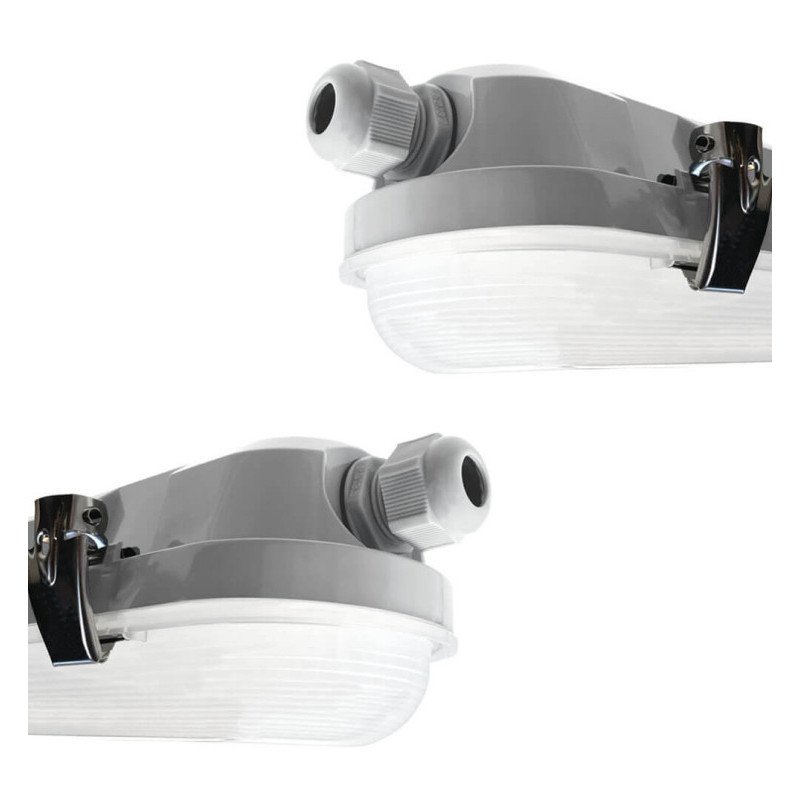

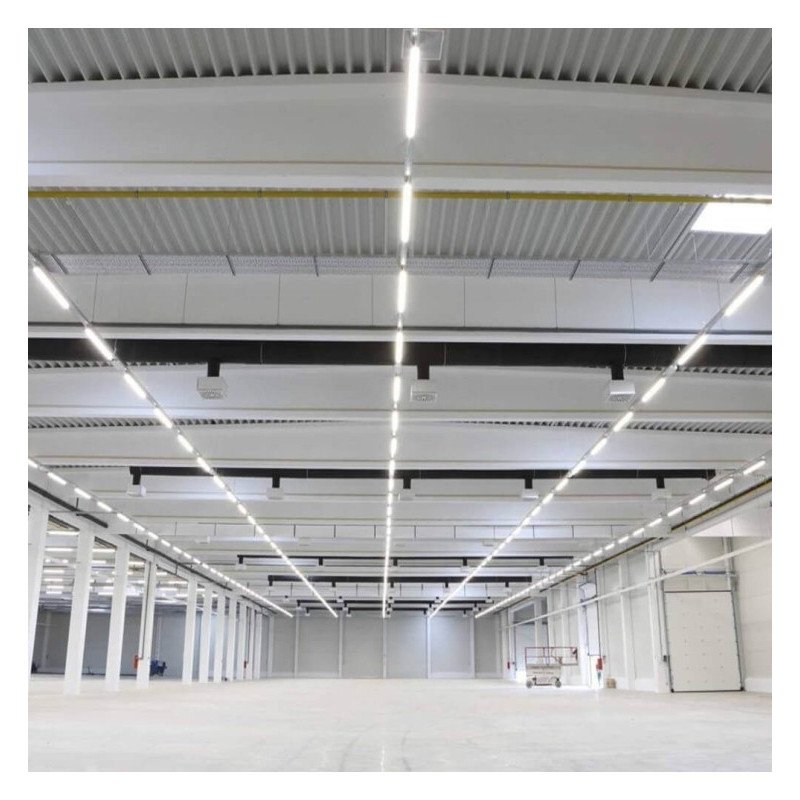

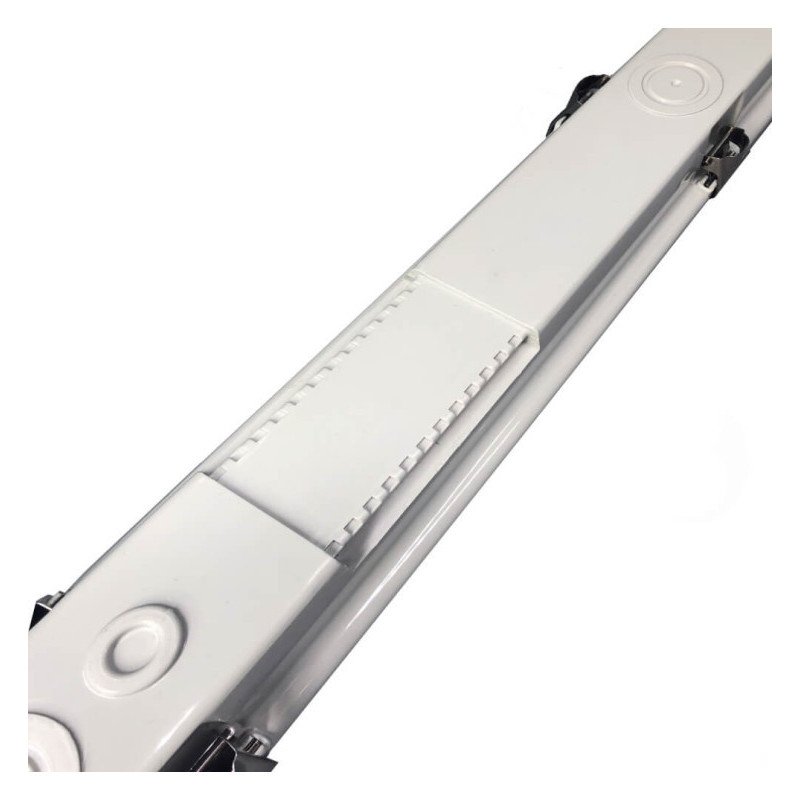

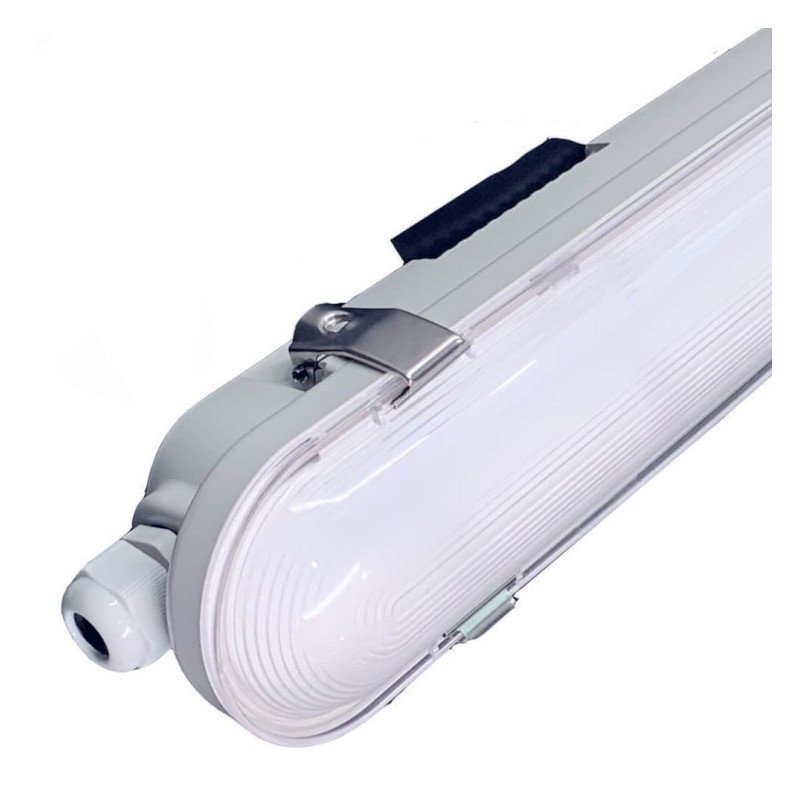

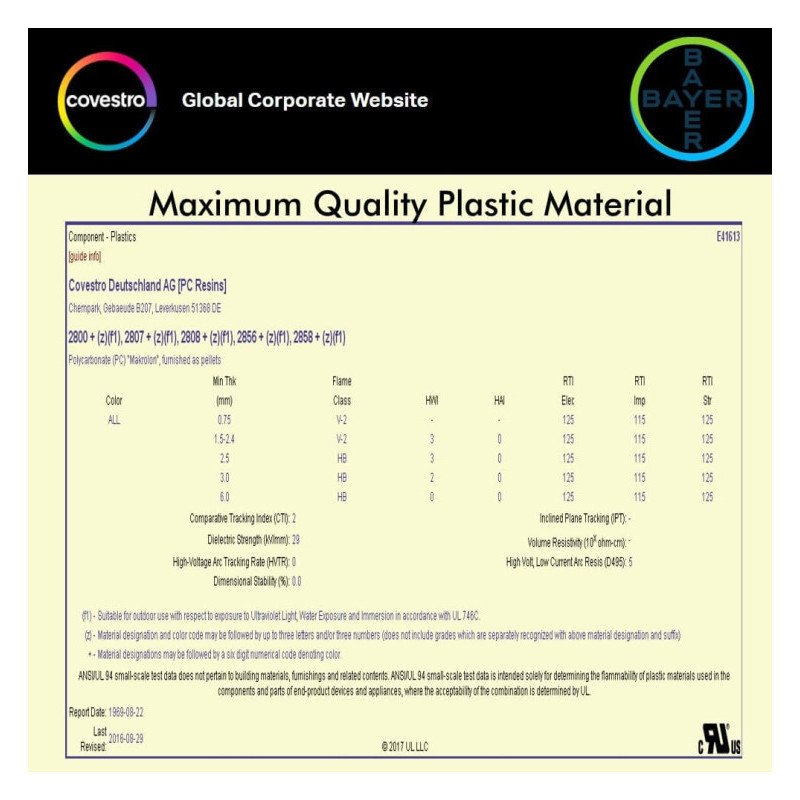

Constructed from robust ABS and Makrolon® 2807 materials, the COREPLUS batten is designed to withstand demanding conditions. It features a strong impact protection rating of IK08, ensuring resilience against physical shocks and enhancing its suitability for industrial or exterior applications.

Performance and Efficiency

Operating at a nominal power of 40W with a steady luminous efficacy of 140 lm/W, this batten delivers an estimated 5600 lm of light output. Its 3CCT color temperature options provide versatility in lighting ambiance without compromising efficiency.

Electrical and Operational Characteristics

The batten supports a voltage range of 170-265 V and frequencies of 50/60 Hz, accommodating various electrical environments. With a power factor of 0.95 and a startup time of just 0.2 seconds, it ensures effective energy use and immediate illumination upon activation. It operates reliably between -20 °C and 55 °C and sustains up to 100000 switching cycles, supporting long-term usage.

Frequently Asked Questions

What does the IK08 rating mean for this product?

The IK08 rating indicates the luminaire's high resistance to mechanical impacts, such as knocks or bumps, making it suitable for environments where physical durability is essential.

Is the batten suitable for outdoor installations?

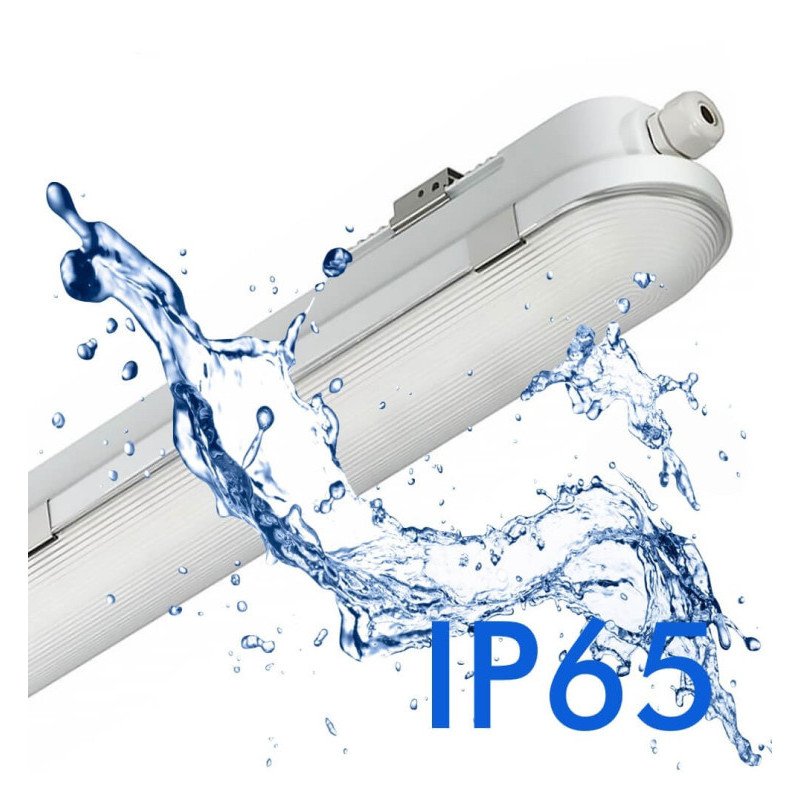

Yes, with an IP65 ingress protection rating, it is designed to be water and dust resistant, ideal for exterior or wet locations.

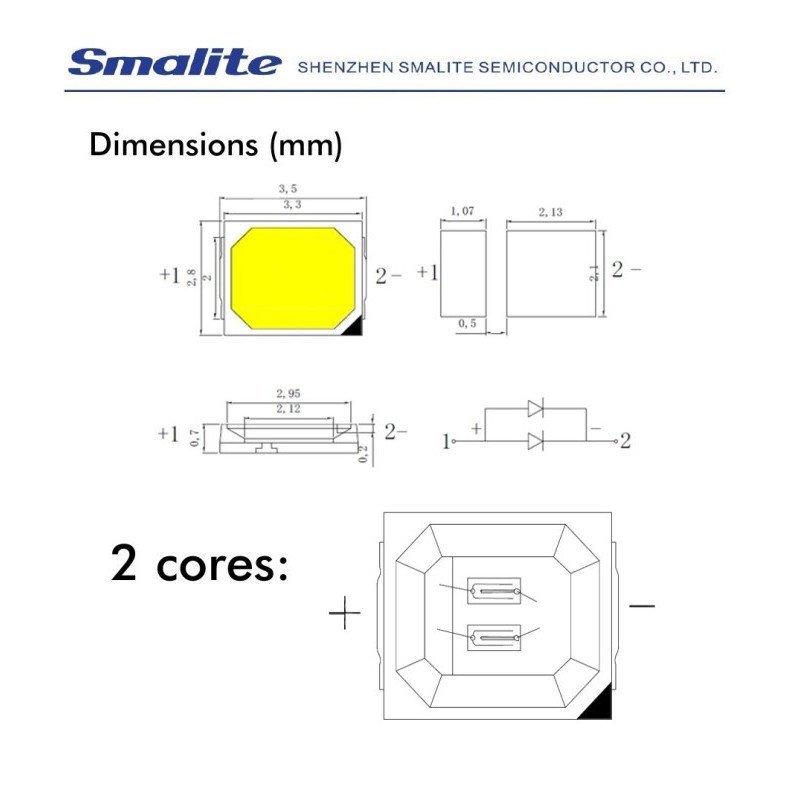

What LEDs are used in this batten?

It utilizes high-performance SMD 2835 LEDs that contribute to its efficient lighting output and reliability.
