LED Controller 2-in-1 Monochrome + CCT RF 2.4GHz 12-24V
LED-00902
Certificates
CE - ROHS
Construction Material
Thermoplastic
Dimensions (mm)
17x36x74.5 mm
Rated Power
12V: 144W - 24V-288W
Dimmable
Yes
New product

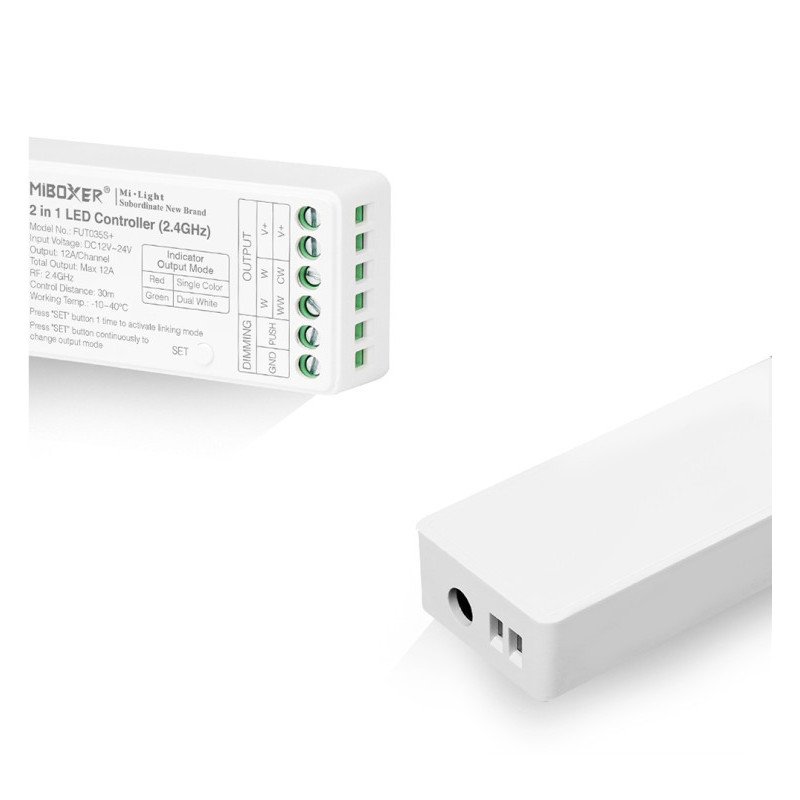

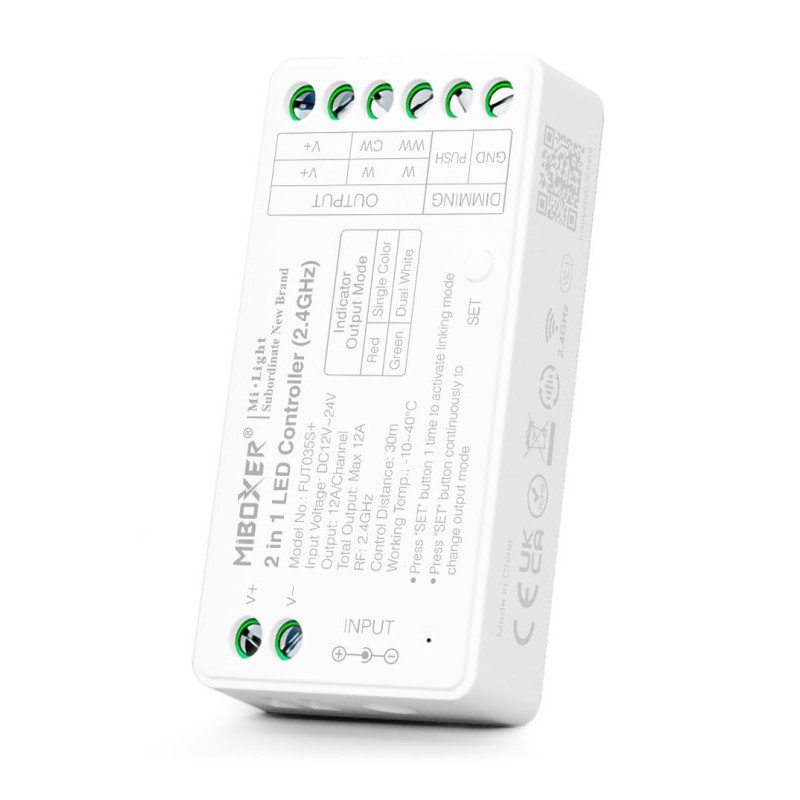

LED Controller 2-in-1 allows seamless control of monochrome and tunable white LED strips with 2.4GHz RF technology. Compatible with 12-24V systems, it supports dynamic lighting effects and up to 4 zones from a single remote control (sold separately). Its compact IP20 thermoplastic housing measures 17×36×74.5 mm.
294 Items
More info
2-in-1 LED controller for monochrome and CCT (dual white) LED strips. This 2.4GHz RF dimmer lets you adjust brightness and program dynamic effects to create custom lighting scenes. It supports control of up to 4 zones from a single remote (not included). The RF receiver has a range of 30 meters, making it easy to operate from anywhere. Installation is simple: connect the LED strip to the controller and connect it to the adapter (not included).
Technical Specifications
Constructed from durable thermoplastic, the controller is designed for indoor use, featuring an IP20 ingress protection rating.
Operating voltage range is 12-24 V, suitable for commonly used LED strip power supplies.

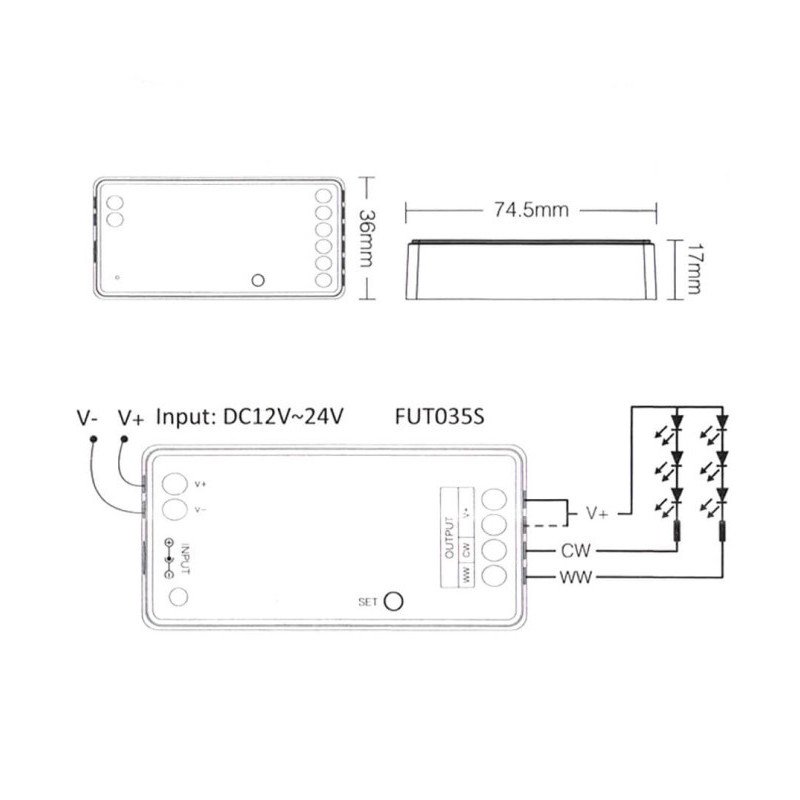

Its compact dimensions (17 mm height, 36 mm width, 74.5 mm length) facilitate discreet installation.
RF Control Features
Utilizes 2.4GHz radio frequency technology to provide stable communication and control up to 30 meters away.
Supports managing lighting across four separate zones, enabling versatile lighting arrangements and customization.
Installation and Compatibility

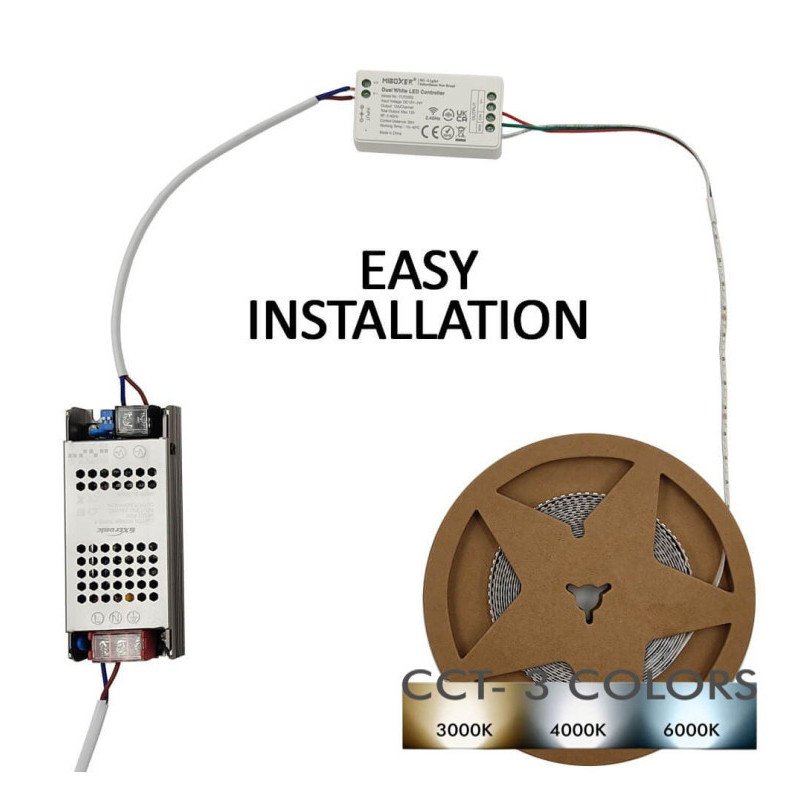

Simple installation includes connecting the LED strip directly to the controller, then powering via an adapter (adapter and remote sold separately).
Compatible with both monochrome and color correlated temperature (CCT) LED strips, offering flexibility in lighting design.
Frequently Asked Questions
Can I use this controller outdoors?
No, with an IP20 rating, this controller is intended for indoor use only and is not protected against dust or water.
Is a remote control included with the controller?
No, the remote control is sold separately and is required to operate the controller wirelessly.
What types of LED strips can be connected?
The controller supports both monochrome and dual white (CCT) LED strips operating between 12 and 24 volts.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Thermoplastic
Warranty years
3
Dimensions (mm)
17x36x74.5 mm
Rated Power
12V: 144W - 24V-288W
Rated Voltage
DC 12-24V
Operating Frequency (Hz)
2.4Ghz
Light Temperature
CCT -2000K to 7000K
Range (m)
30m
Dimmable
Yes
LED strips and flexible neon for linear and decorative lighting
LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.
At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.
Differences between LED strips and flexible neon
LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.
Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.
How to choose an LED strip
Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.
The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.
Warm, neutral, cool white, RGB and RGBW
Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.
RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.
Installation, cutting and IP protection
LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.
An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.
Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
