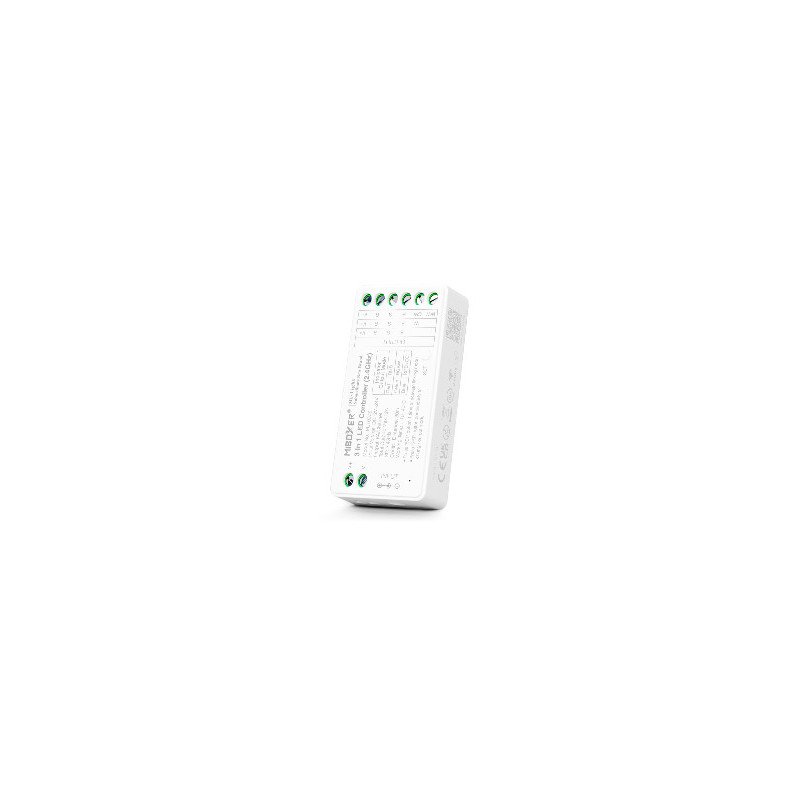

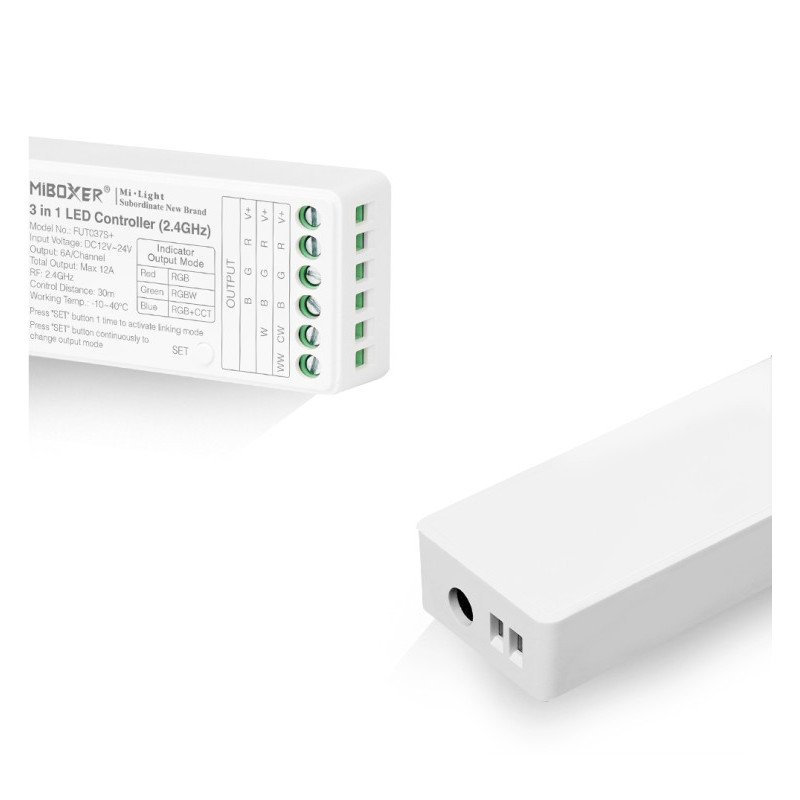

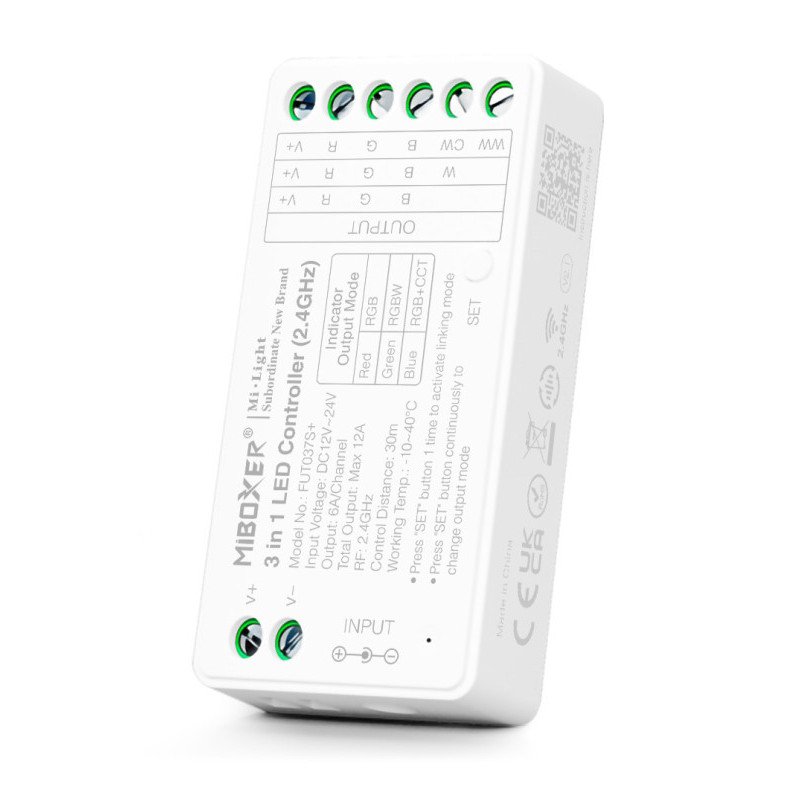

LED Controller 3-in-1 RGB/RGBW/RGBCCT RF 2.4GHz 12-24V
LED-00899
Dimensions (mm)
36x74,5x17mm
New product
This LED Controller supports RGB, RGBW, and RGBCCT modes for flexible lighting customization. It operates on 12-24V LED strips, controls 4 zones (12A total), and communicates via 2.4GHz RF with up to 30m range, perfect for nuanced indoor decorative lighting.
472 Items
More info
The LED 3-in-1 controller (RF 2.4GHz) is compatible with 12–24V LED strips. It lets you control up to 4 independent zones with a total power of 12A (6A per channel) and a range of up to 30 meters. Switch easily between RGB, RGBW and RGB+CCT modes to create custom lighting scenes. Adjust brightness and color temperature with precision—ideal for decorative and indoor lighting projects where you want flexible, convenient control.
Versatile Control Options
The 3-in-1 LED controller accommodates various LED strip types—RGB, RGBW, and RGBCCT—allowing users to seamlessly switch between modes without changing hardware. This versatility simplifies lighting design and enhances user experience by providing rich color and temperature adjustment capabilities.
Multi-Zone Management
Manage up to four independent lighting zones simultaneously with the controller, each capable of receiving precise commands for color and brightness. This feature supports complex lighting setups such as different ambiances in separate areas controlled from a single device.
Compact Form Factor

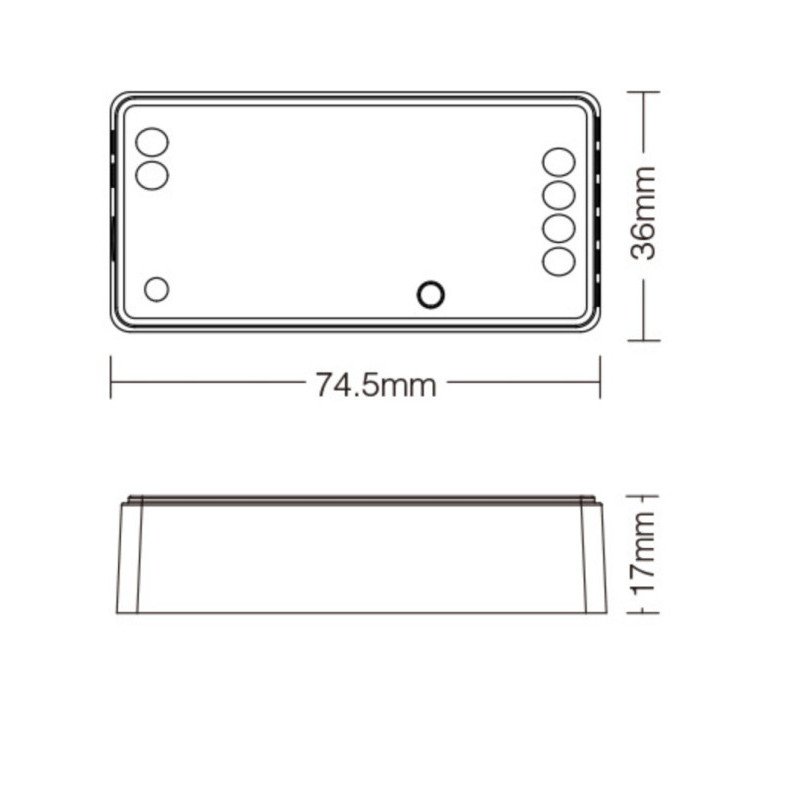

Measuring 36 x 74.5 x 17 mm, the controller's compact size allows for easy installation in various indoor environments without occupying significant space or requiring specialized mounting.
Frequently Asked Questions
What input voltage range does the controller support?
It supports a voltage range from 12 to 24 volts, compatible with most common LED strips within this range.
How many LED zones can I control simultaneously?
You can control up to four independent zones with this controller.
What communication technology does the controller use?
It uses a 2.4GHz radio frequency (RF) for wireless control with up to 30 meters range.
Is the controller suitable for outdoor use?
No, the device has an IP20 rating, indicating it is designed for indoor use and should be kept away from moisture.
View technical specifications Hide technical specifications
IP Rating
IP20
Warranty years
3
Dimensions (mm)
36x74,5x17mm
Rated Voltage
DC 12 -24V
Operating Frequency (Hz)
2.4GHz
Temperature Range (ºC)
-10ºC - 40ºC
Light Temperature
RGB / RGBW / RGB+CCT
Range (m)
30m
Body Color
White
LED strips and flexible neon for linear and decorative lighting
LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.
At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.
Differences between LED strips and flexible neon
LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.
Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.
How to choose an LED strip
Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.
The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.
Warm, neutral, cool white, RGB and RGBW
Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.
RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.
Installation, cutting and IP protection
LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.
An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.
Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
