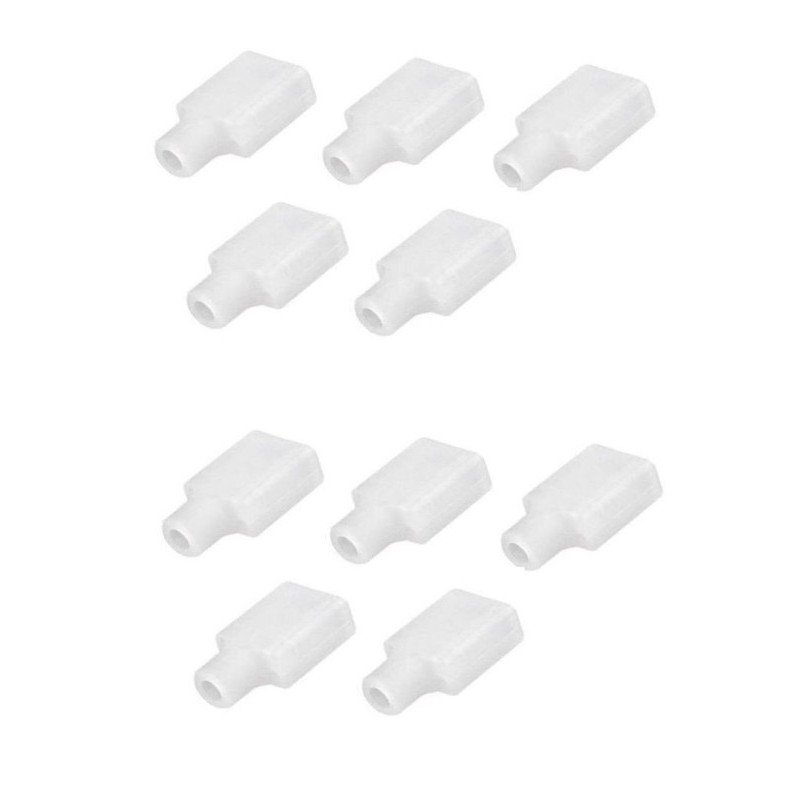

LED Strip Silicone End Cap 10-12mm for Outdoor IP

Certificates CE - ROHS
Construction Material Silicone

New product

Silicone end caps designed for LED strips with 10-12mm width, offering IP65-rated protection for outdoor applications. These durable caps ensure a reliable seal at strip ends, safeguarding against dust and water ingress, with resistance to temperatures between -55°C and 160°C.

8438 Items

Order now and receive it The day after tomorrow

28,88 € tax incl.

Métodos de pago

More info

Silicone LED strip end cap for 10mm to 12mm PCB LED strips. This plug is designed to connect and protect the end of your LED strip with a reliable seal, helping keep the assembly in great condition. Made from high-quality silicone, it offers resistance to aging and weather exposure, and withstands temperatures from -55°C to 160°C. Ideal for lighting projects where you need durable, effective outdoor protection.

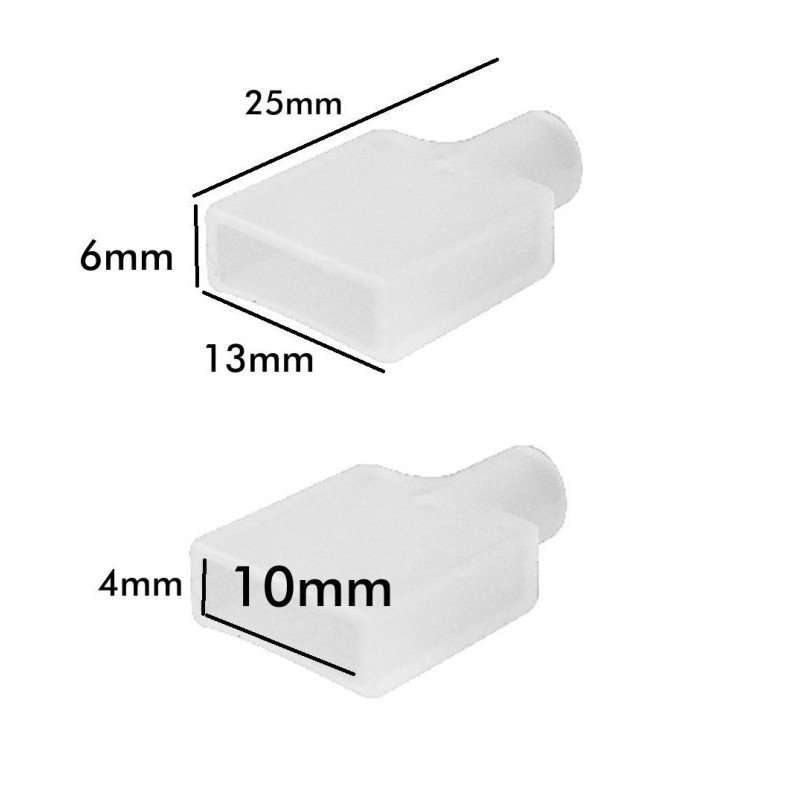

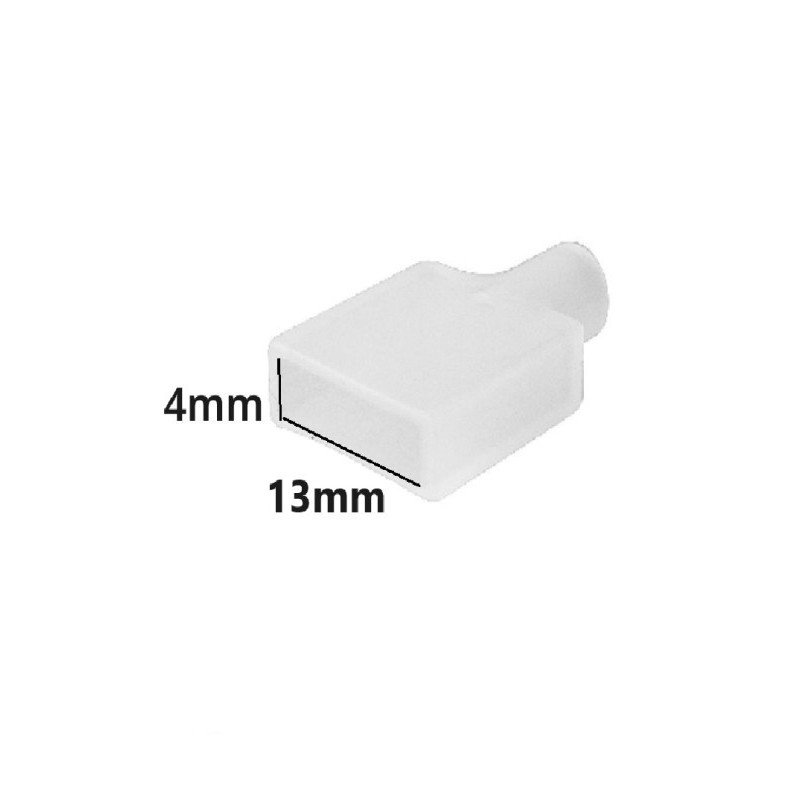

Compatibility and Dimensions

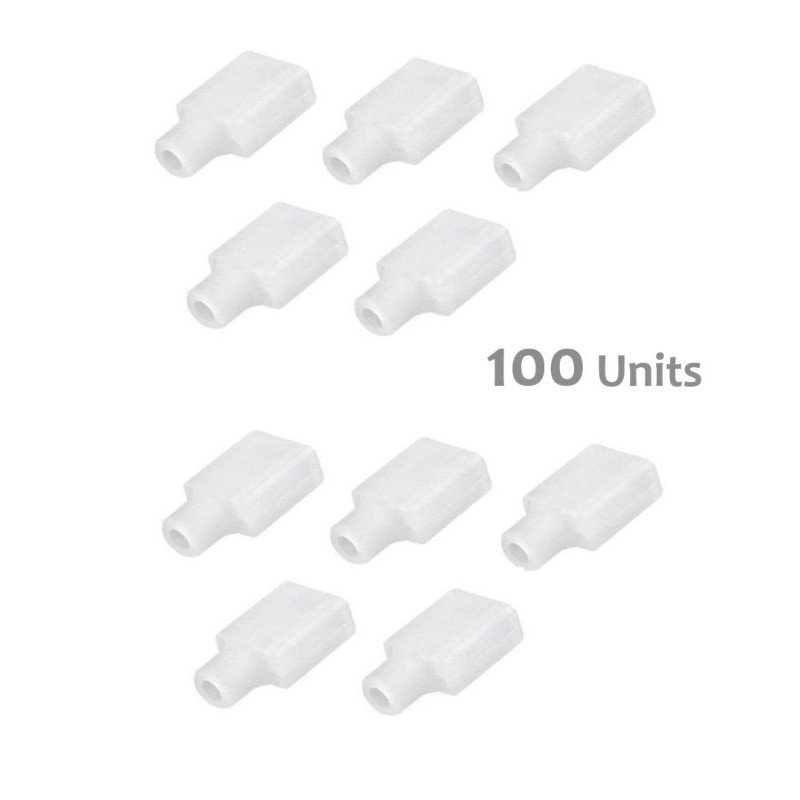

These silicone end caps are compatible with LED strips featuring a PCB width of 10mm or 12mm. They are available in both single units and in professional packs of 100, accommodating various installation scales and project requirements.

Material and Durability

Manufactured from high-quality silicone, these end caps provide excellent flexibility and longevity. The silicone material is resistant to aging and environmental factors, ensuring sustained performance in outdoor settings without degradation.

Ingress Protection and Environmental Resistance

With an IP65 rating, the end caps protect LED strips from dust and water jets, making them suitable for exterior lighting installations. Their ability to withstand temperatures ranging from -55°C to 160°C further enhances their suitability for varied climatic conditions.

Frequently Asked Questions

Can these end caps be reused after removal?

Yes, the silicone material allows for removal and repositioning; however, repeated reuse may reduce the sealing effectiveness over time.

Do these end caps affect the LED strip's heat dissipation?

These end caps primarily serve as protective seals and do not significantly affect the heat dissipation characteristics of the LED strip.

Are these end caps compatible with LED strips narrower than 10mm?

No, these caps are specifically designed for LED strips with a width of 10mm or 12mm and may not provide a secure fit on narrower strips.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Silicone
Warranty years 3

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
