LED Strip 24V 20W/m SMD2835 238 LEDs/m 5m IP20
Certificates
CE - ROHS
Construction Material
PCB
Dimensions (mm)

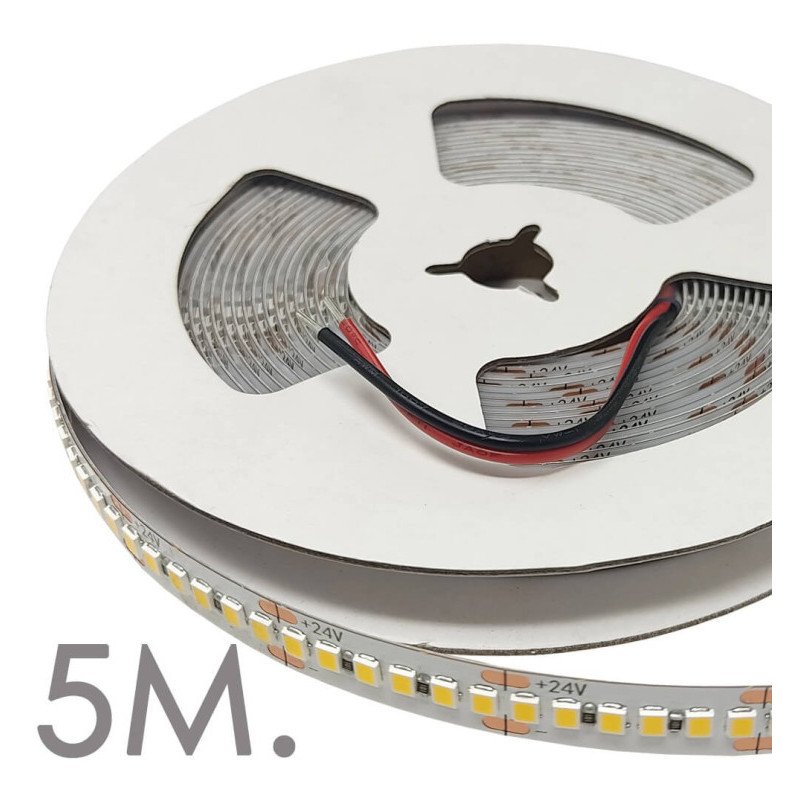

5m x 10mm
Rated Power
20w
Beam Angle (º)
120º
New product
This 24V DC LED strip is 5 meters long with 238 SMD2835 LEDs per meter, delivering 20W/m and approximately 2400 lm total flux. It features a 120° beam angle, CRI over 80, and selectable color temperatures from 2200K to 6000K. Designed for indoor use with IP20 protection, it is ideal for decorative lighting and requires a DC power supply.
3131 Items
More info
Professional 24V DC LED strip, 5 meters long, with 238 LEDs per meter (SMD2835). Provides 20W per meter and a total luminous flux of 14,000 lm, with a light distribution angle of 120°. Designed for indoor installation, it is self-adhesive for easy mounting in decorative applications across different spaces. The strip requires a DC power supply to operate. It can be cut and connected following the marked areas on the strip (copper connection zone), following the instructions to avoid damage from overheating when soldering. For proper installation, it is recommended to mount it on an aluminum profile.
Technical Characteristics
The LED strip operates at 24V DC and consumes 20W per meter, ensuring a luminous efficacy of approximately 120 lm/W. It contains 238 LEDs per meter of type SMD2835, contributing to efficient and uniform light output. The light emission is distributed over a 120° angle, suited for broad, even illumination in various indoor applications. It maintains a high Color Rendering Index (CRI) greater than 80, providing good color fidelity.
Color Temperature Options
This model offers a selection of four distinct correlated color temperatures (CCT): amber (2200K), warm white (2700K), neutral white (4000K), and cool white (6000K). These options allow flexibility to create atmospheres ranging from cozy and relaxing to bright and vibrant, depending on the lighting design goals. Customers can select these options in different pack sizes according to their needs.
Installation and Durability
The strip features a PCB construction with self-adhesive backing for straightforward mounting on clean, dry surfaces. It is designed for indoor use with an ingress protection rating of IP20, indicating no protection against water ingress. Installation is recommended using an aluminum profile to aid heat dissipation and extend the product’s operating life. The strip supports operating temperatures from -20°C up to 55°C and is rated for up to 100000 switching cycles, ensuring reliable performance under normal use.
Frequently Asked Questions
Can the strip be cut to fit smaller spaces?
Yes, the LED strip can be cut at designated copper connection zones marked on the strip to fit custom lengths, following proper soldering guidelines to avoid damage.
Is this strip suitable for outdoor use?
No, with an IP20 rating, this LED strip is designed for indoor environments and is not protected against moisture or dust.
What power supply is needed for this LED strip?
A 24V DC power supply compatible with the total wattage of the installed length is required for operation.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
PCB
Warranty years
3
Dimensions (mm)
5m x 10mm
Rated Power
20w
Rated Voltage

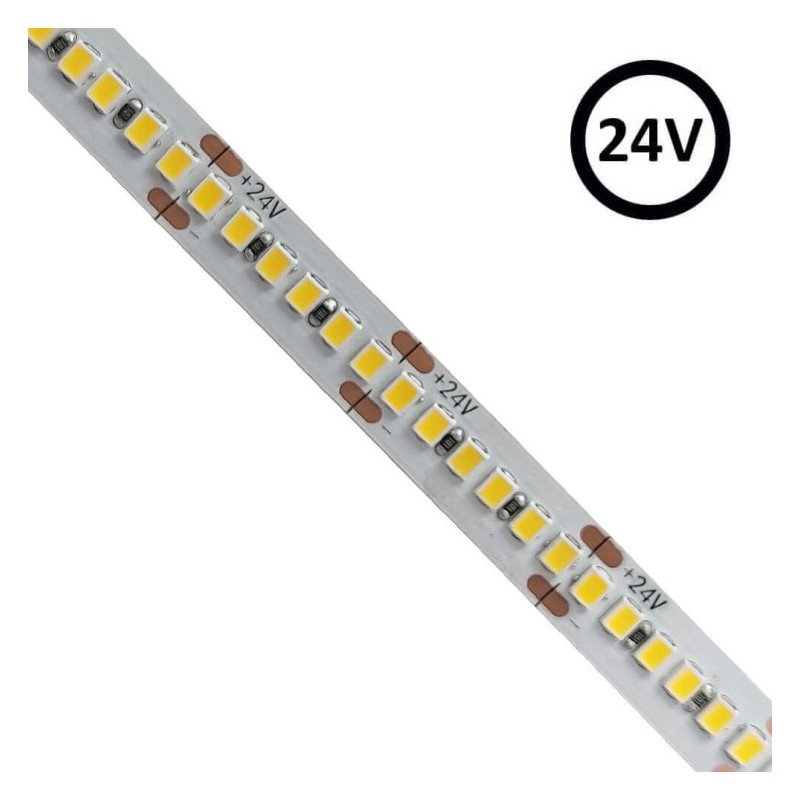

24V DC
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
100.000
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
2200K - 2700K - 4000K - 6000K
Luminous Flux-Lm

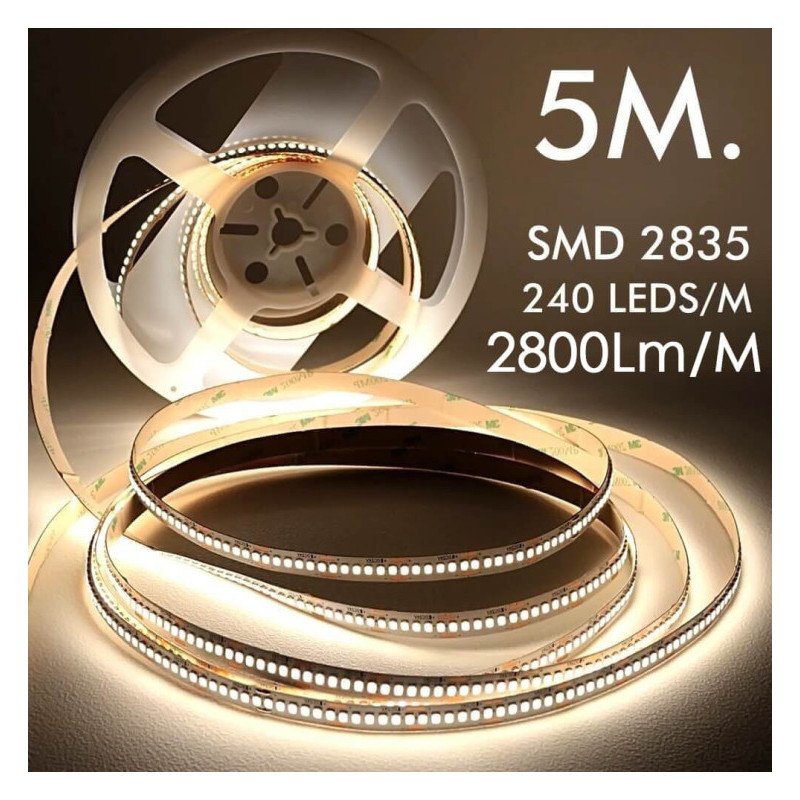

1M: 2800Lm - 5M: 14000Lm
LED Type
238 LEDs/M - SMD2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W
Additional Information

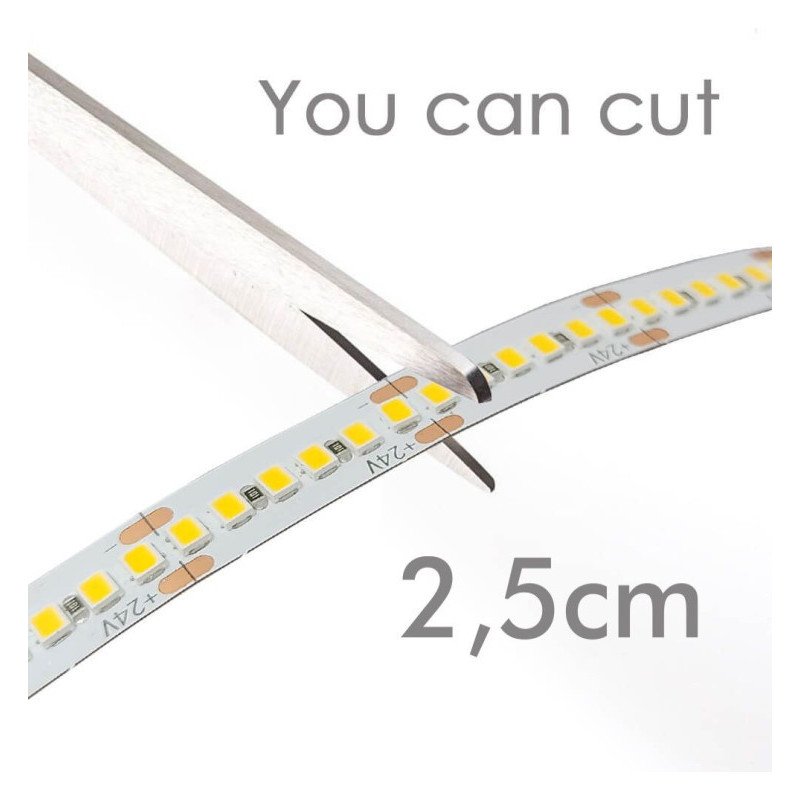

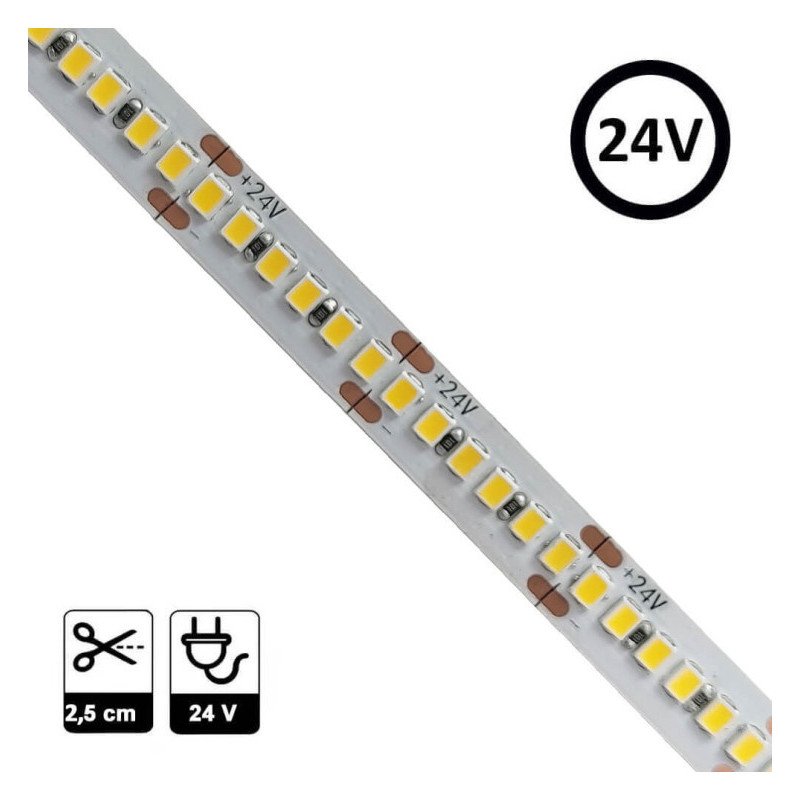

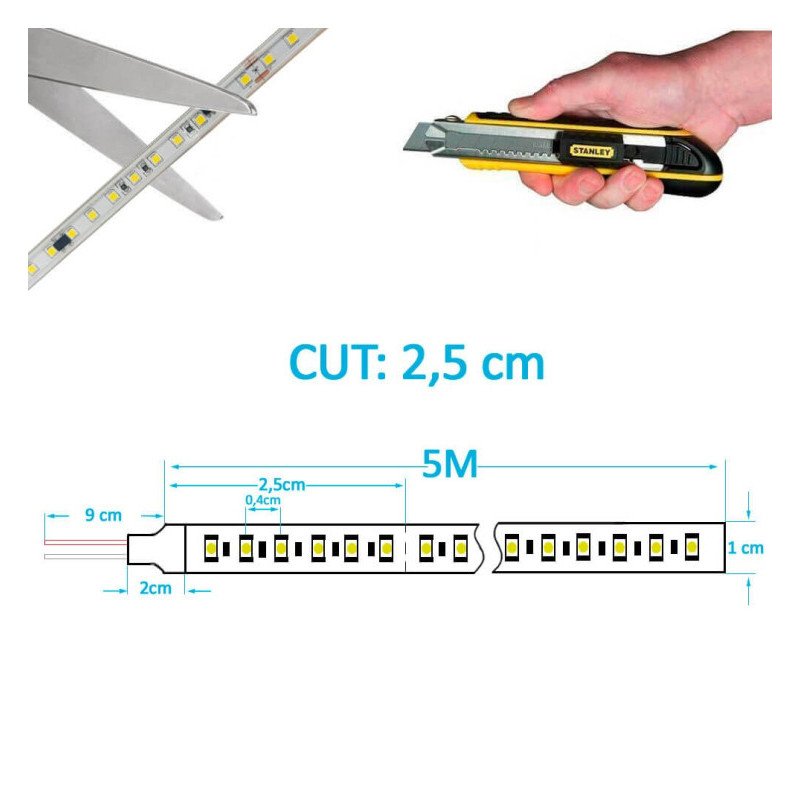

Cut: 2.5cm
LED strips and flexible neon for linear and decorative lighting
LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.
At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.
Differences between LED strips and flexible neon
LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.
Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.
How to choose an LED strip
Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.
The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.
Warm, neutral, cool white, RGB and RGBW
Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.
RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.
Installation, cutting and IP protection
LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.
An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.
Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
