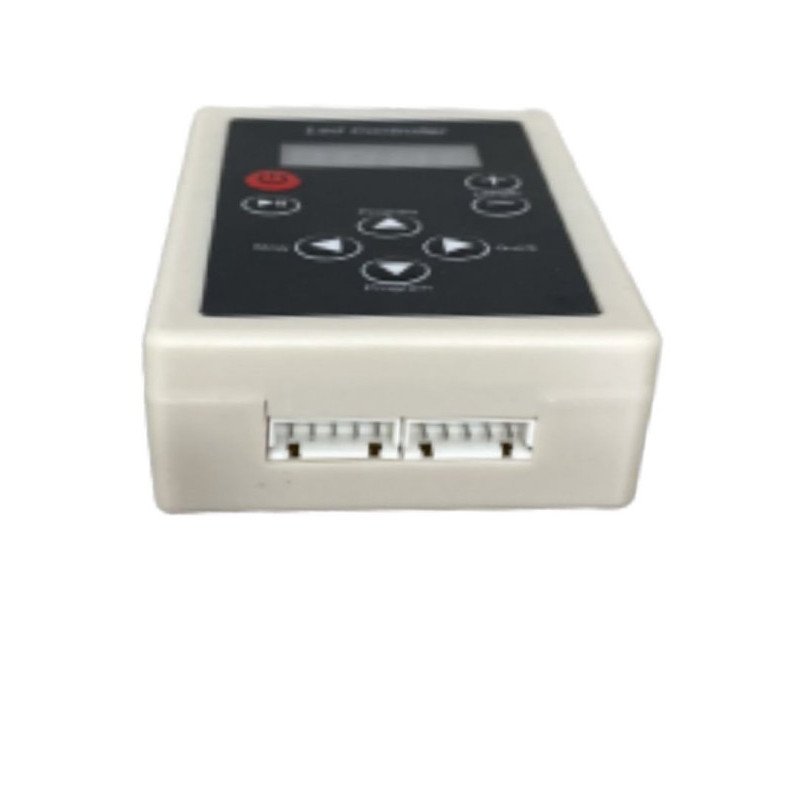

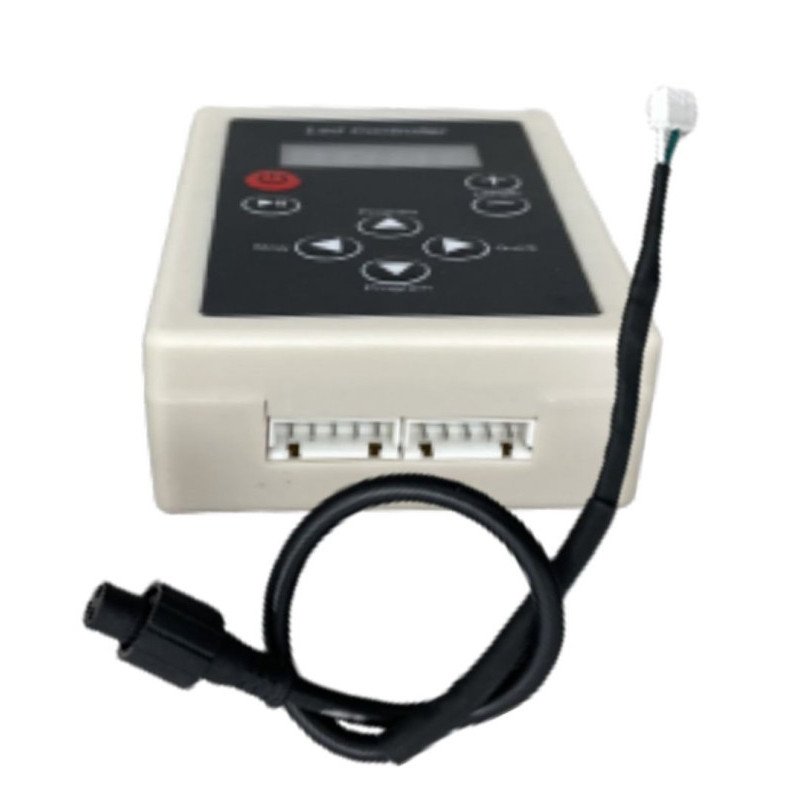

LED RGB RF Controller for 3D InfinityLED Floor

LED-00437

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) L94xW60XH25mm

New product

This LED RGB RF Controller is designed for the InfinityLED 3D effect floor, allowing wireless control over lighting effects and color settings via RF remote. Constructed from aluminum and PC materials, it supports 50/60 Hz frequency and operates between -20°C and 55°C, ensuring durability with 100000 switching cycles.

132 Items

Order now and receive it The day after tomorrow

112,19 € tax incl.

Métodos de pago

More info

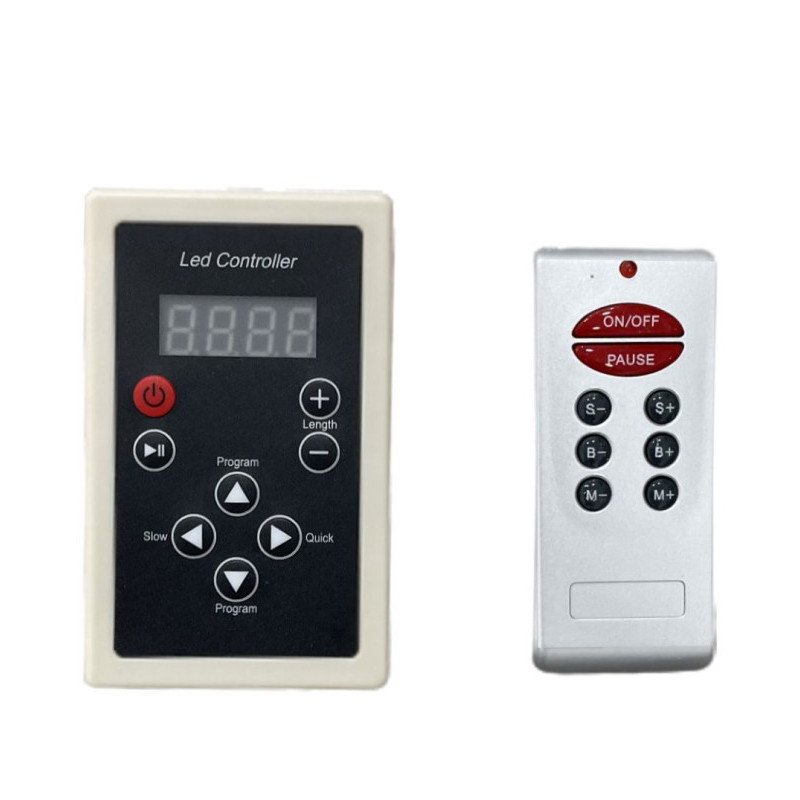

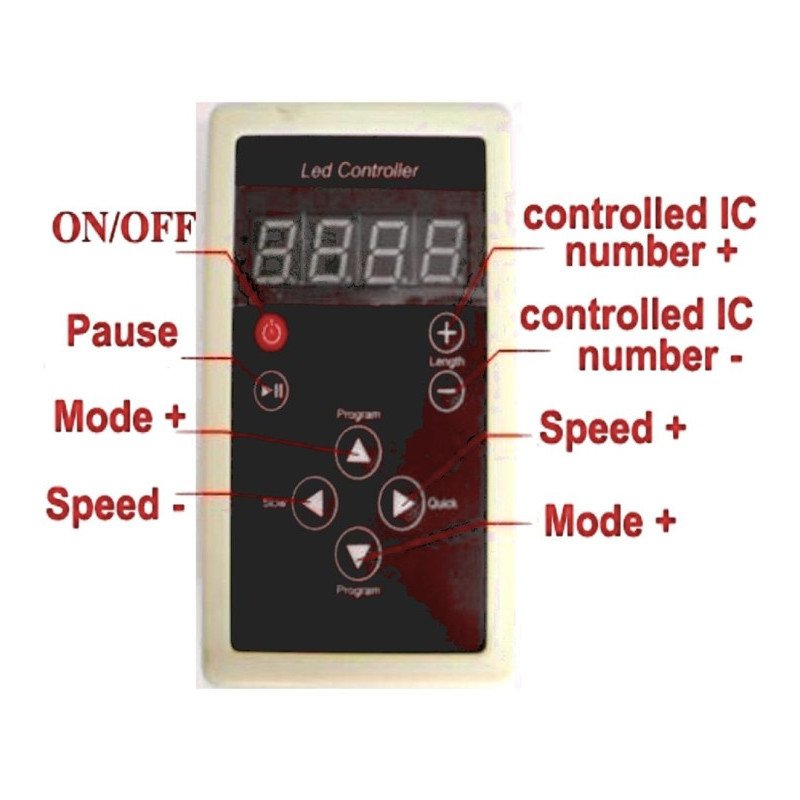

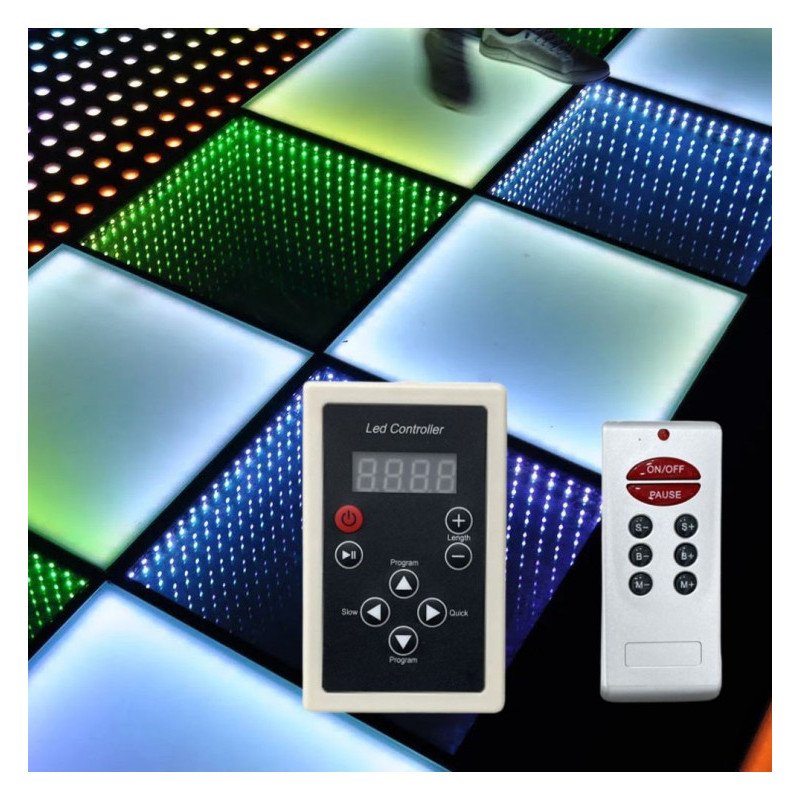

RGB controller for the InfinityLED 3D effect floor – RF Magic. Enjoy light magic by controlling the MAGIC LED strips and the InfinityLED 3D effect floor from your RF remote. Includes 133 programs with effects and transitions to create unique atmospheres. You can also set your preferred colors to personalize your lighting. If your LED strip is LED Magic, each LED can have an independent color, letting you create even more impressive effects.

Durability and Material Composition

The controller is constructed from a combination of aluminum and polycarbonate (PC), providing a sturdy yet lightweight housing that ensures protection and longevity in various environments.

Electrical and Environmental Specifications

It functions reliably within a frequency range of 50 to 60 Hz, compatible with standard power supplies worldwide. The device operates effectively in temperatures ranging from -20°C up to 55°C, making it suitable for a variety of indoor settings.

Performance and Reliability

Engineered to endure up to 100000 switching cycles, this controller offers robust performance for frequent use without degradation. Its build quality supports consistent operation to meet the demands of dynamic lighting applications.

Frequently Asked Questions

What is the operating temperature range of the controller?

The controller operates reliably between -20°C and 55°C.

How many switching cycles can the controller handle?

It is designed to endure up to 100000 switching cycles.

Which materials are used in the construction of the controller?

The controller housing is made of aluminum and polycarbonate (PC).

Which power frequencies does the controller support?

The controller supports both 50 Hz and 60 Hz frequencies.

View technical specifications Hide technical specifications
Certificates CE - ROHS
Construction Material Aluminum +PC
Warranty years 3
Dimensions (mm) L94xW60XH25mm
Rated Voltage 12V DC
Estimated LED Diode Life (H) 50.000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Control Modes Remote
Number of Channels 4

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
