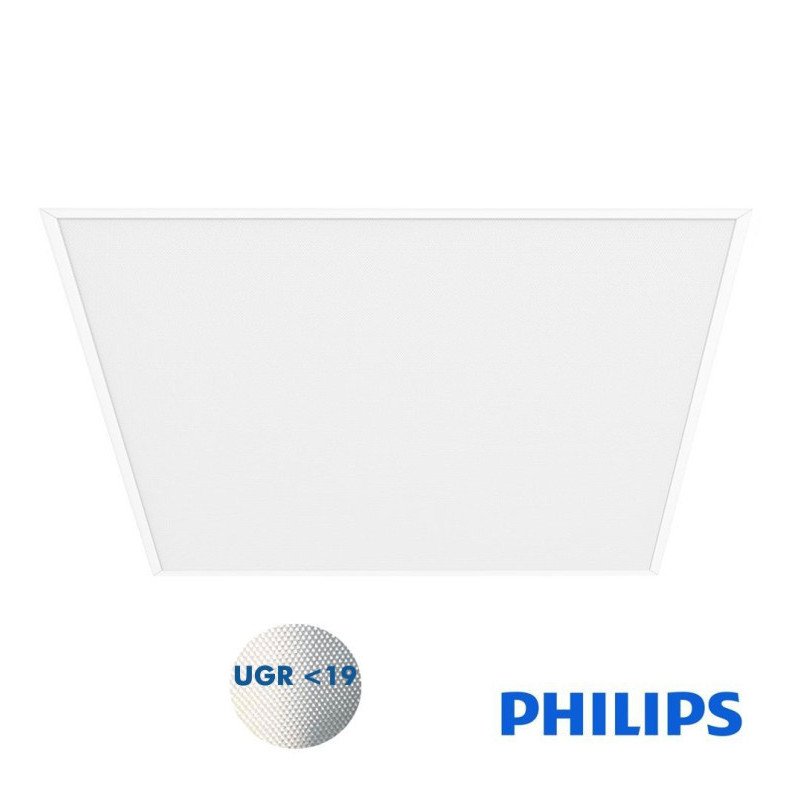

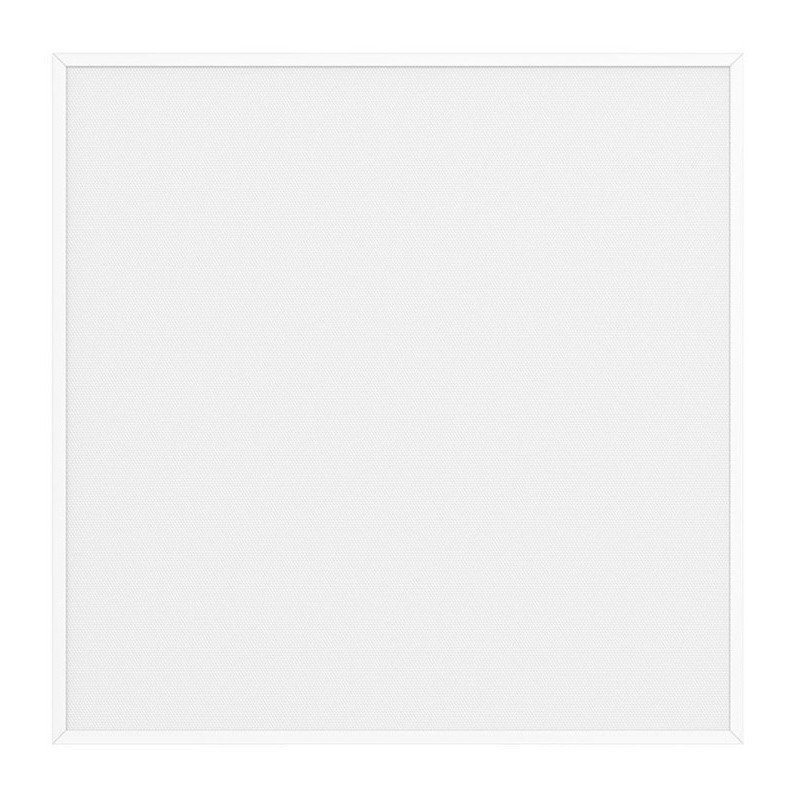

LED Panel 60x60 40W Slim Frame UGR19 Philips Driver
Certificates
CE-RoSH-TÜV-ENEC
Construction Material
Steel +PC

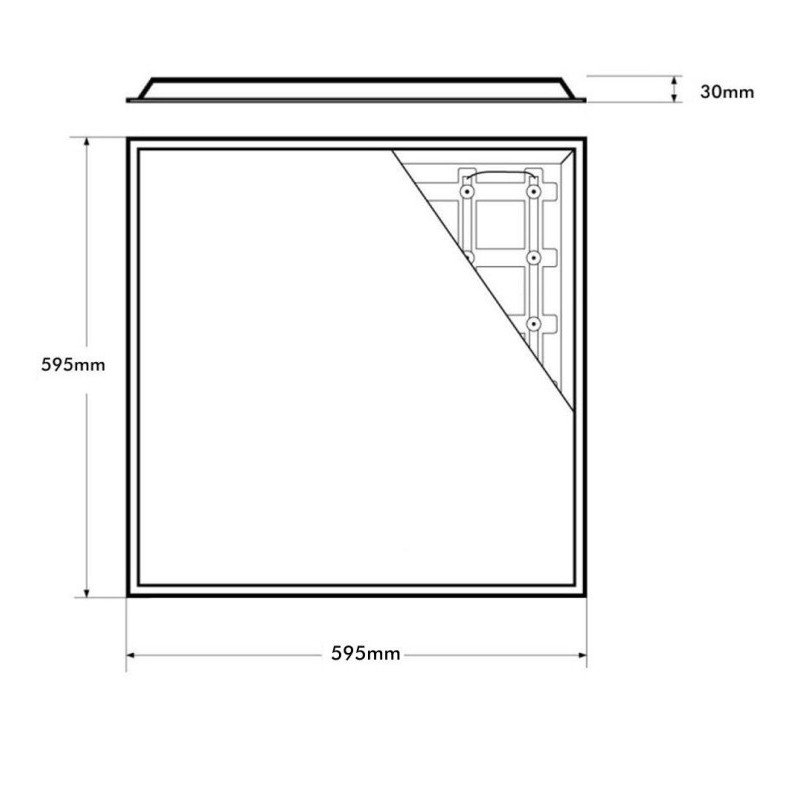

Dimensions (mm)
595x595mmH30mm
Rated Power
40W
Beam Angle (º)
120º
New product

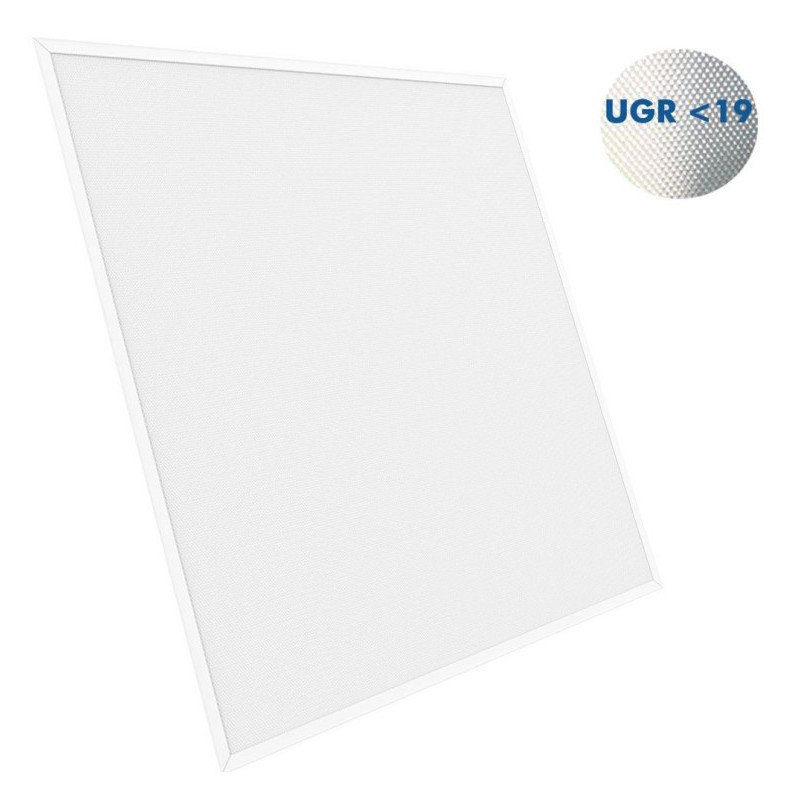

The LED Panel 60x60 Slim Frame offers a modern, low-profile design with efficient 40W power consumption, high-quality Philips driver, and a color rendering index (CRI) of 82. Available in neutral and cool white, it provides uniform illumination with low glare (UGR<19) and robust construction including impact protection IK05.
39 Items
More info

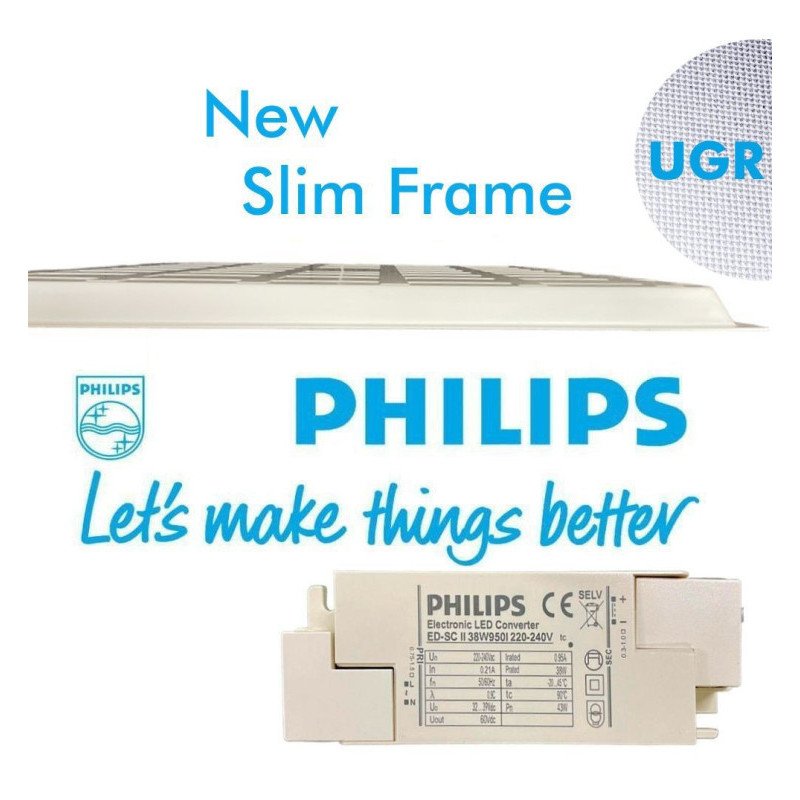

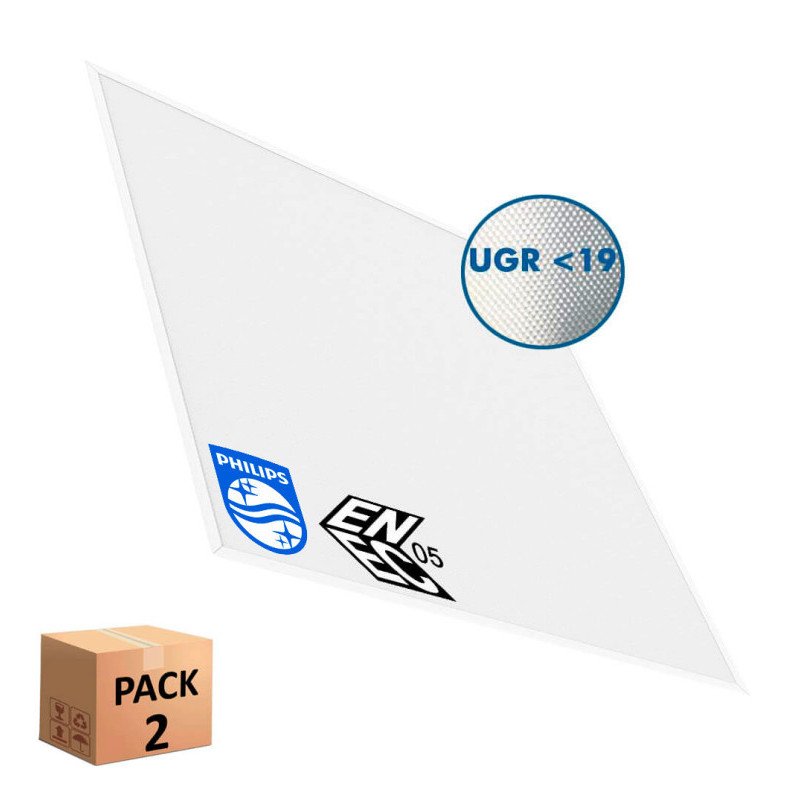

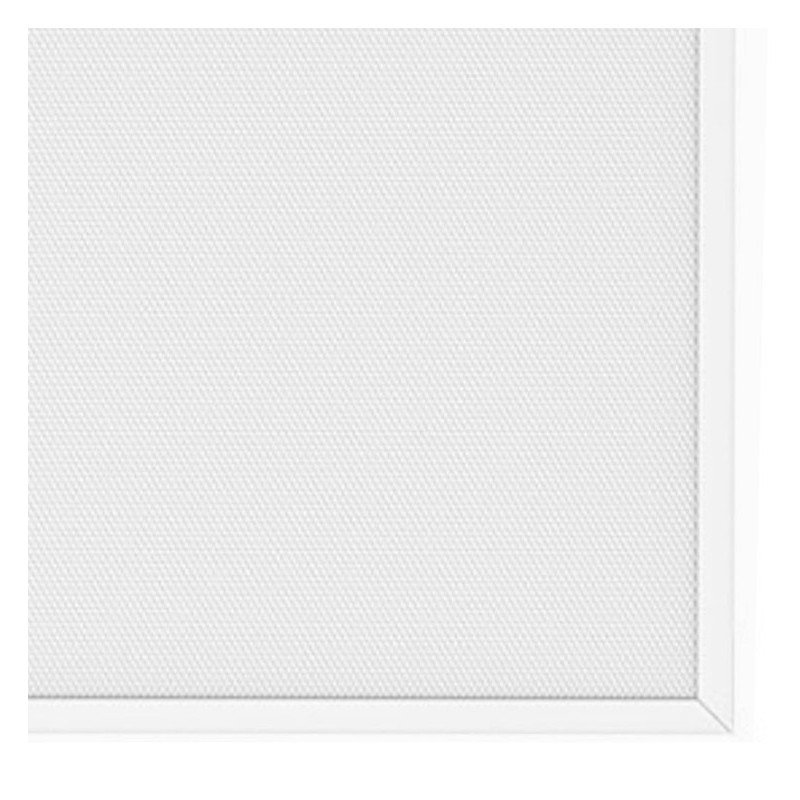

PACK LED Panel 60x60 – SLIM FRAME – 40W with Philips driver, UGR>19 and no flicker. ENEC05 certified. The Slim Frame design reduces the visibility of the frame for a clean, modern look, blending into the ceiling with uniform illumination. Made from high-quality aluminum for durability and reliable performance, with a 5-year warranty.
Performance and Efficiency

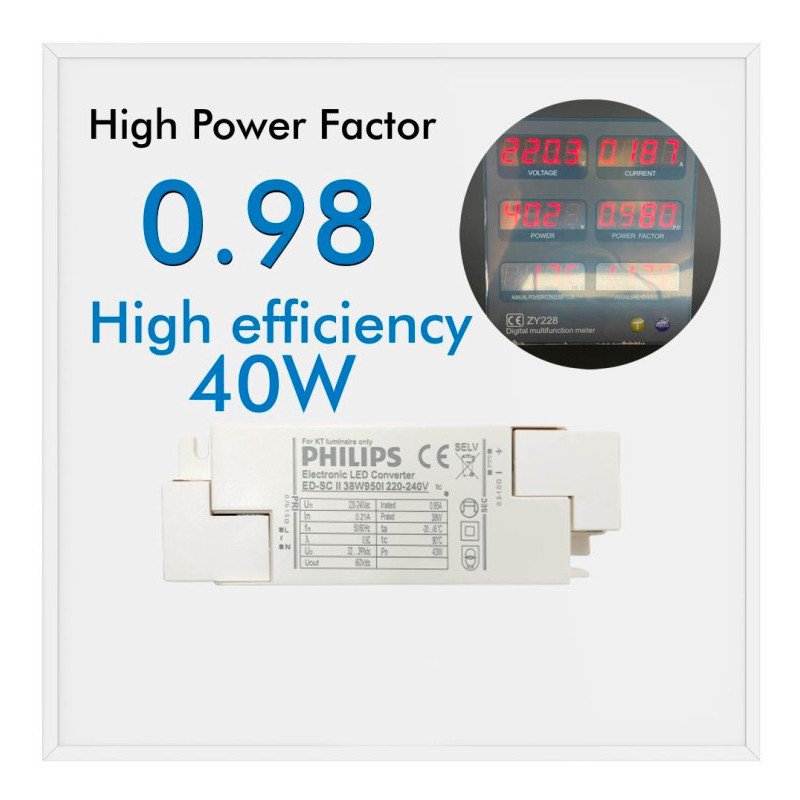

This LED panel delivers an estimated luminous flux of 4800 lm at 40W, achieving a declared efficacy of 120 lm/W. It operates with a high power factor of 0.98, ensuring efficient electrical usage. The panel supports standard frequency ranges of 50 and 60 Hz, making it compatible with common power grids.
Robust Design and Reliability
Constructed from steel and polycarbonate (PC), the panel features impact protection rated at IK05, safeguarding it against minor mechanical shocks. Its operational temperature range spans from -20°C to 55°C, allowing it to perform well in various indoor environments. With a rated switching cycle life of 100000 and a quick startup time of 0.2 seconds, this panel proves to be a durable and reliable lighting solution.
Light Quality and Options

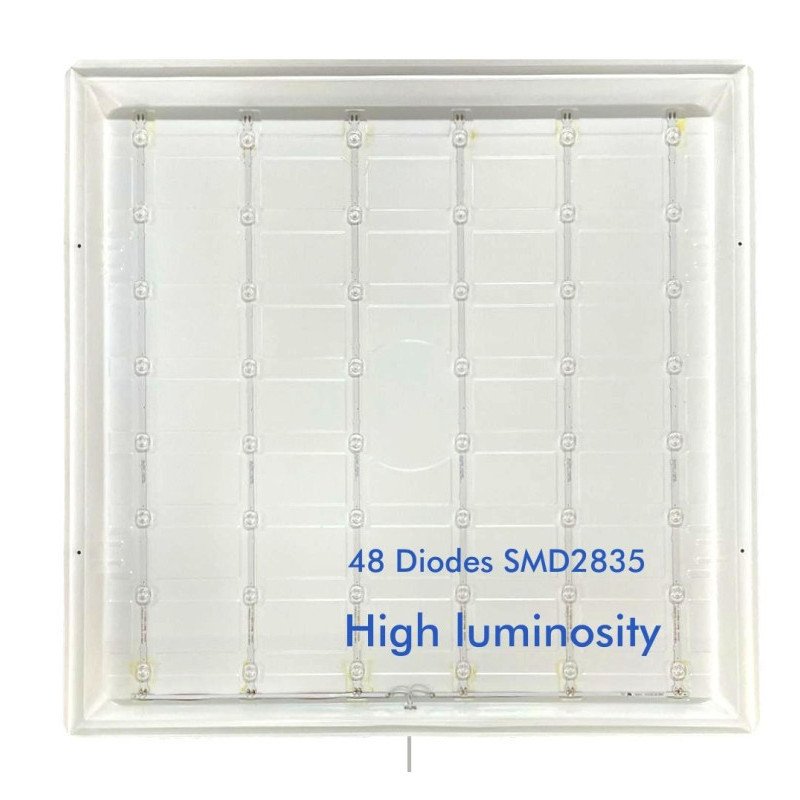

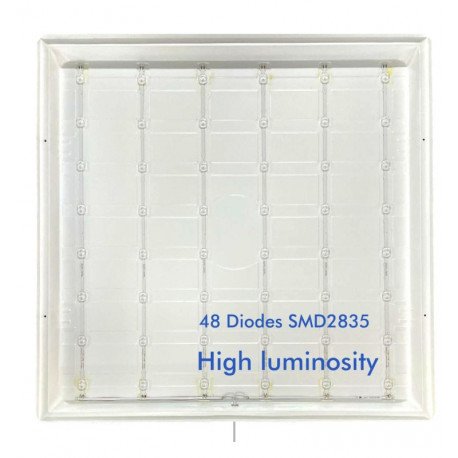

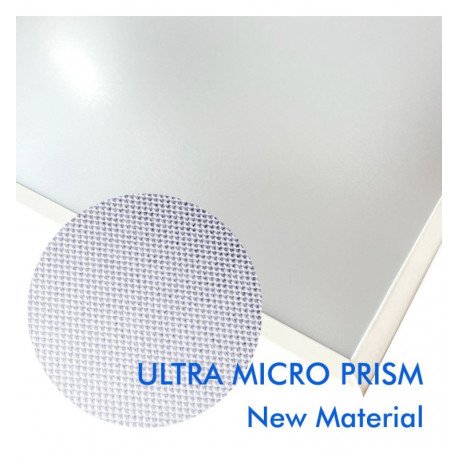

The panel utilizes SMD 2835 LEDs and offers two color temperature options: 4000K (neutral white) and 5700K (cool white). With a beam angle of 120°, it evenly distributes light to minimize glare, supported by a Unified Glare Rating (UGR) below 19, suitable for workspaces requiring visual comfort.
Frequently Asked Questions
What color temperatures are available for this LED panel?
This model is available in neutral white (4000K) and cool white (5700K) options.
Is this panel suitable for installation in areas with fluctuating temperatures?
Yes, it operates reliably in temperatures ranging from -20°C to 55°C.
What protection does the panel have against impacts?
It has an IK05 rating, offering protection against minor impacts and shocks.
Can the driver be dimmed?
The available data does not specify dimming capabilities for the Philips driver used in this panel.
View technical specifications Hide technical specifications
Certificates
CE-RoSH-TÜV-ENEC
IP Rating
Front: IP40 - Driver: IP20
Construction Material
Steel +PC
Warranty years
5

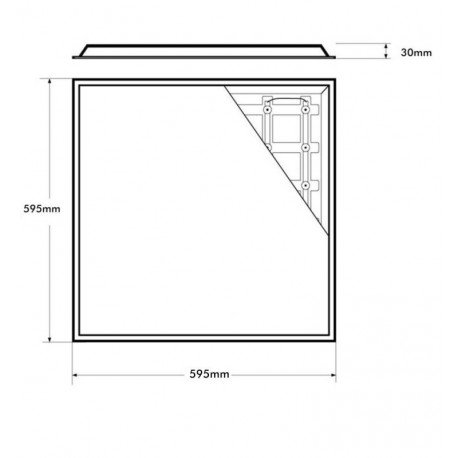

Dimensions (mm)
595x595mmH30mm
Rated Power
40W
Rated Voltage
220V-240V
CRI - Color Rendering Index
82
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Power Factor (PF)
0.98
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK05
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
4000K-5700K
Luminous Flux-Lm
4800
LED Type
SMD 2835
Beam Angle (º)
120º
Luminous Efficacy (Lm/W)
120 Lm/W

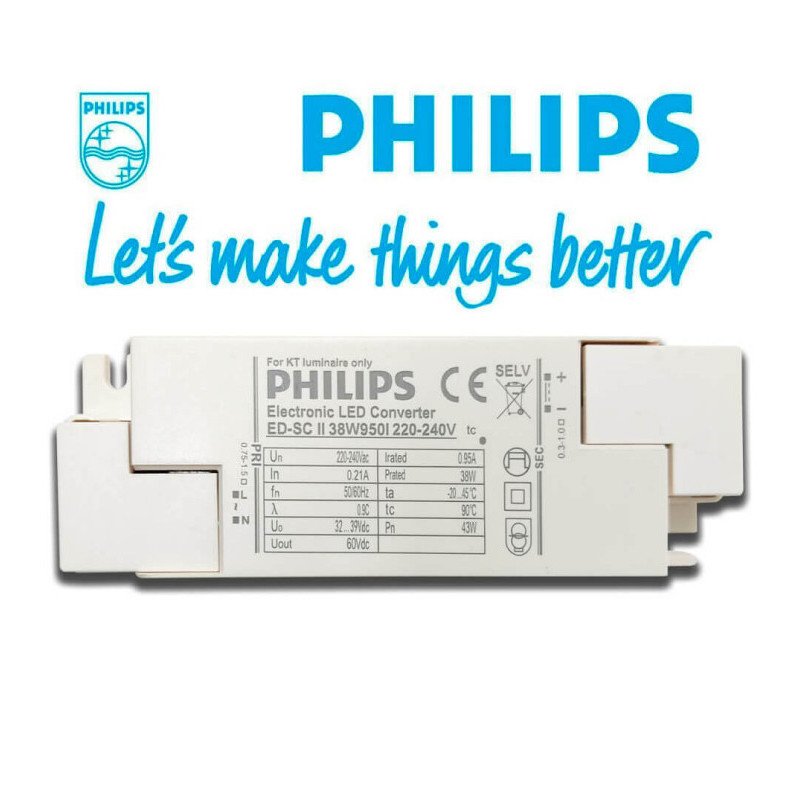

Driver Included
Philips Driver
Glare Index (UGR)
17
Units per Masterbox
10
