LED High Bay Optical Module 40W IP65 for Outdoor Street Light
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
125x95x30mm
Rated Power
40W
Beam Angle (º)
80º - 150º
New product

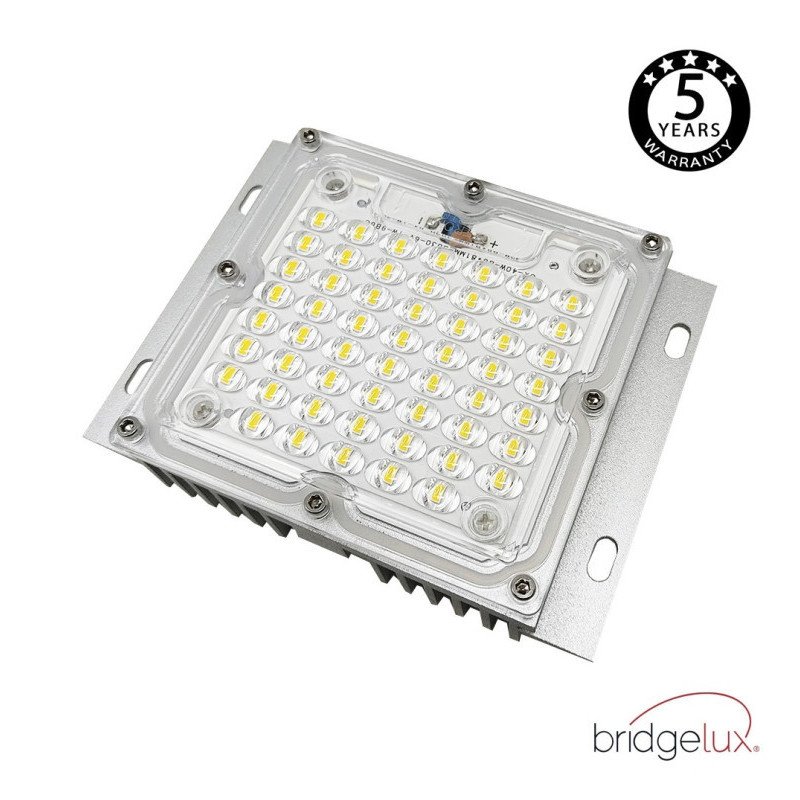

40W IP65 LED optical module for outdoor street lights, with 54 Bridgelux SMD 3030 diodes and a GXTronic driver.
356 Items
More info

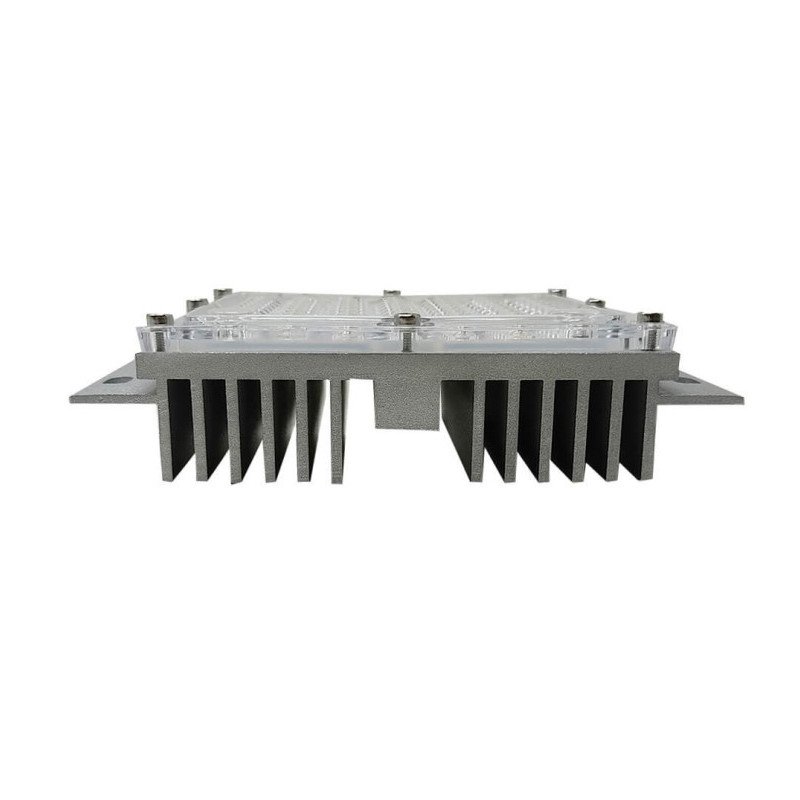

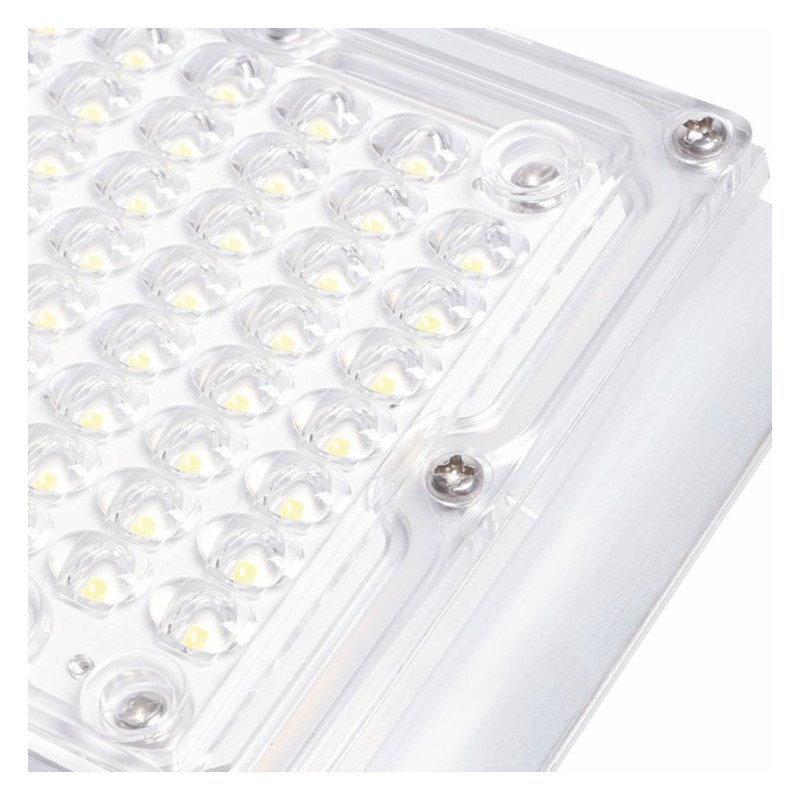

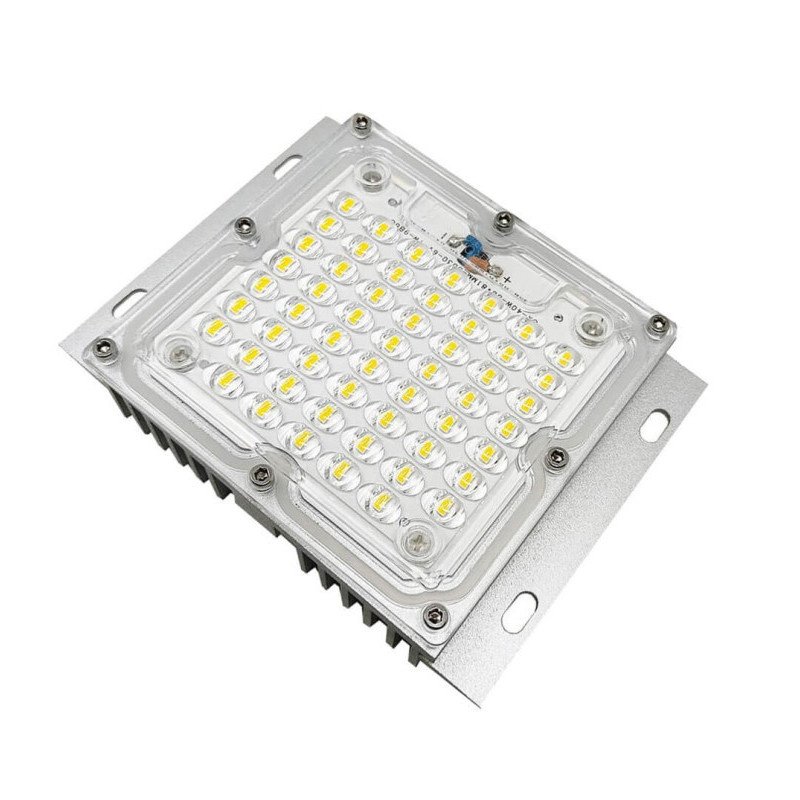

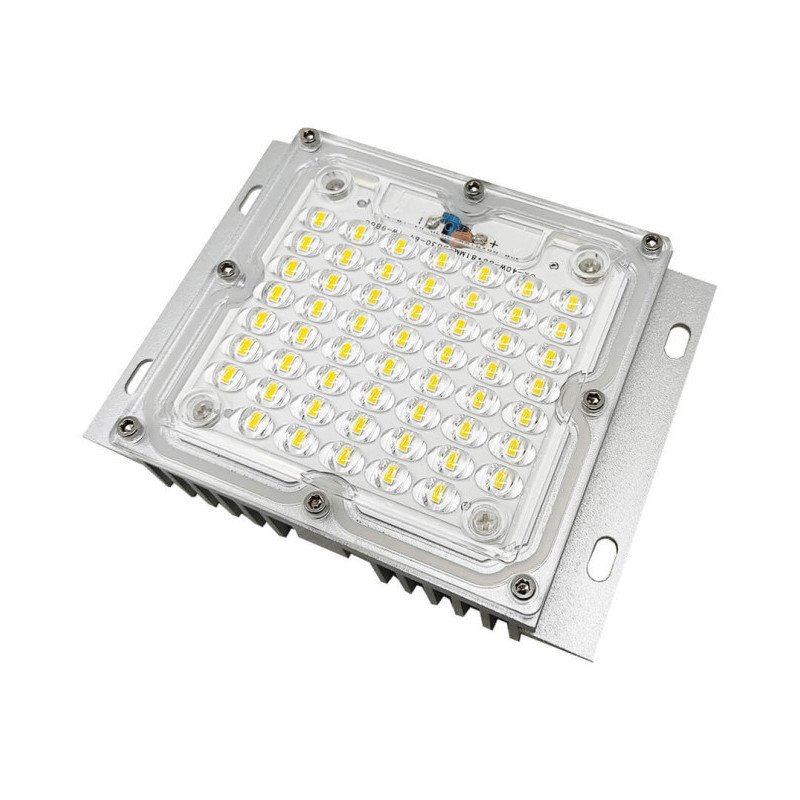

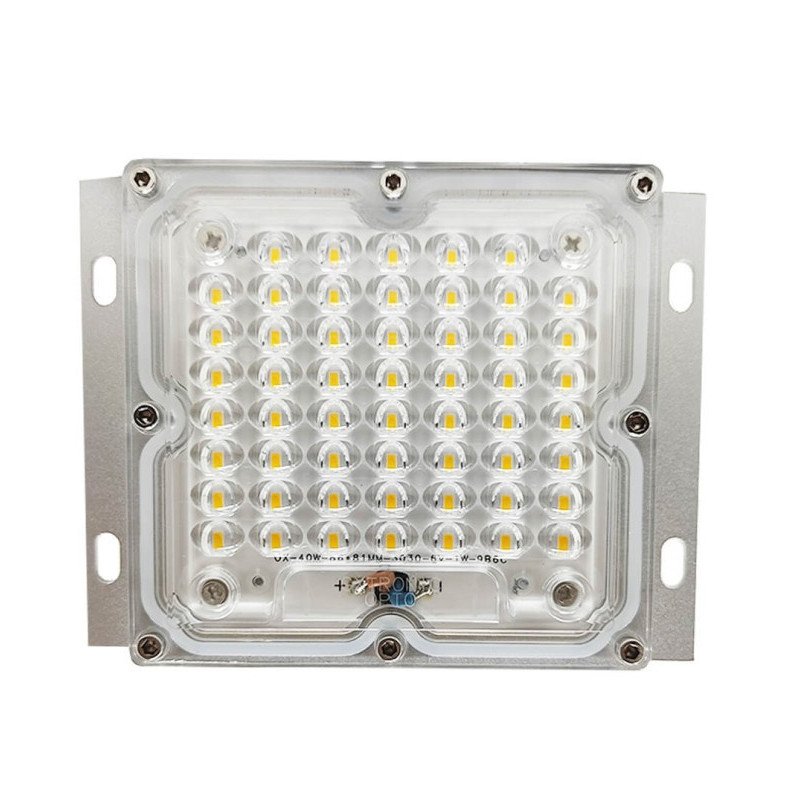

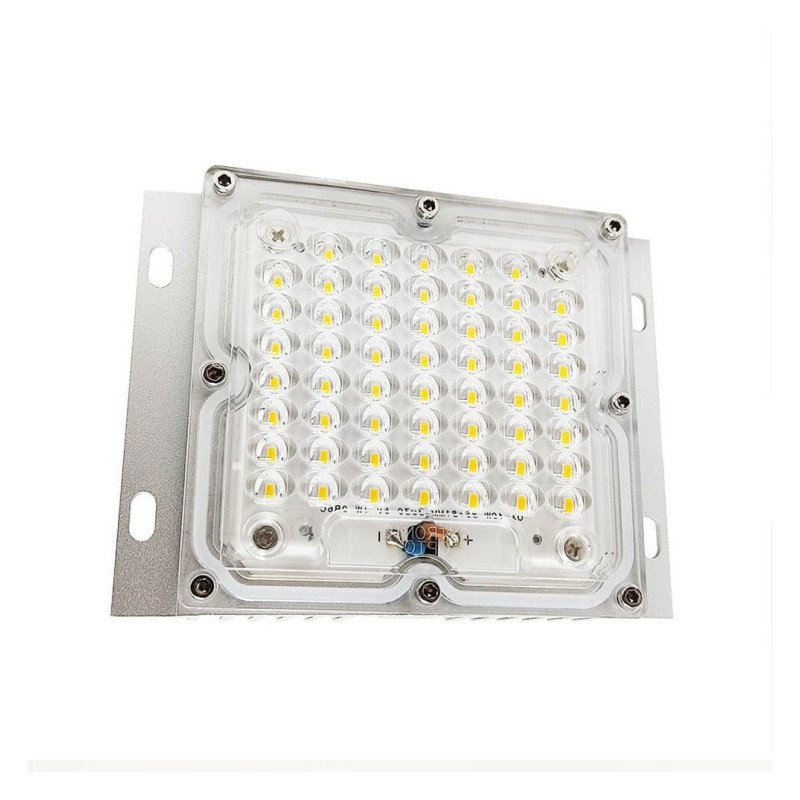

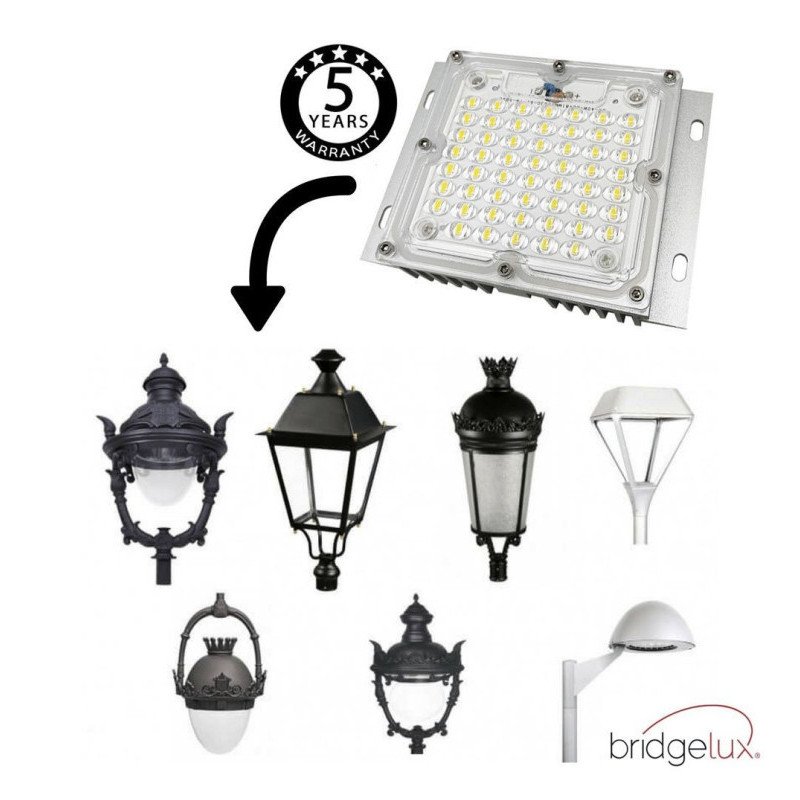

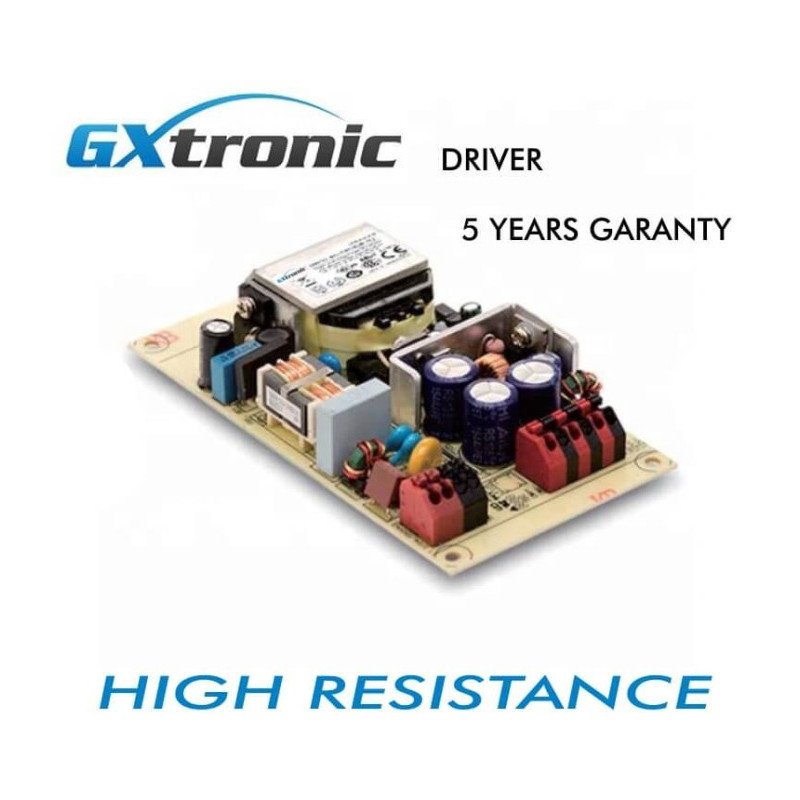

40W Bridgelux LED optical module for outdoor street lights, IP65. This retrofit optical block is designed as a replacement for older bulbs, providing strong illumination of up to 5400 lumens. It features 54 Bridgelux SMD 3030 LED diodes in 4-core configuration (2240 DS-C30) and a high-quality GXTronic driver with a rated lifetime of over 50,000 hours, plus instant start. Made from high-purity aluminum to improve heat dissipation, helping extend service life and reduce energy consumption. Retrofit design compatible with existing luminaires.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP67-Exterior
Construction Material
Aluminum +PMMA
Warranty years
5

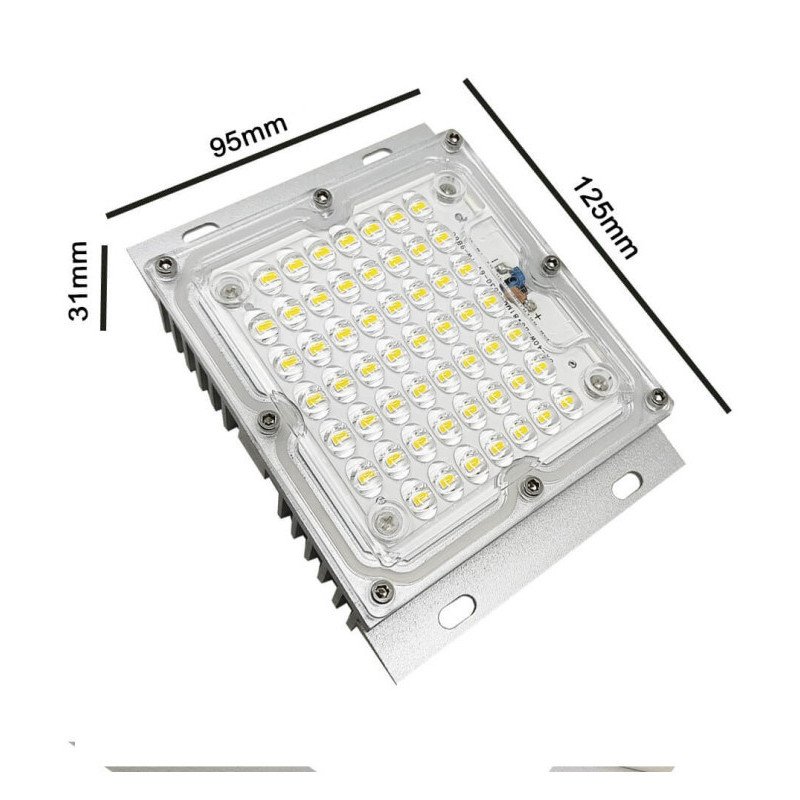

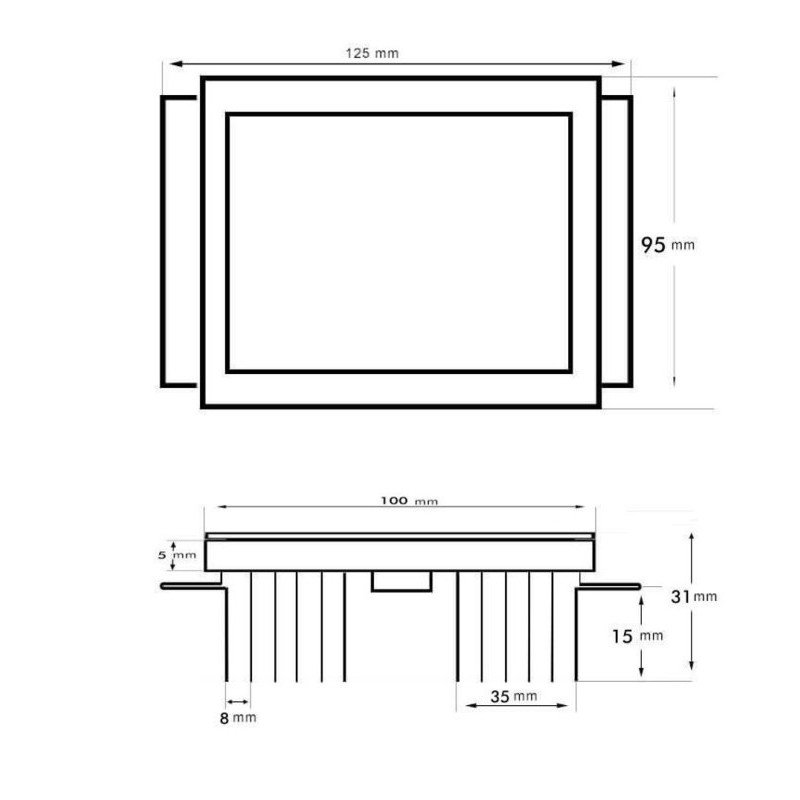

Dimensions (mm)
125x95x30mm
Rated Power
40W
Rated Voltage
85V-265V
CRI - Color Rendering Index
70
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
160 Lm/w
Estimated LED Diode Life (H)
40.000
Power Factor (PF)
0.96
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15ºC ~ +70ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Energy Class (2023 - EU-2019/2015)
C
Light Temperature
3000K - 4000K - 6000K
Luminous Flux-Lm
5400

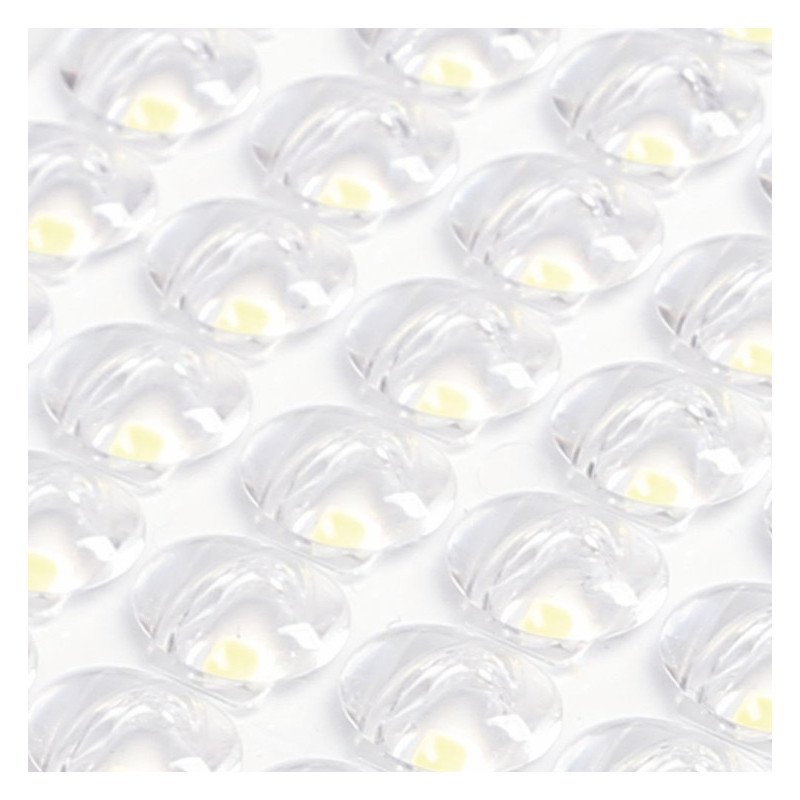

LED Type

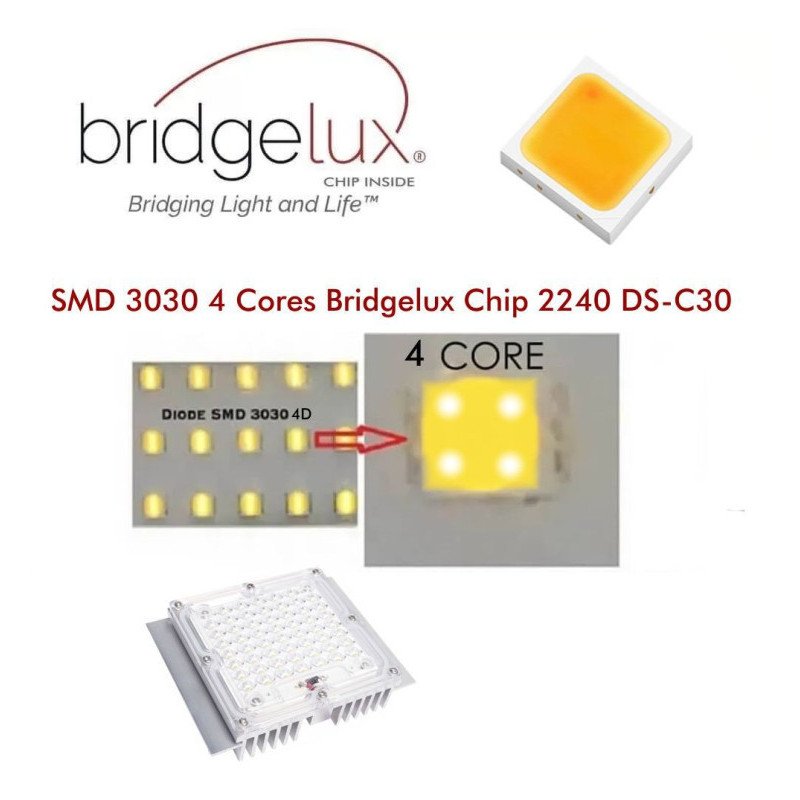

SMD 3030 4 Cores Bridgelux Chip 2240 DS-C30

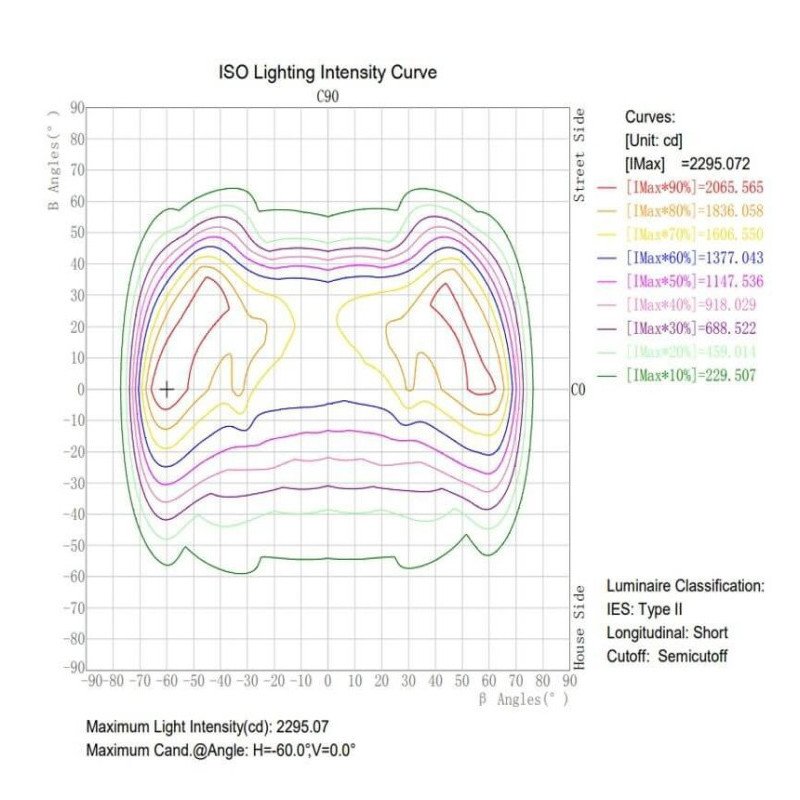

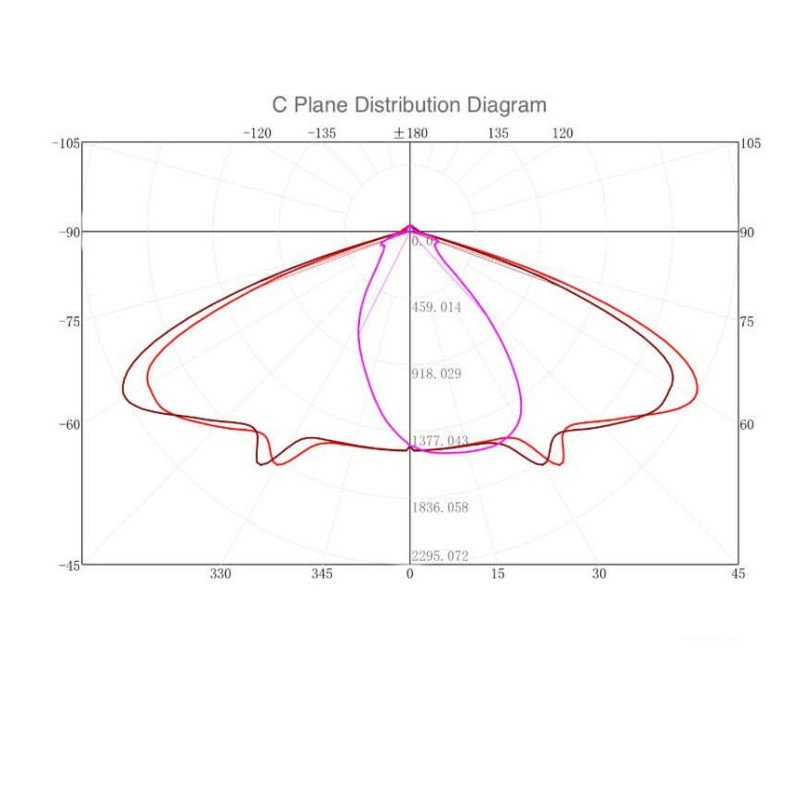

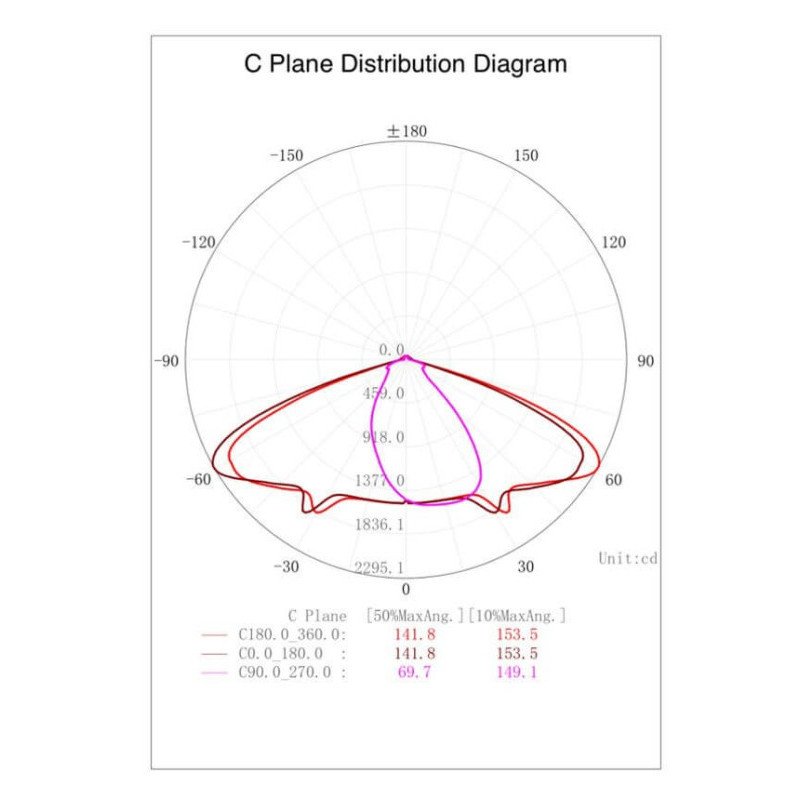

Beam Angle (º)
80º - 150º
Luminous Efficacy (Lm/W)
135Lm/W
Additional Information

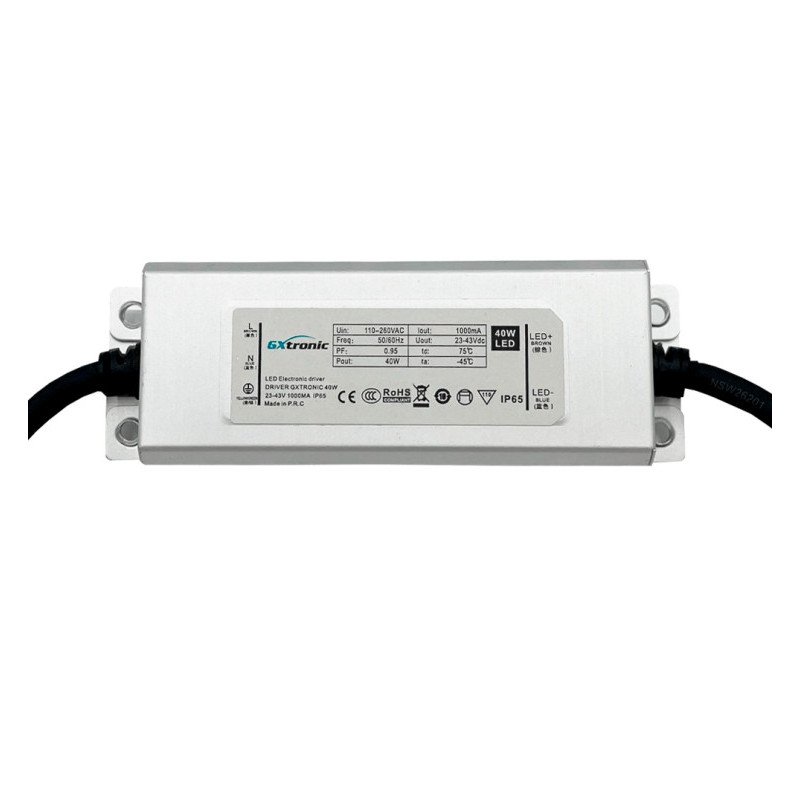

Driver: 23-42VDC- 1000mA
Driver Included
SI
Units per Masterbox
20
LED public and street lighting for roads and outdoor spaces
LED public and street lighting provides an energy-efficient way to illuminate streets, roads, avenues, residential areas, car parks, parks, pedestrian zones and industrial facilities. These solutions are designed to improve visibility and safety while delivering reliable performance over long operating periods.
At DomiLED you will find LED street lighting solutions with different power ratings, luminous outputs, optical distributions and colour temperatures. Our selection includes urban LED street lights, road luminaires, solar street lights and components for new installations or the replacement of traditional lighting systems.
When choosing a suitable luminaire, consider the installation height, road width, distance between lighting points and required illumination level. The IP protection rating, impact resistance, optical distribution and energy consumption should also be taken into account.
Explore our range of LED street lights and road luminaires and find efficient, durable outdoor lighting solutions adapted to the technical requirements of each project.
