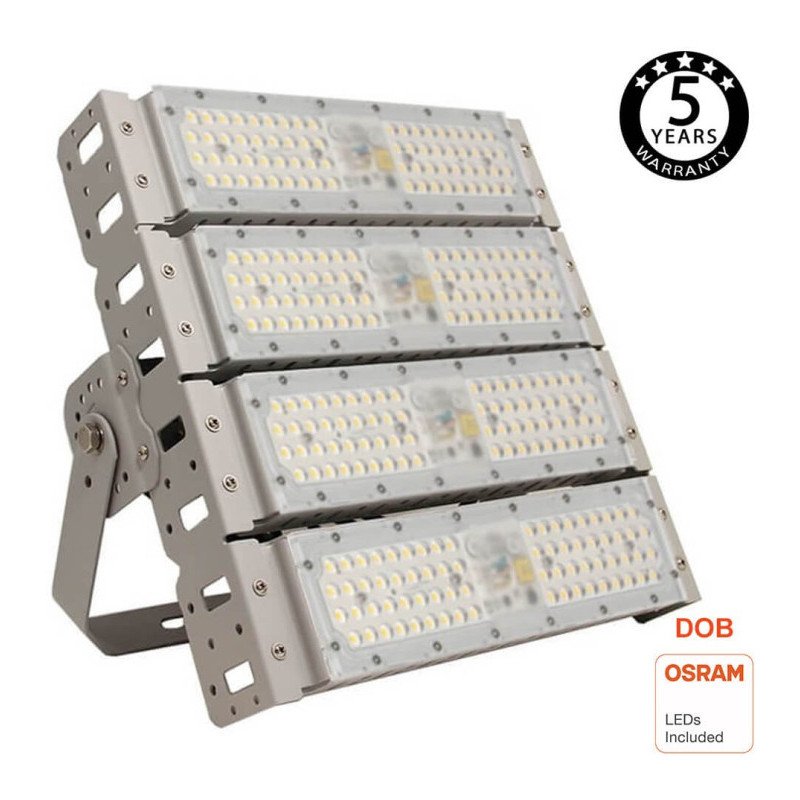

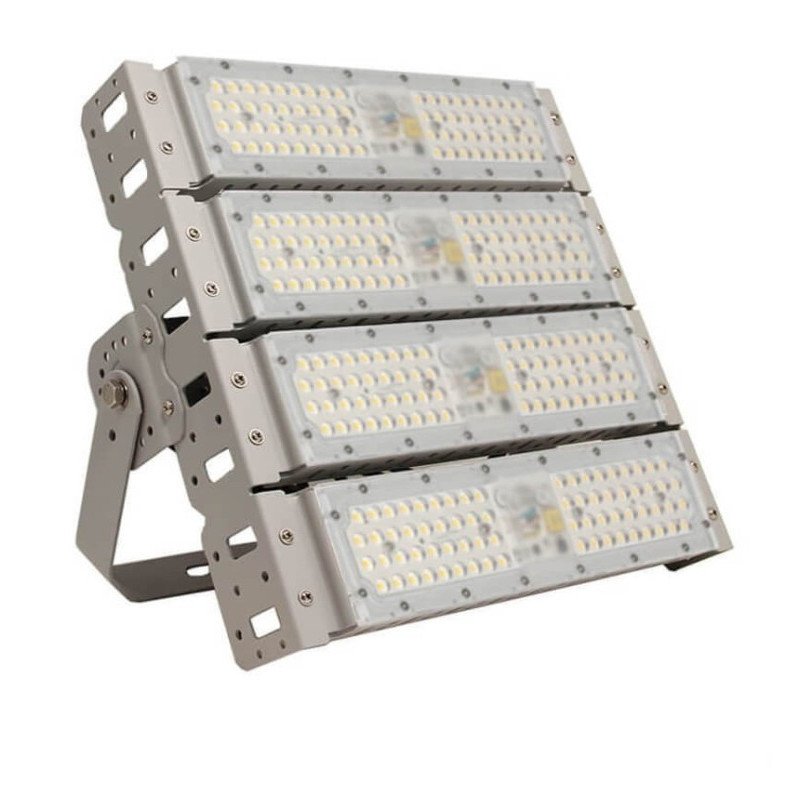

LED Floodlight 200W Outdoor 60° OSRAM DOB MAGNUM Aluminum

LED-00129

Certificates CE - ROHS
Construction Material Aluminum +PMMA
Dimensions (mm) 300mm x 315 mm x 55mm
Rated Power 200w
Beam Angle (º) 60º

New product

The LED Floodlight 200W Outdoor OSRAM DOB MAGNUM Aluminum delivers high-performance outdoor lighting with a 60° beam angle, estimated 28000 lm output, and robust IP65 and IK10 ratings. Featuring a durable aluminum and PMMA construction, it offers long-lasting operation in temperatures from -20°C to 55°C and comes with advanced OSRAM chips for reliable illumination.

149 Items

Order now and receive it The day after tomorrow

167,05 € tax incl.

Métodos de pago

More info

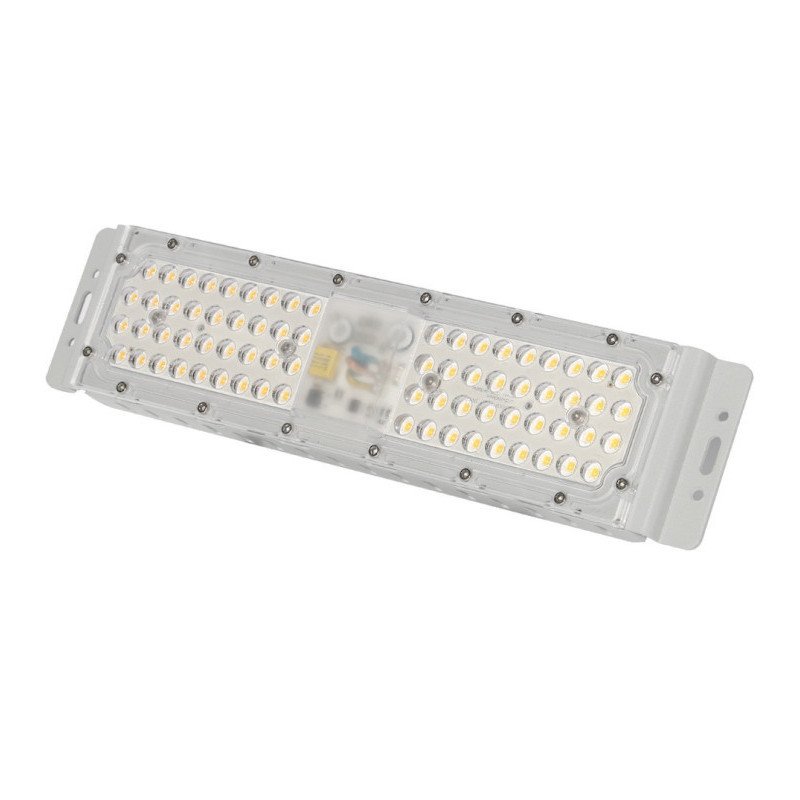

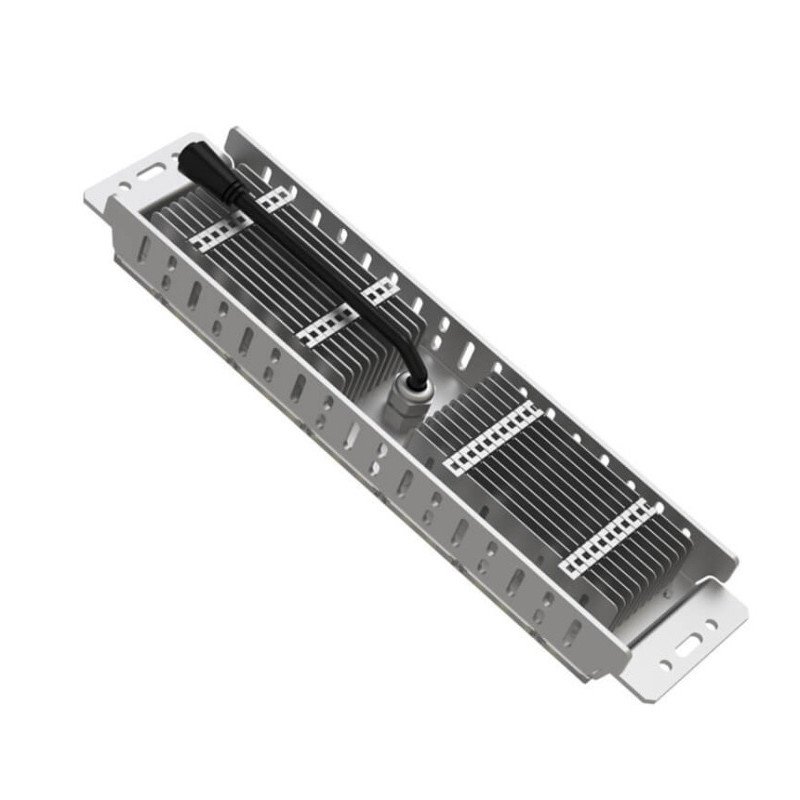

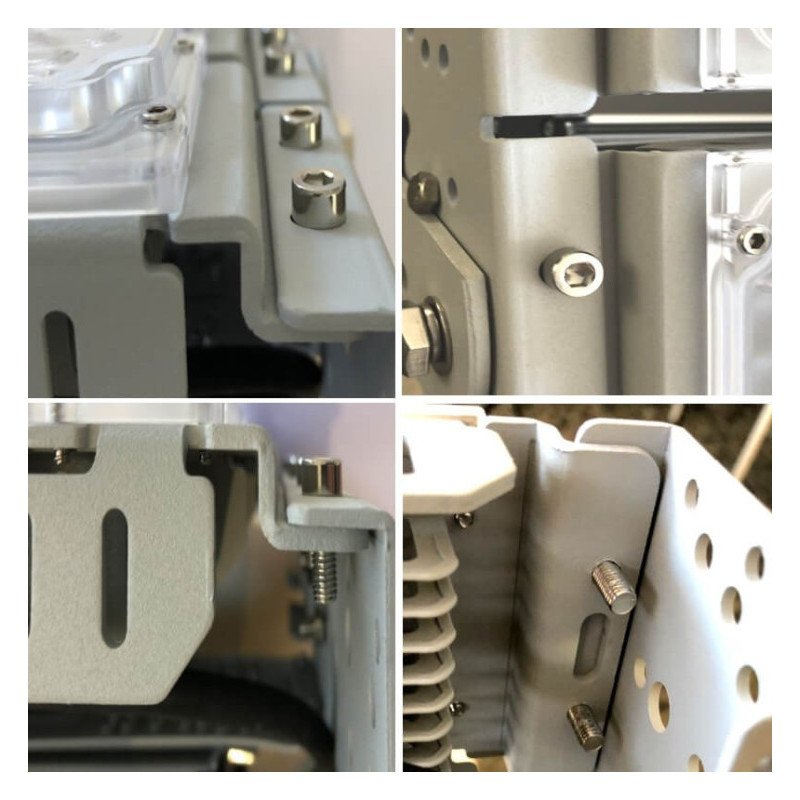

The 200W OSRAM DOB MAGNUM LED Floodlight with SMD3030-3D chip is designed to deliver effective lighting at medium distances thanks to its 60° beam angle. Its DOB (Driver On Board) system and the OSRAM 3030-3D triple-core chip provide high performance and reliability. The housing and handles are made from 100% aluminum 6063, oven-painted to help prevent salt oxidation. Supplied pre-assembled, it makes installation easier and reduces the need for large mounting poles due to its light weight.

Durability and Protection

Engineered for tough outdoor environments, this floodlight holds an IP65 rating ensuring protection against dust and water jets, and an IK10 impact rating to resist strong mechanical impacts. Its full aluminum housing paired with PMMA components resists corrosion and mechanical wear, suitable for varied weather conditions.

Electrical and Performance Features

Operating efficiently with a power factor of 0.97 and compatible with 175-265 V voltage range at both 50 and 60 Hz frequencies, the luminaire ensures stable performance. Its fast startup time of 0.2 seconds and high switching cycle tolerance of 100,000 cycles further contribute to operational resilience.

Lighting Quality and Options

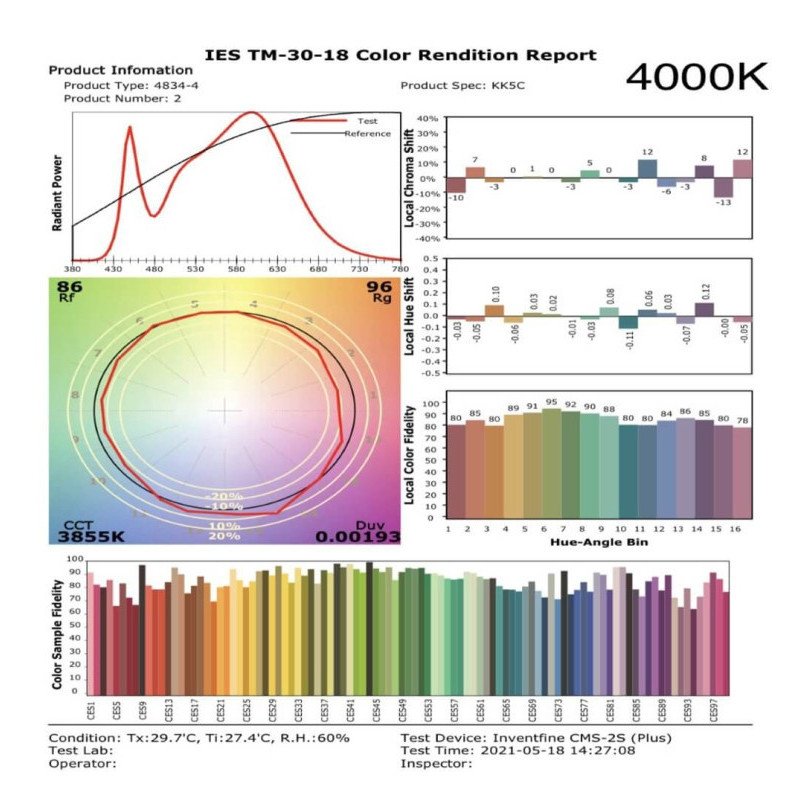

The floodlight employs 72 SMD 3030 3D OSRAM core LEDs, delivering a color rendering index (CRI) of 84, offering natural and vibrant illumination. It is available with correlated color temperature options of 4000 K and 5000 K, catering to different outdoor lighting preferences.

Frequently Asked Questions

What is the expected lifespan of the LED floodlight?

While the exact lifespan is not specified, the floodlight supports 100,000 switching cycles, indicating long-term durability suitable for extended outdoor use.

Can the beam angle be adjusted on-site?

The product comes with a fixed beam angle of 60°, set during purchase, and is not adjustable after installation.

Is the floodlight suitable for coastal or salt-rich environments?

Yes, the aluminum housing is oven-painted to reduce salt oxidation, enhancing durability in coastal conditions.

What are the recommended operating temperatures for this floodlight?

The device is rated to operate reliably within temperatures from -20°C to 55°C, making it suitable for a variety of climates.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 300mm x 315 mm x 55mm
Rated Power 200w
Rated Voltage 175-265V
CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.97
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 28000
LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 60º
Luminous Efficacy (Lm/W) 140Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRIC

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
