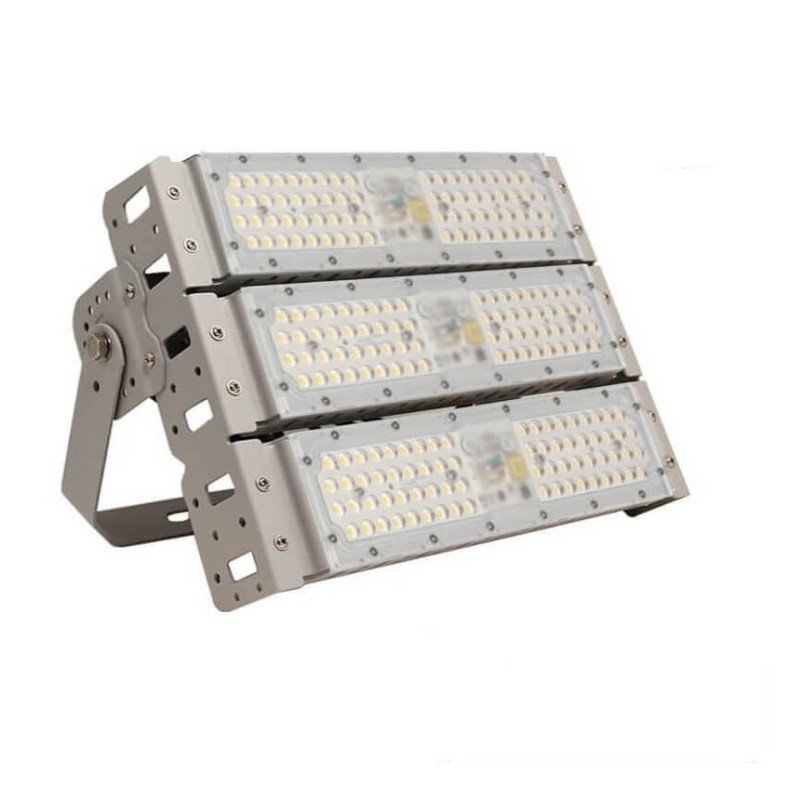

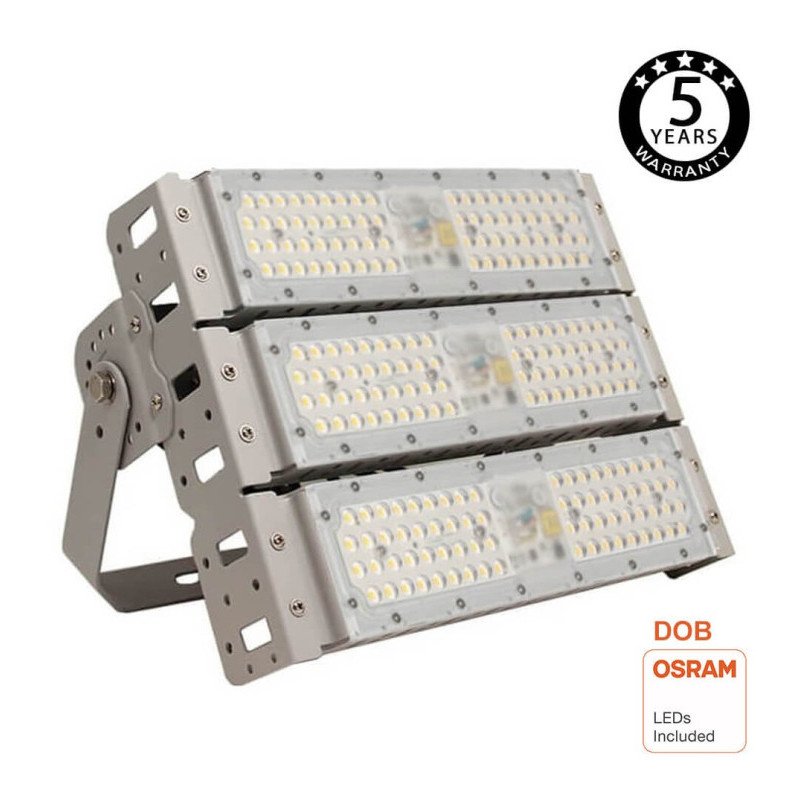

LED Floodlight 150W 90° OSRAM Chip SMD3030-3D

LED-00109

Certificates CE - ROHS
Construction Material Aluminum +PMMA

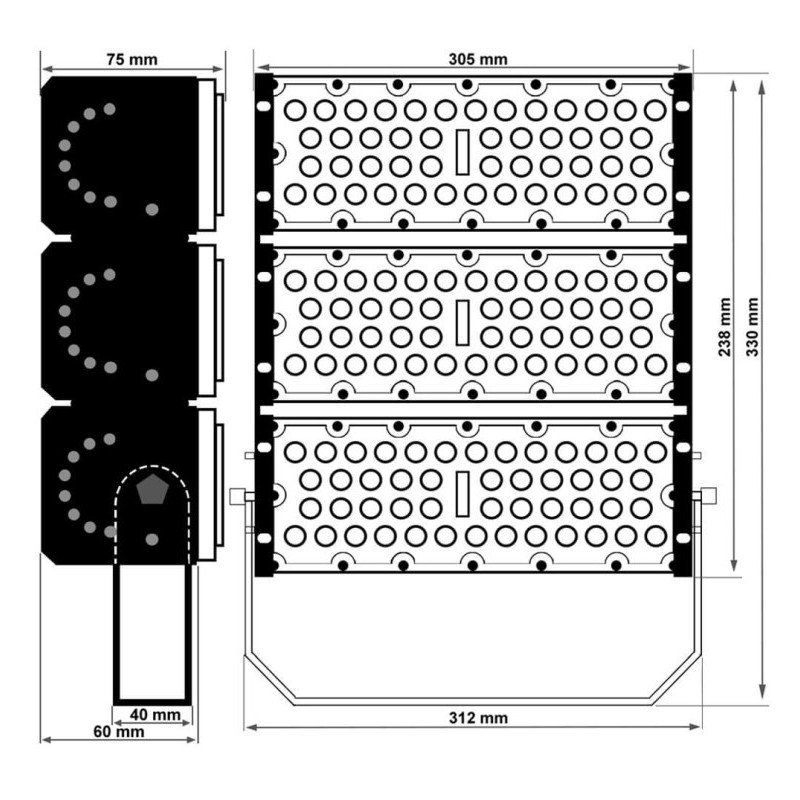

Dimensions (mm) 305x235x80mm
Rated Power 150W
Beam Angle (º) 90°

New product

The 150W OSRAM OS-CORE Magnum LED floodlight with 90° beam angle delivers an estimated 21000 lm from 72 high-efficiency SMD3030 3D diodes. Built in durable aluminum with PMMA diffuser, it offers excellent impact (IK10) and weather (IP65) resistance for reliable outdoor use, supporting 4000K or 5000K color temperatures.

26 Items

Order now and receive it The day after tomorrow

125,91 € tax incl.

Métodos de pago

More info

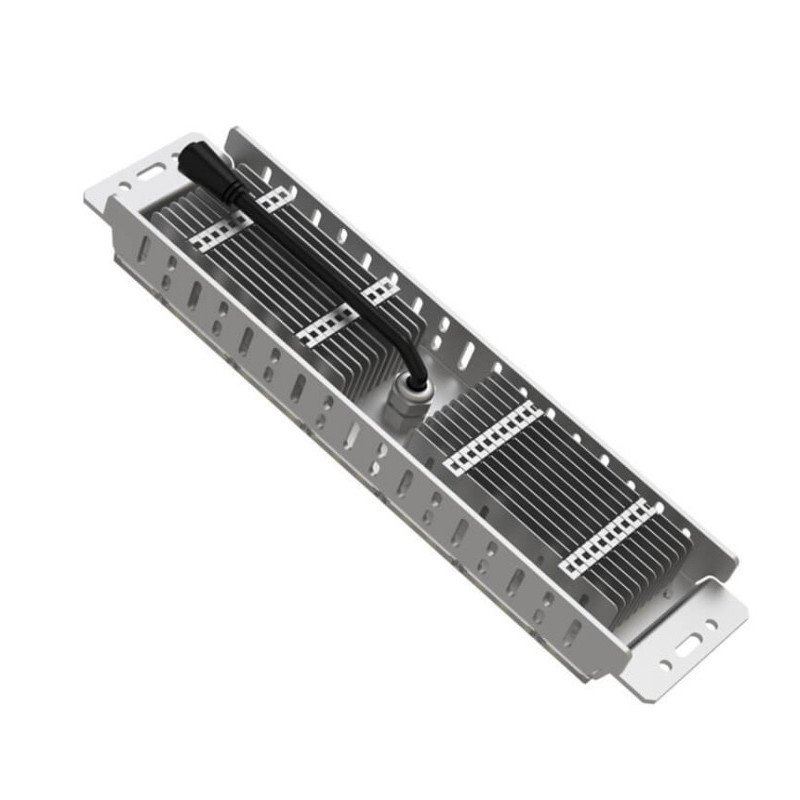

The 150W DOB MAGNUM OSRAM LED floodlight with OSRAM SMD3030-3D chip combines high power with a compact design in 6063 aluminum, oven-painted for resistance to salt oxidation. With a 90° beam angle, it is well suited for effective lighting at medium distances, helping create uniform lighting conditions. The DOB (Driver On Board) model features a triple-core diode, delivering high efficiency and reliability. Supplied pre-assembled for easier installation.

Robust Construction for Outdoor Durability

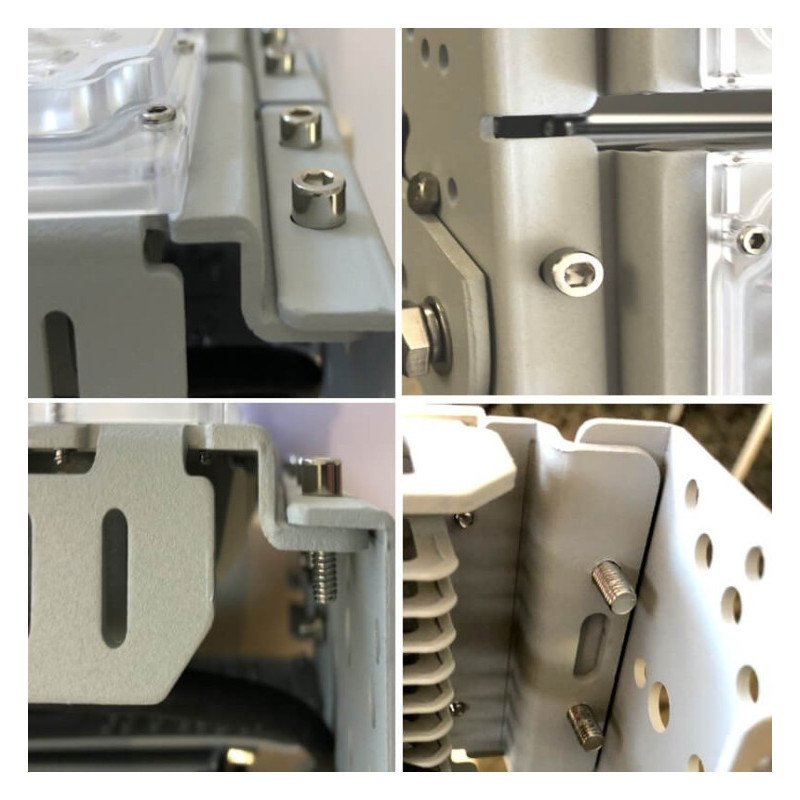

Constructed with corrosion-resistant 6063 aluminum and a PMMA lens, this floodlight withstands harsh environmental conditions. Its IK10 impact rating ensures resistance to mechanical shocks, while the IP65 rating protects against dust and water ingress, making it ideal for demanding exterior installations.

Advanced LED Technology and Efficiency

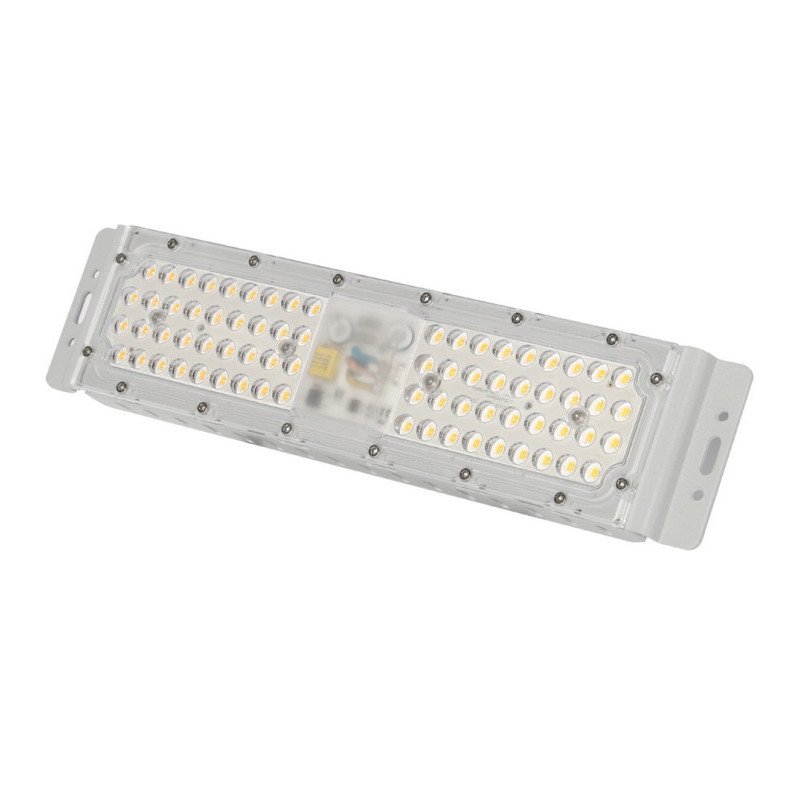

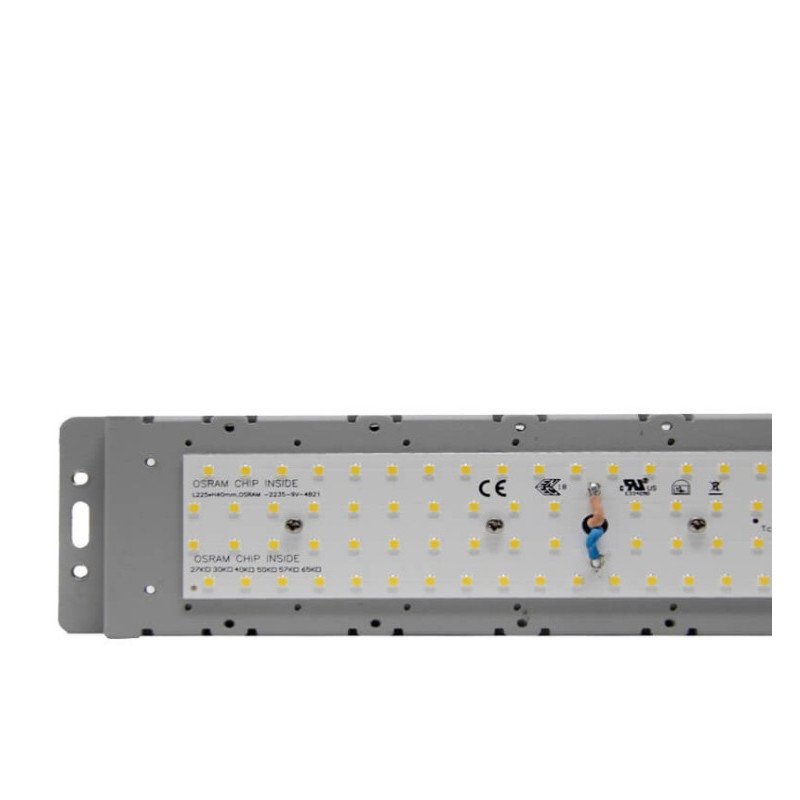

Equipped with 72 OSRAM SMD3030 3D LEDs featuring a triple-core OS-CORE chip, the luminaire achieves high luminous efficacy of 140 lm/W, resulting in an estimated 21000 lm output at 150 W power consumption. This technology ensures bright, consistent illumination with good color rendering (CRI 84).

Flexible Color Temperature Options

This floodlight is available in two stable correlated color temperatures, 4000 K and 5000 K, allowing selection of neutral to cool white light depending on application needs and preference.

Reliable Performance and Longevity

Designed with a robust DOB GXTRONIC ELECTRONIC driver and rated for 100000 switching cycles, the fixture ensures rapid startup (0.2 seconds) and reliable operation across a wide temperature range (-20°C to 55°C), suitable for various outdoor environments.

Frequently Asked Questions

What protection does the floodlight provide against the elements?

It has an IP65 rating for protection against dust and water jets, suitable for outdoor environments.

Can the floodlight operate in cold weather?

Yes, it functions effectively in temperatures as low as -20°C and up to 55°C.

What kind of light output can I expect?

At 150W nominal power, it produces an estimated luminous flux of 21000 lm with a high efficacy of 140 lm/W.

Is the floodlight impact resistant?

Yes, it features an IK10 rating, providing strong protection against mechanical impacts.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 305x235x80mm
Rated Power 150W
Rated Voltage 175-265V

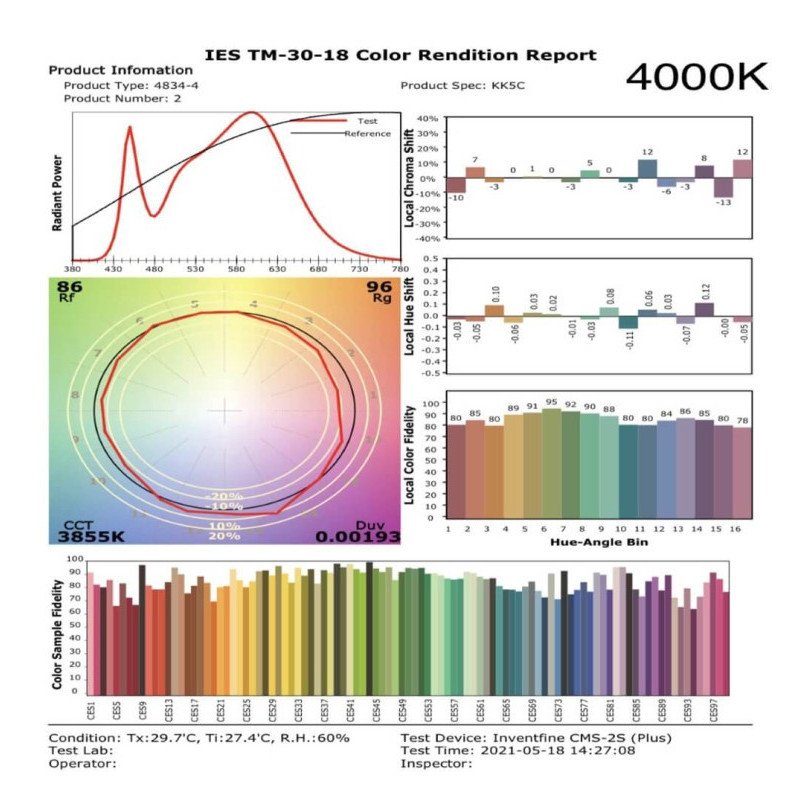

CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,91
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 21000
LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 90°
Luminous Efficacy (Lm/W) 140Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRONIC

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
