LED Floodlight 50W 90° OSRAM 6063 Aluminum

LED-00071

Certificates CE - ROHS
Construction Material Aluminum +PMMA

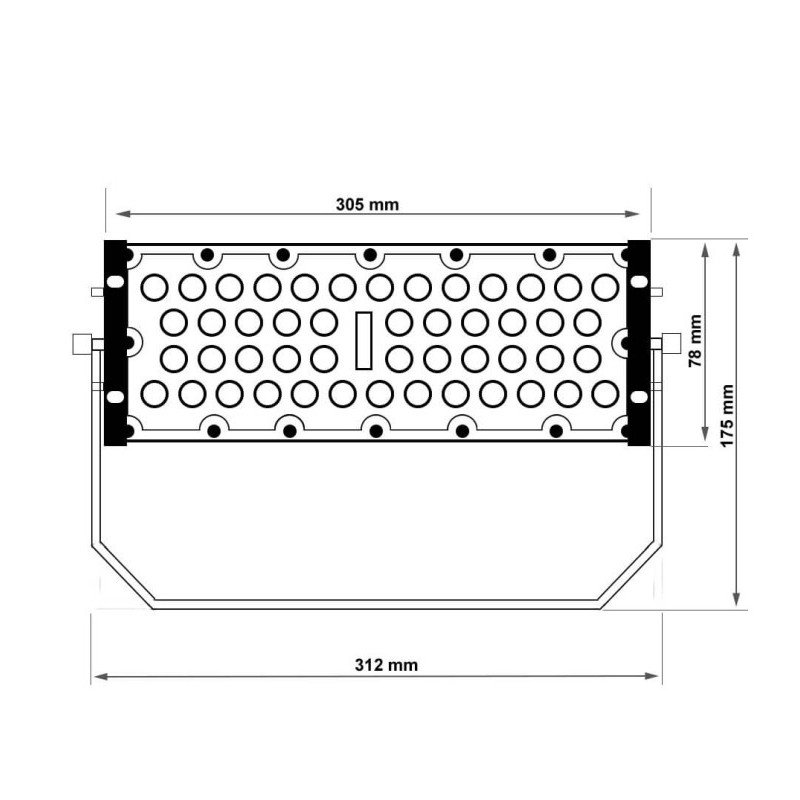

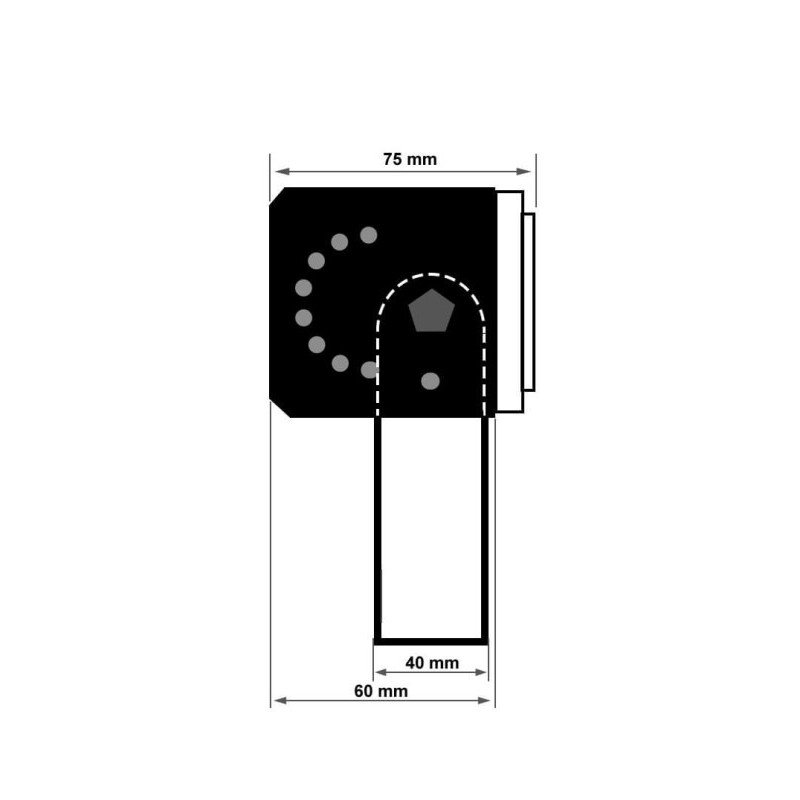

Dimensions (mm) 305x75x80mm
Rated Power 50w
Beam Angle (º) 90º

New product

The LED Floodlight 50W 90° features robust 6063 aluminum construction with high-impact IK10 protection and IP65 rating for versatile outdoor use. Equipped with OSRAM 72 SMD 3030 triple-core diodes, it delivers an estimated 7000 lm at 140 lm/W efficacy, operating reliably between -20°C to 55°C with a crisp 4000K or 5000K light color option.

79 Items

Order now and receive it The day after tomorrow

48,47 € tax incl.

Métodos de pago

More info

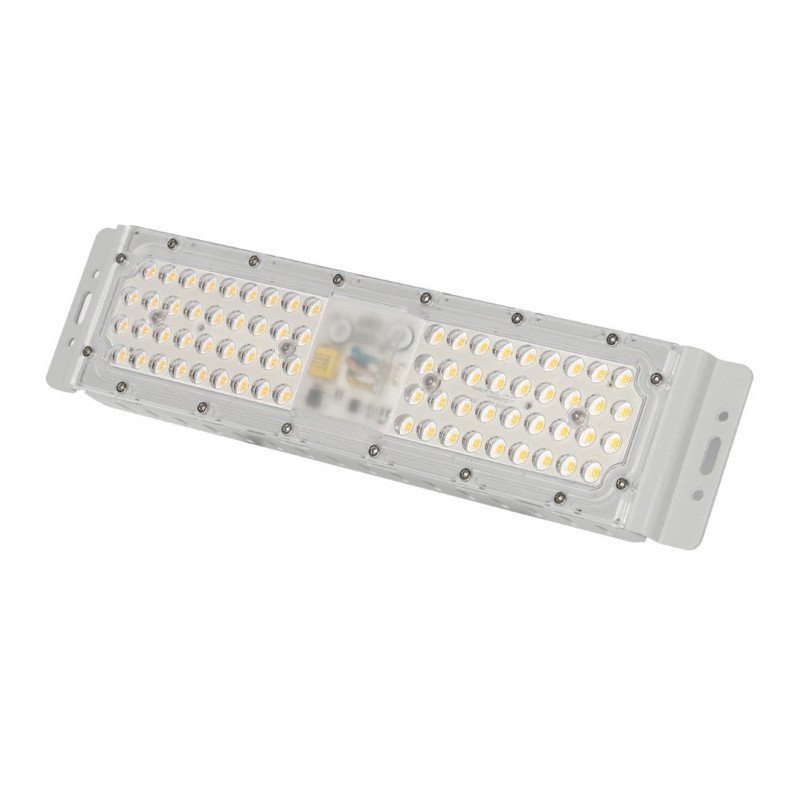

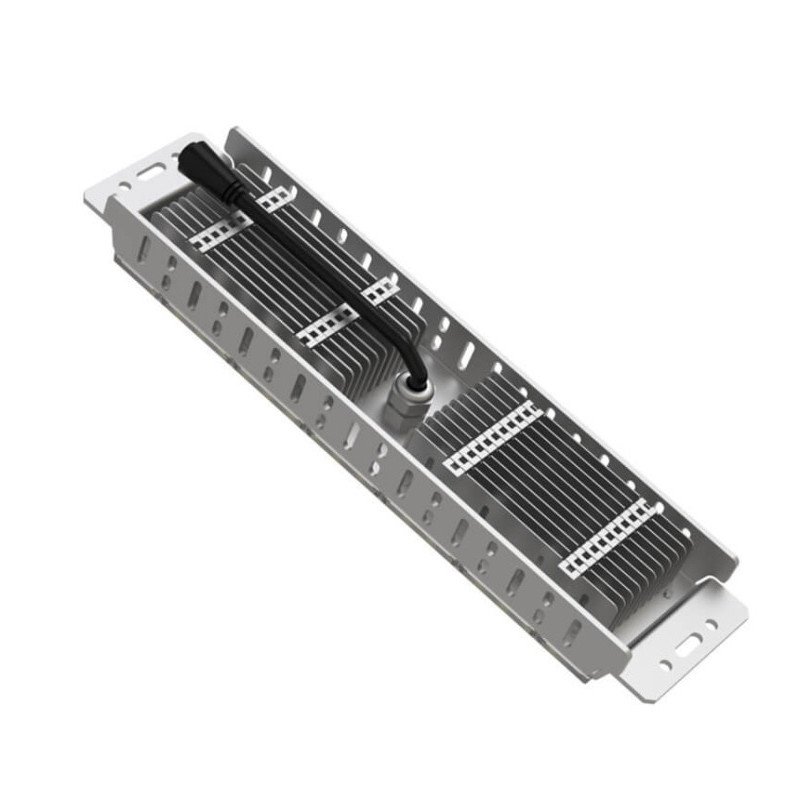

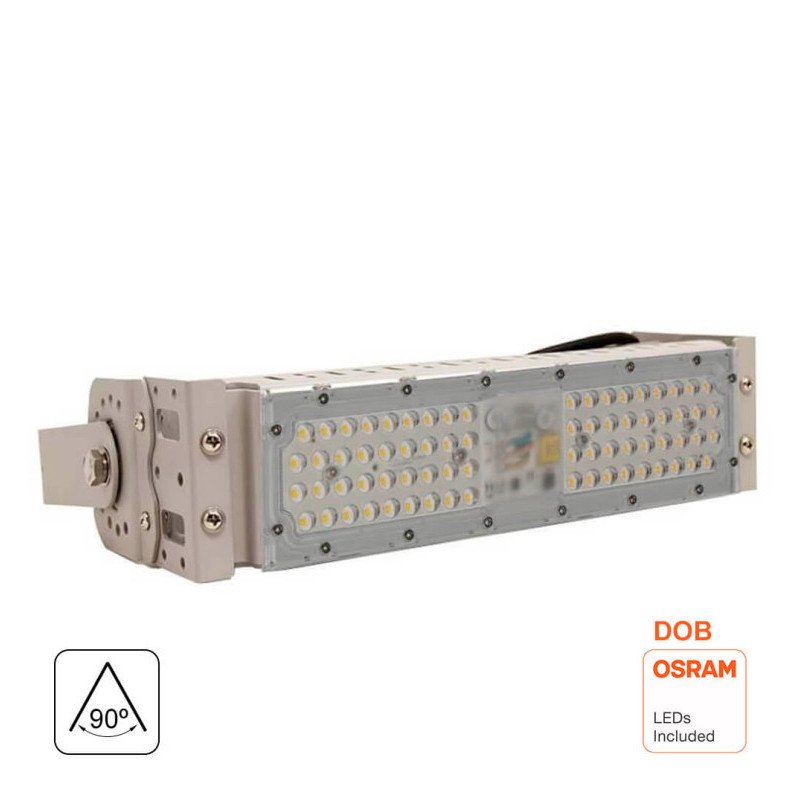

The 50W DOB MAGNUM OSRAM LED Floodlight combines power with a compact design in 100% 6063 aluminum, oven-painted to help resist salt oxidation. Its 90° beam angle makes it ideal for effective lighting at medium distances, helping create well-balanced environments. The DOB (Driver On Board) model integrates the driver into the fixture and uses OSRAM 3030-3D triple-core SMD3030-3D chips for high efficiency and reliability. Supplied pre-assembled, with aluminum housing and handles for lighter weight and durability.

Durability and Protection

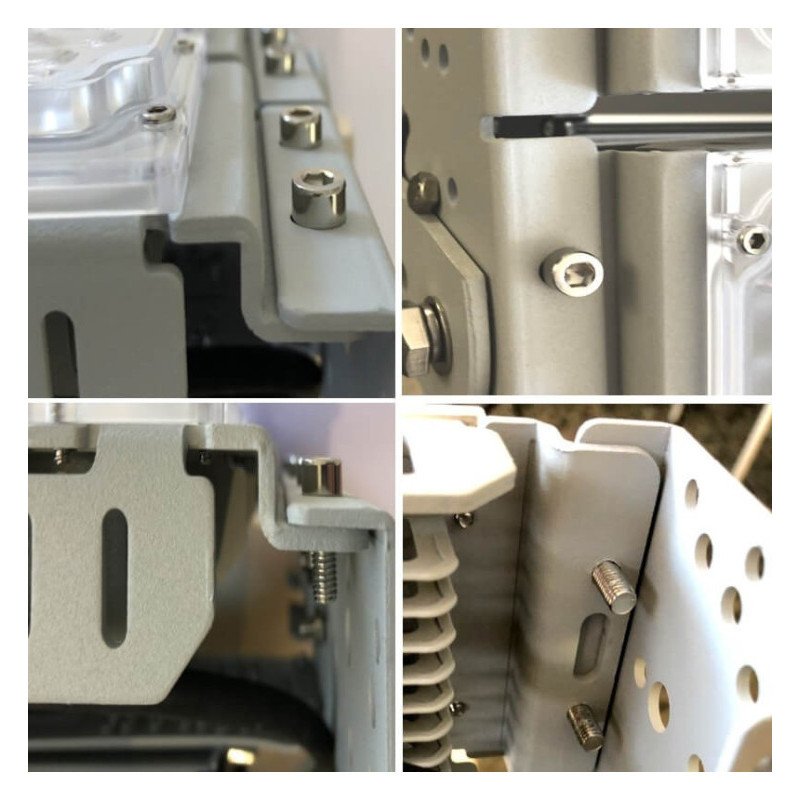

Designed for demanding outdoor environments, the floodlight boasts IK10 impact resistance and an IP65 ingress protection rating, ensuring longevity against dust, water jets, and physical impacts. Its oven-painted aluminum housing prevents corrosion, making it suitable for coastal or industrial areas.

Efficient Lighting Technology

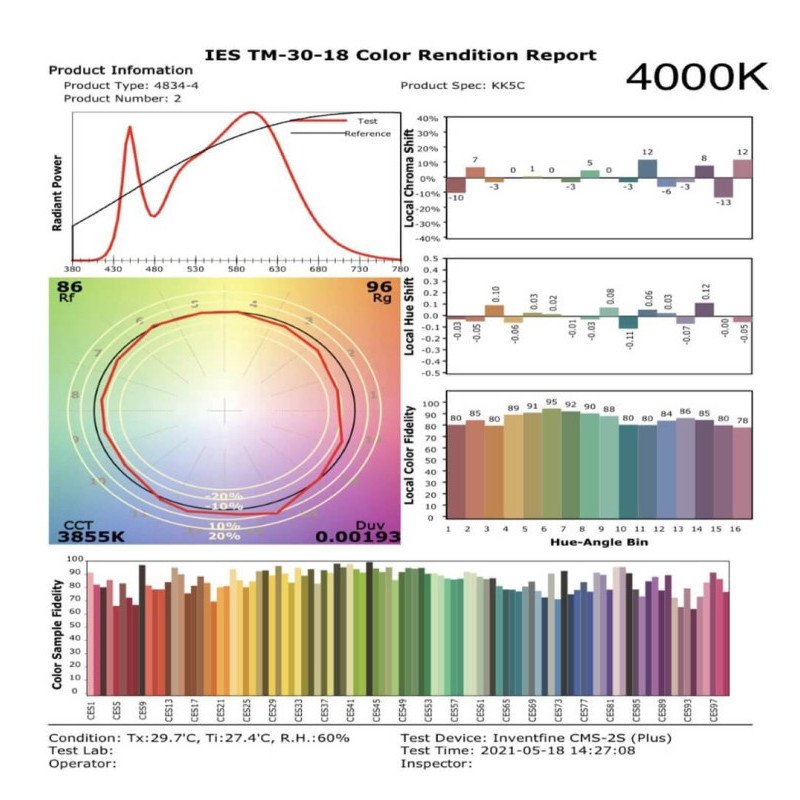

The integration of OSRAM OS-CORE Sapphire triple-core SMD3030 LEDs provides high luminous efficacy and stable color rendering with a CRI of 84. A beam angle of 90° delivers focused illumination ideal for medium-range applications such as security lighting or architectural highlights.

Operational Features

This fixture operates efficiently under a wide voltage range from 175 V to 265 V and supports 50 Hz and 60 Hz frequencies, accommodating various electrical standards. It features a fast startup time of 0.2 seconds and is engineered for a long lifespan with 100,000 switching cycles.

Frequently Asked Questions

What mounting options are available for this floodlight?

The floodlight includes handles integrated into the aluminum housing which assist in installation; however, specific mounting accessories need to be sourced separately.

Can this floodlight be used in coastal environments?

Yes, its oven-painted 6063 aluminum housing resists salt oxidation, making it well-suited for coastal or corrosive environments.

What color temperatures can I choose when ordering?

The product offers two fixed correlated color temperatures at 4000 K and 5000 K.

Is the driver integrated into the floodlight?

Yes, this model features a Driver On Board (DOB) configuration, integrating the driver within the luminaire for compactness and reliability.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 305x75x80mm
Rated Power 50w
Rated Voltage 175-265V
CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,91
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 7000
LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 90º
Luminous Efficacy (Lm/W) 140Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
