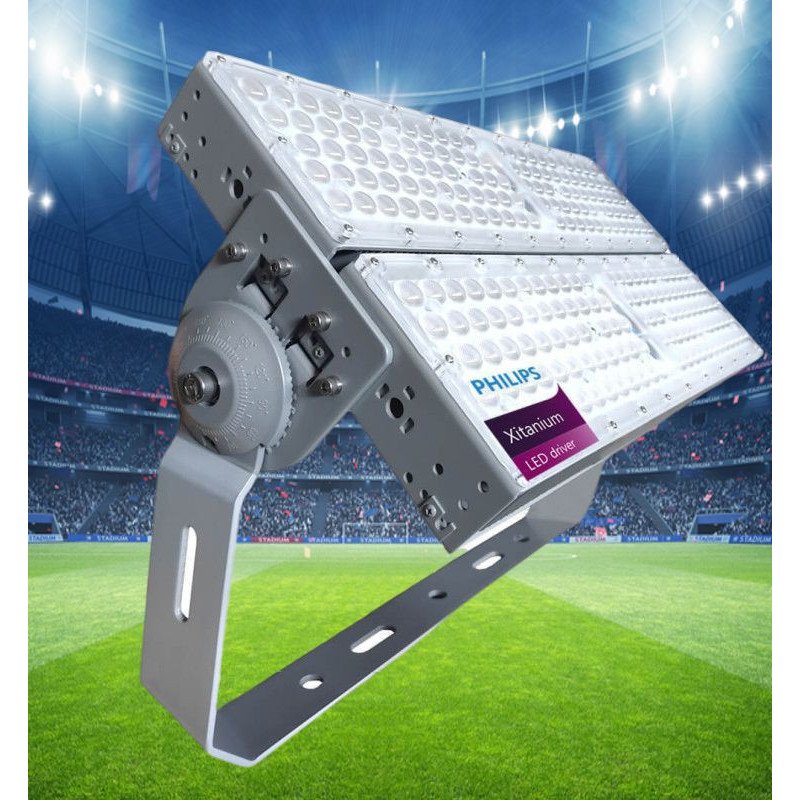

LED Floodlight 600W CORE MAX Outdoor Philips Xitanium

Certificates CE, CMIM, RoHS
Construction Material Aluminum
Rated Power 600W
Beam Angle (º) 20º - 40º - 90º

New product

The LED Floodlight 600W CORE MAX Outdoor with Philips Xitanium driver offers robust 600W power and up to 124200 lm estimated flux. Featuring IP65 and IK10 ratings, it is built with aluminum for outdoor durability, supports multiple beam angles, and operates reliably from -20°C to 55°C with high power factor and flicker-free output.

318 Items

Order now and receive it The day after tomorrow

818,44 € tax incl.

Métodos de pago

More info

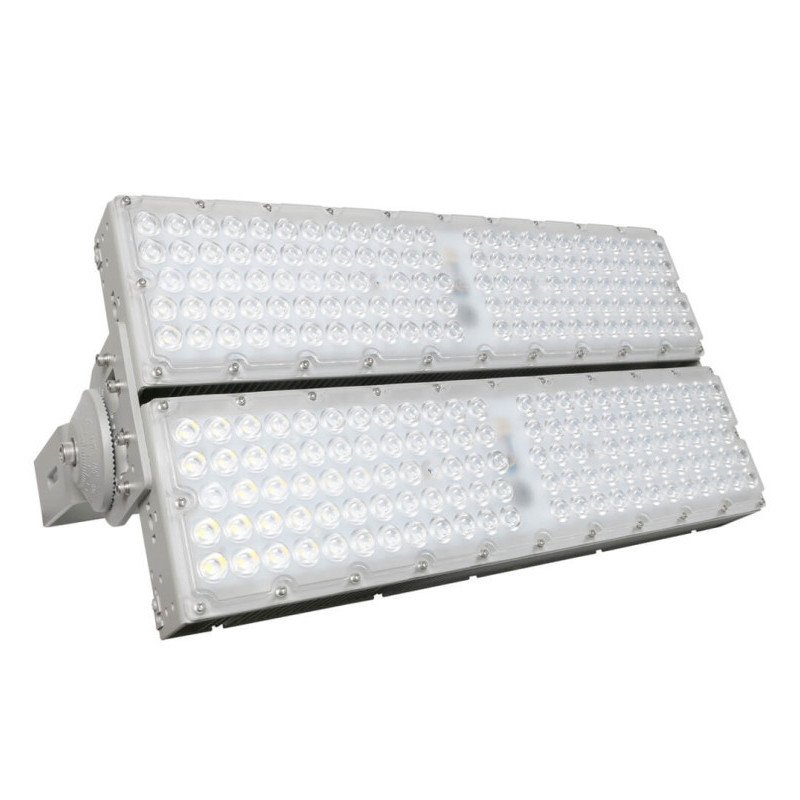

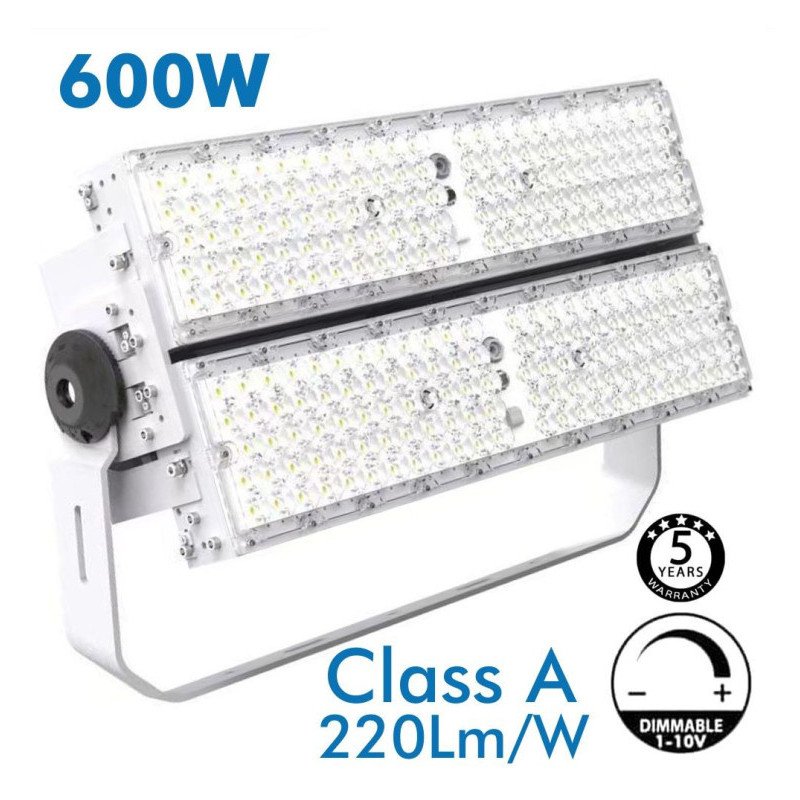

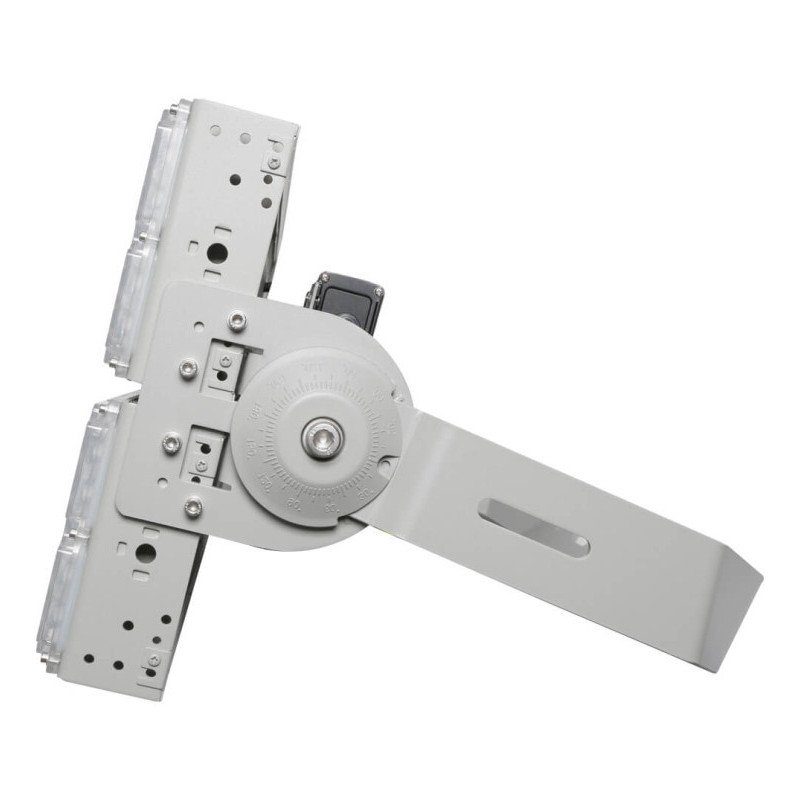

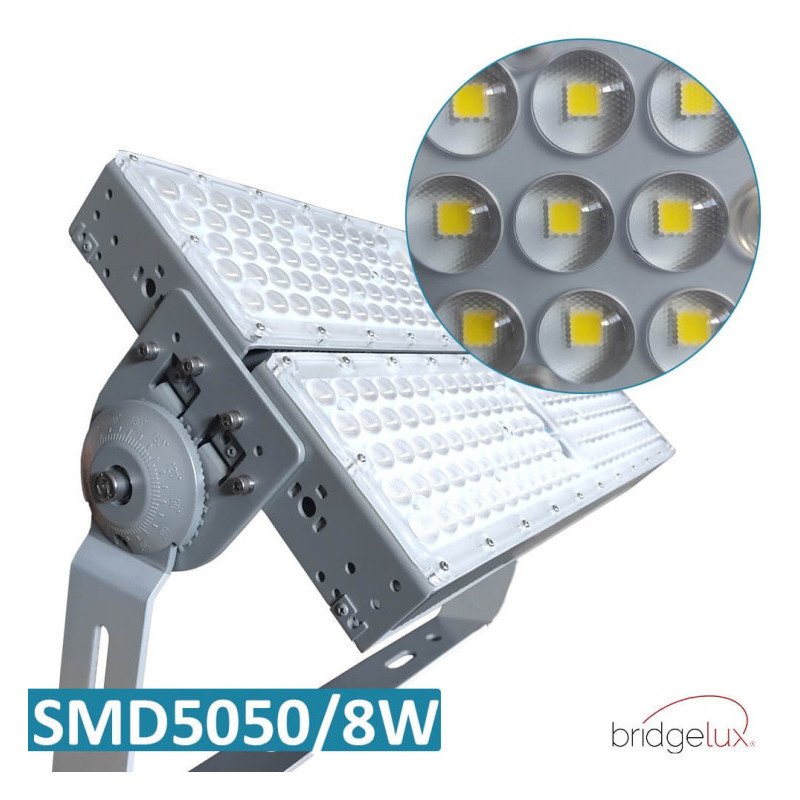

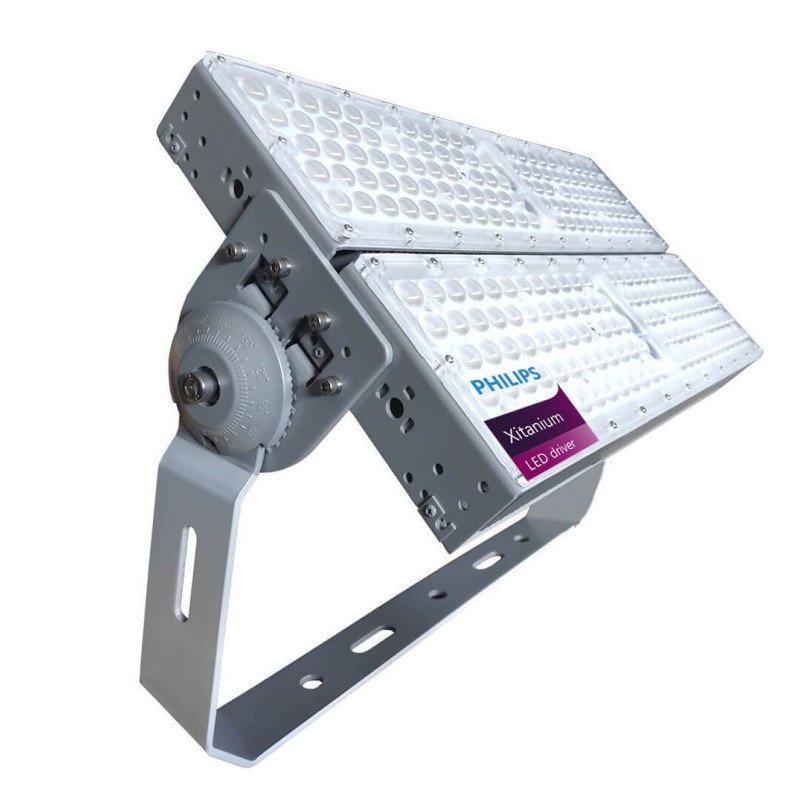

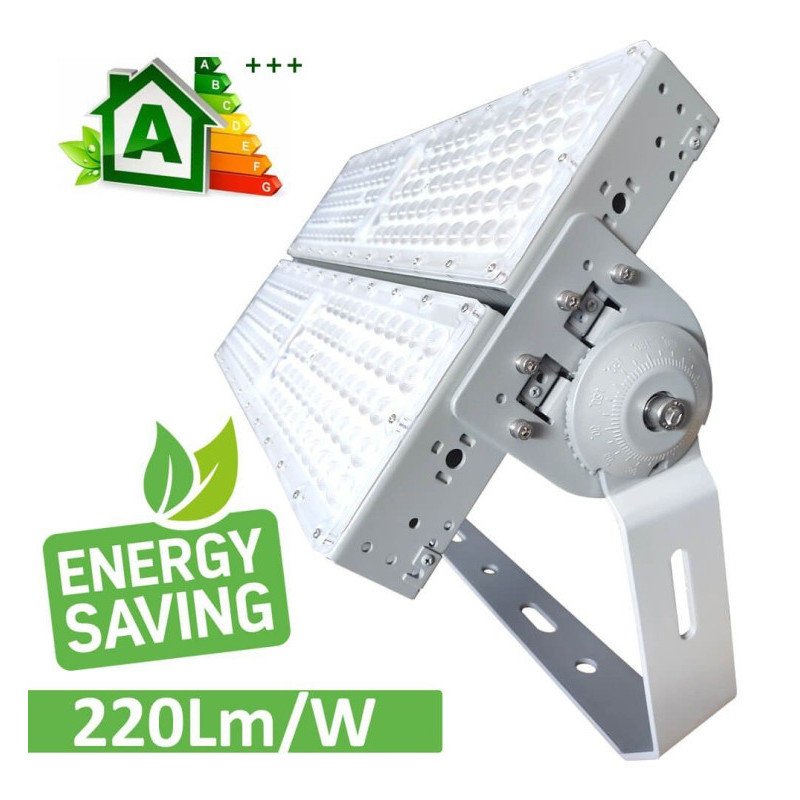

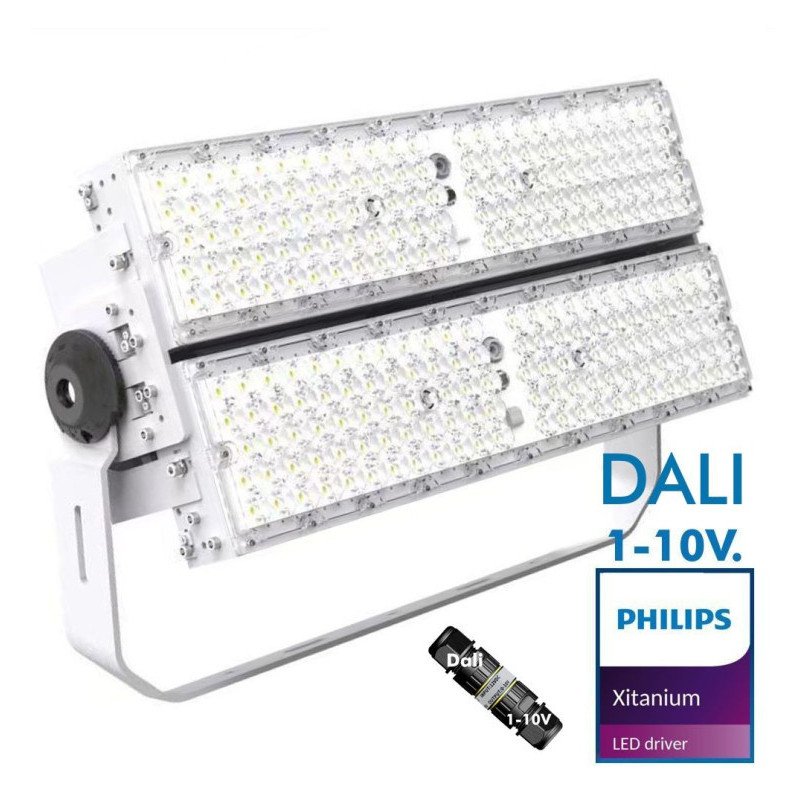

CORE MAX 600W LED floodlight with Philips Xitanium DIM 1-10V driver (optional DALI) and SMD 5050/8W/24V LED technology with high-performance BRIDGELUX chips, reaching 220 lm/W. Its modular design uses two independent 300W modules to optimize thermal dissipation and maximize light output. Available with 20°, 40°, and 90° opening angles, CORE MAX delivers precise illumination for long distances. Class I and flicker-free.

Robust Construction and Durability

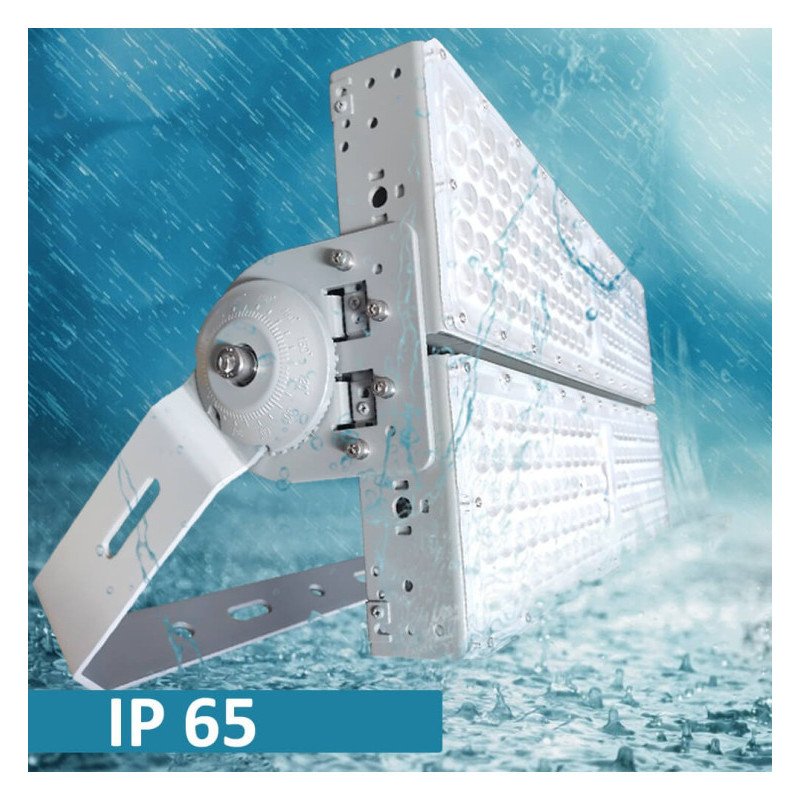

Constructed from aluminum, this floodlight ensures strength and resistance to outdoor conditions. Its IP65 rating protects against dust and water jets, while the IK10 impact resistance rating safeguards against strong mechanical impacts, making it ideal for resilient outdoor use.

Efficient and Reliable Performance

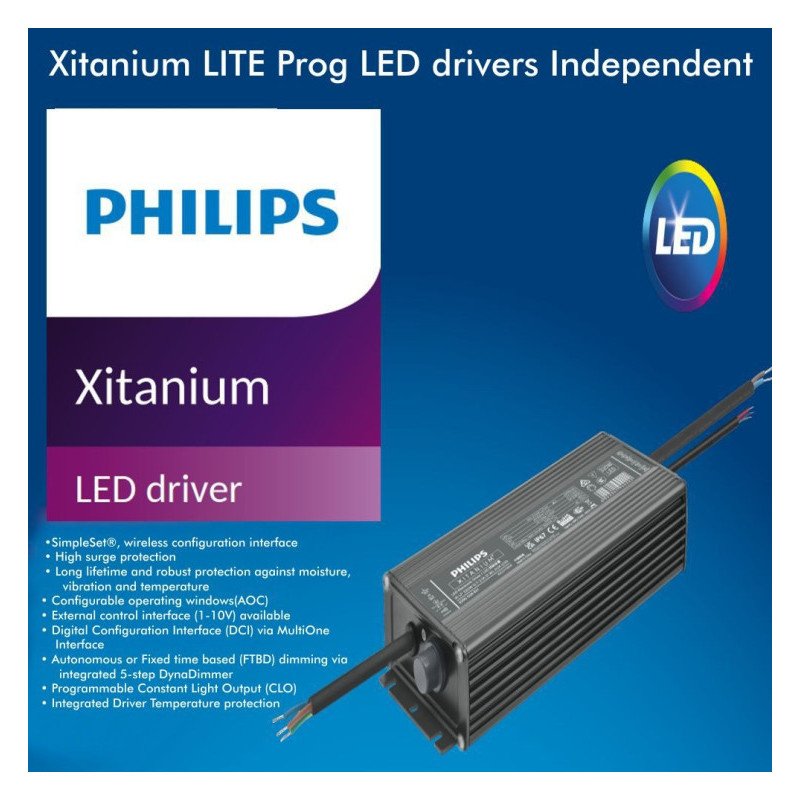

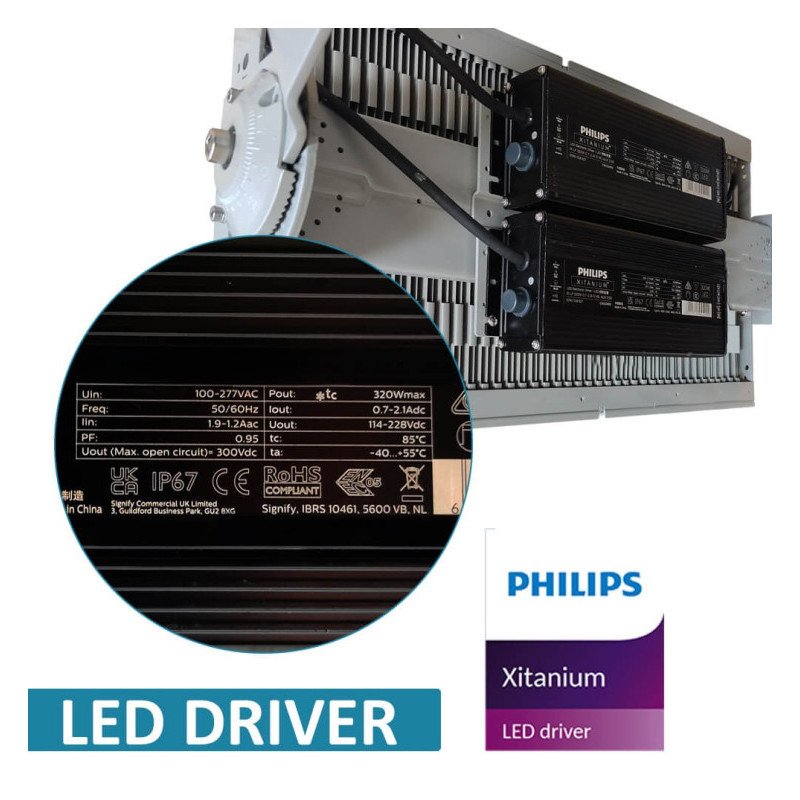

Equipped with a Philips Xitanium driver, the floodlight achieves a high power factor of 0.98 and a fast startup time of 0.2 seconds. It withstands up to 100000 switching cycles, ensuring long-term operational reliability. The warm-to-cool white CCT options of 5000K and 5500K provide versatile lighting suitable for various outdoor applications.

Thermal Management and Modularity

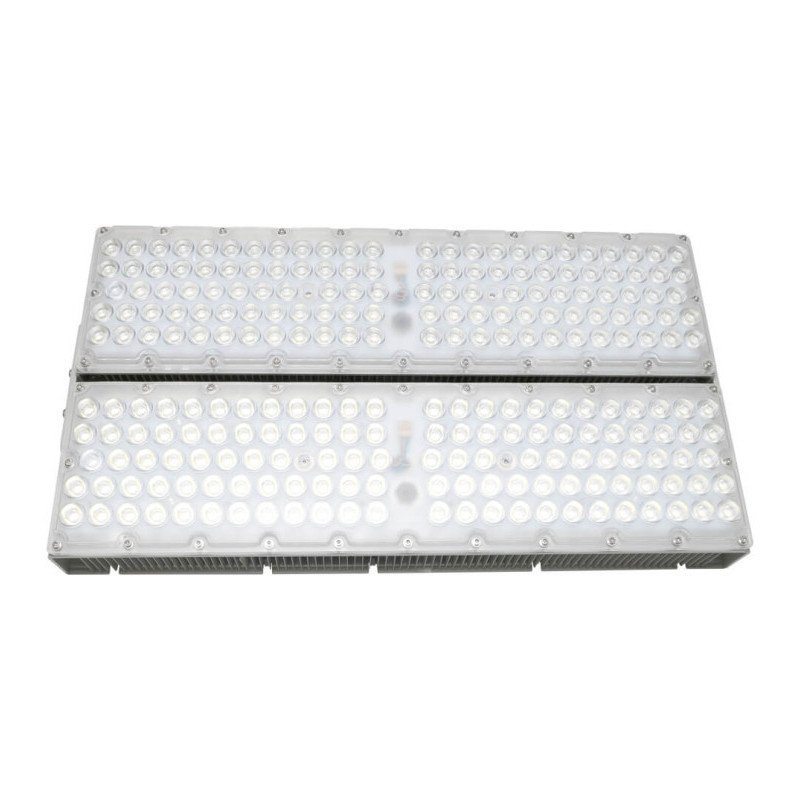

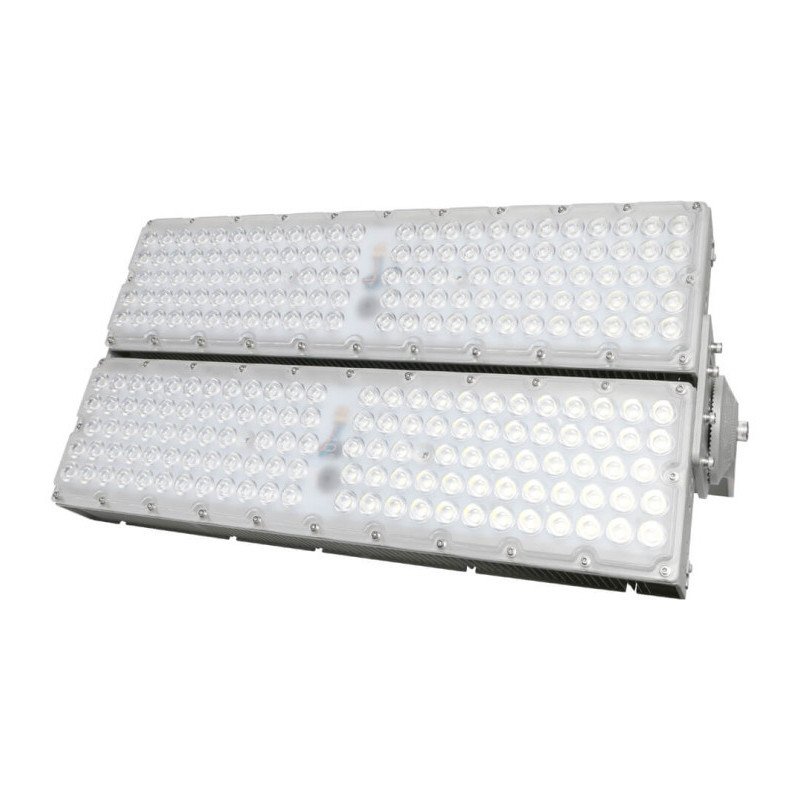

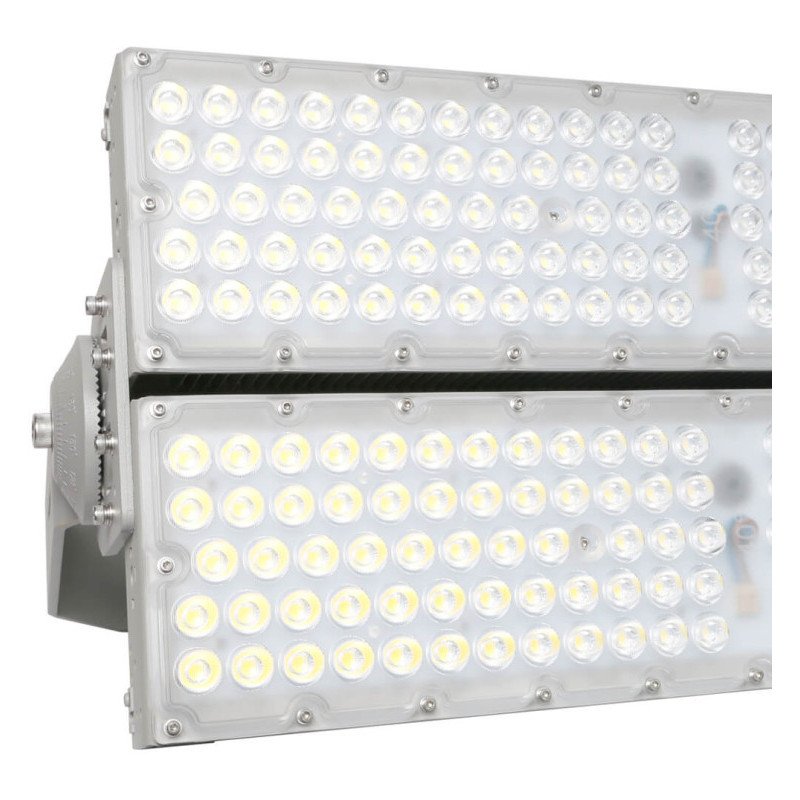

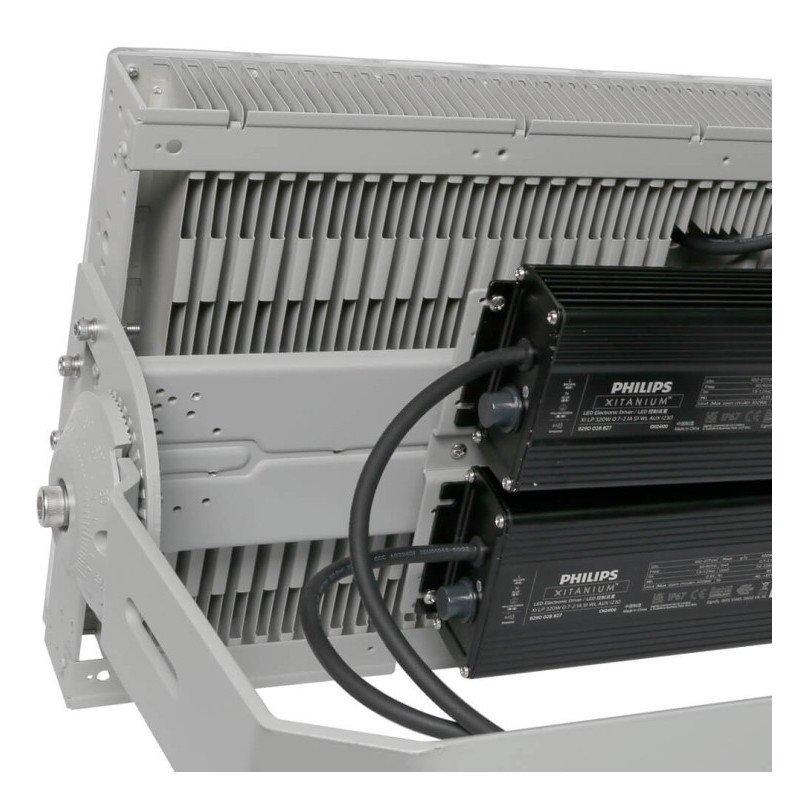

Its design features two independent 300W modules, optimizing thermal dissipation to maintain performance and prolong component lifespan. This modular approach allows for efficient heat management, preserving light quality and system durability under demanding conditions.

Frequently Asked Questions

What are the available beam angle options for this floodlight?

The floodlight can be ordered with opening angles of 20°, 40°, or 90°, allowing precise control over the illumination spread.

Can this floodlight operate in extreme temperatures?

Yes, it is rated to operate reliably within a temperature range from -20°C to 55°C, suitable for diverse outdoor environments.

What level of impact protection does this floodlight provide?

It has an IK10 rating, offering protection against strong impacts, which makes it highly durable in harsh outdoor conditions.

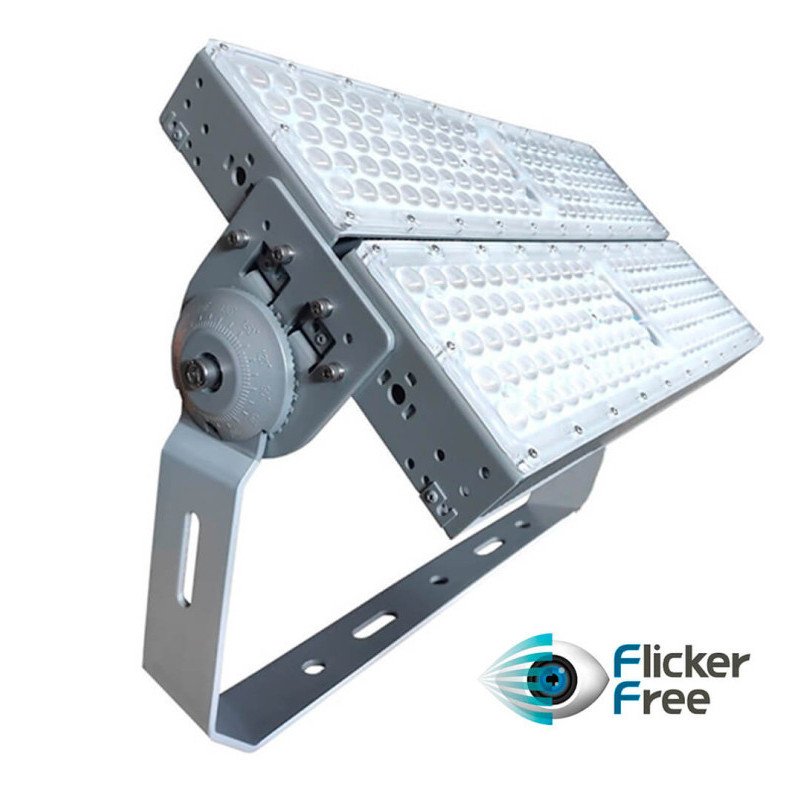

Is the light output flicker-free?

Yes, the floodlight features flicker-free operation which contributes to visual comfort and reduces eye strain.

View technical specifications Hide technical specifications
Certificates CE, CMIM, RoHS
IP Rating IP65-Exterior
Construction Material Aluminum

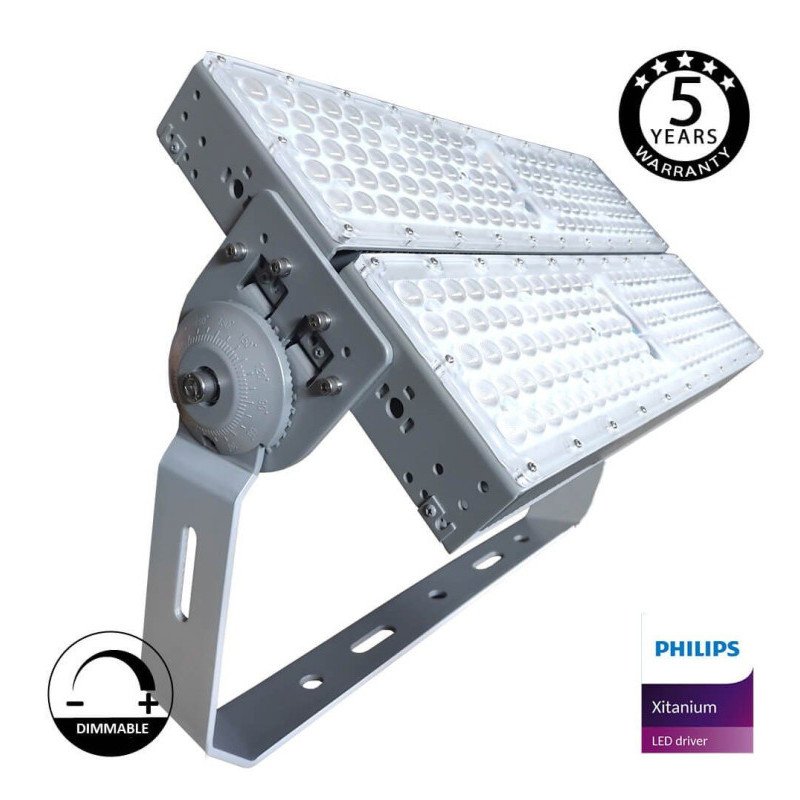

Warranty years 5
Rated Power 600W
Rated Voltage 85-305V.

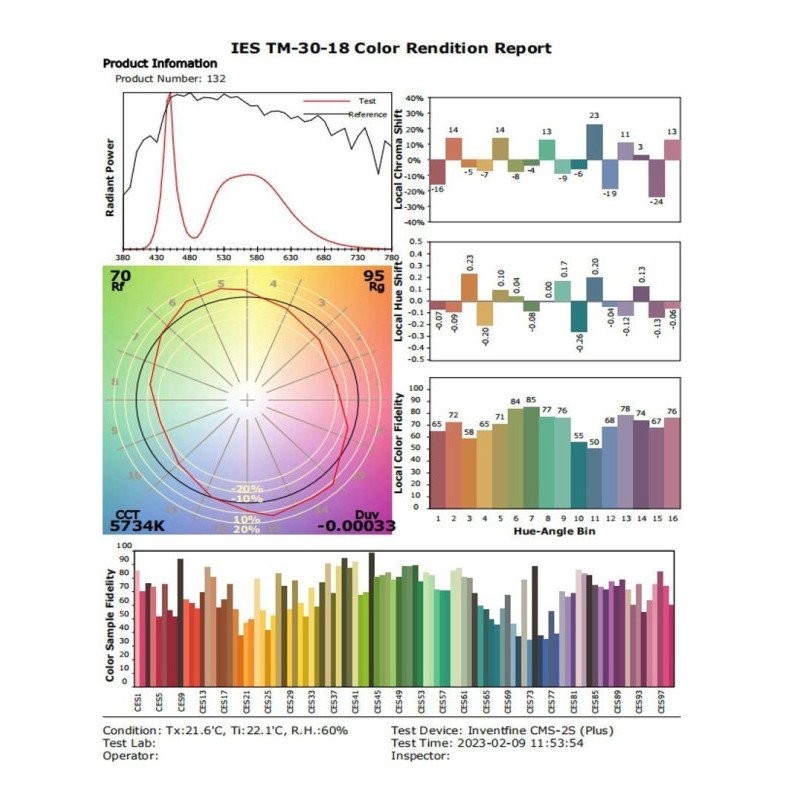

CRI - Color Rendering Index 70
Energy Class (2021-EU-2019/2015) A
LED Diode Efficacy (Lm/W) 220 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,98
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Energy Class (2023 - EU-2019/2015) A
Light Temperature 5000K -5500K
Luminous Flux-Lm 124200 Lm
Beam Angle (º) 20º - 40º - 90º

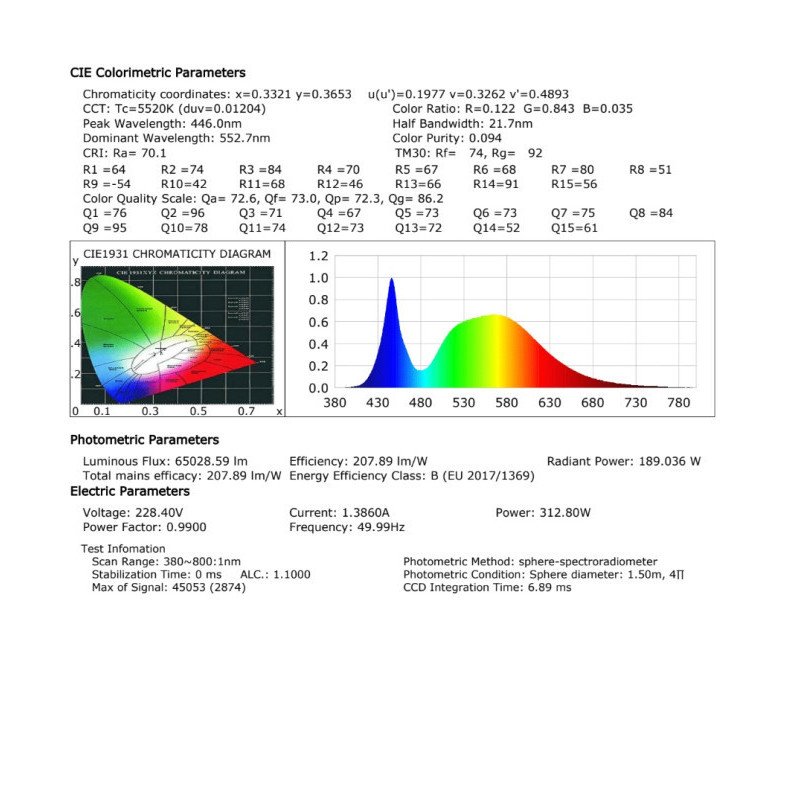

Luminous Efficacy (Lm/W) 207 Lm/W

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
