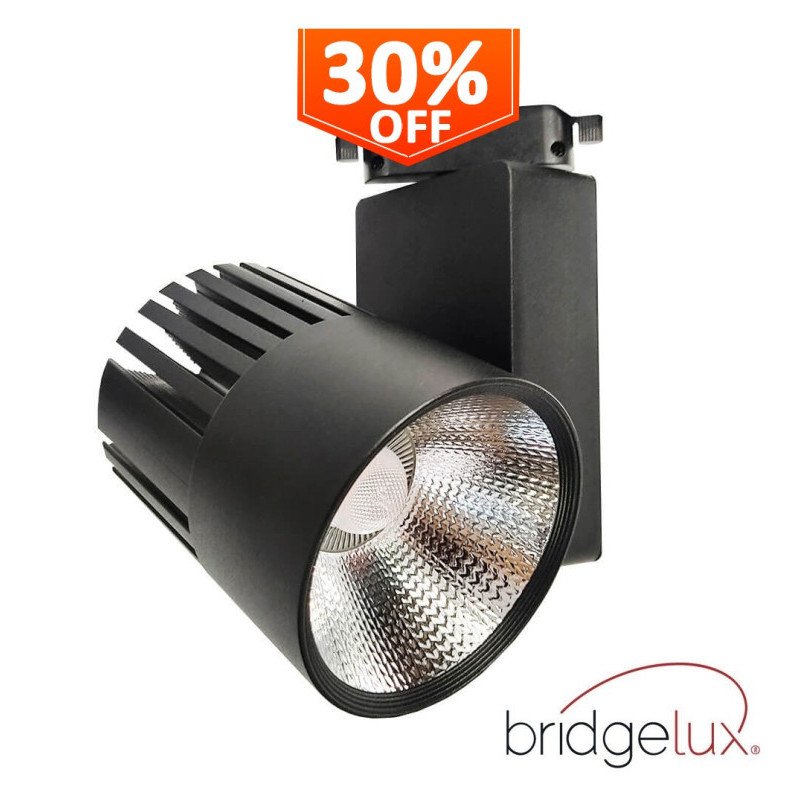

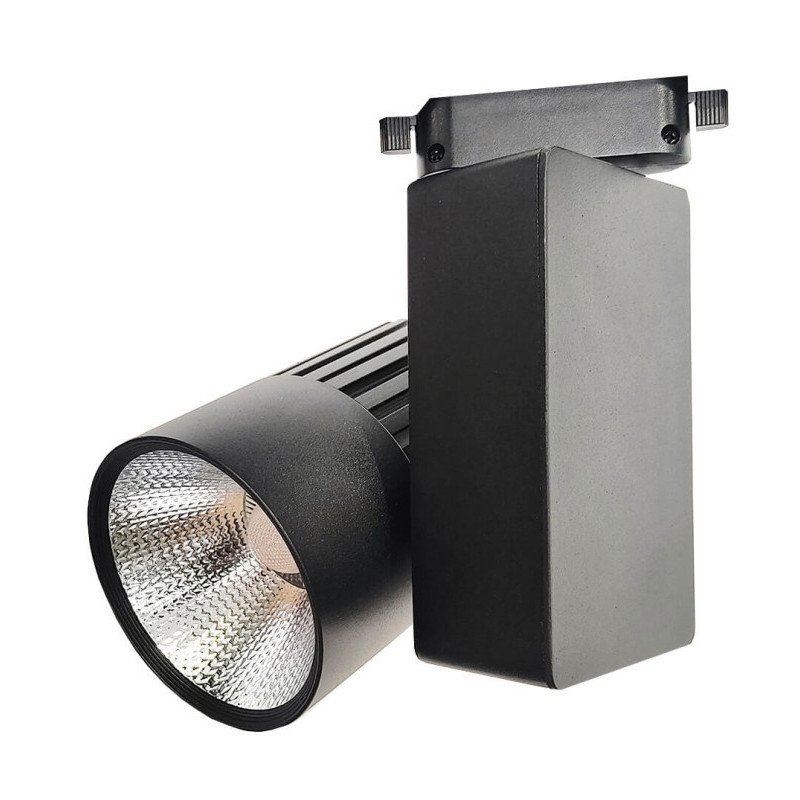

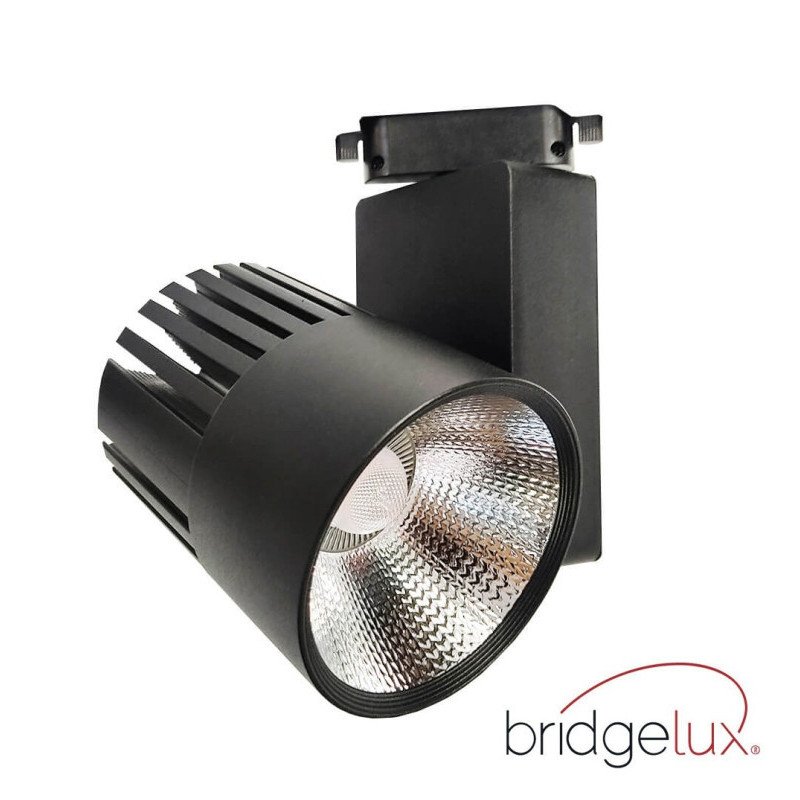

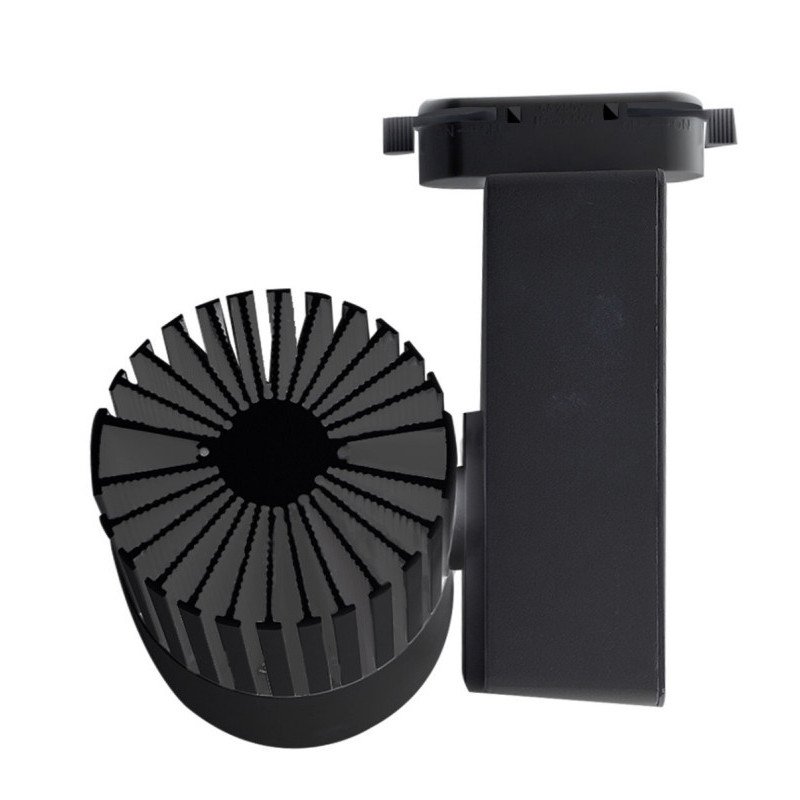

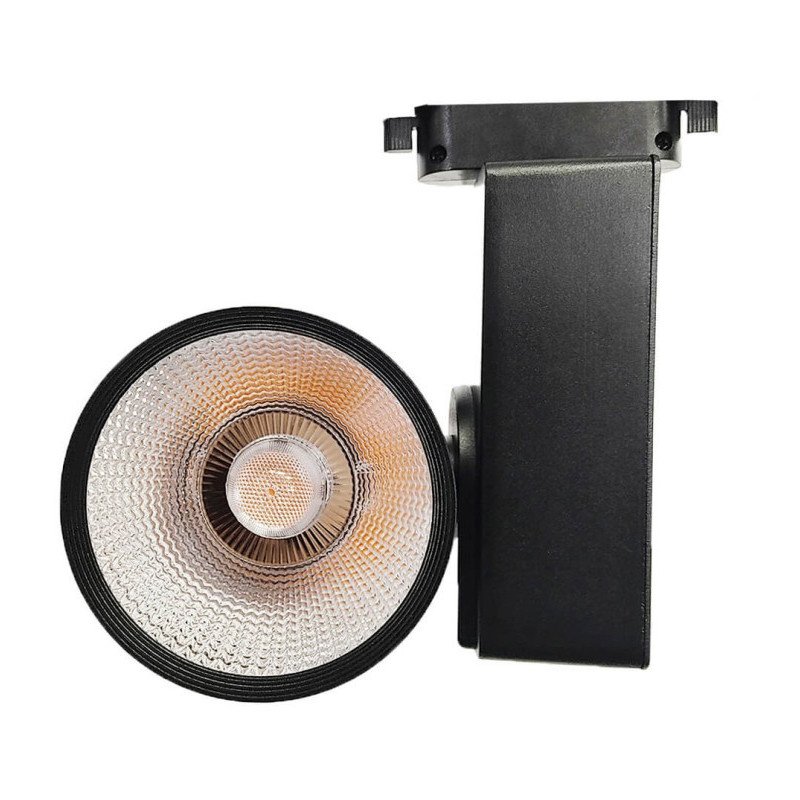

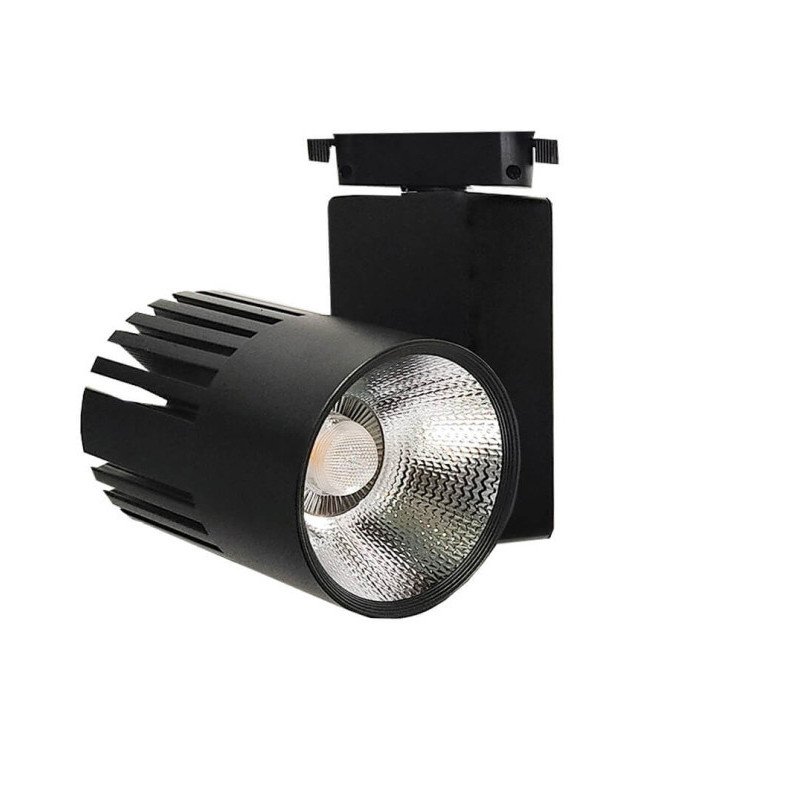

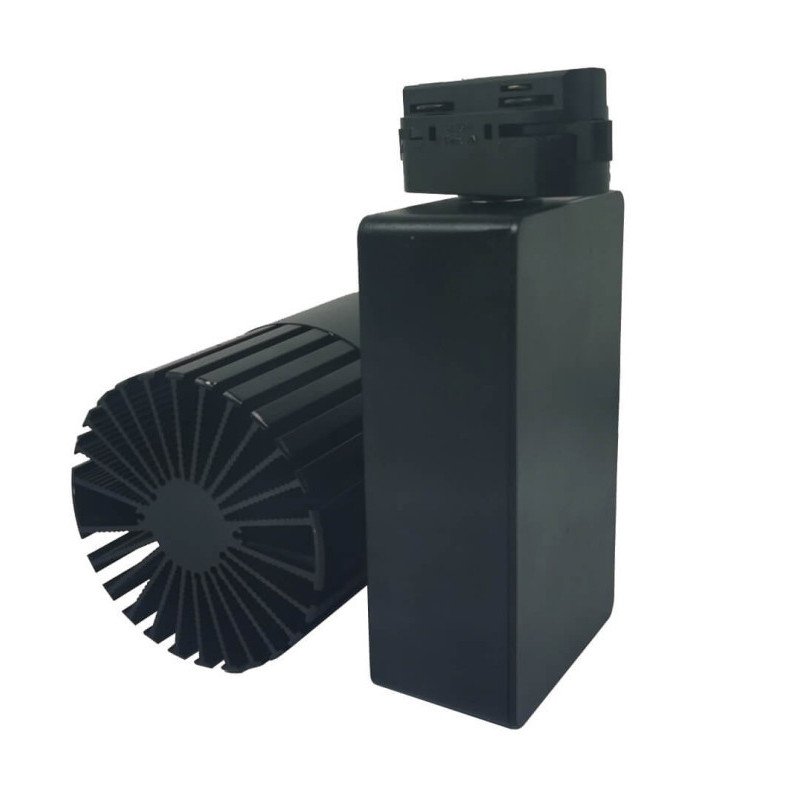

LED Track Light 40W GRAZ Monophase Bridgelux CRI+98 Black
LED-00101
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
Driver: 140 x 52 x 85 mm
Rated Power
40W
Beam Angle (º)
100º
New product
The 40W GRAZ LED Track Light with Bridgelux chip offers 4400 lm estimated output and a high CRI of 98 for exceptional color rendering. Made of aluminum and PMMA, it features a 100° beam angle and supports 3000K, 4000K, and 6000K color temperatures, ideal for precise and elegant accent lighting in monophase track systems.
29 Items
More info
The 40W GRAZ LED spotlight with a Bridgelux chip in black is designed for monophase track systems, delivering precise lighting to highlight specific areas and features. Its CRI+98 helps maintain very faithful color reproduction, bringing clarity and detail to your décor. The GRAZ spotlight is a versatile choice for creating minimalist, elegant lighting scenes, available in multiple color temperatures (3000K, 4000K, and 6000K). Installation is straightforward, allowing you to integrate it into your monophase track system and adjust the lighting to match the look you want to emphasize.
Durability and Efficiency
Constructed with robust aluminum and PMMA materials, this track light ensures long-lasting performance and durability. The fixture provides an estimated efficacy of 110 lm/W, delivering efficient lighting ideal for commercial or residential applications.
Electrical and Operational Features
With a power factor of 0.92 and compatibility with both 50 Hz and 60 Hz frequencies, this light is adaptable to various electrical environments. It boasts a fast startup time of 0.2 seconds and is rated for 100,000 switching cycles, supporting frequent on/off usage without degradation.
Design and Optics
The LED-00101 comes with a fixed 100° beam angle, offering wide illumination suitable for highlighting broad areas. The lumen output and high CRI ensure accurate color representation, enhancing the visibility and aesthetic appeal of illuminated objects.
Frequently Asked Questions
What color temperature options are available?
This track light is offered in three selectable color temperatures: 3000K, 4000K, and 6000K, allowing you to customize the ambiance.
Is this light suitable for damp environments?
No, with an ingress protection rating of IP20, it is intended for indoor dry locations only.
How long is the warranty period?
The product includes a 3-year warranty covering manufacturing defects.
Can this track light be used on all monophase track systems?
It is designed specifically for monophase track systems; compatibility should be confirmed with your track system manufacturer.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Aluminum +PMMA
Warranty years
3

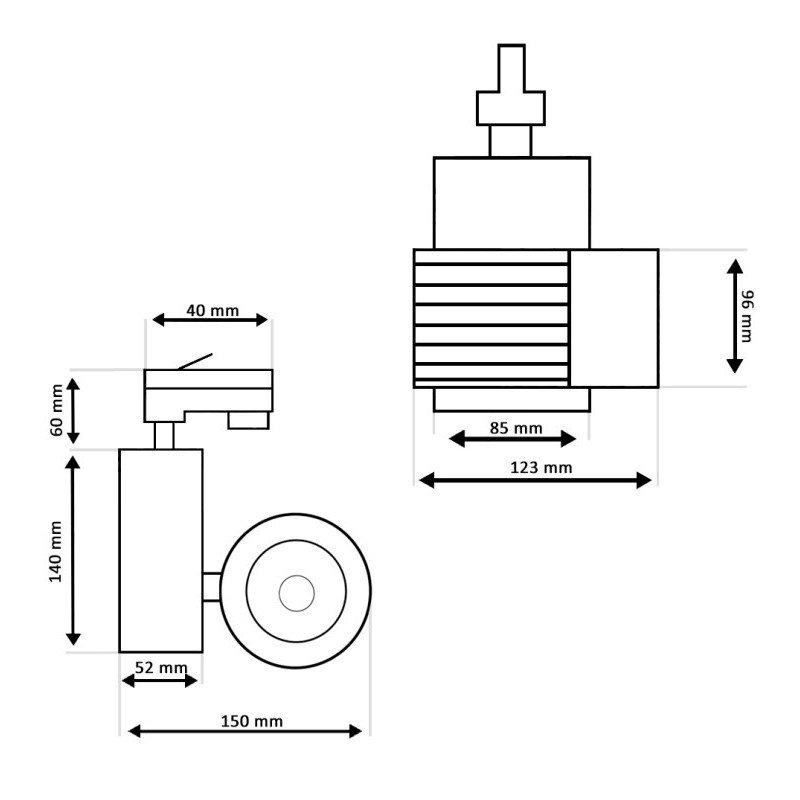

Dimensions (mm)
Driver: 140 x 52 x 85 mm
Rated Power
40W
Rated Voltage
220V-240V AC
CRI - Color Rendering Index
98
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
130Lm/W
Estimated LED Diode Life (H)
35.000
Power Factor (PF)
0.92
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20º ~ +40º
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
G
Light Temperature
3000K-4000K-6000K
Luminous Flux-Lm
4400
LED Type
SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30
Beam Angle (º)
100º
Luminous Efficacy (Lm/W)
110 Lm/W
Additional Information
Painting: AkzoNobel Interpon 600 C33883
