LED Track Light 40W 3-Phase CCT CRI+92 UGR13
LED-00603
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
160x80x156 mm
Rated Power

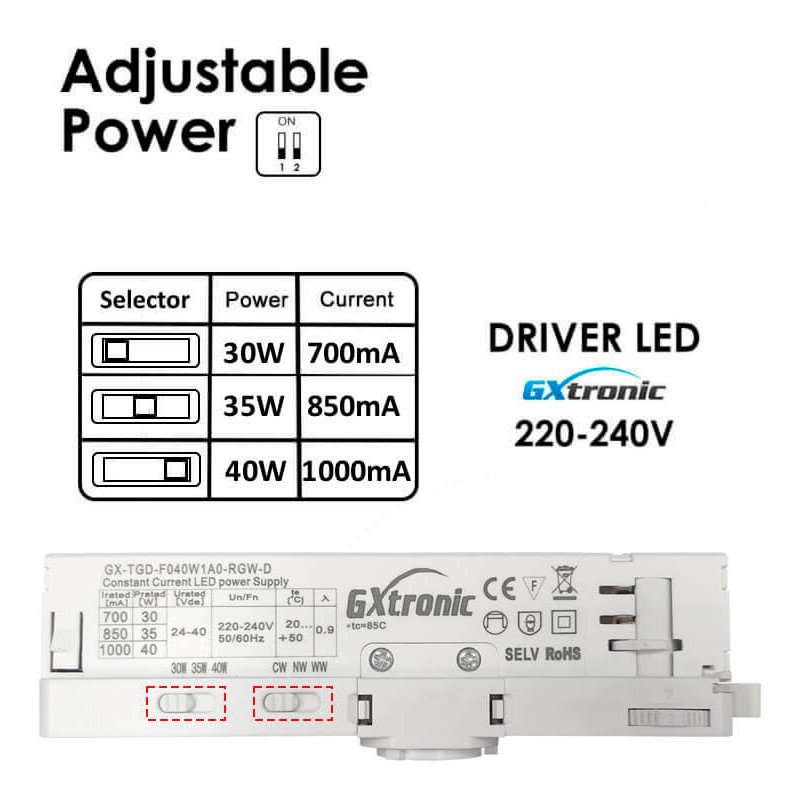

30W-35W-40W
Beam Angle (º)
Interchangeable angels: 24º - 60º
New product
The LED Track Light 40W 3-Phase offers selectable CCTs (3000K, 4000K, 5700K) and a high CRI of 92 for vivid color rendering. It features a robust aluminum and PMMA construction, a low UGR of 13 for visual comfort, and a no-flicker driver. Compact dimensions and high efficacy of 120 lm/W make it suitable for customizable track lighting.
This product is no longer in stock
More info

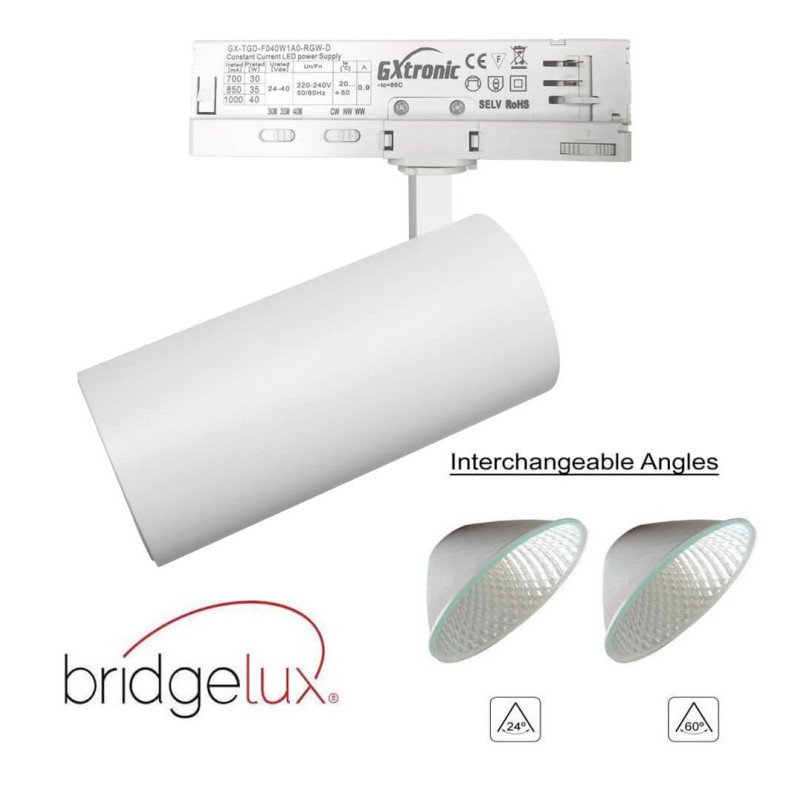

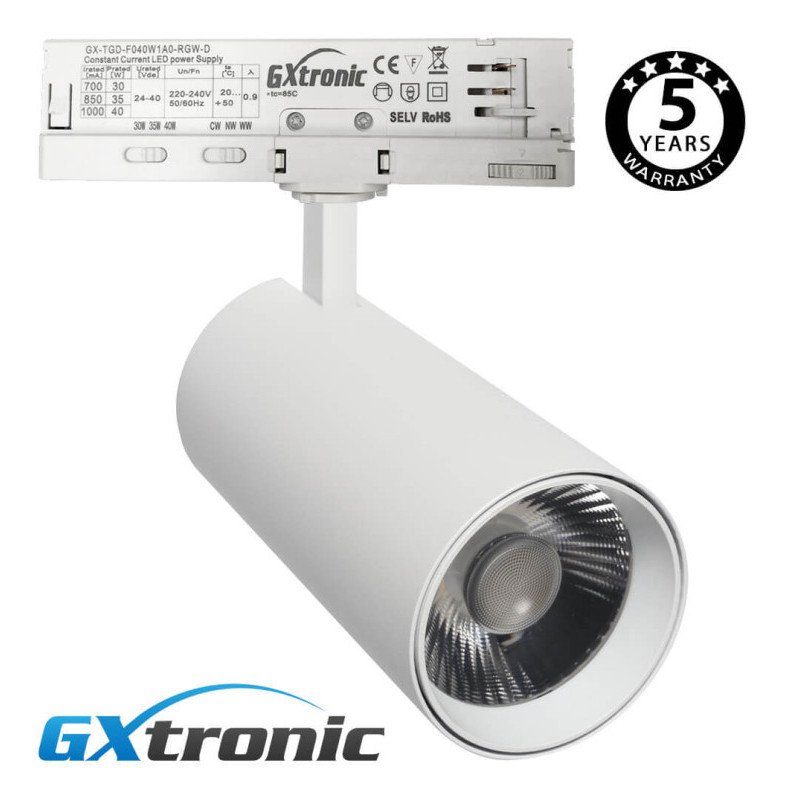

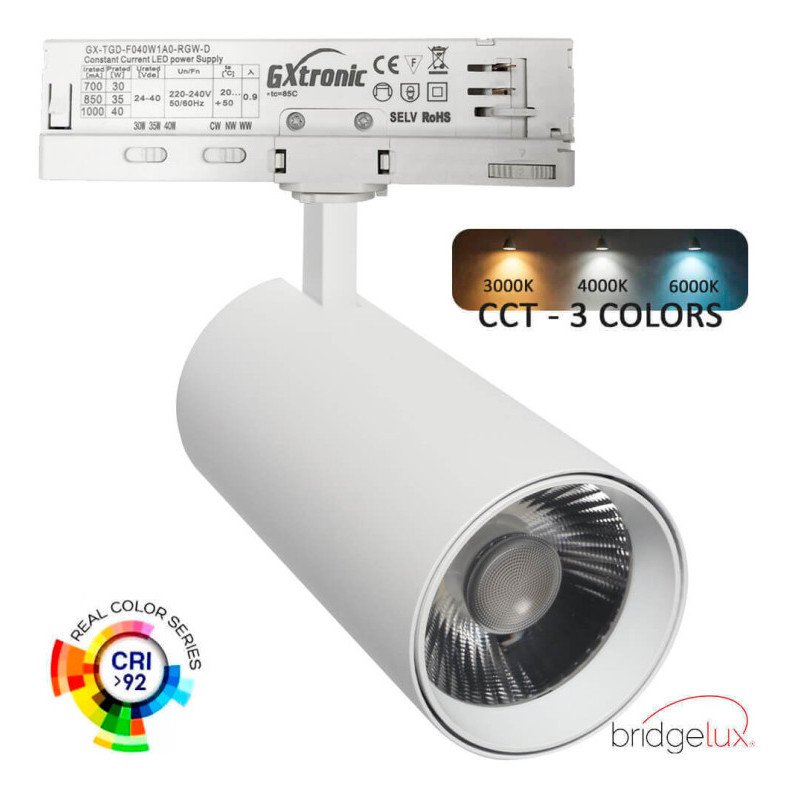

Discover the NEW MAYA LED track spotlight for 3-phase tracks, a versatile solution to personalize your lighting. Adjust the Color Temperature (CCT) and choose between 30W-35W-40W to suit your needs. With CRI+92, it helps bring out colors with high fidelity. It also features UGR13 for improved visual comfort. The optics include a semi-spherical PMMA collimating lens and a curved polished specular aluminum reflector in a rhombus pattern, with a 24° primary and 60° secondary beam angle to direct the light and highlight objects.
Performance and Reliability
Powered by a BRIDGELUX 130 CHIP COB LED, the spotlight delivers reliable illumination with a power factor of 0.97 and a swift startup time of 0.2 seconds. It supports frequent switching, rated for up to 100000 switching cycles, ensuring long-term dependable operation in dynamic lighting environments.
The operating temperature range of -25°C to 45°C facilitates stable performance across diverse indoor settings.
Design and Construction

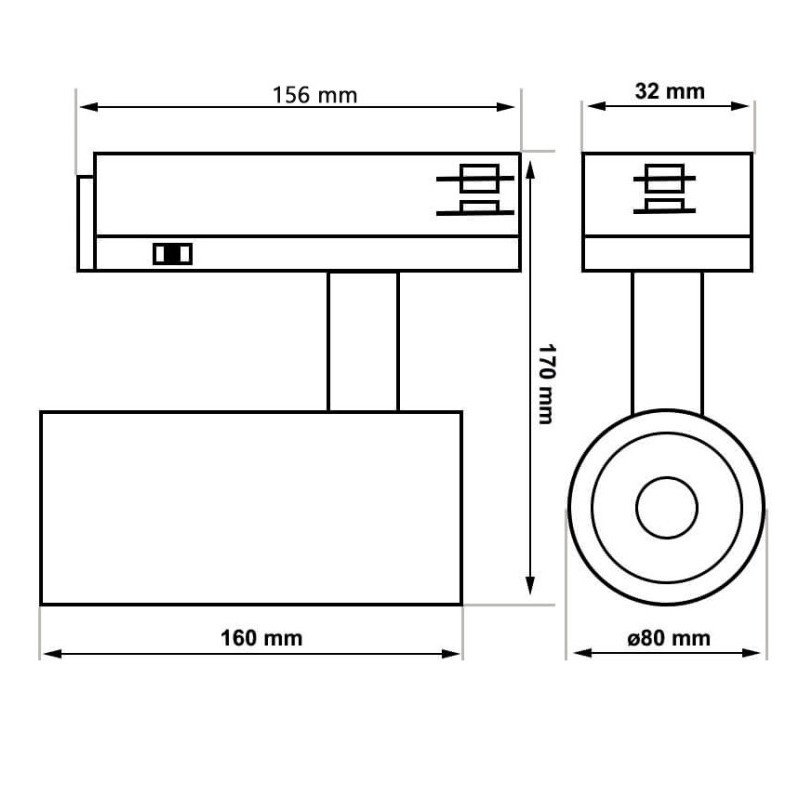

Constructed from durable aluminum combined with PMMA materials, the luminaire ensures both robustness and efficient light management. The compact footprint, with dimensions of 160 mm by 80 mm by 156 mm, allows flexibility for installation in various track lighting systems.
This material combination supports effective thermal management contributing to operational reliability without specific claims about heat dissipation.
Optical Features and Visual Comfort

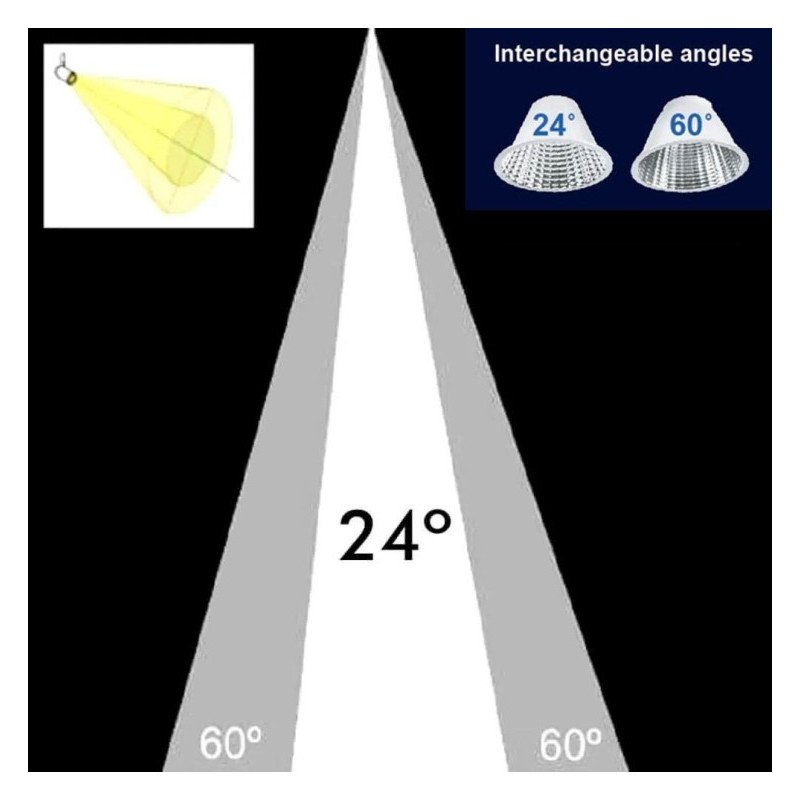

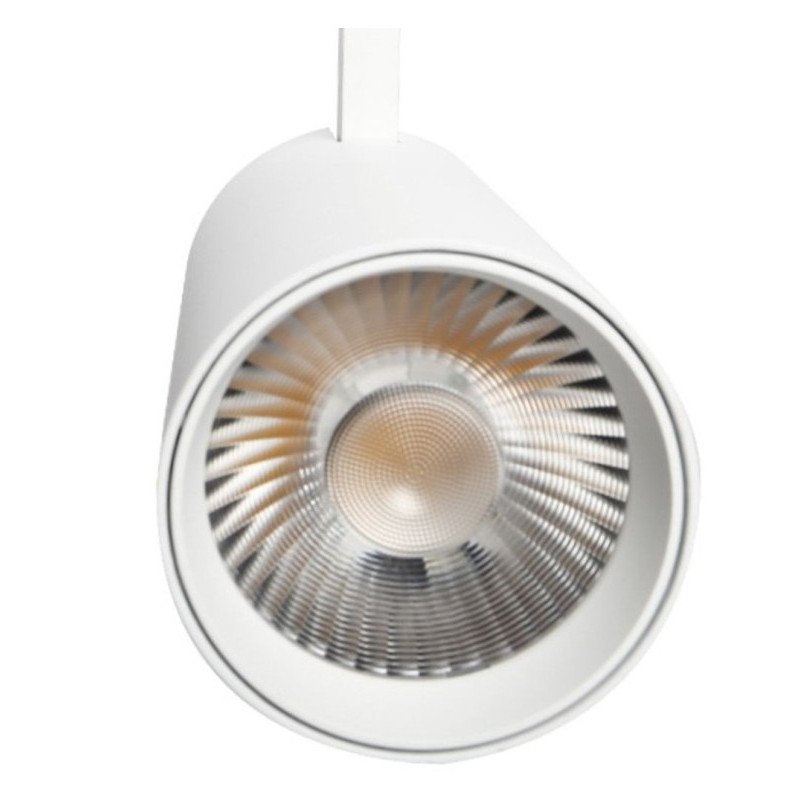

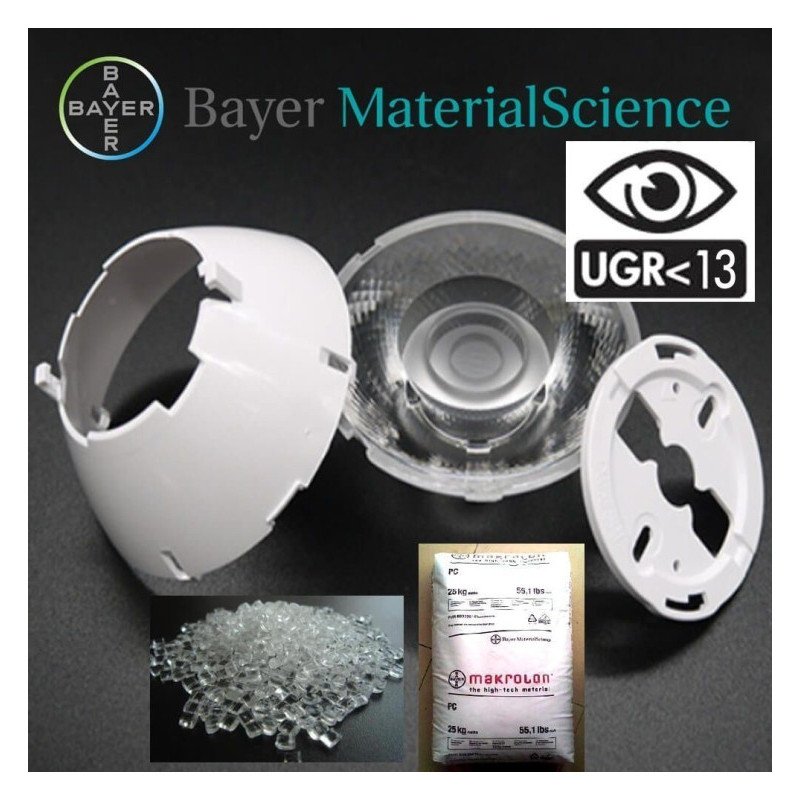

Equipped with a semi-spherical PMMA collimating lens and a curved polished aluminum reflector arranged in a rhombus pattern, the fixture offers precise beam control. The primary beam angle of 24° and a secondary beam angle of 60° enable targeted accent lighting suitable for highlighting objects and improving visual aesthetics.

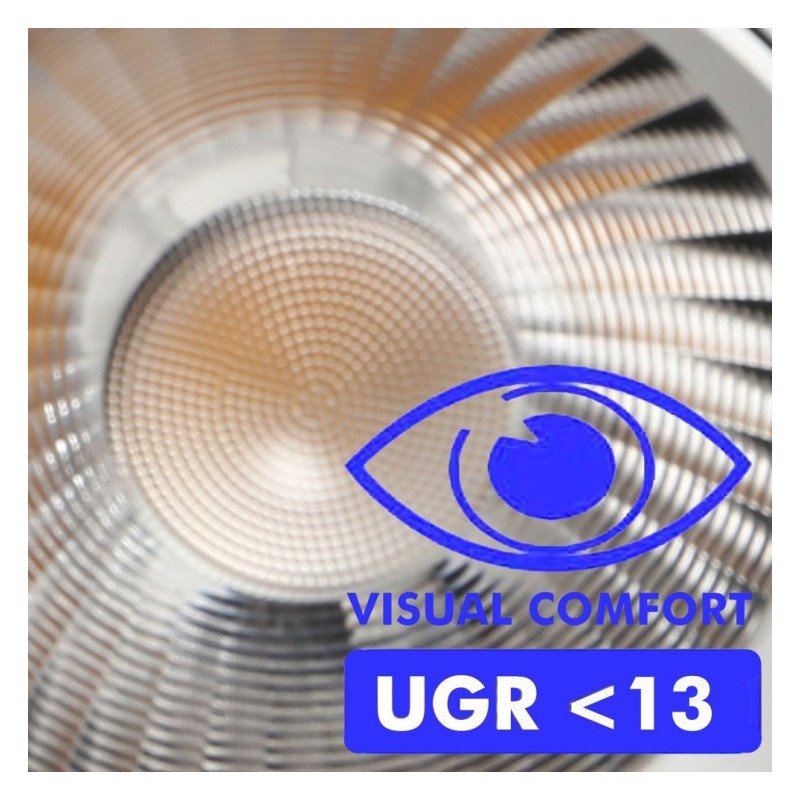

The unit’s UGR13 rating minimizes glare, enhancing visual comfort in commercial or retail environments.
Frequently Asked Questions

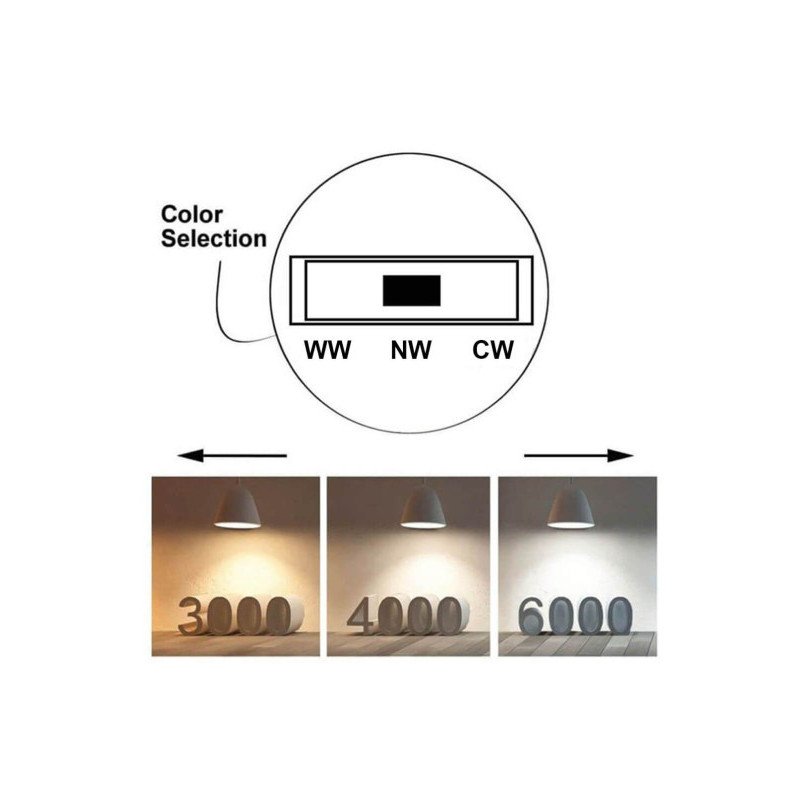

What are the selectable color temperature options?

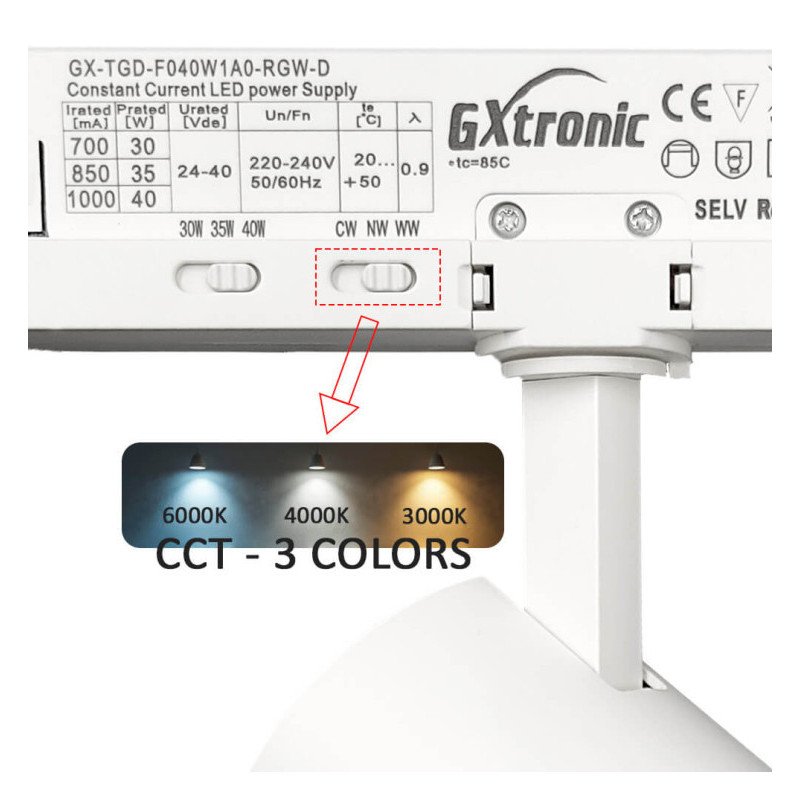

The track light allows selection between 3000K, 4000K, and 5700K color temperatures to suit different ambient lighting needs.
Is this track light suitable for rapid switching?
Yes, it is rated for 100000 switching cycles, making it appropriate for environments requiring frequent on/off cycles.
Does the fixture support flicker-free operation?
Yes, it includes a 'Driver No Flick' designed to minimize flickering, contributing to visual comfort.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PMMA
Warranty years
5
Dimensions (mm)
160x80x156 mm
Rated Power
30W-35W-40W
Rated Voltage
85V-265V
CRI - Color Rendering Index
92
Energy Class (2021-EU-2019/2015)
A++
LED Diode Efficacy (Lm/W)
120Lm/W
Estimated LED Diode Life (H)
30.000
Power Factor (PF)
0.97
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-25ºC ~ +45ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
D
Light Temperature
3CCT SELECT 3000K-4000K-5700K
Luminous Flux-Lm
4800
LED Type
COB BRIDGELUX 130 CHIP 2630 DS-C30
Beam Angle (º)
Interchangeable angels: 24º - 60º
Luminous Efficacy (Lm/W)
120 Lm/W
Driver Included
Driver No Flick
Glare Index (UGR)
13
