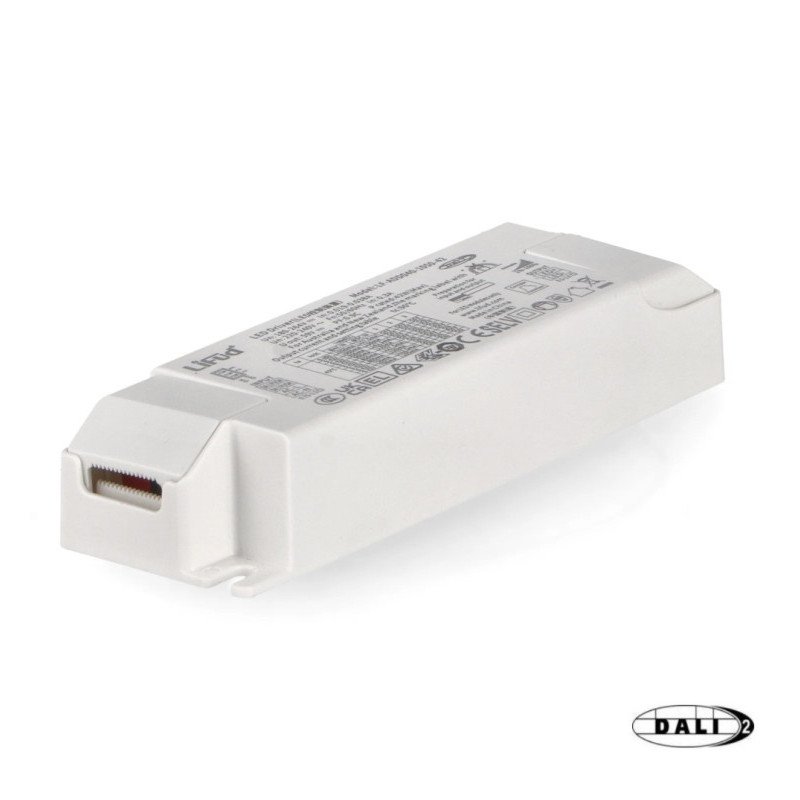

LED Driver DALI/PUSH 9-42V 700-1050mA No Flicker up to 40W
LED-00847
Certificates
CE-RoSH-TÜV-ENEC
Construction Material
Flame-Retardant Thermoplastic
Dimensions (mm)
14,5cm x 4,6cm x 2,8cm
Rated Power
40W
Dimmable
Dimmable DALI-2
New product
This dimmable LED driver operates within 9-42V DC output and supports current from 700 to 1050mA, suitable for luminaires up to 40W. Featuring no flicker technology, it ensures stable lighting with a power factor of 0.95 and IP20 rating for indoor use. It works with DALI or PUSH dimming systems, designed to maintain visual comfort in various environments.
114 Items
More info

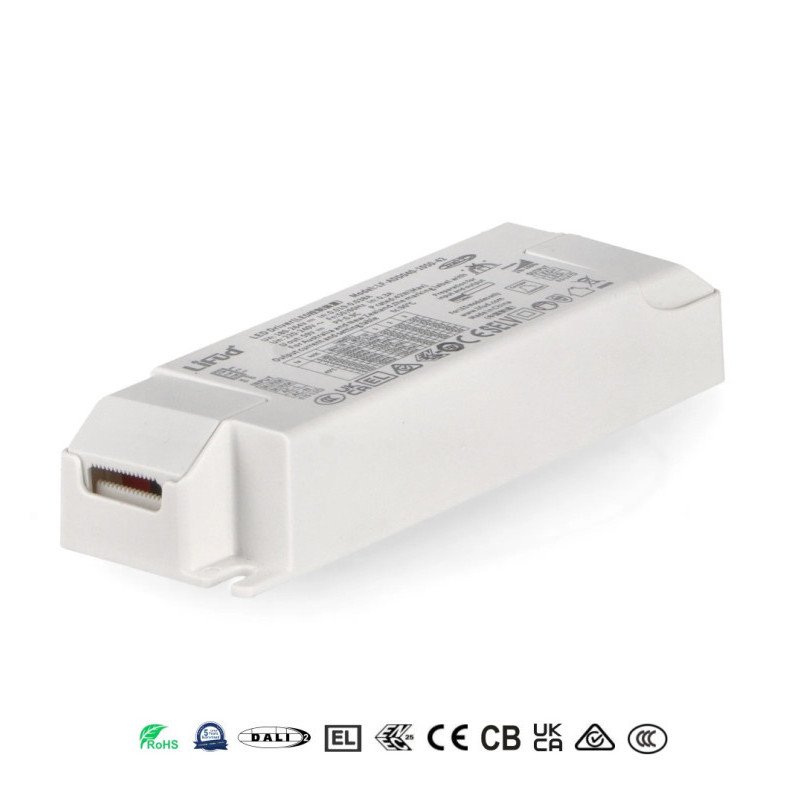

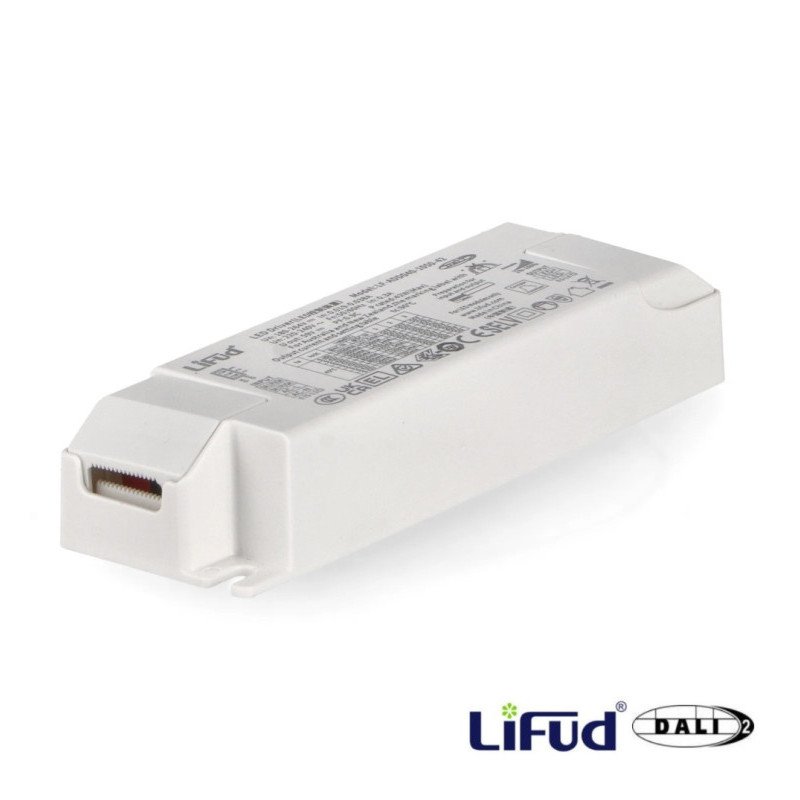

The LIFUD dimmable LED driver DALI/PUSH is designed to power and dim LED luminaires up to 40W, providing stable performance and efficient operation with no flicker (NO FLICKER) for steady light. It is suitable for downlights, LED panels, and LED ceiling fixtures in residential and commercial environments where visual comfort matters. It features an AC input of 220-240V and a dimmable DC output of 9 to 42V with a current range of 700 to 1050mA, allowing it to be matched to different compatible luminaire configurations.
Technical Features and Performance

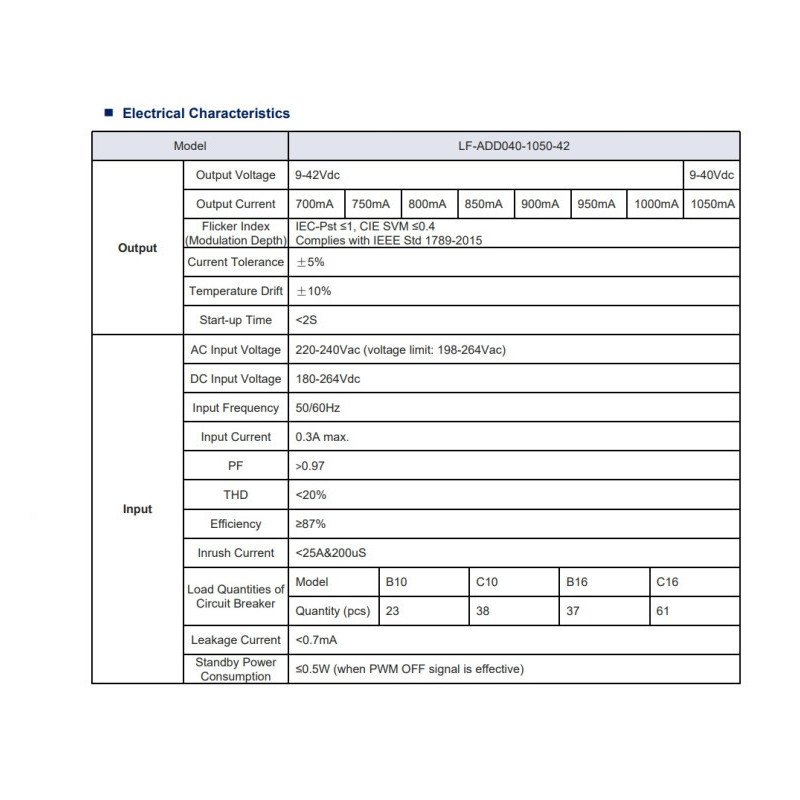

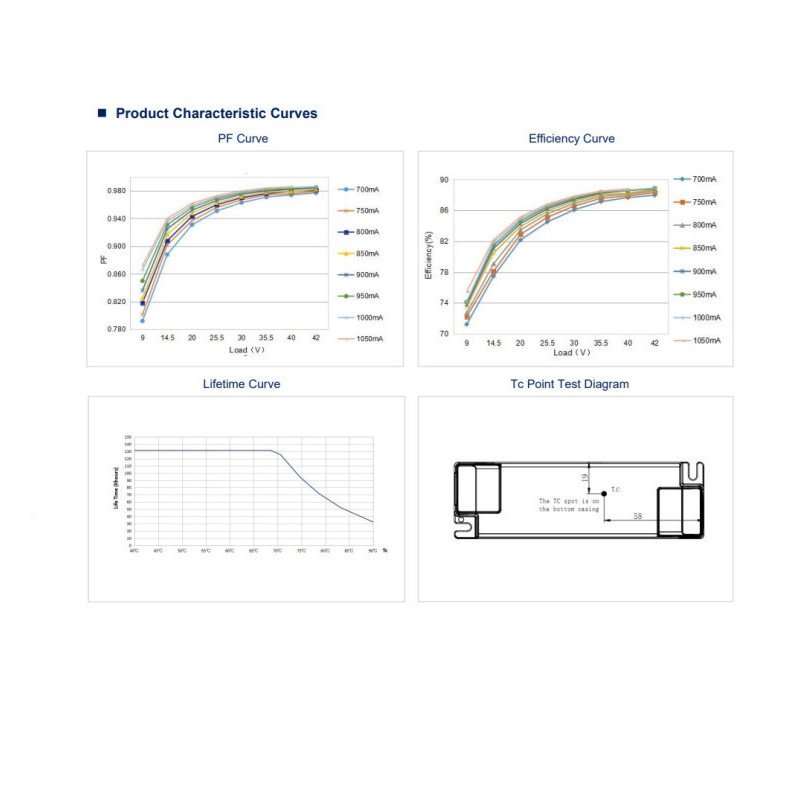

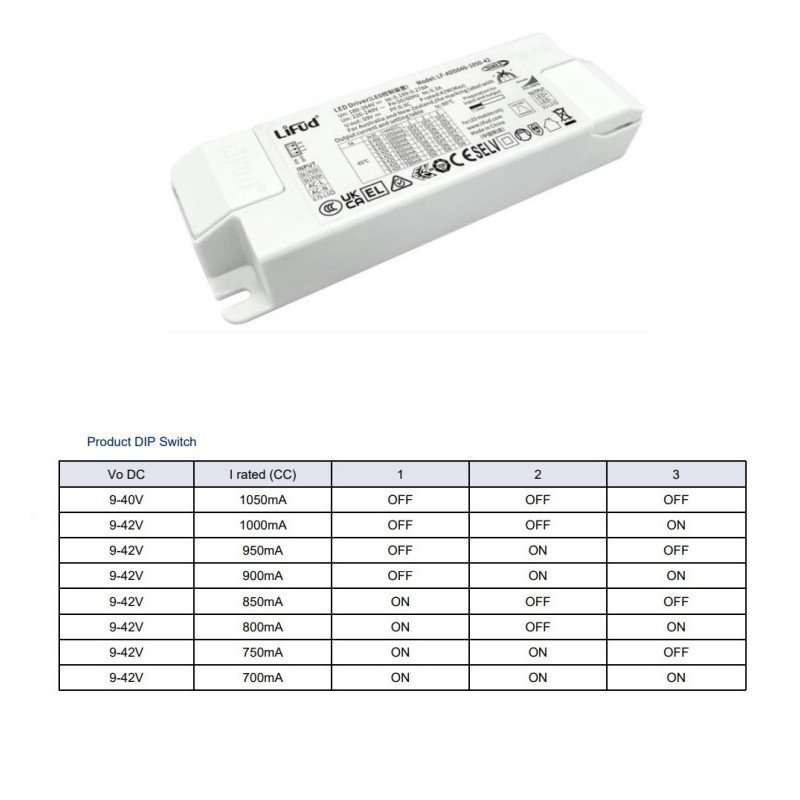

The LED driver delivers a nominal power of 40W and operates with a high power factor of 0.95, optimizing electrical efficiency within its specified rating. It provides a dimmable DC output voltage range of 9 to 42V with adjustable current between 700 and 1050mA, allowing compatibility with various LED luminaire designs.
Constructed from flame-retardant thermoplastic material, the driver meets safety standards for indoor installation environments. It operates reliably in ambient temperatures ranging from -25°C to 45°C.
The unit supports standard mains frequencies of 50 Hz and 60 Hz, ensuring versatility in different electrical grids.
Dimming Compatibility and Flicker Control

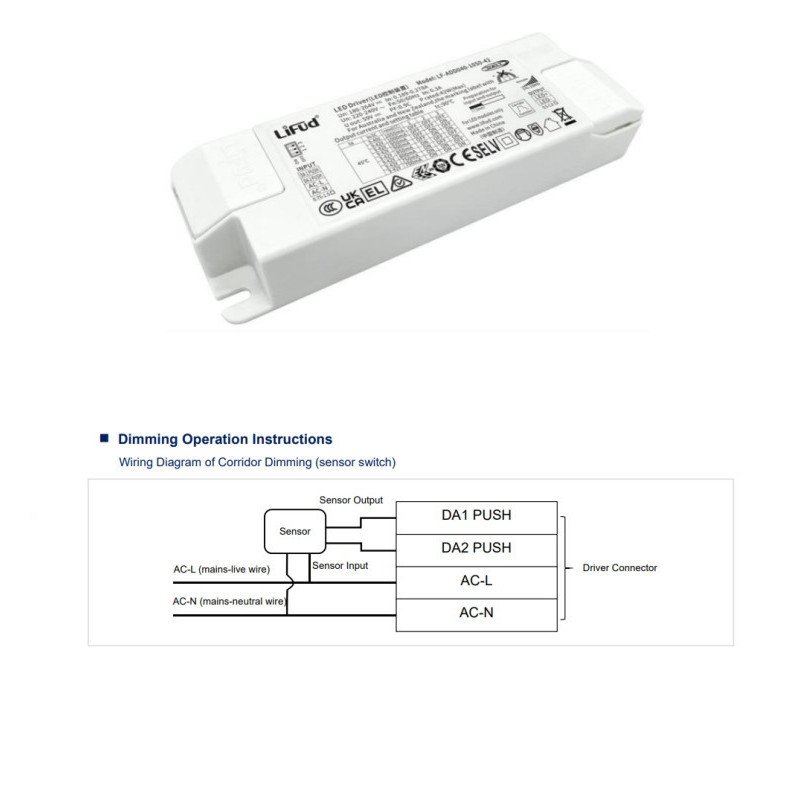

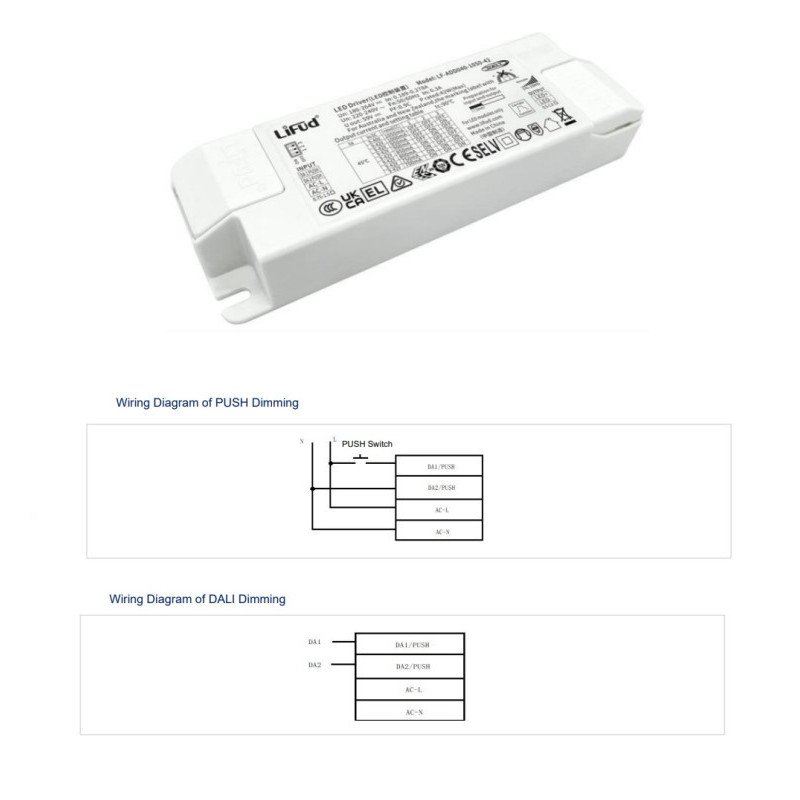

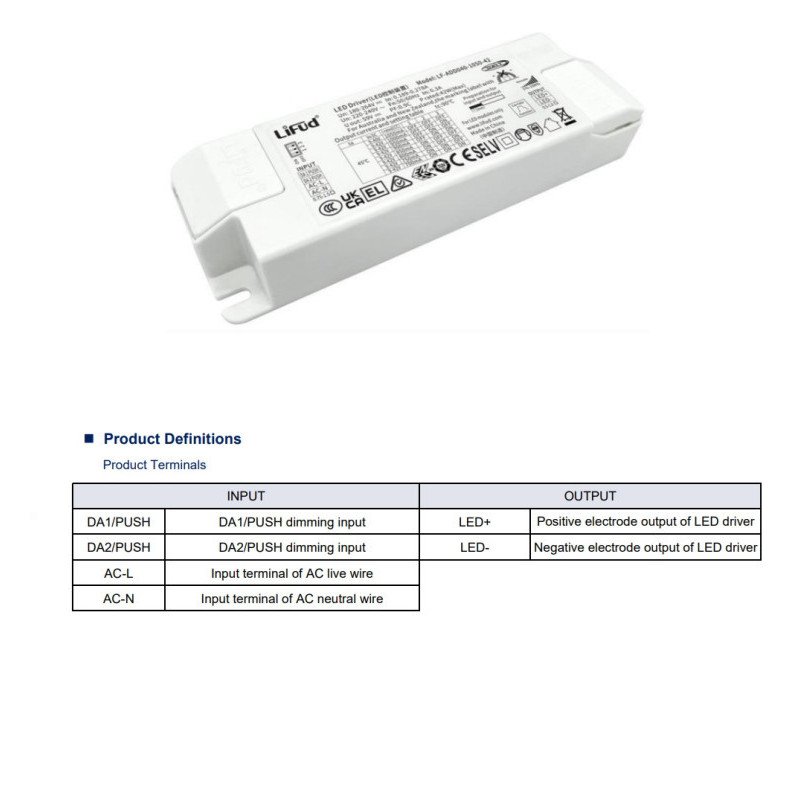

Equipped with lifud LED driver technology, it supports both DALI and PUSH dimming protocols, making it adaptable to multiple control systems. This flexibility helps in integrating the driver into existing lighting control infrastructures.
The driver incorporates flicker-free performance, which enhances visual comfort by preventing the light from flickering during dimming or steady operation, a critical feature in environments demanding stable illumination.
Frequently Asked Questions
What types of dimming systems does this LED driver support?
It supports both DALI and PUSH dimming systems, providing flexible integration options for various lighting control setups.
Can this driver be used outdoors?
No, with an IP20 ingress protection rating, this driver is intended for indoor use and is not suitable for outdoor environments or exposure to moisture.
What is the operating temperature range of the driver?
The driver operates safely within an ambient temperature range of -25°C to 45°C.
Does the driver support flicker-free lighting?
Yes, it is designed to provide no flicker in its output, ensuring stable and comfortable lighting conditions.
View technical specifications Hide technical specifications
Certificates
CE-RoSH-TÜV-ENEC
IP Rating
IP20
Construction Material
Flame-Retardant Thermoplastic
Warranty years
5

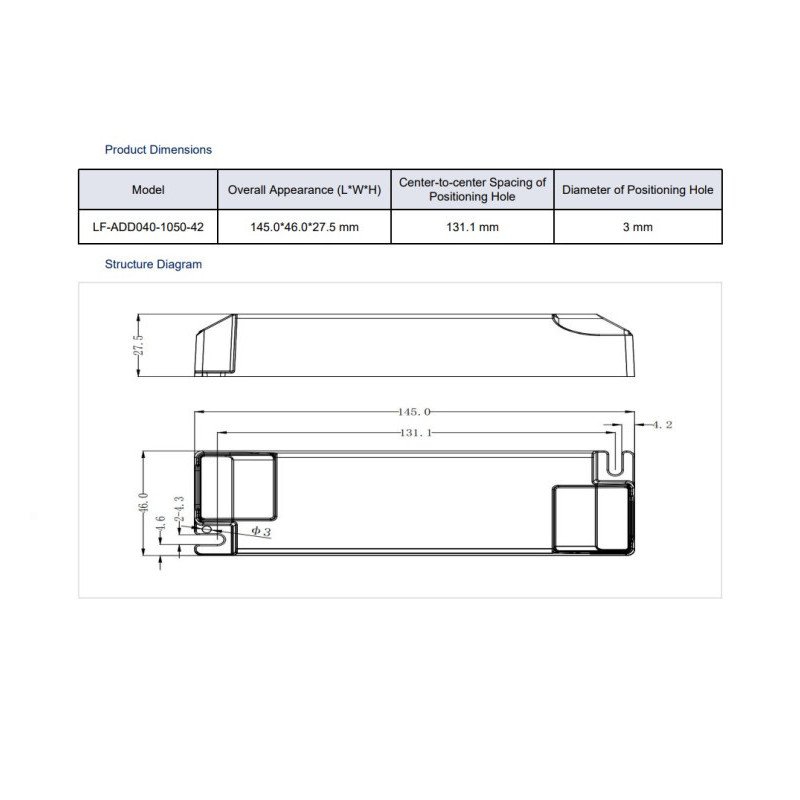

Dimensions (mm)
14,5cm x 4,6cm x 2,8cm
Rated Power
40W
Rated Voltage
Input: AC220-240V / Output: DC9-42V 700mA-1050mA
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-25ºC ~ +45ºC
Driver Included
Lifud Driver
Dimmable
Dimmable DALI-2
