LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior
LED Street Light 40W CONIC 160 lm/W Aluminum Exterior

LED Street Light 40W CONIC 160 lm/W Aluminum Exterior

Certificates CE - ROHS
Construction Material Aluminum +PC

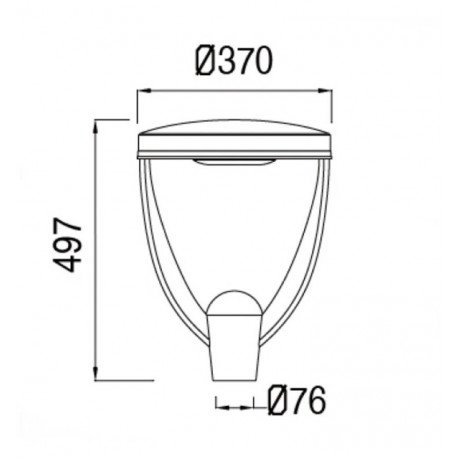

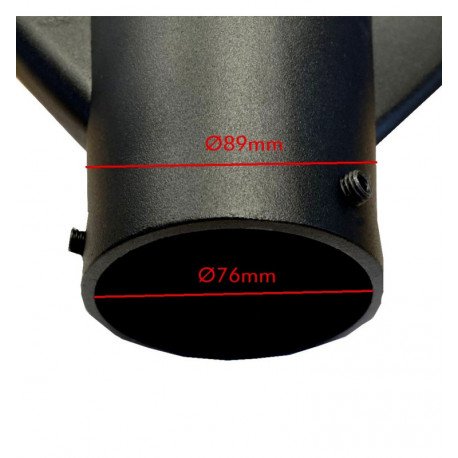

Dimensions (mm) Ø370mm x 497mm - HoleΦ74mm
Rated Power 40W

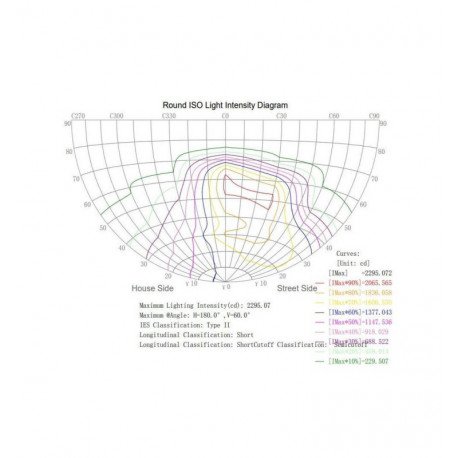

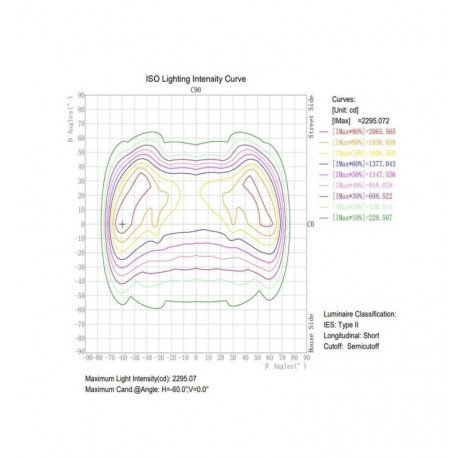

Beam Angle (º) 80º-150º

New product

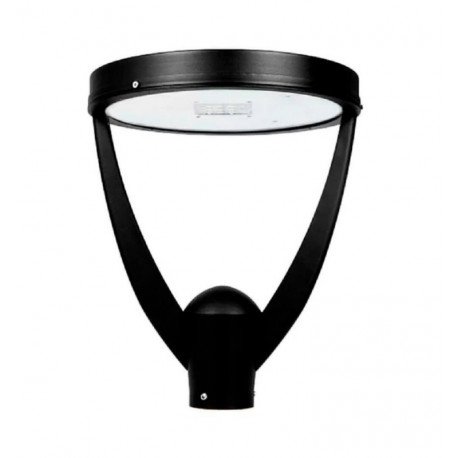

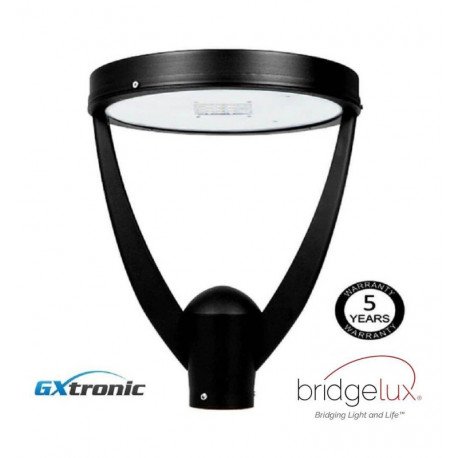

Outdoor LED street light 40W CONIC with white reflector, aluminum body and asymmetric optical module. Up to 160 lm/W for replacing mercury lamps.

More details

57 Items

155,49 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PC
Warranty years 5
Dimensions (mm) Ø370mm x 497mm - HoleΦ74mm
Rated Power 40W
Rated Voltage 85V-265V
CRI - Color Rendering Index 70
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 160 Lm/w
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.95
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -15ºC ~ +70ºC
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK08
Light Temperature 4000K
Luminous Flux-Lm 5200 Lm
LED Type SMD 3030
Beam Angle (º) 80º-150º
Luminous Efficacy (Lm/W) 130Lm/W
Additional Information Driver: 23-42VDC- 1200mA+-5%

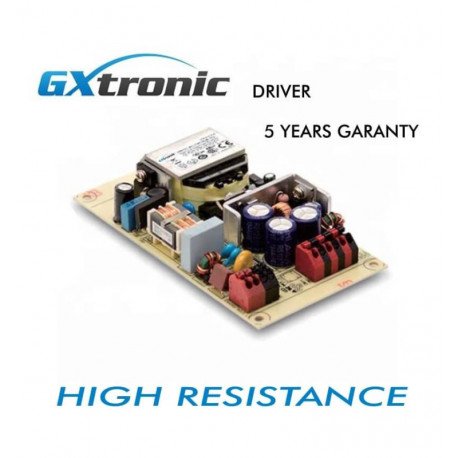

Driver Included Driver GXTronic - 5 Years

More info

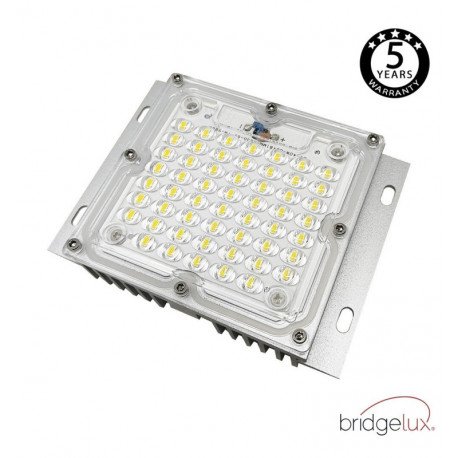

White LED street light 40W CONIC for outdoor use, with a white reflector and an aluminum and polycarbonate housing. Designed to replace older mercury street lights, it delivers higher performance with lower energy consumption. Features a Bridgelux LED optical module with an asymmetric beam angle (70°–150°) and SMD 3030 technology with 4 cores, with diode efficacy up to 160 lm/W. Includes a GXTronic driver for instant start-up and helps improve visual comfort by reducing light pollution.
