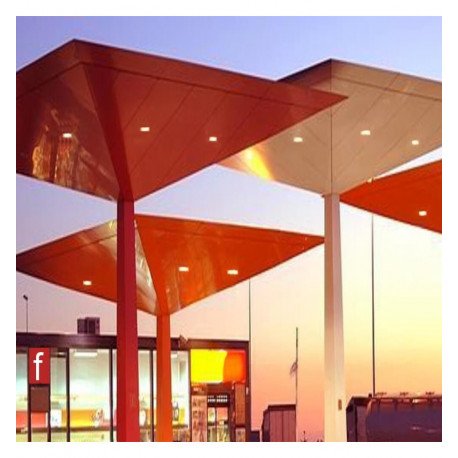

LED High Bay 50W DOB Magnum OSRAM Module IP65
LED-00093
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
305x75x80mm
Rated Power
50w
Beam Angle (º)
60º
New product
This 50W LED high bay luminaire with IP67 protection features a robust aluminum and PMMA build, delivering an estimated 6000 lm flux with high efficacy of 120 lm/W. Equipped with OSRAM 72-diode SMD 3030 3D module and a 60° beam angle, it is designed for street and floodlight replacements, suitable for demanding outdoor environments.
598 Items
More info

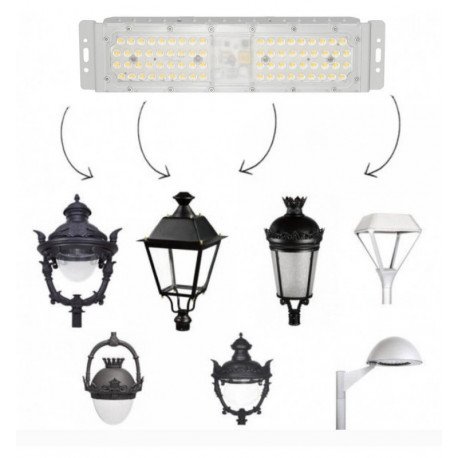

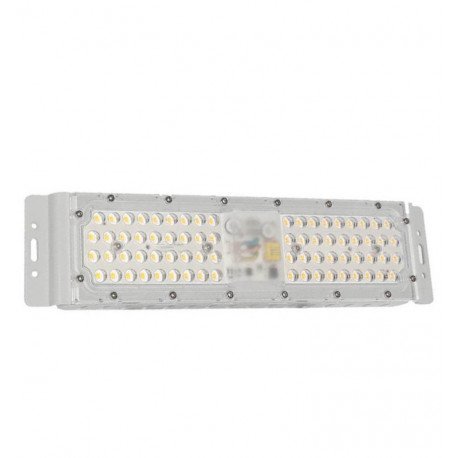

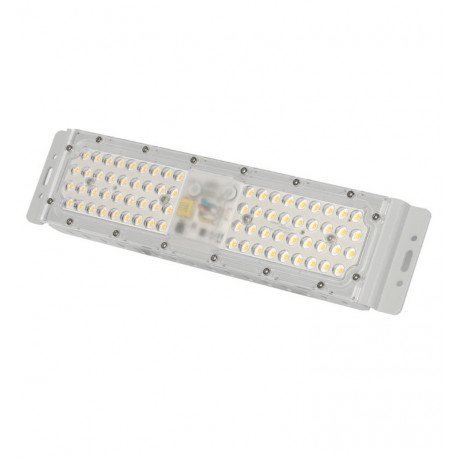

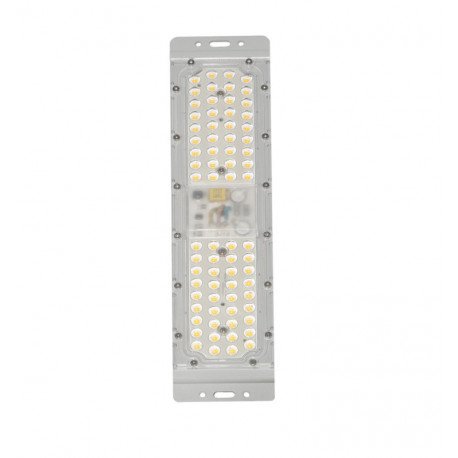

The 50W LED optical module features a 60° beam angle and is built with 72 SMD 3030 3D diodes plus an OSRAM triple-core chip. Designed as a replacement for street light lighting systems and also suitable for mounting in floodlights, it delivers high light output (up to 7000 lm) with a CRI above +80. Its 6063 aluminum housing, finished with oven-baked paint, helps prevent oxidation. With IP67/IP65 protection, it is suitable for outdoor use, offering safety against splashes.
Durability and Environmental Resistance

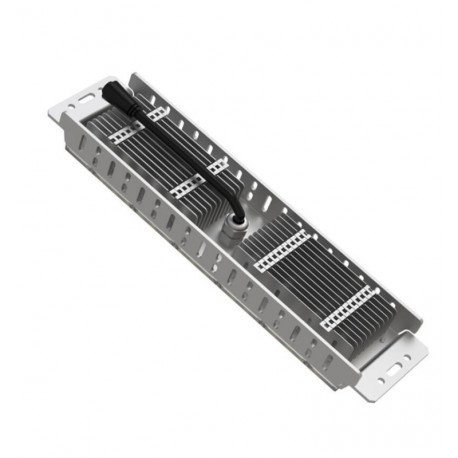

Constructed from 6063 aluminum combined with PMMA, this luminaire ensures longevity and resistance to environmental factors. The surface is protected by oven-baked paint, which prevents oxidation and maintains structural integrity over time.
The IK10 impact protection rating additionally guarantees high mechanical resistance to impacts, making it suitable for industrial or outdoor installations exposed to potential physical stresses.
Electrical and Performance Characteristics
Operable within a wide voltage range of 175 to 265 V and compatible with both 50 and 60 Hz frequencies, this product offers adaptability in various electrical systems.
With a power factor of 0.91, the luminaire achieves efficient energy usage, while its quick startup time of 0.2 seconds facilitates instant illumination.
Designed to withstand temperatures from -15 °C to 70 °C, it performs reliably in diverse climates and challenging environmental conditions.
Optical and Lighting Features
The integrated OSRAM triple-core chip with 72 SMD 3030 3D diodes ensures high luminous efficacy and colour rendering index of 84, delivering quality light suitable for detailed visibility.

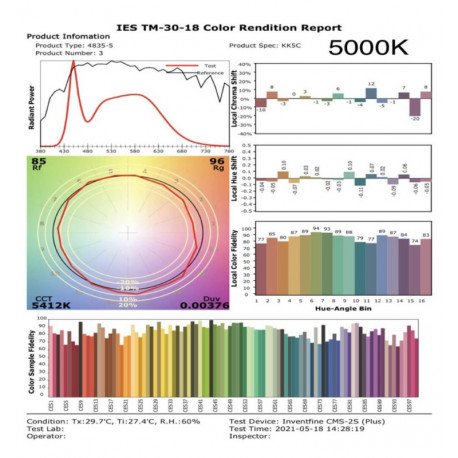

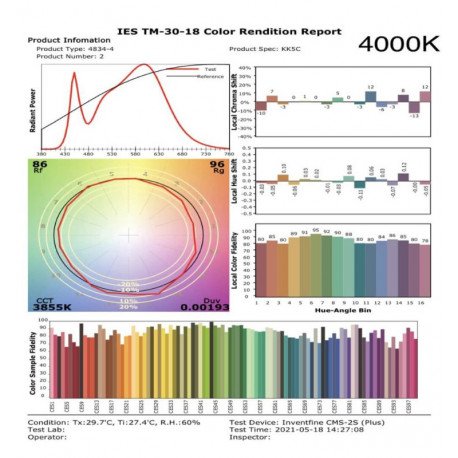

Available in colour temperature settings of 4000 K and 5000 K, it offers flexibility in lighting ambience, primarily focusing light via a 60° beam angle to optimize illumination in targeted applications.
Frequently Asked Questions
What is the ingress protection rating of this luminaire?
It has an IP67 rating, which makes it highly resistant to dust and able to withstand immersion in water, suitable for outdoor usage.
Can this luminaire be used in cold environments?
Yes, it is rated to operate in temperatures as low as -15 °C, making it appropriate for cold installations.
What type of LED module does this product use?
It features a 72-diode SMD 3030 3D LED module with an OSRAM triple-core chip OS-CORE Sapphire ODB2235S.A.
What is the expected lifespan in terms of switching cycles?
This luminaire supports up to 100000 switching cycles, ensuring long-term operational durability.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP67-Exterior
Construction Material
Aluminum +PMMA
Warranty years
5
Dimensions (mm)
305x75x80mm
Rated Power
50w
Rated Voltage
175-265V
CRI - Color Rendering Index
84
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
140 Lm/W
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0,91
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15ºC ~ +70ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
4000K-5000K
Luminous Flux-Lm
7000
LED Type
72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º)
60º
Luminous Efficacy (Lm/W)
120 Lm/W
Additional Information
DOB Driverless
Driver Included
DOB GXTRONIC ELECTRONIC
