LED High Bay 65W Programmable LED Module
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
175x175xH35
Rated Power
Programmable from: 49w to 65w
Beam Angle (º)
78ºx156º
New product
The LED High Bay 65W Programmable LED Module features a robust IP66-rated aluminum and PMMA construction with a high protection rating of IK10. It delivers efficient lighting with a power factor of 0.98 and offers color temperature options of 2200K (amber), 3000K (warm white), and 4000K (neutral white). The Philips XITANIUM driver ensures precise power control and fast startup, suitable for various industrial and commercial environments.
518 Items
More info

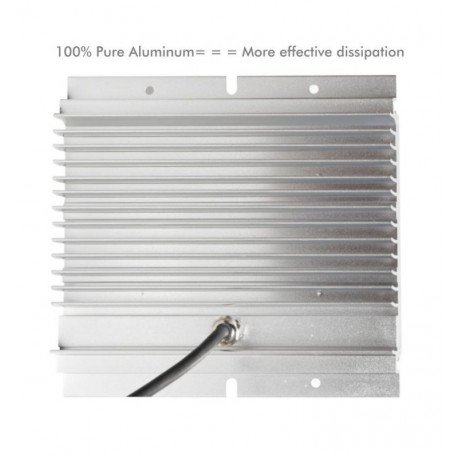

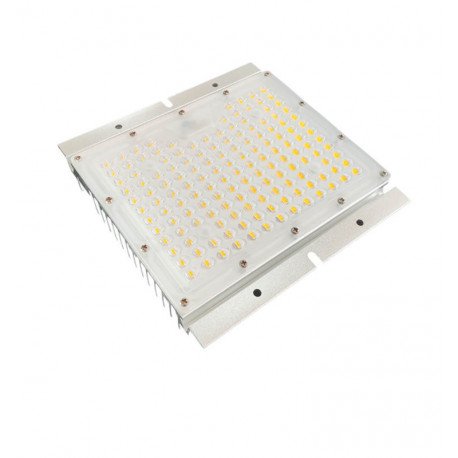

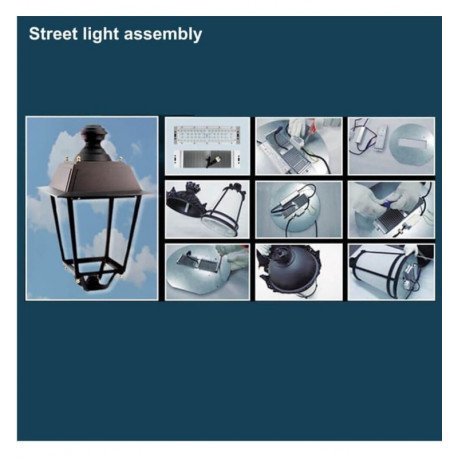

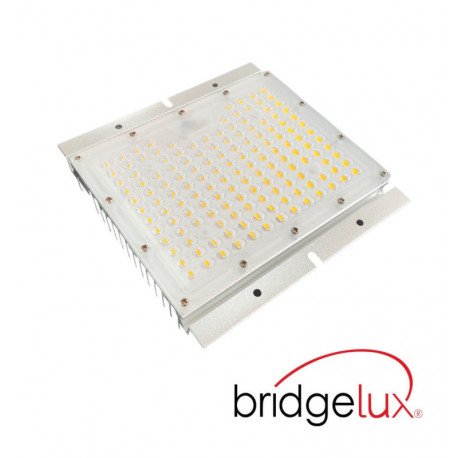

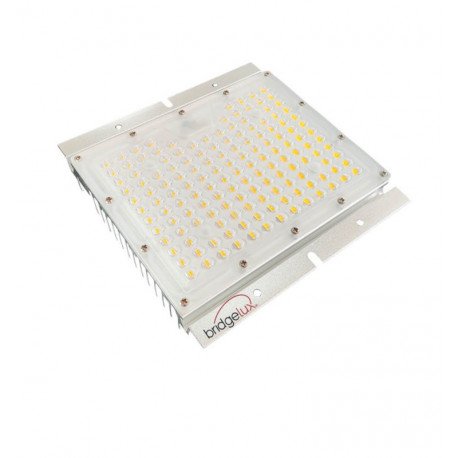

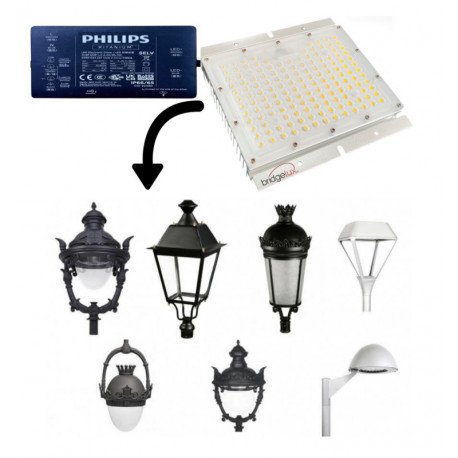

Philips XITANIUM Essential programmable 65W LED Optical Module (Xi EP), designed as a replacement for LED streetlights. Adjust the power from 49W to 65W to achieve strong, efficient lighting (180 lm/W). Includes 144 SMD 3030 8D diodes with Bridgelux chips and a programmable Philips XITANIUM Essential Xi EP 65W driver. The design and material quality support excellent heat dissipation and long service life, helping replace older, more polluting systems. Installation and mounting are straightforward, making maintenance easier and improving outdoor lighting performance.
Durability and Protection

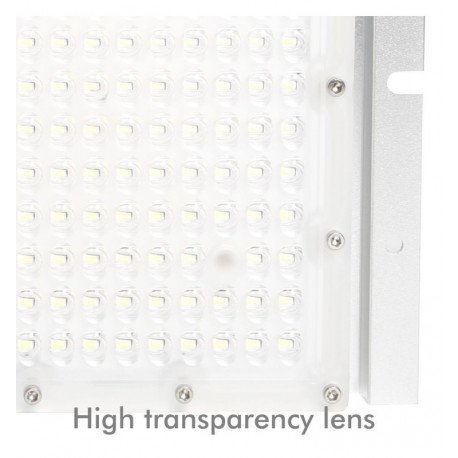

Constructed from aluminum and PMMA, this LED module combines strength and durability with resistance to environmental factors. The IP66 rating ensures protection against dust and powerful water jets, making it suitable for harsh indoor and outdoor settings. Furthermore, the IK10 impact rating provides excellent resistance to mechanical impacts, contributing to reliable and long-lasting operation.
Electrical and Optical Performance

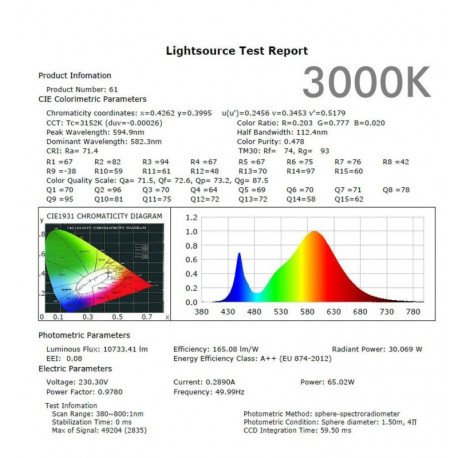

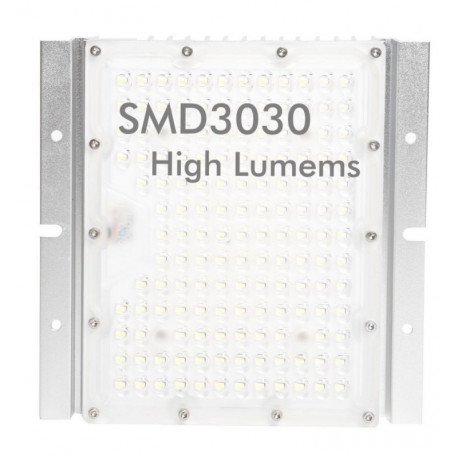

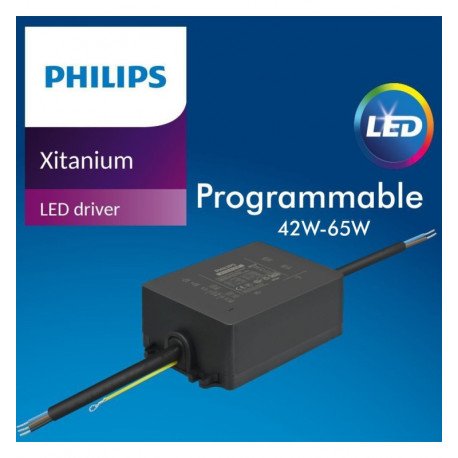

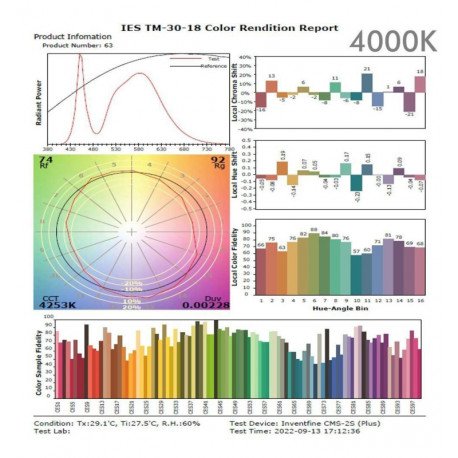

Equipped with a Philips XITANIUM Xi EP 65W driver, the module offers an adjustable power range from 49W to 65W, allowing tailored illumination levels. The LED array utilizes 144 high-quality SMD 3030 8D Bridgelux chips that provide consistent light output. Its declared efficacy of 180 lm/W ensures energy-efficient performance while maintaining a color rendering index (CRI) of 75 for natural color appearance. Users can select from amber (2200K), warm white (3000K), or neutral white (4000K) color temperatures, accommodating diverse lighting needs.
Operational Reliability and Convenience
Designed for rapid activation, the module starts up in just 0.2 seconds, minimizing downtime and enhancing user experience. It operates reliably across a wide frequency range (50/60 Hz) and voltage input of 100 to 277 V, ensuring compatibility with various electrical systems. Rated for -15°C to 70°C ambient temperatures and over 100,000 switching cycles, it supports demanding industrial environments with minimal maintenance needs.
Frequently Asked Questions
Can the color temperature be changed after installation?
The LED High Bay module is available with fixed color temperature options (amber 2200K, warm white 3000K, or neutral white 4000K) selected at purchase; it does not support color temperature adjustment post-installation.
What is the significance of the IK10 rating?
The IK10 rating indicates the module’s high resistance to impact, protecting it against strong mechanical shocks and potential damage in demanding environments.
Is this LED module suitable for outdoor use?
Yes, with its IP66 ingress protection, the module is protected against dust and powerful water jets, making it suitable for outdoor and industrial applications.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP66
Construction Material
Aluminum +PMMA
Warranty years
5
Dimensions (mm)
175x175xH35
Rated Power
Programmable from: 49w to 65w
Rated Voltage
100-277V
CRI - Color Rendering Index
75
Energy Class (2021-EU-2019/2015)
A++
LED Diode Efficacy (Lm/W)
210Lm/W
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.98
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15ºC ~ +70ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Energy Class (2023 - EU-2019/2015)
C
Light Temperature
3000K - 4000K
Luminous Flux-Lm
11700Lm
LED Type
SMD 3030- 8D (8Cores) BRIDGELUX CHIP 2240DS-C30

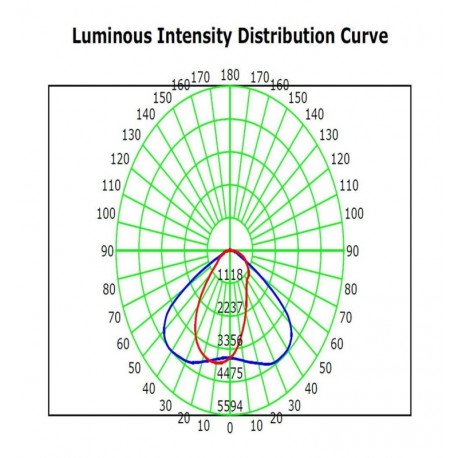

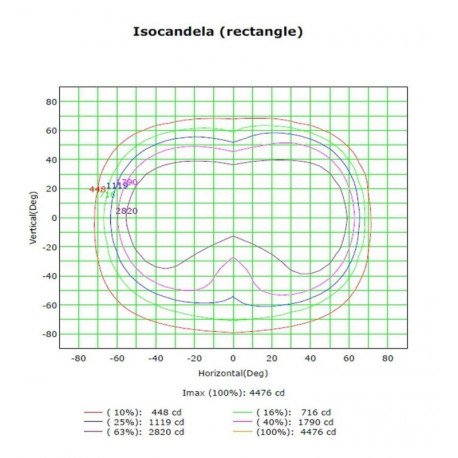

Beam Angle (º)
78ºx156º
Luminous Efficacy (Lm/W)
180Lm/W
Driver Included

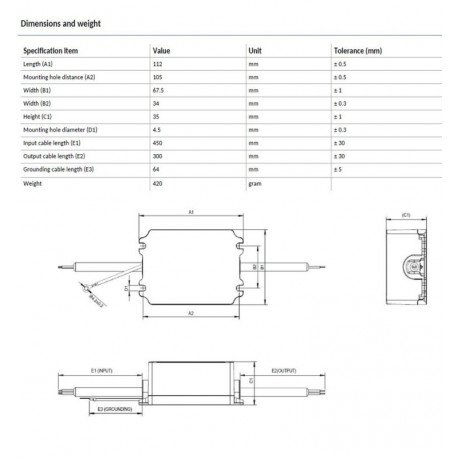

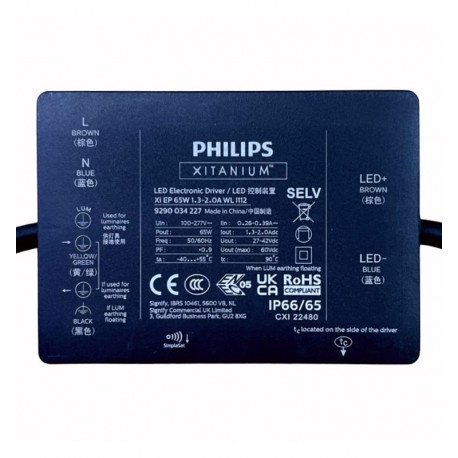

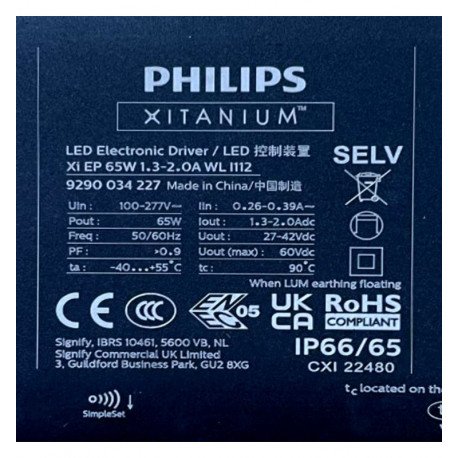

Philips Xitanium Xi EP - 65W - 1.3-2.0A - WL I112
Glare Index (UGR)
13
