LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module
LED High Bay 65W Dimmable Programmable LED Module

LED High Bay 65W Dimmable Programmable LED Module

Certificates CE - ROHS
Construction Material Aluminum +PMMA
Dimensions (mm) 170x170xH31mm
Rated Power 65W
Beam Angle (º) 78ºx156º

New product

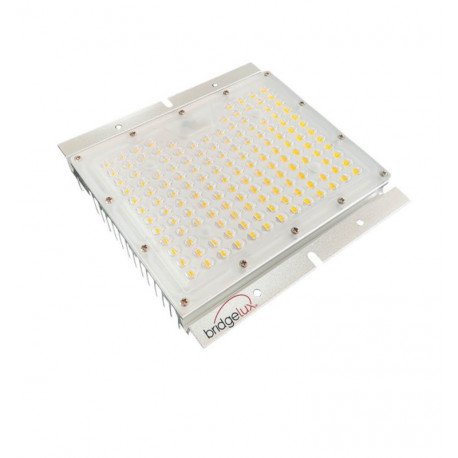

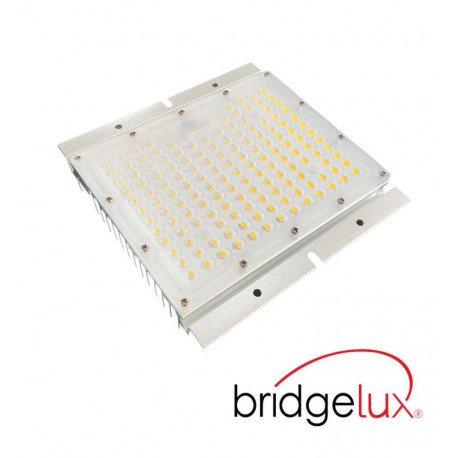

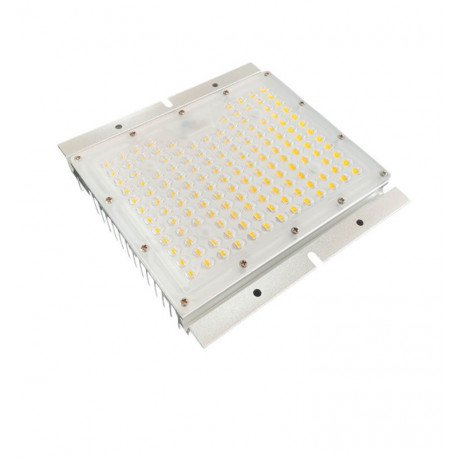

High-brightness LED optical module for street lights and LED poles, 65W, dimmable and programmable MOSO. 144 SMD 3030 8D diodes with Bridgelux chip.

More details

418 Items

125,43 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP66
Construction Material Aluminum +PMMA
Warranty years 5

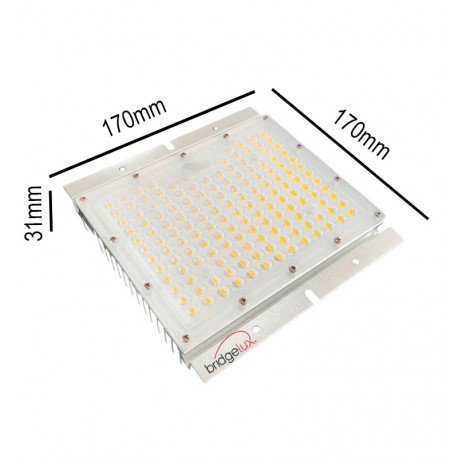

Dimensions (mm) 170x170xH31mm
Rated Power 65W
Rated Voltage 110-260V

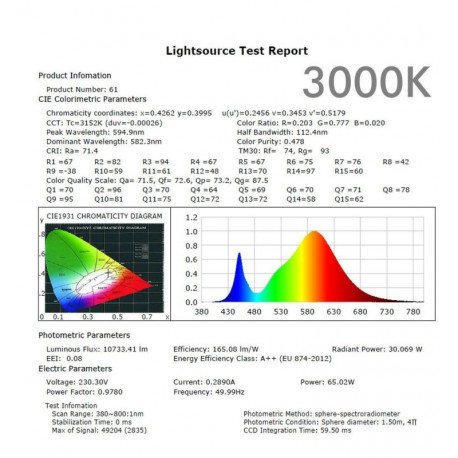

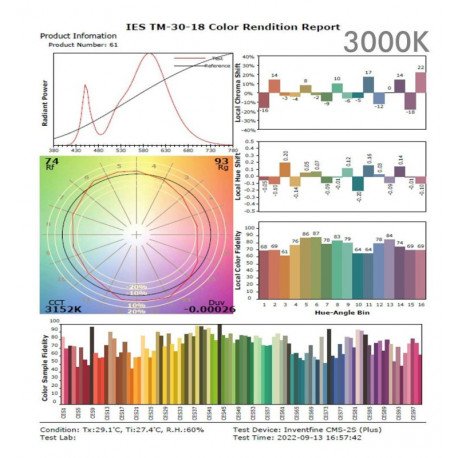

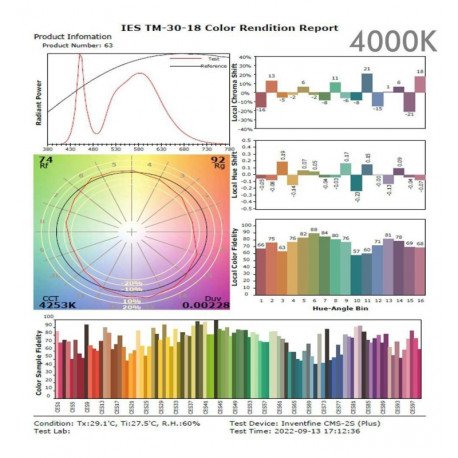

CRI - Color Rendering Index 75
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 210Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.98
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -15ºC ~ +70ºC
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 3000K - 4000K
Luminous Flux-Lm 11700Lm

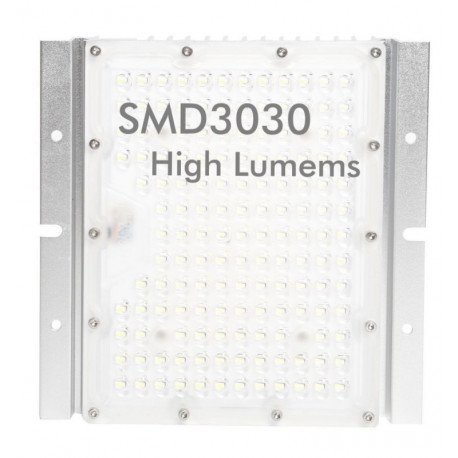

LED Type SMD 3030- 8D (8Cores) BRIDGELUX CHIP 2240DS-C30

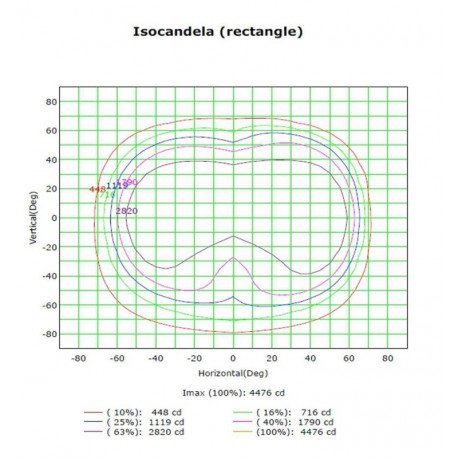

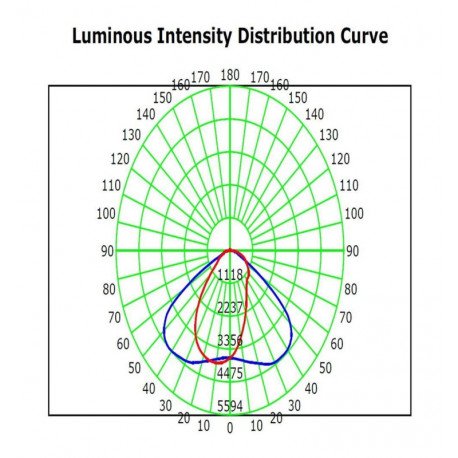

Beam Angle (º) 78ºx156º
Luminous Efficacy (Lm/W) 180Lm/W

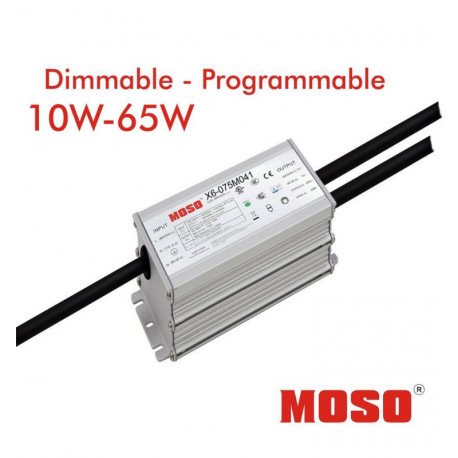

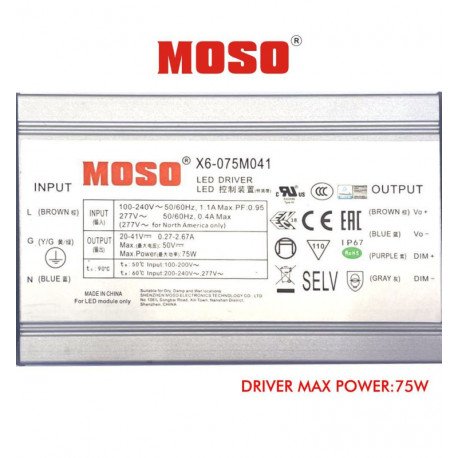

Driver Included MOSO X6-075M041 - 50.000h.
Glare Index (UGR) 13

More info

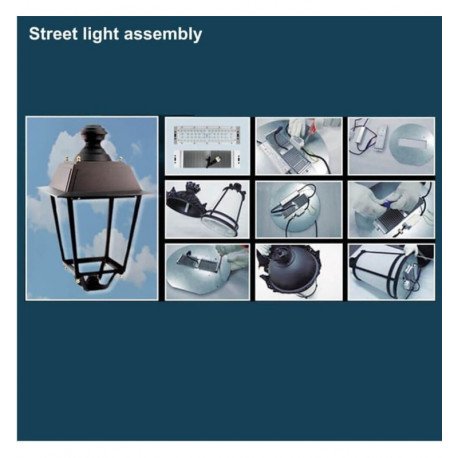

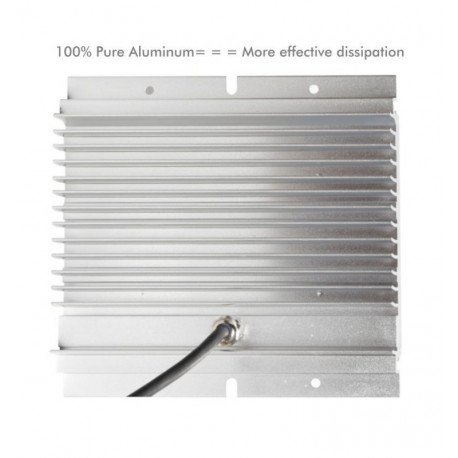

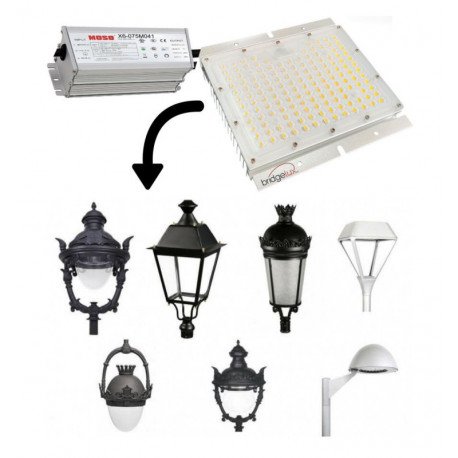

High-brightness 65W LED optical module for street lighting and LED street poles. Built with 144 SMD 3030 8D diodes and a Bridgelux chip, it includes a dimmable and programmable MOSO driver for more efficient light control. Designed as a replacement for LED street lights, it helps upgrade older systems with improved performance and better heat dissipation. Installation and mounting are intended to be straightforward, providing powerful, long-lasting outdoor lighting for streets and walkways.
