LED High Bay 65W Asymmetric LED Module 78x156
Certificates
CE - ROHS
Construction Material
Aluminum +PMMA
Dimensions (mm)
250x190xH5mm
Rated Power
65W
Beam Angle (º)
78ºx156º
New product
This 65W LED module features Bridgelux SMD 3030 8D diodes with asymmetric optics (78°x156°) for enhanced light distribution. It delivers approximately 11700 lm with 180 lm/W efficacy, is IP66 and IK10 rated for durability, and supports color temperatures of 2200K, 3000K, and 4000K. Designed for robust, efficient lighting replacements.
1158 Items
More info

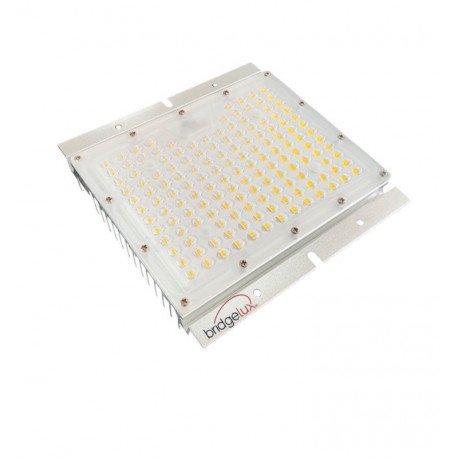

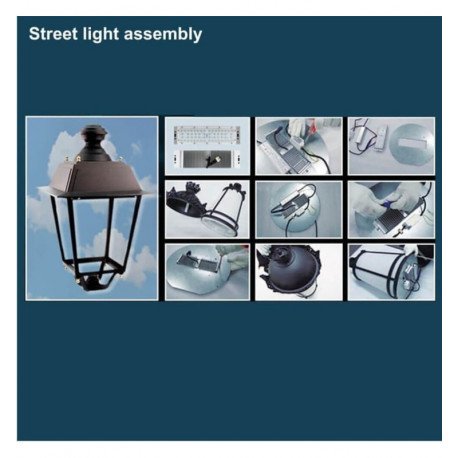

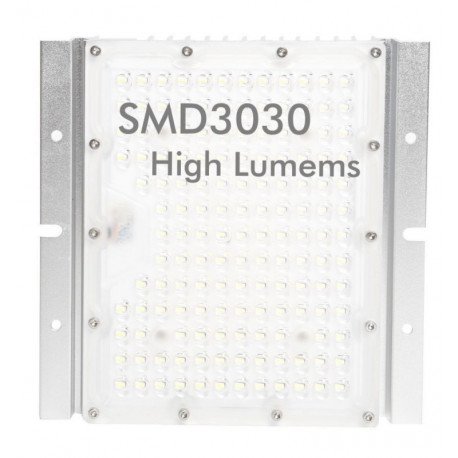

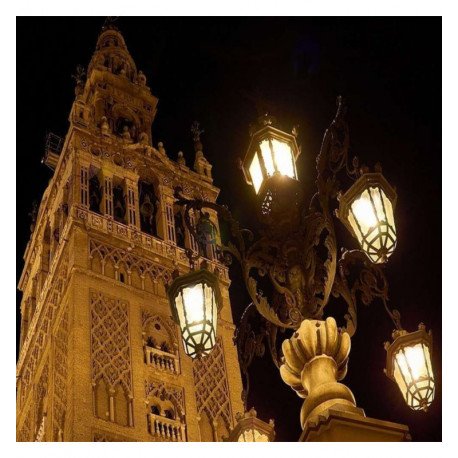

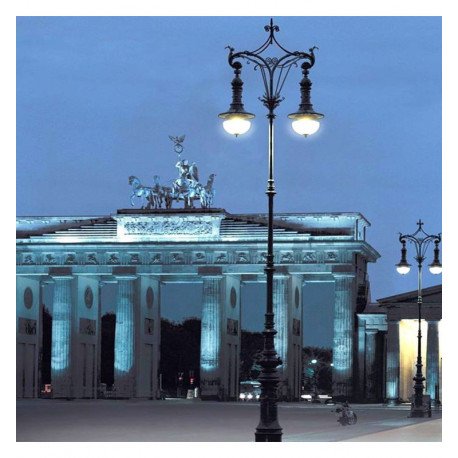

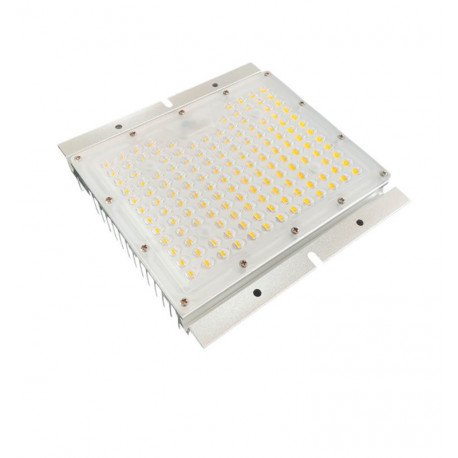

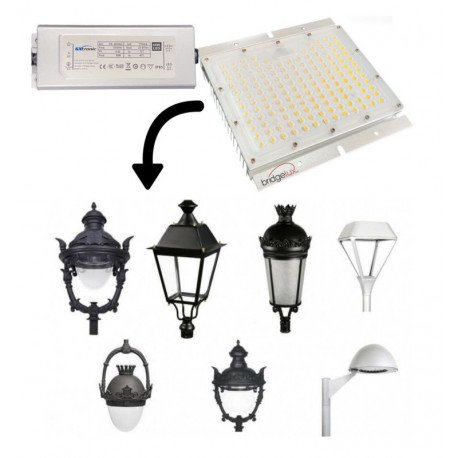

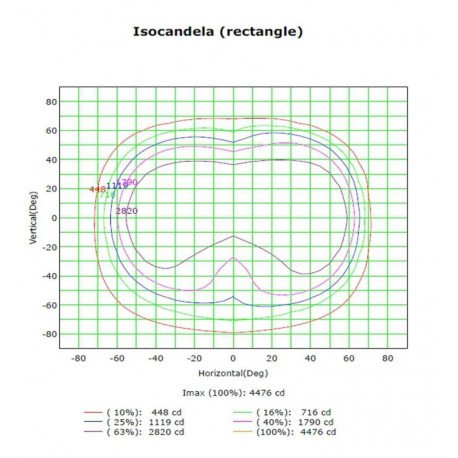

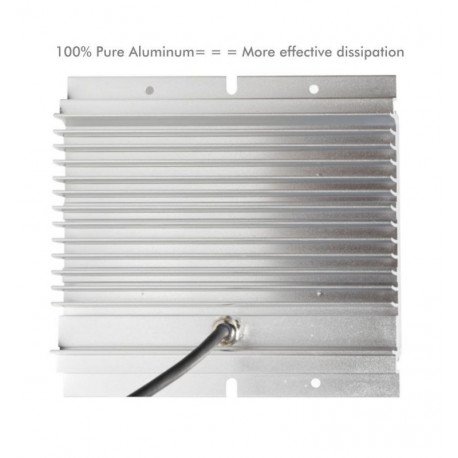

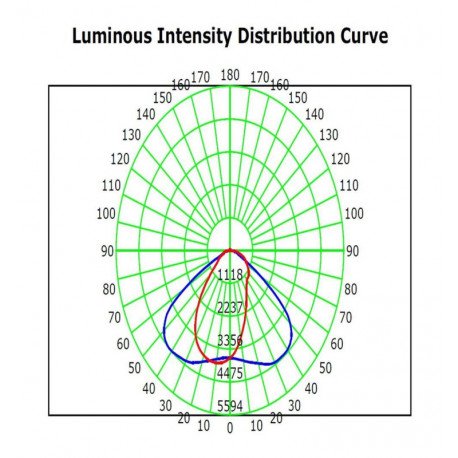

High-brightness 65W LED optical module featuring a Bridgelux chip and 144 SMD 3030 8D diodes, with a GXTronic driver. This module is designed as a replacement for LED luminaires and street lights, especially for villa and fernandina-style street lights, delivering strong illumination thanks to its power and excellent heat dissipation. Its asymmetric optics (78°x156°) help improve light distribution, supporting more efficient lighting and better visual comfort. The LED module installation and mounting are straightforward, helping extend the luminaire’s service life and contributing to cleaner lighting compared with more polluting alternatives.
Durability and Environmental Resistance

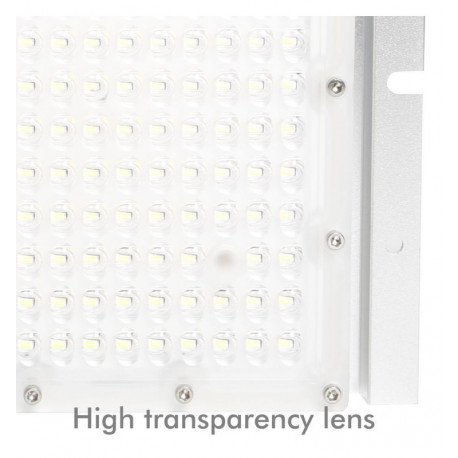

The LED High Bay 65W Asymmetric Module is built with an aluminum and PMMA construction ensuring robust physical protection and longevity. It holds an IP66 ingress protection rating, making it highly resistant to dust and powerful water jets. Its IK10 impact protection rating guarantees resilience against mechanical shocks, suitable for demanding industrial and outdoor environments.
Electrical and Performance Characteristics

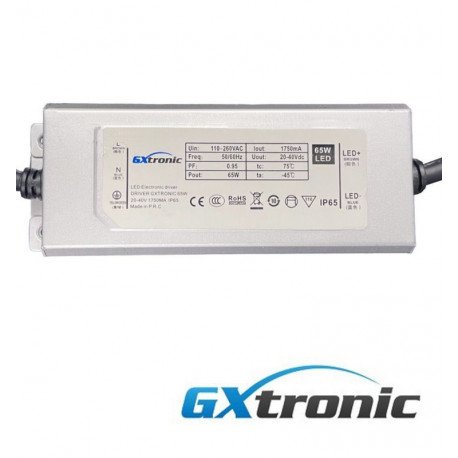

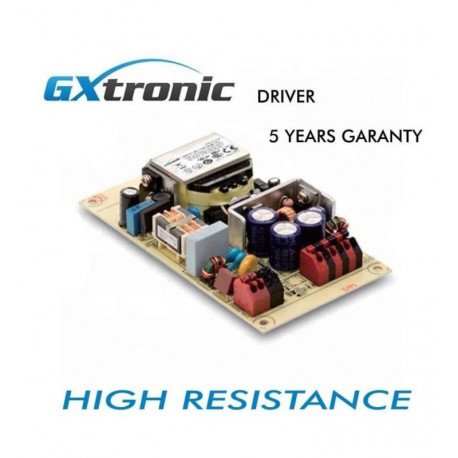

Operating within a voltage range of 110-260V and supporting both 50Hz and 60Hz frequencies, this LED module features a high power factor of 0.98, optimizing energy use. The GXTronic driver comes with a 5-year warranty, sustaining reliable performance, while the module supports rapid startup in 0.2 seconds and withstands up to 100,000 switching cycles.
Thermal and Operational Conditions
Designed to operate efficiently in environments ranging from -15°C to 70°C, this LED module is suitable for stable lighting in various temperature conditions. Its thermal design contributes to maintaining optimal LED performance and durability without overstating a heat dissipation benefit.
Color Temperature Options and Visual Comfort

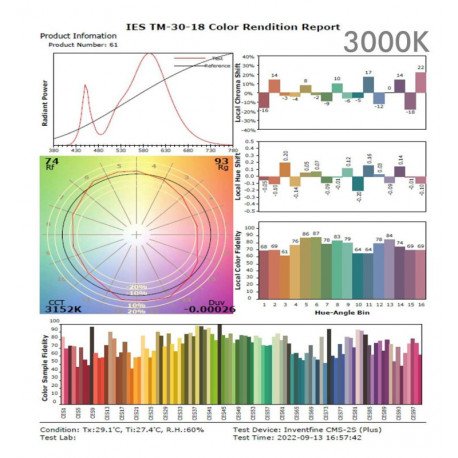

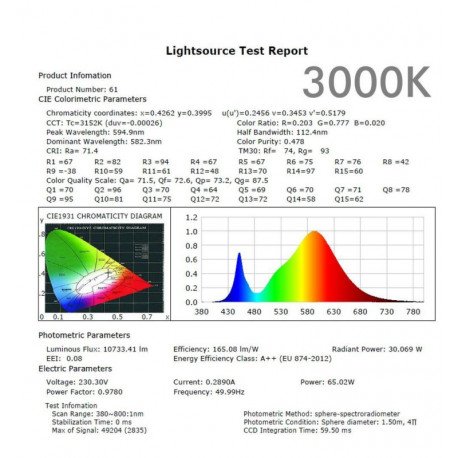

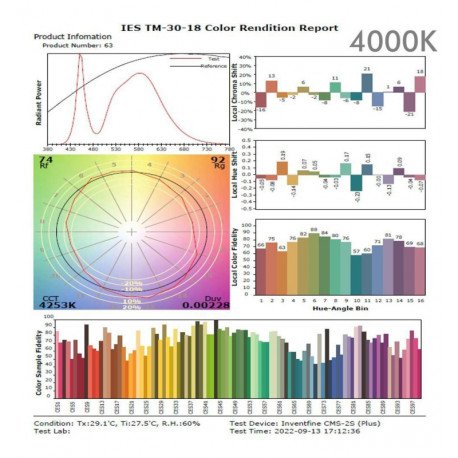

Offering selectable options of amber (2200K), warm white (3000K), and neutral white (4000K), the module adapts to different ambiance needs and applications. The color rendering index of 75 ensures acceptable color fidelity for general lighting purposes, balancing functionality with comfort.
Frequently Asked Questions
What type of LEDs are used in this module?

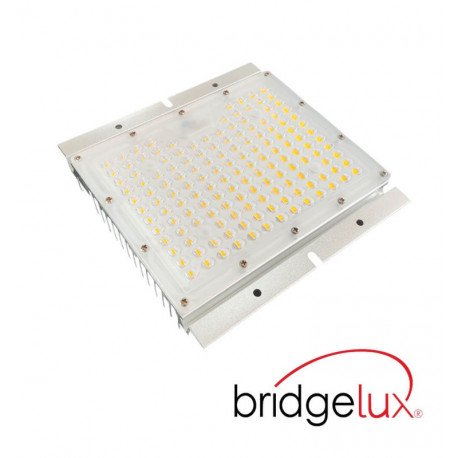

It uses Bridgelux SMD 3030 8D (8Cores) chips, model 2240DS-C30.
Can I install this LED module in outdoor locations?
Yes, with its IP66 and IK10 ratings, it is suitable for outdoor and industrial environments with exposure to dust, water, and impact.
What are the available color temperatures for this module?
Available color temperatures include amber (2200K), warm white (3000K), and neutral white (4000K).
How long is the warranty on the LED driver?
The GXTronic driver comes with a 5-year warranty.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP66
Construction Material
Aluminum +PMMA
Warranty years
5
Dimensions (mm)
250x190xH5mm
Rated Power
65W
Rated Voltage
110-260V
CRI - Color Rendering Index
75
Energy Class (2021-EU-2019/2015)
A++
LED Diode Efficacy (Lm/W)
210Lm/W
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.98
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15ºC ~ +70ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Light Temperature
3000K - 4000K
Luminous Flux-Lm
11700Lm
LED Type
SMD 3030- 8D (8Cores) BRIDGELUX CHIP 2240DS-C30
Beam Angle (º)
78ºx156º
Luminous Efficacy (Lm/W)
180Lm/W
Additional Information
Driver Out: 54-83Vdc 700mA
Driver Included
Driver GXTronic - 5 Years
Glare Index (UGR)
13
