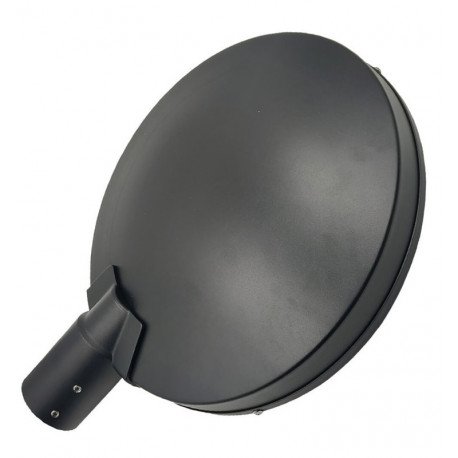

LED Street Light 40W Exterior Aluminum Bridgelux 160Lm/W
LED-00312
Certificates
CE, CMIM, RoHS
Construction Material
Aluminum +PC
Dimensions (mm)

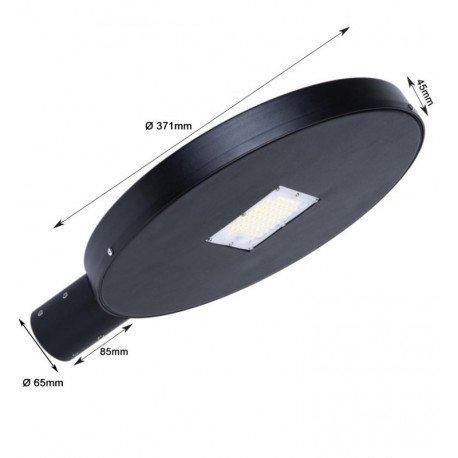

Ø371mm xH85mm - HoleΦ60mm
Rated Power
40W
Beam Angle (º)
70º-150º
New product
The 40W LED Street Light with Bridgelux SMD3030 technology offers an estimated 5400 lm output at 135 lm/W efficacy. Designed with aluminum and polycarbonate for durability, it features a 5-year GXTronic driver warranty, IP65 and IK08 ratings for outdoor resilience, and operates reliably from -15°C to 70°C. Available in warm and neutral white CCT.
197 Items
More info

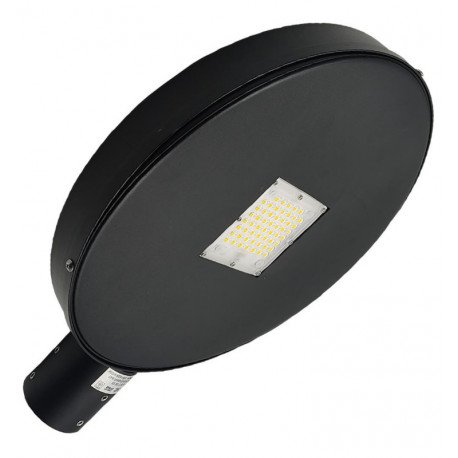

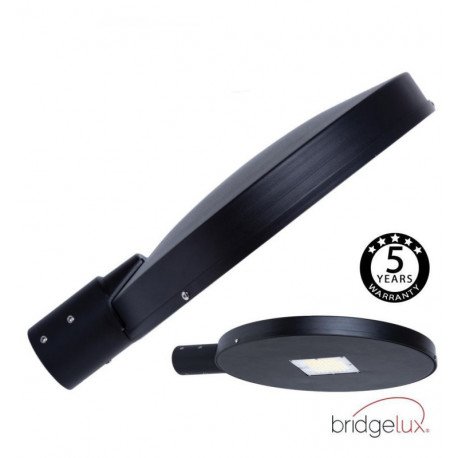

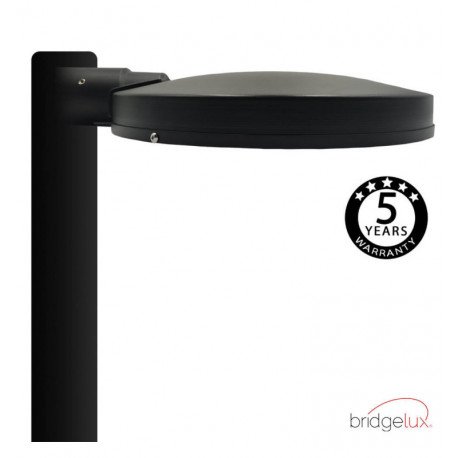

The 40W LEVI LED street light features a Bridgelux SMD 3030 LED module in aluminum and polycarbonate, with instant start and strong output. It is an ideal replacement for older mercury streetlights (prohibited in the EU since 2015), improving light quality while significantly reducing energy consumption.

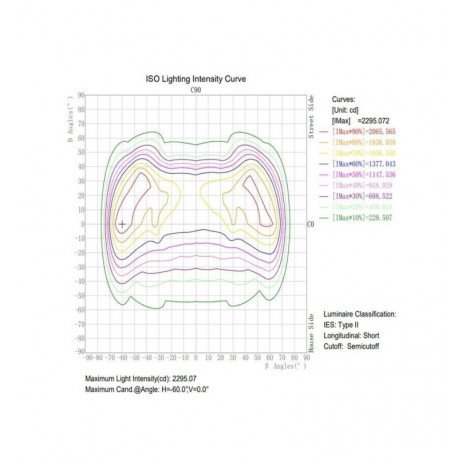

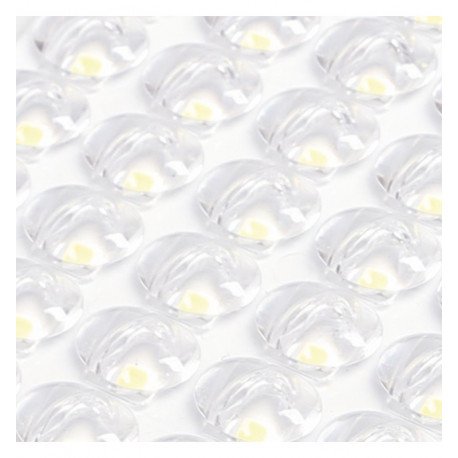

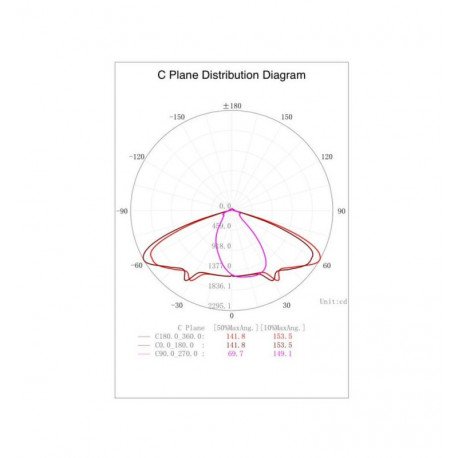

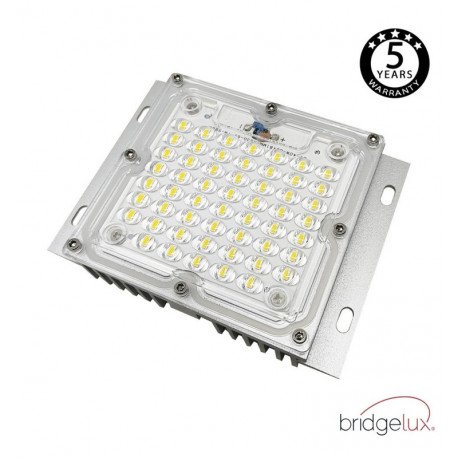

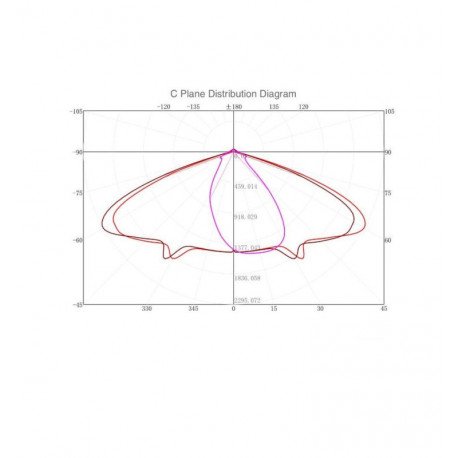

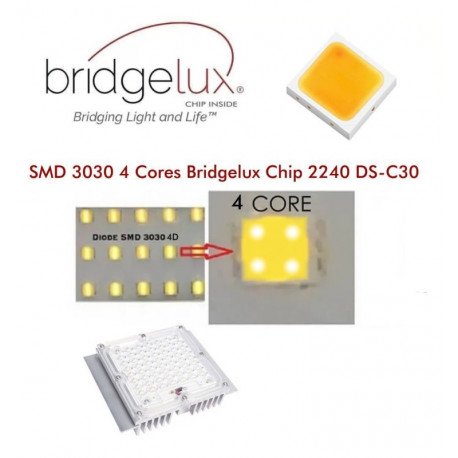

Includes a Bridgelux optical module with a 40W driver (GXTronic). Built with 54 LED SMD3030 diodes across 4 Bridgelux cores (2240 DS-C30). Beam opening angle: 70° to 150°. LED efficacy: 160Lm/W. Luminous efficacy: 135Lm/W. CRI: 70.
Durability and Protection
Constructed from aluminum and polycarbonate, this street light is engineered to withstand outdoor conditions. Its IP65 ingress protection ensures resistance against dust and water jets, while the IK08 impact rating provides strong protection against mechanical impacts, making it suitable for urban and exterior use.
Performance and Reliability

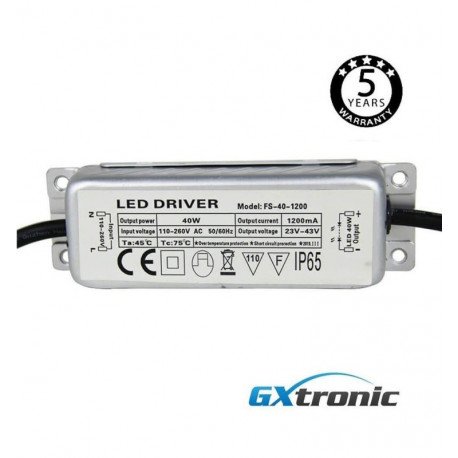

Equipped with a GXTronic driver backed by a 5-year warranty, the luminaire guarantees stable operation with a high power factor of 0.95, and rapid startup of just 0.2 seconds. It can function effectively in a wide temperature range from -15°C to 70°C and supports 50 and 60 Hz frequencies for versatile deployment.
Light Quality
The light source delivers a color rendering index (CRI) of 70, balancing visual performance and energy efficiency. Available in color temperatures of 3000K and 4000K, it provides flexibility in ambiance from warm to neutral white, suitable for varied street lighting needs.
Frequently Asked Questions
What is the estimated luminous flux of the LED street light?
The estimated luminous flux is approximately 5400 lm based on a constant finished luminaire efficacy of 135 lm/W.
What are the operating temperature limits for this street light?
This street light operates reliably within a temperature range from -15°C up to 70°C.
What type of LED modules are used in this street light?
It uses Bridgelux SMD 3030 2D LED modules arranged in 4 cores.
Is the street light suitable for environments with high mechanical impact risk?
Yes, it features an IK08 impact protection rating, ensuring durability against strong mechanical impacts.
View technical specifications Hide technical specifications
Certificates
CE, CMIM, RoHS
IP Rating
IP65-Exterior
Construction Material
Aluminum +PC
Warranty years
5
Dimensions (mm)
Ø371mm xH85mm - HoleΦ60mm
Rated Power
40W
Rated Voltage
85V-265V
CRI - Color Rendering Index
70
Energy Class (2021-EU-2019/2015)
A++
LED Diode Efficacy (Lm/W)
160 Lm/w
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0,95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15ºC ~ +70ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK08
Energy Class (2023 - EU-2019/2015)
D
Light Temperature
3000K - 4000K
Luminous Flux-Lm
5400 Lm
LED Type
SMD 3030 2D
Beam Angle (º)
70º-150º
Luminous Efficacy (Lm/W)
135 Lm/W
Additional Information
Driver: 23-42VDC- 1200mA+-5%
Driver Included
Driver GXTronic - 5 Years
LED public and street lighting for roads and outdoor spaces
LED public and street lighting provides an energy-efficient way to illuminate streets, roads, avenues, residential areas, car parks, parks, pedestrian zones and industrial facilities. These solutions are designed to improve visibility and safety while delivering reliable performance over long operating periods.
At DomiLED you will find LED street lighting solutions with different power ratings, luminous outputs, optical distributions and colour temperatures. Our selection includes urban LED street lights, road luminaires, solar street lights and components for new installations or the replacement of traditional lighting systems.
When choosing a suitable luminaire, consider the installation height, road width, distance between lighting points and required illumination level. The IP protection rating, impact resistance, optical distribution and energy consumption should also be taken into account.
Explore our range of LED street lights and road luminaires and find efficient, durable outdoor lighting solutions adapted to the technical requirements of each project.
