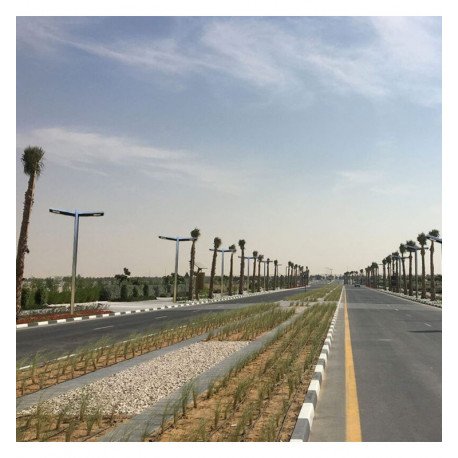

LED Street Light 100W Outdoor 4-6 m 7500 lm
Certificates
CE - ROHS
Construction Material
Stell 3mm S235JR + Aluminium +PMMA
Dimensions (mm)
H4m * 140mm * 80mm (Tube 3mm)H6m * 140mm * 80mm (Tube 3mm)
Rated Power
100w
Beam Angle (º)
136x78º
New product

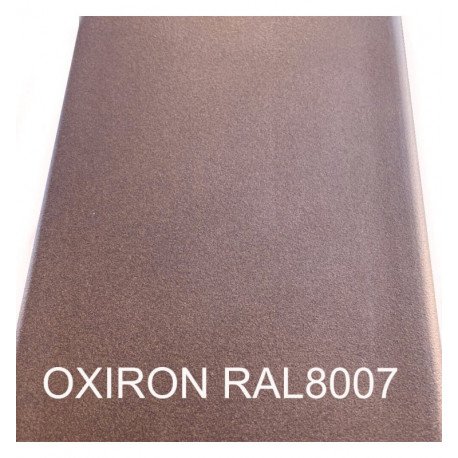

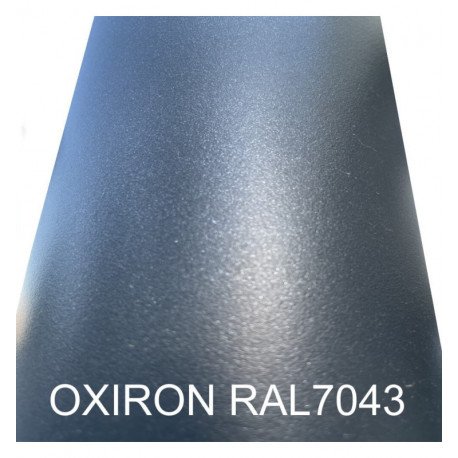

The LED Street Light 100W is engineered for outdoor urban illumination with robust IP67 and IK10 protection. Featuring Bridgelux chip LEDs and a high efficacy of 150 lm/W, it delivers an estimated 15,000 lm luminous flux at nominal power. Available in neutral (4000K) or cool white (5000K) color temperatures and distinctive Oxiron paint finishes, it suits installation heights of 4 or 6 meters.
76 Items
More info

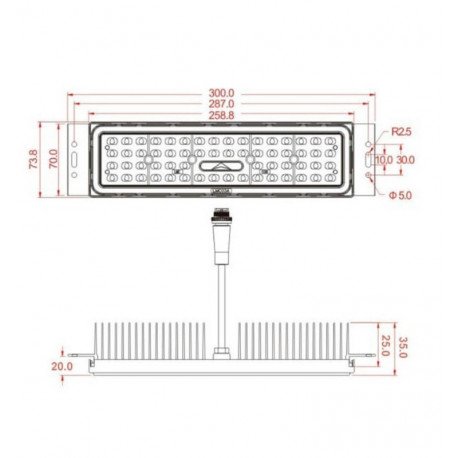

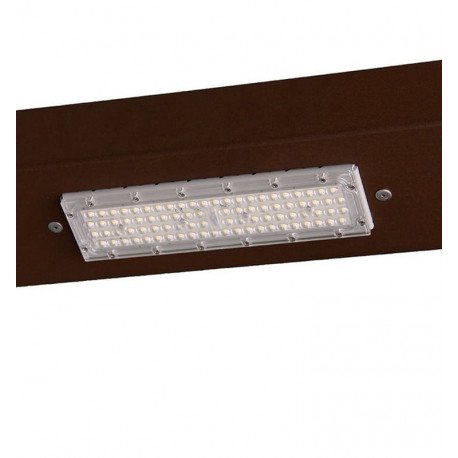

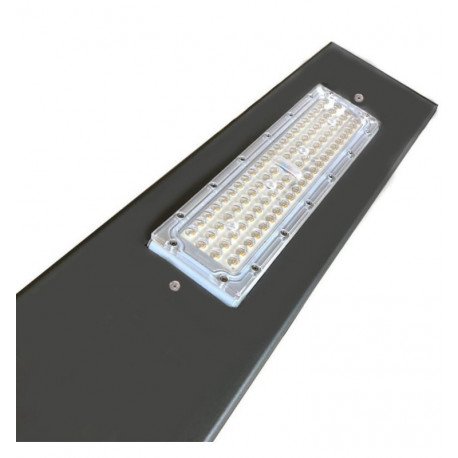

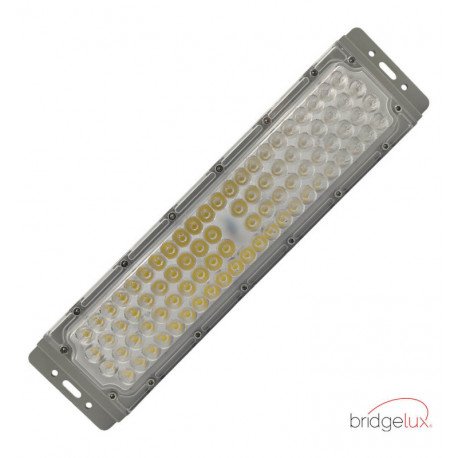

The Wanda 100W LED street light is designed to provide uniform, high-performance lighting for urban areas. It features two 100W LED optical modules with 84 SMD 3030 3D diodes using BRIDGELUX chips, with a beam angle of 136°x78°. Thanks to its strong heat dissipation, the product’s service life can be longer. With its power, it reaches up to 7500 lumens, replacing older E40 and E27 bulbs. You can also choose the light color temperature to suit your installation: neutral white (4000K) or cool white (5000K). Made from S235JR steel with oven-baked epoxy paint, it offers suitable resistance and protection for transport and installation.
Durability and Protection

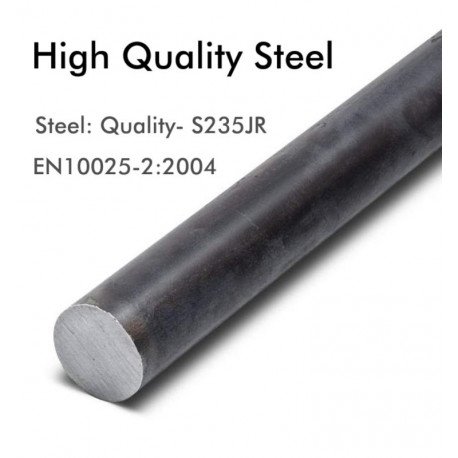

This street light boasts a high level of ingress protection with an IP67 rating, ensuring it is dust-tight and protected against water immersion. Its IK10 impact resistance rating makes it highly durable against mechanical shocks, suitable for demanding outdoor environments. The construction from 3mm S235JR steel combined with aluminium and PMMA materials ensures both robust mechanical strength and resistance to weathering.
Thermal Management and Operating Range
Designed with efficient heat dissipation capabilities, the luminaire maintains optimal thermal conditions, enhancing LED longevity and performance. It reliably operates within a broad temperature range from -15°C up to 70°C, making it adaptable to various climates and outdoor exposure scenarios.
Electrical and Lighting Performance

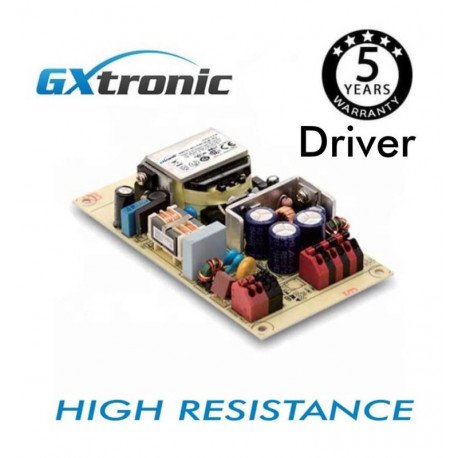

Equipped with a GXTronic driver delivering 23-42 VDC at 1300mA ±5%, the luminaire ensures stable and efficient power supply. It supports both 50 Hz and 60 Hz frequency options and features an excellent power factor of 0.95, contributing to energy efficiency. The Bridgelux DS-30 chip inside offers high-quality light output with a color rendering index greater than 80, providing clear and pleasant illumination. Startup time is rapid at 0.2 seconds, enabling immediate illumination upon activation.
Frequently Asked Questions
What are the available color temperature options?
The street light can be ordered with either neutral white light at 4000K or cool white light at 5000K to adapt to different outdoor lighting needs.
What height options are supported for mounting?

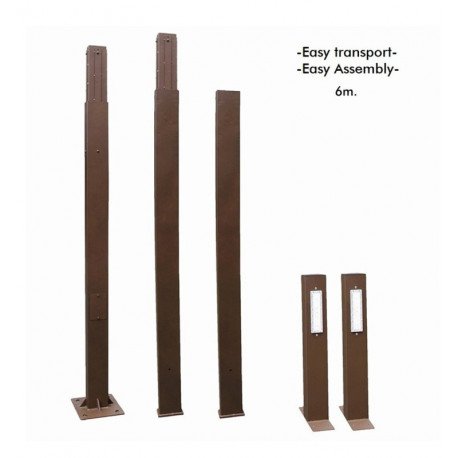

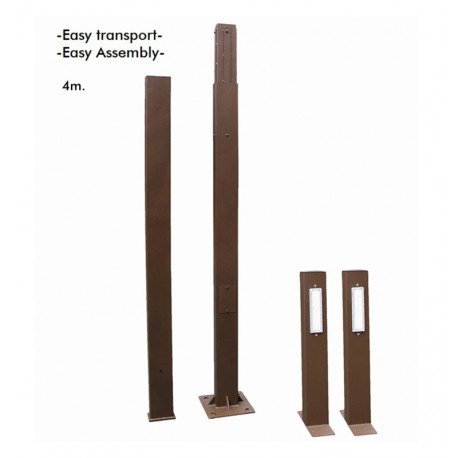

This model supports mounting heights of 4 meters and 6 meters, allowing for versatile road and street illumination applications.
What materials are used in the luminaire's construction?
The luminaire is built using 3mm S235JR steel, aluminium, and PMMA, combining strength, weather resistance, and light transmission quality.
What level of ingress and impact protection does this luminaire offer?
It offers IP67 protection, which is dust tight and waterproof, and an IK10 rating for high impact resistance against mechanical shocks.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP67-Exterior
Construction Material
Stell 3mm S235JR + Aluminium +PMMA
Warranty years
5
Dimensions (mm)
H4m * 140mm * 80mm (Tube 3mm)H6m * 140mm * 80mm (Tube 3mm)
Rated Power
100w
Rated Voltage
220V-240V AC
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A++
LED Diode Efficacy (Lm/W)
180 Lm/W
Estimated LED Diode Life (H)
100.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15ºC ~ +70ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK10
Light Temperature
4000K - 5000K
Luminous Flux-Lm
7500
LED Type

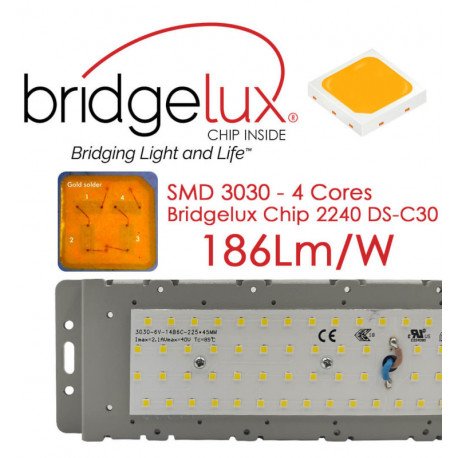

Bridgelux Chip inside 2240 DS-30
Beam Angle (º)
136x78º
Luminous Efficacy (Lm/W)
150 Lm/W
Additional Information
Delivery Forecast 7-15 days
Driver Included
Driver GXTronic: 23-42 VDC 1300mA +-5% - 10K
