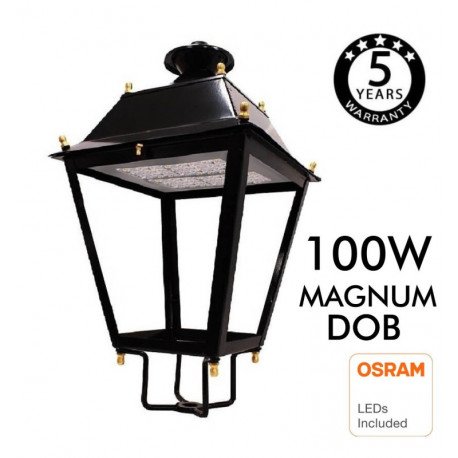

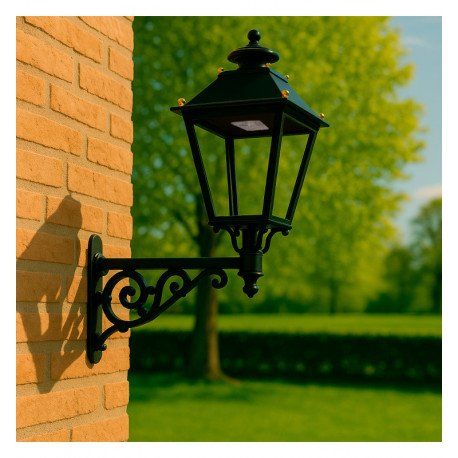

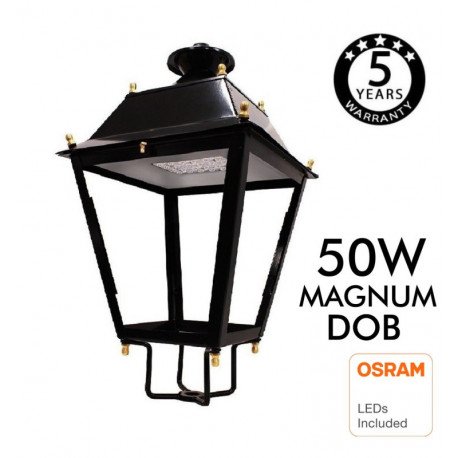

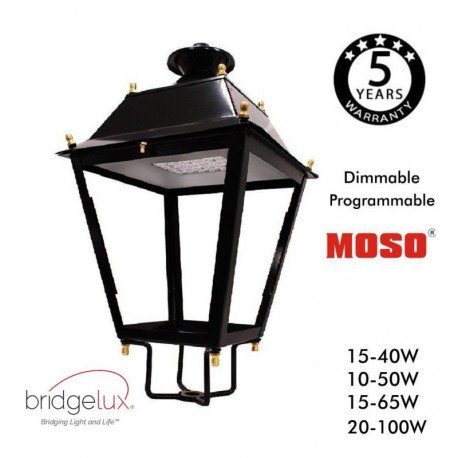

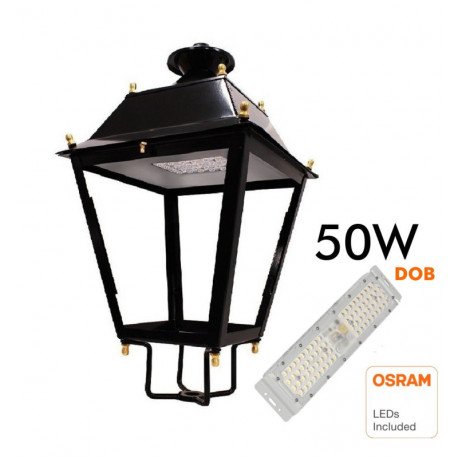

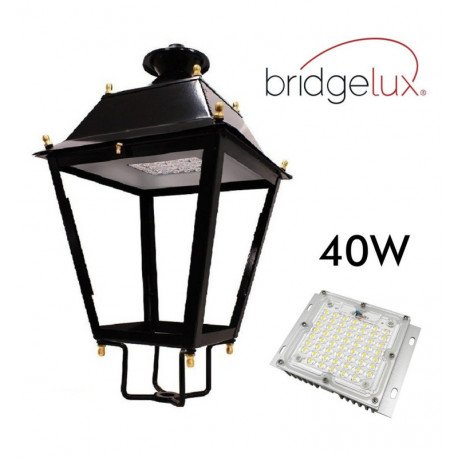

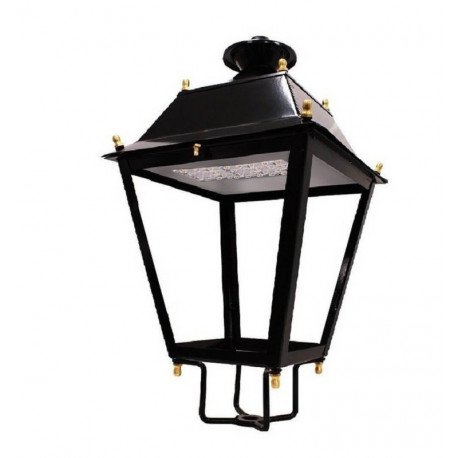

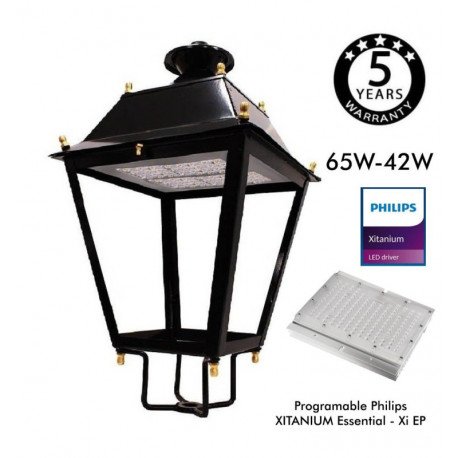

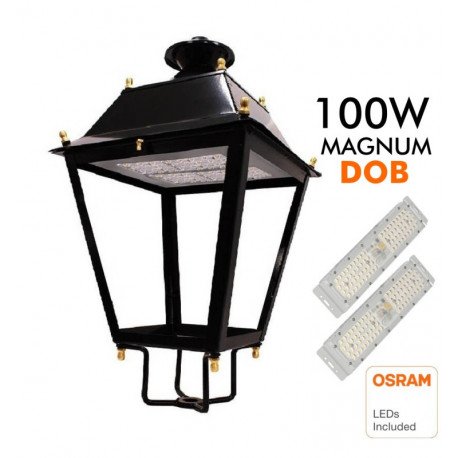

LED Villa Street Light Forged Aluminum Outdoor 40W-100W
New product
2062 Items
Data sheet
| IP Rating | IP65-Exterior |
| Construction Material | Aluminum +PMMA |
| Warranty years | 5 |

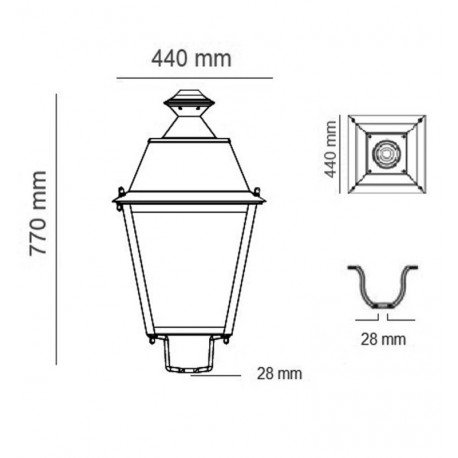

| Dimensions (mm) | 440x440xH770 |
| Rated Power | 40W-50W-65W-100W |
| Rated Voltage | 170V-270V |

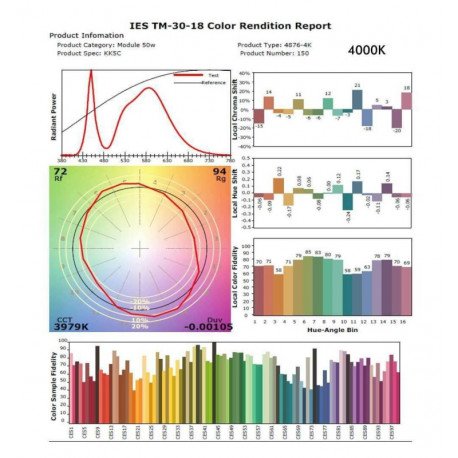

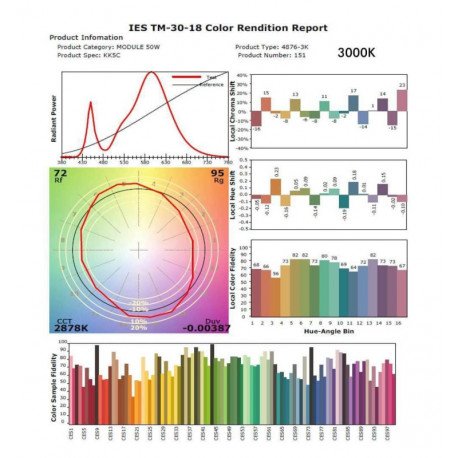

| CRI - Color Rendering Index | Bridgelux: 70 Osram: 80 |
| Energy Class (2021-EU-2019/2015) | A+ |
| LED Diode Efficacy (Lm/W) | 40w:160Lm/W - 50W:180Lm/W - 50W DOB:180Lm/W - 50W 5050: 220Lm/W 65W:200Lm |
| Estimated LED Diode Life (H) | 50.000 |
| Power Factor (PF) | 0.95 |
| Operating Frequency (Hz) | 50/60Hz |
| Temperature Range (ºC) | -20°C ~ +55°C |
| Switching Cycles | 100.000 |
| Start-Up Time (s) | 0,2s |
| Impact Protection (IK) | IK10 |
| Light Temperature | 3000K-4000K-5000K |

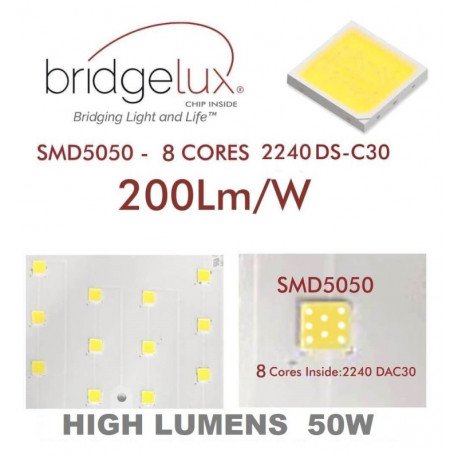

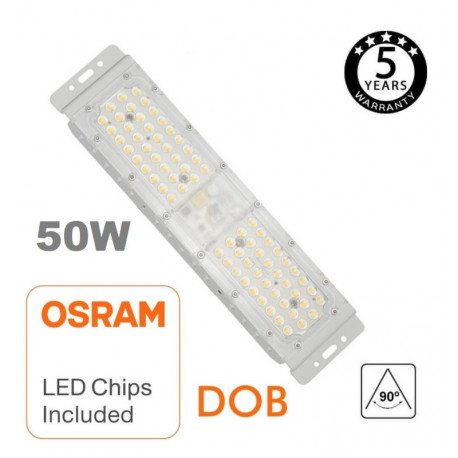

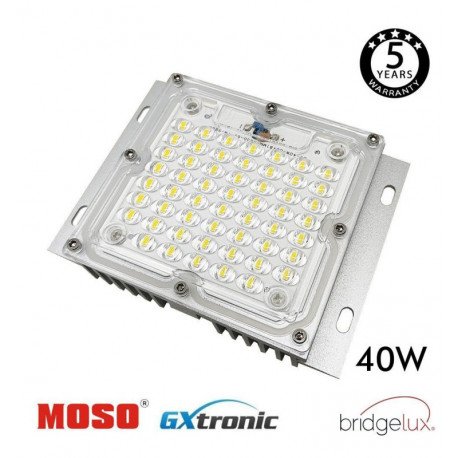

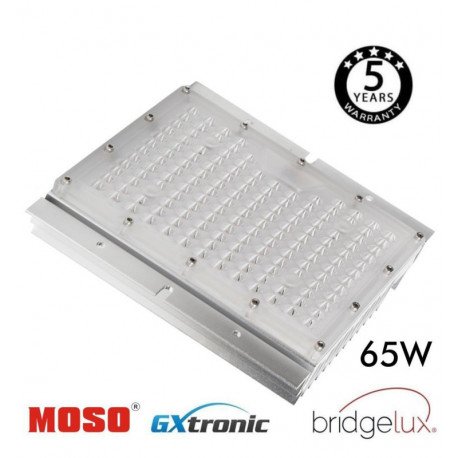

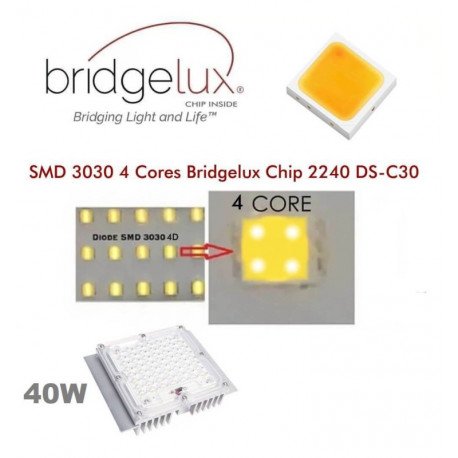

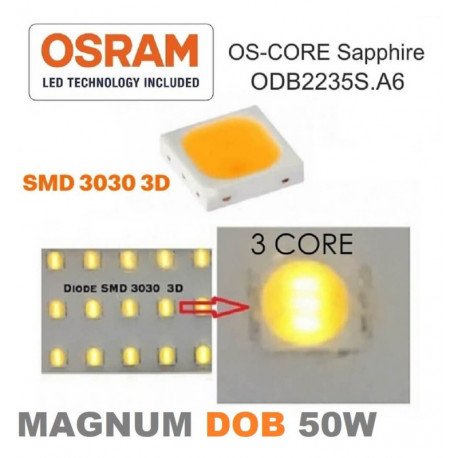

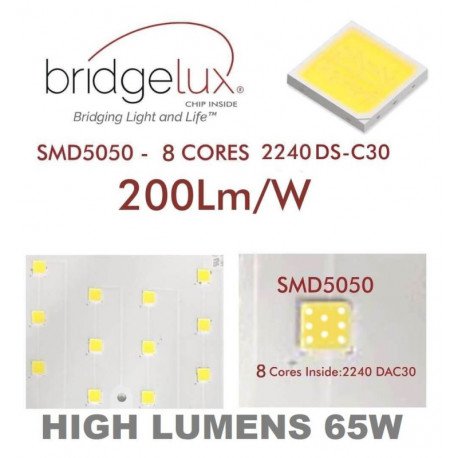

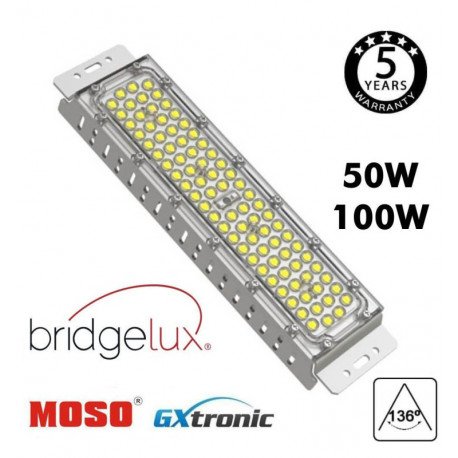

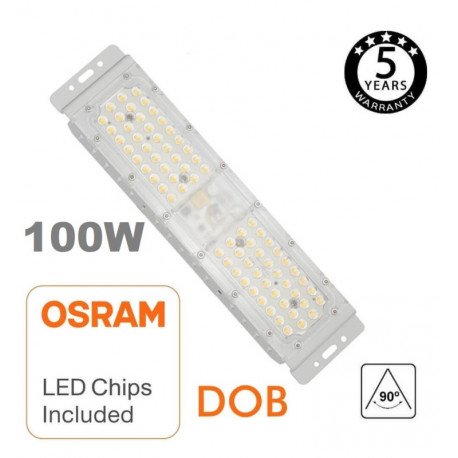

| LED Type | 40w: SMD3030 Bridgelux. 50w Magnum: SMD3030 OSRAM. 50w DOB: SMD3030 OSRAM - 50W: SMD5050 BRIDGELUX CHIP |

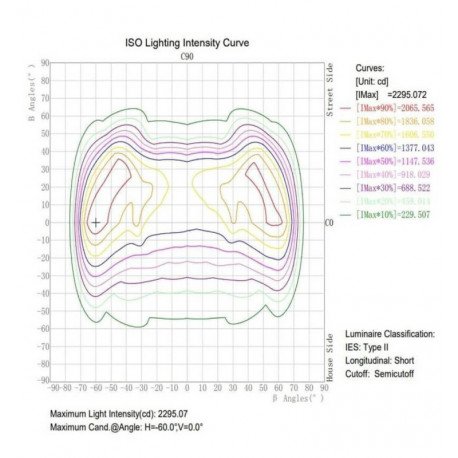

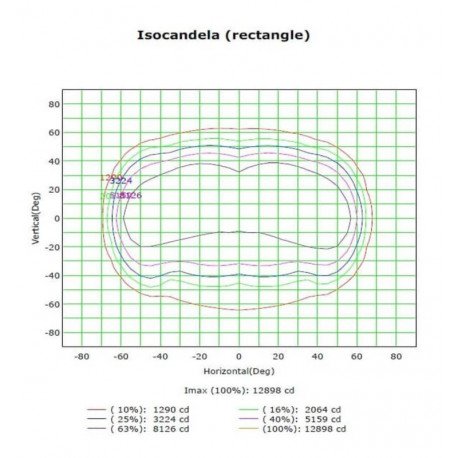

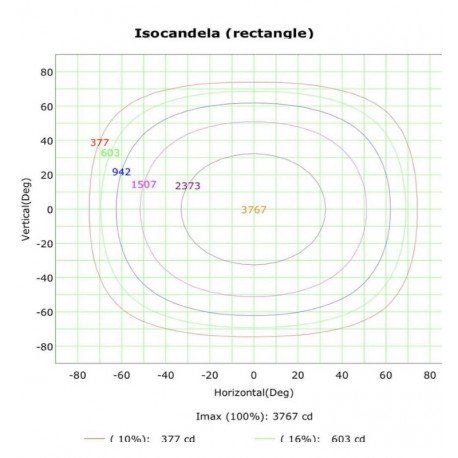

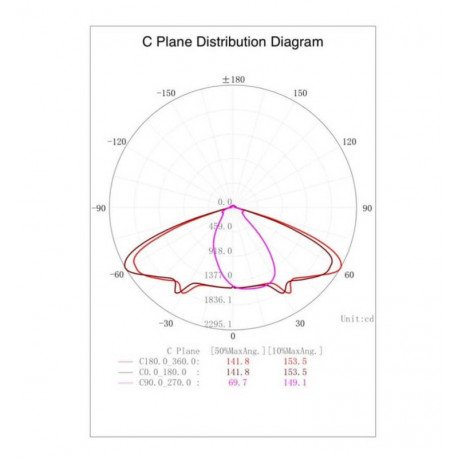

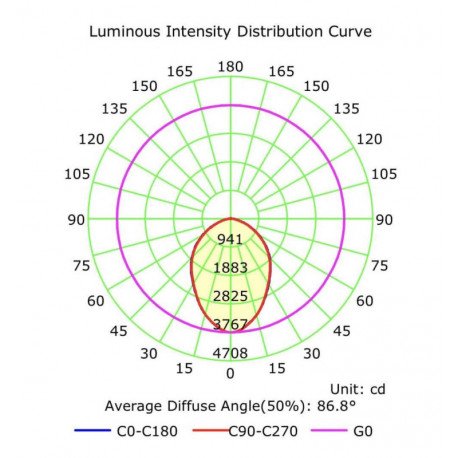

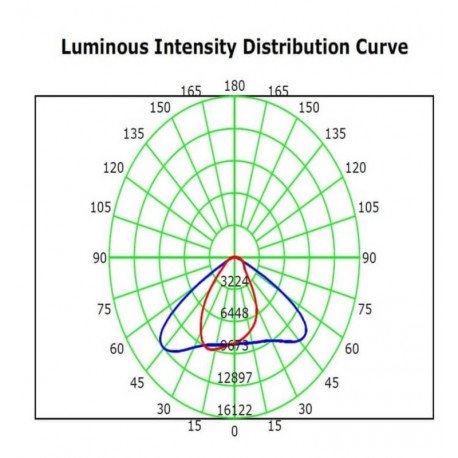

| Beam Angle (º) | 40w:70º-150º - 50w:136ºx78º - 90ºx90º 100w::136ºx78º - 90ºx90º |
| Luminous Efficacy (Lm/W) | 40w:135Lm/W - 50W: 150Lm/W - 50W DOB: 140Lm/W - 50W 5050: 188Lm/W 65W:160Lm |

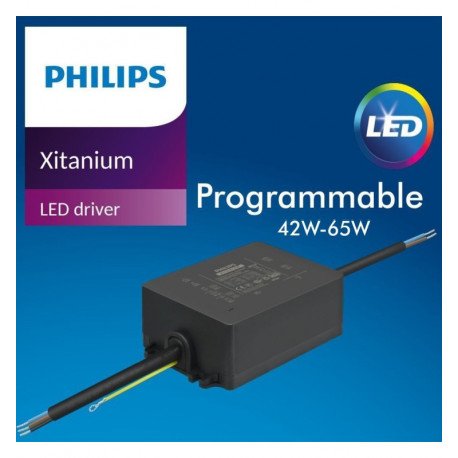

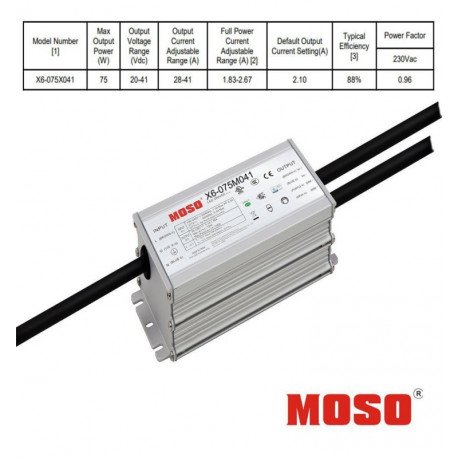

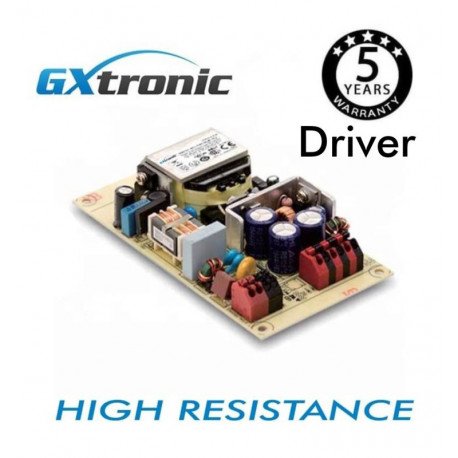

| Driver Included | GxTronic - MOSO |
