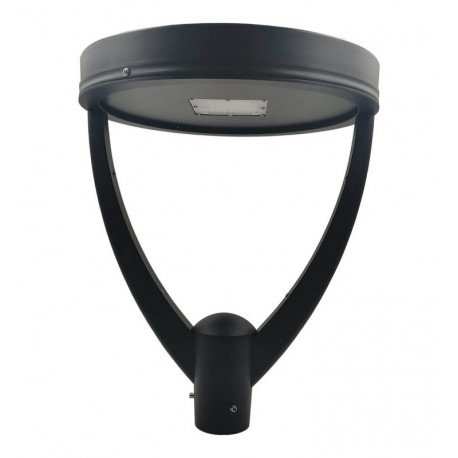

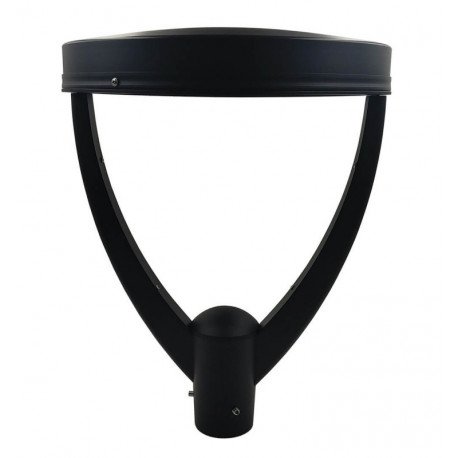

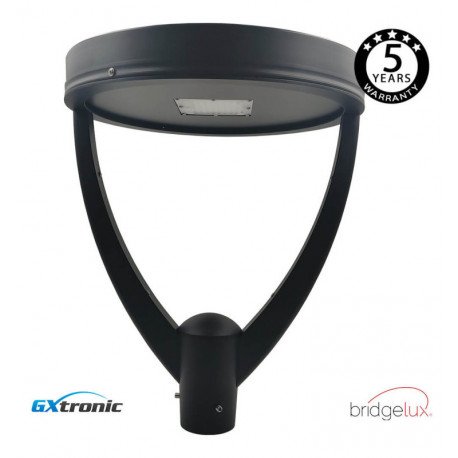

LED Street Light 40W NEW CONIC IP65 Bridgelux SMD3030
Certificates
CE - ROHS
Construction Material
Aluminum +PC

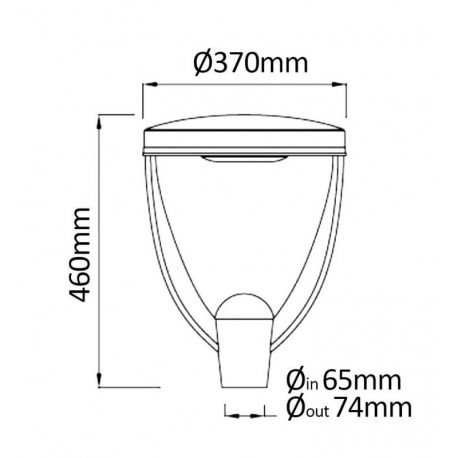

Dimensions (mm)

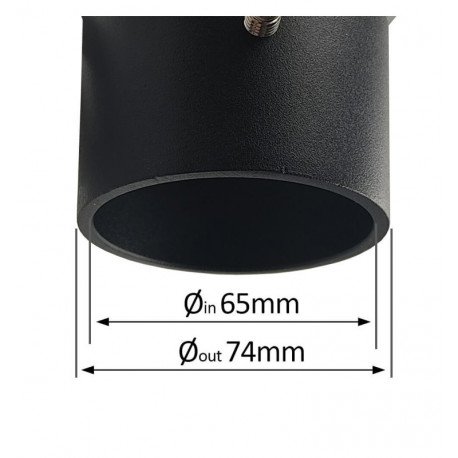

Ø370mm x 460mm - HoleΦ65mm
Rated Power
40W

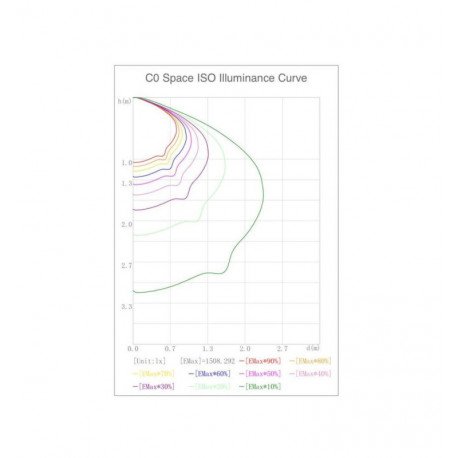

Beam Angle (º)
80º-150º
New product
The 40W NEW CONIC LED street light offers 5200 lm estimated flux with Bridgelux SMD 3030 LEDs, constructed from durable aluminum and PC, featuring IP65 and IK08 ratings for outdoor resilience. Available in 3000K warm white or 4000K neutral white, it operates efficiently with 130 lm/W efficacy and a power factor of 0.95, ideal for urban and residential outdoor illumination.
390 Items
More info
Illuminate gardens, parks and pathways with the 40W NEW CONIC LED street light, a modern and efficient alternative to replace older mercury street lamps. Its LED module with an asymmetric beam angle and Bridgelux SMD 3030 technology (4 cores) delivers 160 lm/W and instant start, helping improve light quality while reducing electrical consumption. Made of aluminum and rated IP65 for outdoor use, it’s designed for comfortable, efficient lighting and to help minimize light pollution. Includes a 5-year warranty.
Energy Efficiency and Light Quality

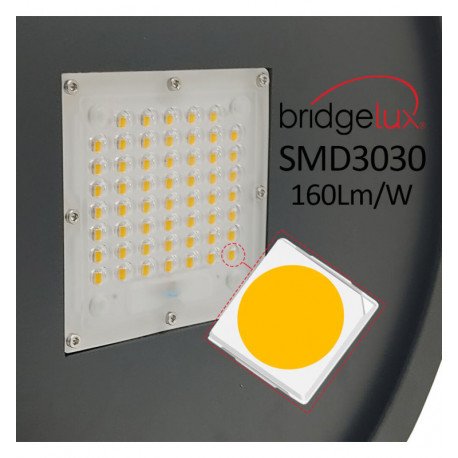

This street light integrates Bridgelux SMD 3030 chips with a declared efficacy of 130 lm/W, ensuring a luminous output estimated at 5200 lm for the 40W variant. The luminous efficacy contributes to improved energy consumption without compromising brightness, making it suitable for sustainable urban lighting projects.
It features a Color Rendering Index (CRI) of 70, balancing color recognition with energy performance. The LED module starts instantaneously within 0.2 seconds and supports a high number of switching cycles, rated at 100,000, which enhances its operational reliability.
Robustness and Installation Conditions
Designed for exterior environments, the luminaire has an ingress protection rating of IP65, guarding against dust and water jets, complemented by an impact resistance rating of IK08 to withstand mechanical stress.
Its operating temperature range spans from -15 °C to 70 °C, allowing functionality under various climatic conditions. The lightweight construction using aluminum and polycarbonate provides durability and weather resistance, ensuring long-term performance in outdoor installations.
Color Temperature Options and Electrical Specifications
The product is offered in two color temperatures: 3000K (warm white) and 4000K (neutral white), enabling adaptation to different lighting atmospheres and applications.
Electrically, it supports frequency inputs of 50 or 60 Hz and includes a GXTronic driver rated for 5 years, operating with a power factor of 0.95 to ensure efficient power usage and reduce reactive power components.
Frequently Asked Questions
What color temperature options are available for this LED street light?
It is available in warm white (3000K) and neutral white (4000K) to suit different lighting preferences.
What level of protection does the street light have against dust and water?
The luminaire has an IP65 rating, which means it is fully protected against dust ingress and can withstand water jets from any direction.
Is this product suitable for areas with varying temperatures?
Yes, it operates reliably within a temperature range from -15 °C to 70 °C, making it suitable for diverse climates.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP65-Exterior
Construction Material
Aluminum +PC
Warranty years
5
Dimensions (mm)

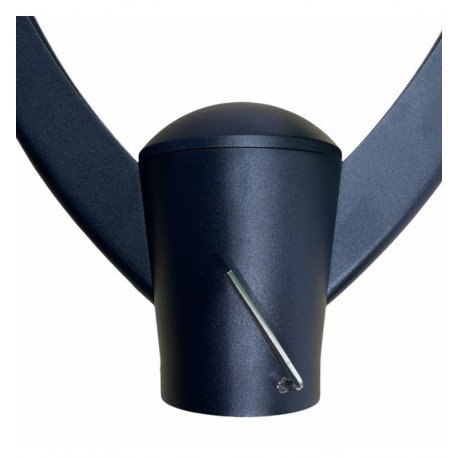

Ø370mm x 460mm - HoleΦ65mm
Rated Power
40W
Rated Voltage
85V-265V
CRI - Color Rendering Index
70
Energy Class (2021-EU-2019/2015)
A++
LED Diode Efficacy (Lm/W)
160 Lm/w
Estimated LED Diode Life (H)
50.000
Power Factor (PF)
0.95
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-15ºC ~ +70ºC
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Impact Protection (IK)
IK08
Light Temperature
3000K - 4000K
Luminous Flux-Lm
5200 Lm

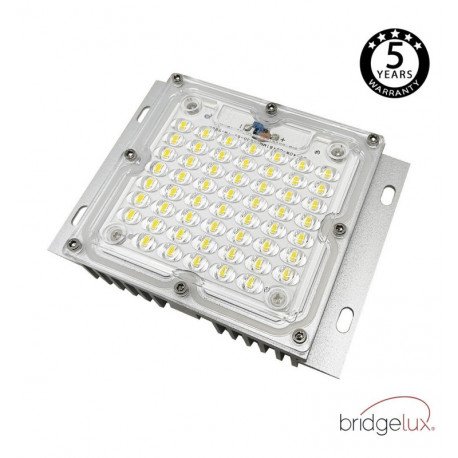

LED Type
SMD 3030- (4Cores) BRIDGELUX CHIP 2240DS-C30

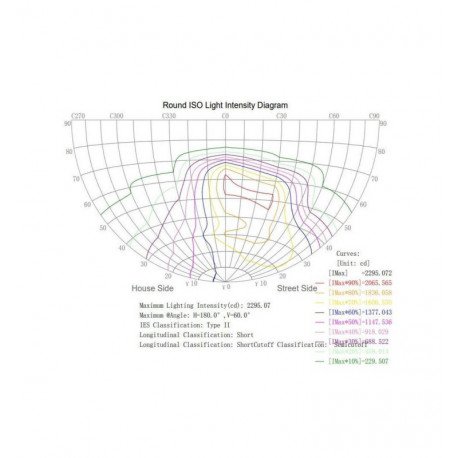

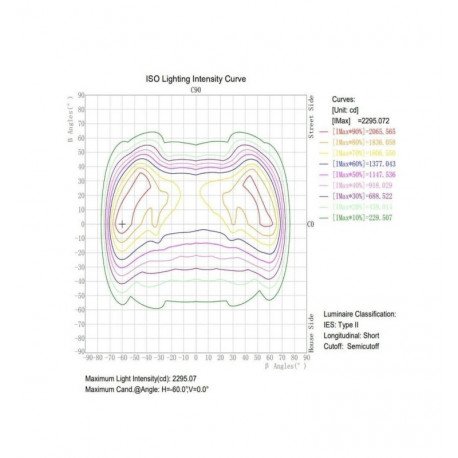

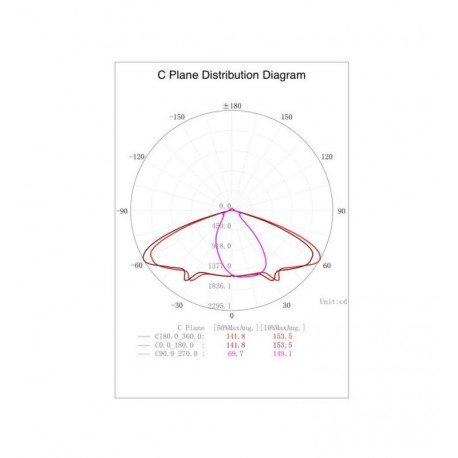

Beam Angle (º)
80º-150º
Luminous Efficacy (Lm/W)
130Lm/W
Additional Information
Driver: 23-42VDC- 1200mA+-5%
Driver Included

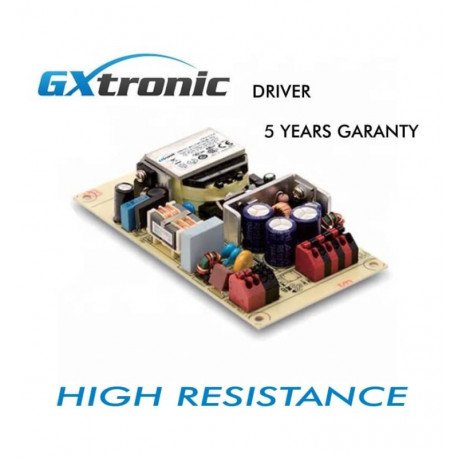

Driver GXTronic - 5 Years
Units per Masterbox
1
