> Power Supplies & LED Drivers>LED High Bay Driver Philips Xitanium 150W IP65

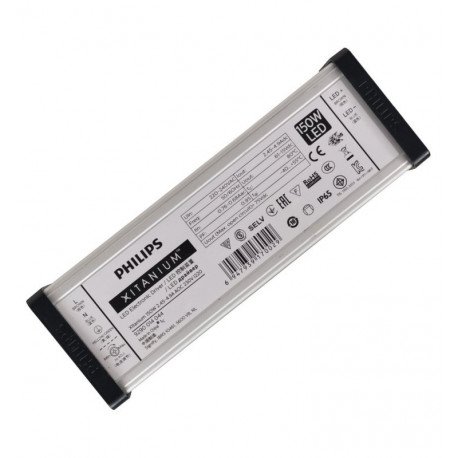

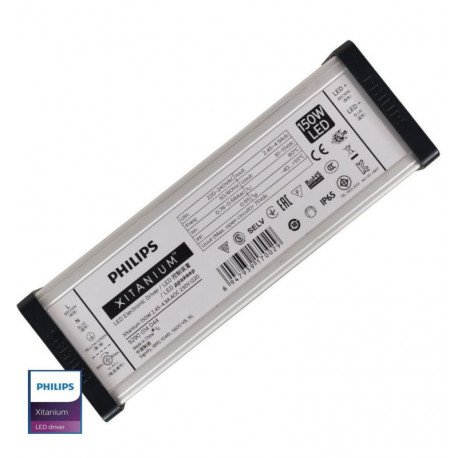

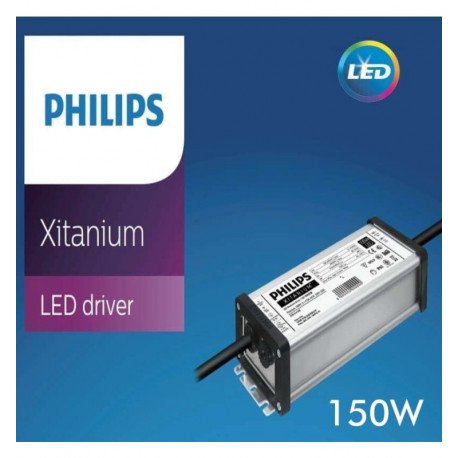

LED High Bay Driver Philips Xitanium 150W IP65
LED High Bay Driver Philips Xitanium 150W IP65
LED High Bay Driver Philips Xitanium 150W IP65

LED High Bay Driver Philips Xitanium 150W IP65

LED-00104

Certificates CE - ENEC 05 - CCC - RoHS
Construction Material Aluminum
Dimensions (mm) 200*70*h45mm
Rated Power 150W

New product

Philips XITANIUM LED driver for outdoor luminaires up to 150W, DC output 61–15V and 2450 mA. Built-in surge protection and 5-year warranty.

More details

185 Items

94,79 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ENEC 05 - CCC - RoHS
IP Rating IP65-Exterior
Construction Material Aluminum
Warranty years PHILIPS XITANIUM 5 YEARS
Dimensions (mm) 200*70*h45mm
Rated Power 150W
Rated Voltage 220-240V
Power Factor (PF) 0.95
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -40ºC +55ºC
Additional Information Inside: AC220-240V - Outside: DC61-15V --- 2.45A-4.9Adc

More info

Philips XITANIUM LED driver for LED luminaires up to 150W (2450 mA), rated for 100,000 hours of operation and with built-in surge protection integrated into the driver. Designed for low-voltage outdoor applications, it provides reliable performance even after indirect lightning events. AC input: 198–264V. DC output: 61–15V (Iout 2.45–4.9A). The IP65 housing allows direct outdoor installation and enables a quick solution without redesigning luminaires, especially for tunnel lighting. Warranty: 5 years.
