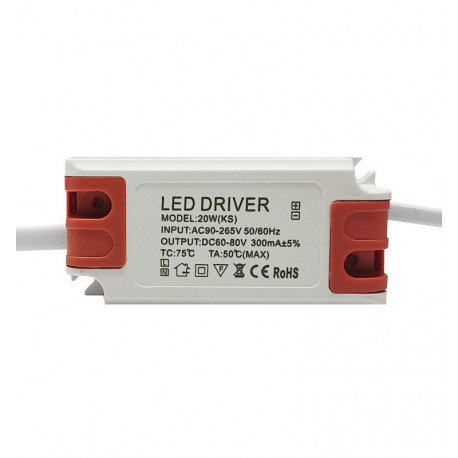

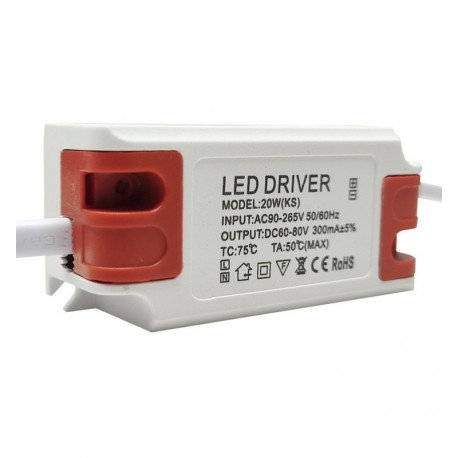

LED Driver 20W 300mA for Downlight & Panels
LED Driver 20W 300mA for Downlight & Panels

LED Driver 20W 300mA for Downlight & Panels

LED-00081

Certificates CE - ROHS
Construction Material Flame-Retardant Thermoplastic
Dimensions (mm) 91mm*22mm*40mm
Rated Power 20w

New product

20W LED driver with constant current output DC 60-80V and 300mA. AC 90-265V input.

More details

This product is no longer in stock

4,43 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP20
Construction Material Flame-Retardant Thermoplastic
Warranty years 3
Dimensions (mm) 91mm*22mm*40mm
Rated Power 20w
Rated Voltage AC 90-265V
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Additional Information Output voltage: DC60-80V 300mA

More info

LED driver specially designed for 20W LED downlights or LED panels with a maximum current range of 300mA (CC). The power supply features an AC 90-265V input (50/60Hz) and a DC 60-80V output with power factor >0.9.
