LED-00129

Certificates CE - ROHS
Construction Material Aluminum +PMMA

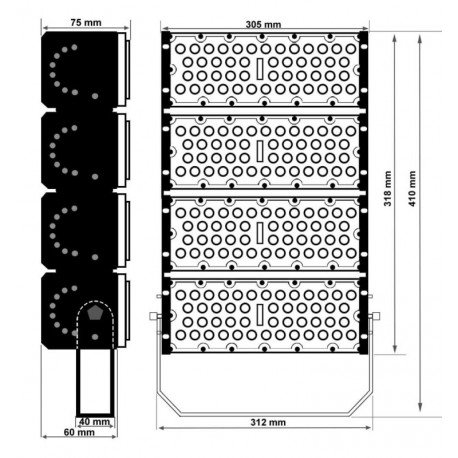

Dimensions (mm) 300mm x 315 mm x 55mm
Rated Power 200w
Beam Angle (º) 60º

New product

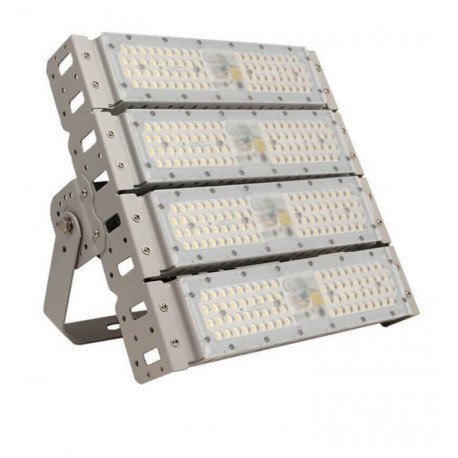

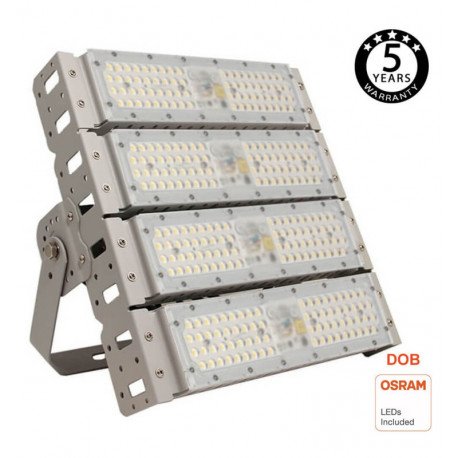

200W OSRAM DOB MAGNUM LED floodlight with 60° beam angle and 100% aluminum 6063 housing, oven-painted. Pre-assembled and lightweight.

More details

18 Items

167,05 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 300mm x 315 mm x 55mm
Rated Power 200w
Rated Voltage 175-265V

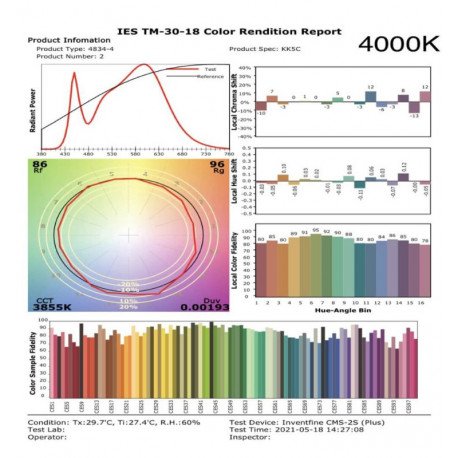

CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.97
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 28000

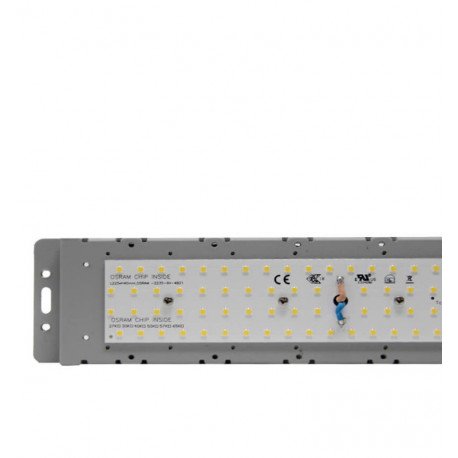

LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 60º
Luminous Efficacy (Lm/W) 140Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRIC

More info

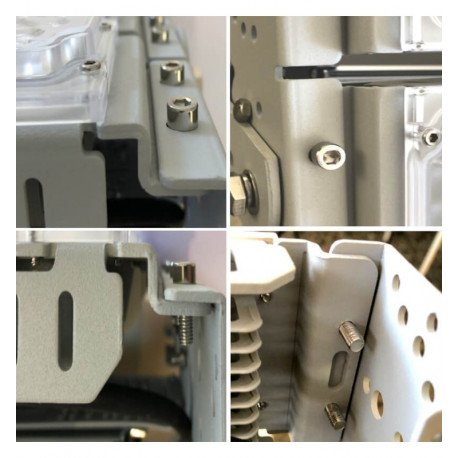

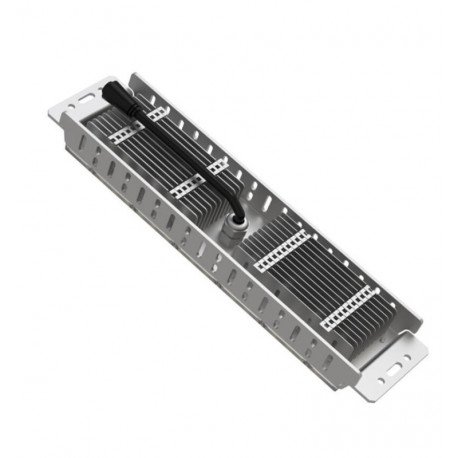

The 200W OSRAM DOB MAGNUM LED Floodlight with SMD3030-3D chip is designed to deliver effective lighting at medium distances thanks to its 60° beam angle. Its DOB (Driver On Board) system and the OSRAM 3030-3D triple-core chip provide high performance and reliability. The housing and handles are made from 100% aluminum 6063, oven-painted to help prevent salt oxidation. Supplied pre-assembled, it makes installation easier and reduces the need for large mounting poles due to its light weight.
