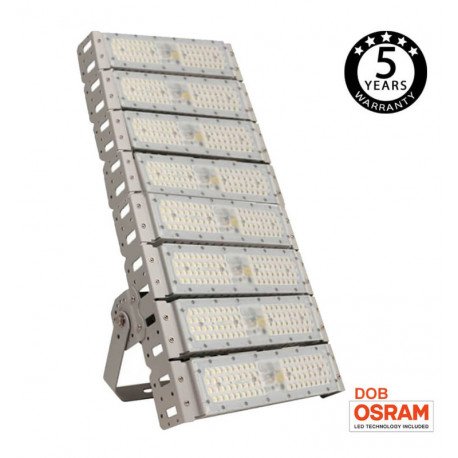

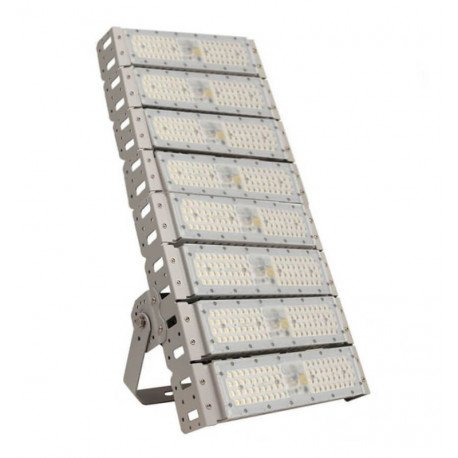

LED Floodlight 400W Outdoor 60° Aluminum OSRAM Chip

LED-00115

Certificates CE - ROHS
Construction Material Aluminum +PMMA

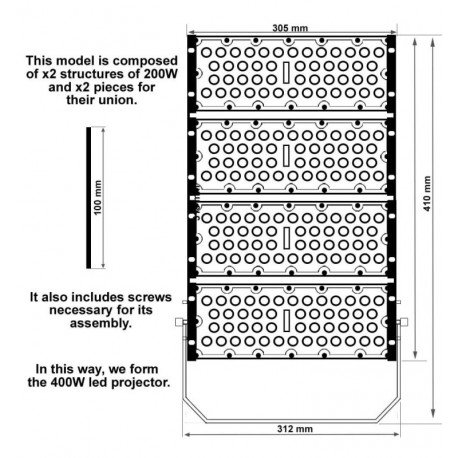

Dimensions (mm) 630x305x55mm
Rated Power 400w
Beam Angle (º) 60º

New product

The LED Floodlight 400W Outdoor features a robust IP65-rated aluminum and PMMA construction, delivering an estimated 56000 lm with 140 lm/W efficacy. Equipped with OSRAM SMD3030-3D chips and a 60° beam, it supports 4000K or 5000K color temperatures. With IK10 impact resistance and excellent power factor, it's designed for demanding outdoor environments.

53 Items

Order now and receive it The day after tomorrow

334,13 € tax incl.

Métodos de pago

More info

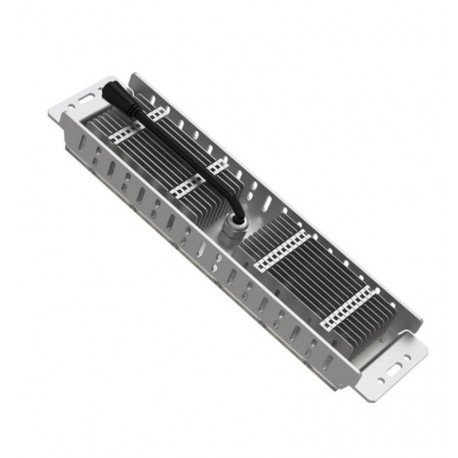

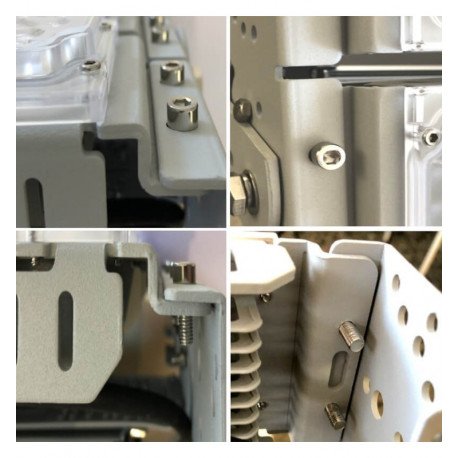

The 400W DOB MAGNUM OSRAM LED Floodlight with SMD3030-3D chip combines high power with a compact, lightweight design. Its 100% aluminum 6063 housing, powder-coated, helps reduce the risk of salt oxidation, and the unit comes pre-assembled for easier installation. With a 60° beam angle, it is designed to illuminate effectively at medium distances, creating suitable lighting for both indoor and outdoor areas, with high efficiency thanks to its triple-core diode.

Durability and Protection

Built with 100% aluminum 6063 and PMMA materials, this floodlight ensures excellent resistance to corrosion and physical impacts, rated at IK10 for impact protection and IP65 for ingress protection against dust and water. This makes it highly suitable for outdoor installation in harsh conditions.

Operational Performance

Designed for efficiency and reliability, the floodlight operates across a voltage range of 175-265 V and frequencies of 50 or 60 Hz. It features a power factor of 0.97 to optimize energy use, with a swift startup time of 0.2 seconds and rated for up to 100000 switching cycles, ensuring a long and consistent life span.

Lighting Quality Options

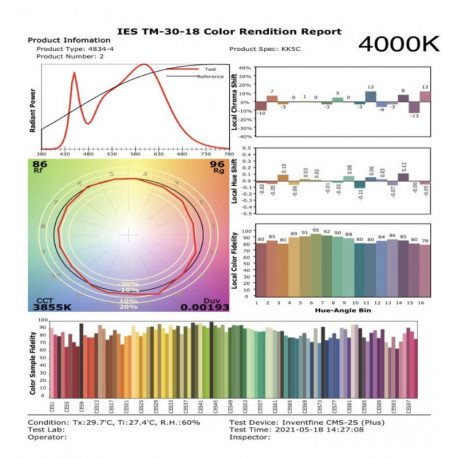

The luminaire offers selectable color temperatures of 4000 K and 5000 K to cater to different lighting ambiance requirements. With a color rendering index (CRI) of 84, it reproduces colors with good fidelity making it ideal for security and work environments.

Frequently Asked Questions

What is the beam angle of the LED floodlight?

This floodlight has a fixed 60° beam angle, suitable for medium-distance illumination.

Can this floodlight withstand harsh weather conditions?

Yes, with an IP65 rating it is protected against dust and water jets, and the aluminum powder coating reduces salt corrosion risk, making it suitable for outdoor use.

What are the available color temperature options?

The floodlight is available with 4000 K (neutral white) and 5000 K (cool white) color temperatures.

What is the estimated lumen output of the floodlight?

The floodlight delivers an estimated luminous flux of 56000 lm based on a constant efficacy assumption of 140 lm/W for the finished product.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5

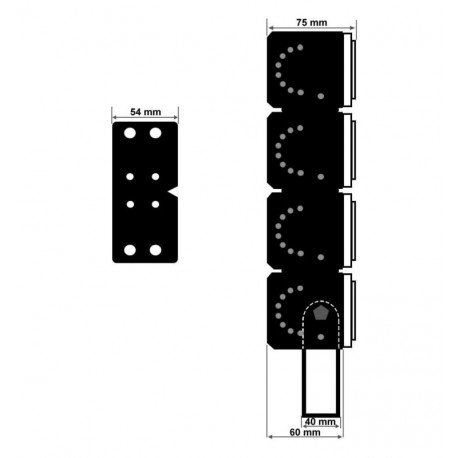

Dimensions (mm) 630x305x55mm
Rated Power 400w
Rated Voltage 175-265V
CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.97
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 56000

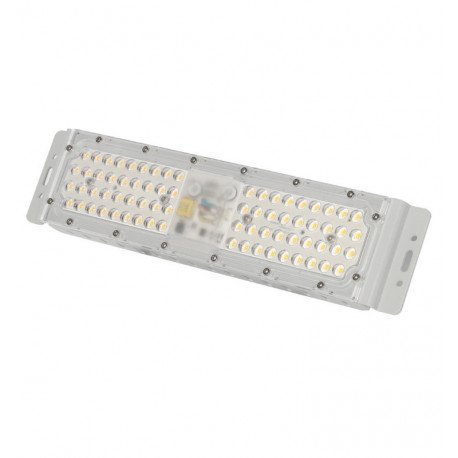

LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 60º
Luminous Efficacy (Lm/W) 140Lm/W

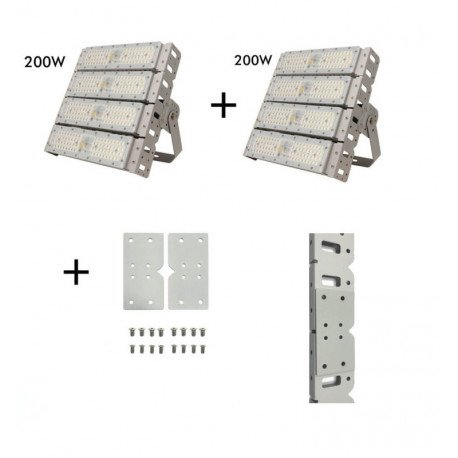

Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRIC

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
