LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D
LED Floodlight 150W 90° OSRAM Chip SMD3030-3D

LED Floodlight 150W 90° OSRAM Chip SMD3030-3D

LED-00109

Certificates CE - ROHS
Construction Material Aluminum +PMMA

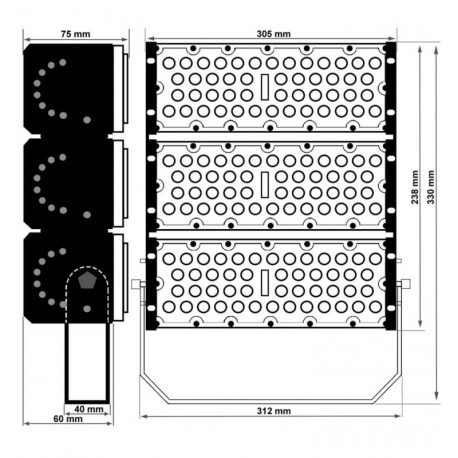

Dimensions (mm) 305x235x80mm
Rated Power 150W
Beam Angle (º) 90°

New product

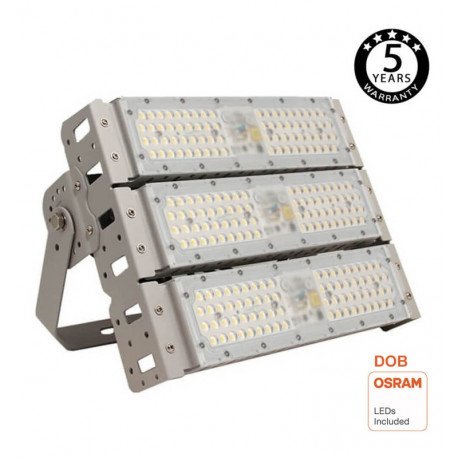

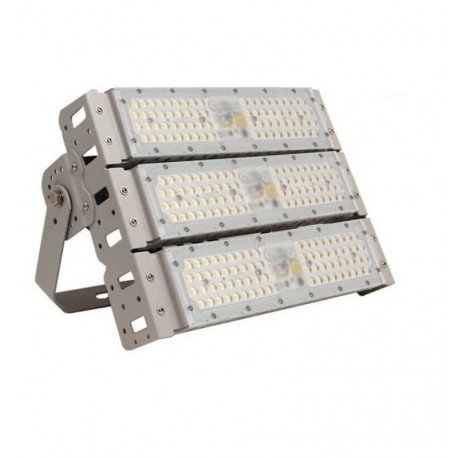

150W DOB MAGNUM OSRAM LED floodlight with OSRAM SMD3030-3D chip, 90° beam angle and high efficiency. 100% aluminum housing and pre-assembled.

More details

135 Items

125,91 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 305x235x80mm
Rated Power 150W
Rated Voltage 175-265V

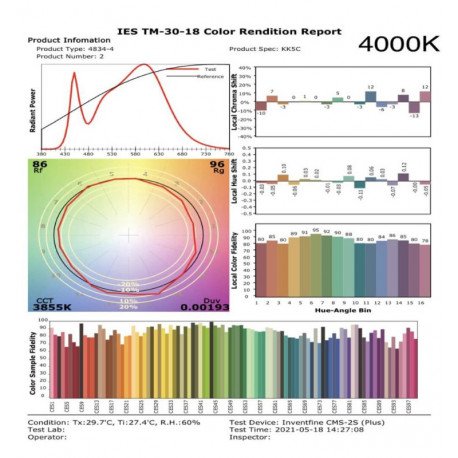

CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,91
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 21000

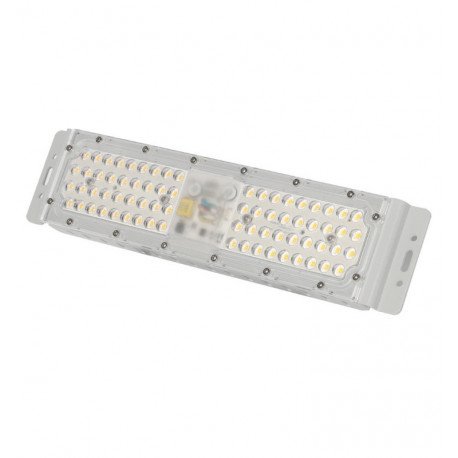

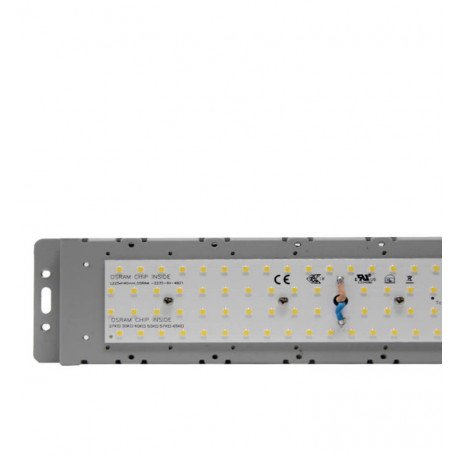

LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 90°
Luminous Efficacy (Lm/W) 140Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRONIC

More info

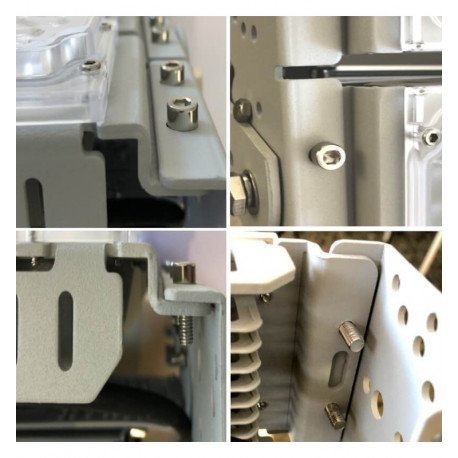

The 150W DOB MAGNUM OSRAM LED floodlight with OSRAM SMD3030-3D chip combines high power with a compact design in 6063 aluminum, oven-painted for resistance to salt oxidation. With a 90° beam angle, it is well suited for effective lighting at medium distances, helping create uniform lighting conditions. The DOB (Driver On Board) model features a triple-core diode, delivering high efficiency and reliability. Supplied pre-assembled for easier installation.
