LED-00070

Certificates CE - ROHS
Construction Material Aluminum +PMMA

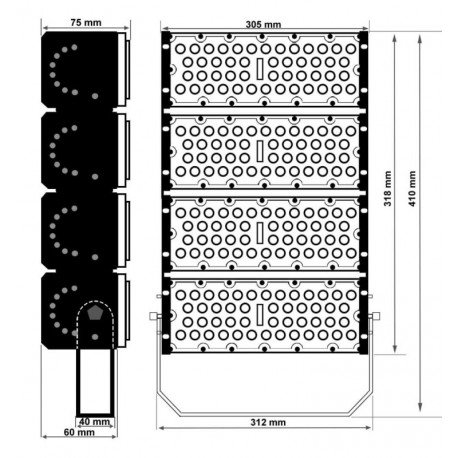

Dimensions (mm) 300mm x 315 mm x 55mm
Rated Power 200w
Beam Angle (º) 90°

New product

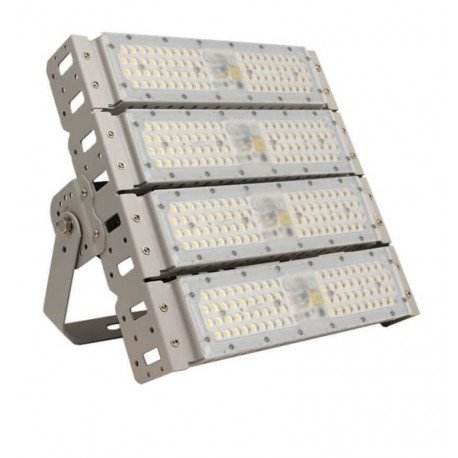

200W OSRAM DOB MAGNUM LED floodlight with 90° beam angle. 100% 6063 aluminum housing, oven-painted, pre-assembled and ready to use.

More details

18 Items

167,05 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 300mm x 315 mm x 55mm
Rated Power 200w
Rated Voltage 175-265V

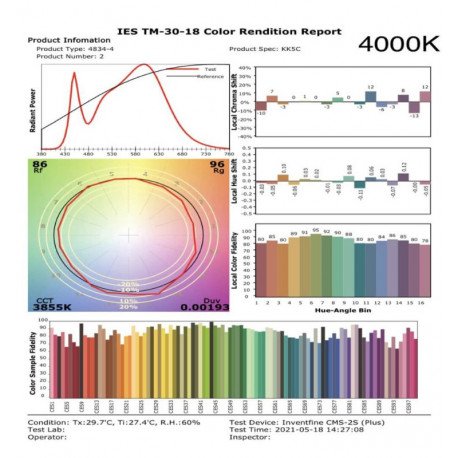

CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,91
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 28000

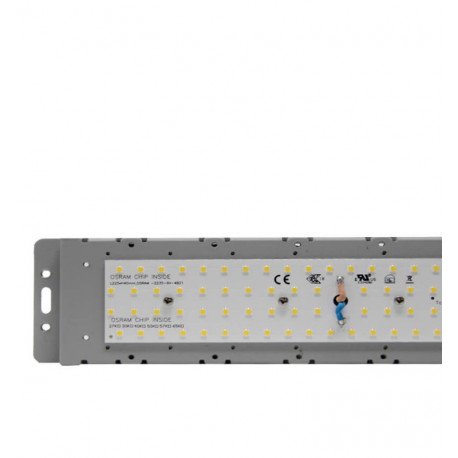

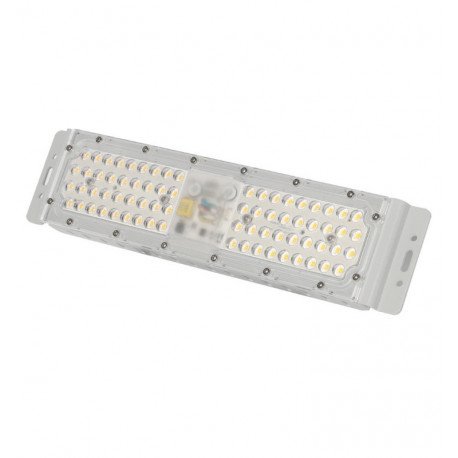

LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 90°
Luminous Efficacy (Lm/W) 140Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRONIC

More info

The 200W OSRAM DOB MAGNUM LED floodlight with a 90° beam angle combines high power with a compact design in 100% 6063 aluminum, oven-painted to help resist salt oxidation. Made from aluminum and designed to be lightweight, it makes installation easier and helps avoid the need for large mounting poles. The MAGNUM AIR DOB (Driver On Board) model features an OSRAM SMD 3030-3D triple-core chip, delivering high efficacy and reliable performance for efficient lighting at medium distances. Supplied pre-assembled, it is ready for indoor or outdoor applications where powerful, uniform illumination is required.
