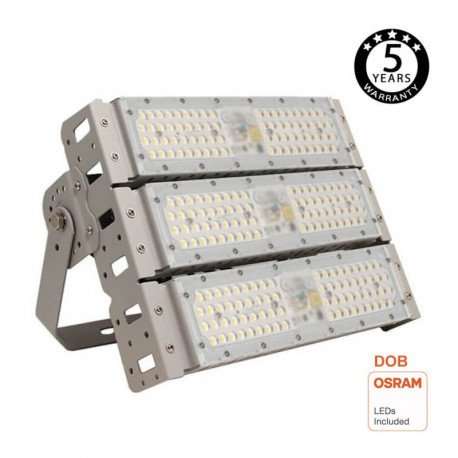

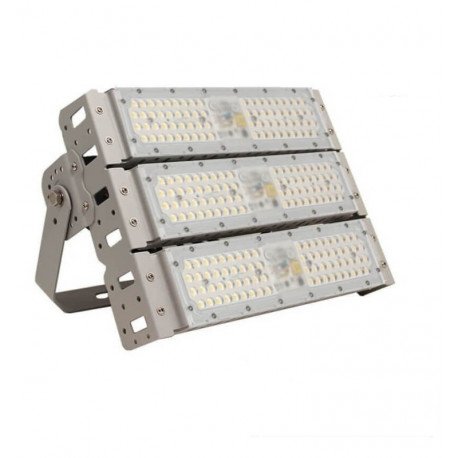

LED Floodlight 150W 60° OSRAM Chip SMD3030-3D DOB MAGNUM

LED-00056

Certificates CE - ROHS
Construction Material Aluminum +PMMA

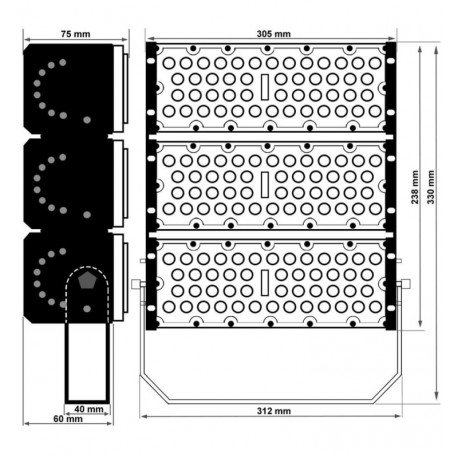

Dimensions (mm) 305x235x80mm
Rated Power 150W
Beam Angle (º) 60º

New product

The LED Floodlight 150W with OSRAM SMD3030-3D chip offers powerful illumination in a compact, durable aluminum and PMMA housing. With a 60° beam angle, 21000 lm estimated flux, and efficient DOB GXTRONIC driver, it suits indoor and outdoor medium-distance lighting, featuring IP65 and IK10 protection ratings for harsh environments.

199 Items

Order now and receive it The day after tomorrow

125,91 € tax incl.

Métodos de pago

More info

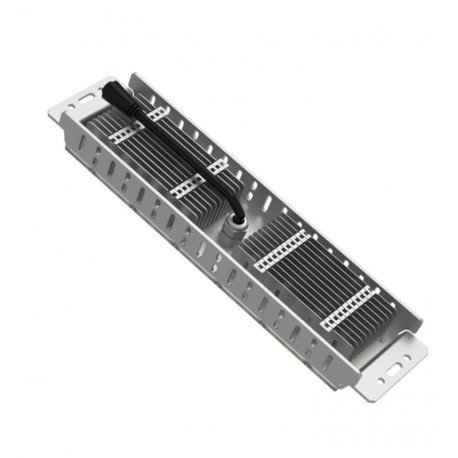

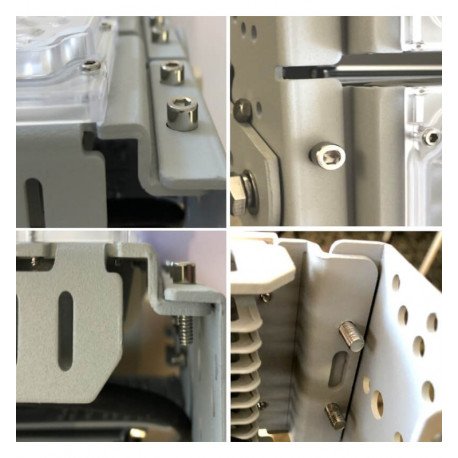

The 150W DOB MAGNUM OSRAM Chip SMD3030-3D LED floodlight combines high power with a compact design. Its 100% aluminum 6063 housing is oven-painted to help prevent salt oxidation and offers lightweight construction, so it doesn’t require large mounting poles. It features a 60° beam angle and is supplied pre-assembled. The MAGNUM AIR DOB (Driver On Board) model stands out with the OSRAM 3030-3D triple-core chip, delivering high efficiency and reliable performance for indoor or outdoor lighting at medium distances, creating suitable light distribution thanks to its 60° opening.

Durability and Environmental Resistance

Constructed with 100% aluminum 6063 and PMMA materials, the floodlight is both lightweight and robust. Oven-painted housing prevents salt oxidation, making it highly resistant to corrosion and ideal for demanding outdoor installations.

The product's IP65 ingress protection rating ensures it is dust tight and can withstand low-pressure water jets, while the IK10 impact rating offers excellent mechanical protection against external impacts.

Electrical and Performance Characteristics

This floodlight operates efficiently across a wide voltage range of 175 to 265 V at 50 or 60 Hz frequencies, with a power factor of 0.91 contributing to energy efficiency.

Featuring a DOB GXTRONIC electronic driver, it supports long-lasting operation with up to 100000 switching cycles and a rapid startup time of 0.2 seconds.

The luminaire delivers an estimated luminous flux of 21000 lm at 150 W power consumption, achieving a high efficacy of 140 lm/W, facilitating bright and energy-efficient lighting.

Operational Capabilities and Versatility

Designed to function reliably in temperatures ranging from -20°C to 55°C, the floodlight suits varied climatic conditions.

Available in color temperatures of 4000 K and 5000 K, it provides options for neutral to cool white light to adapt to specific lighting requirements.

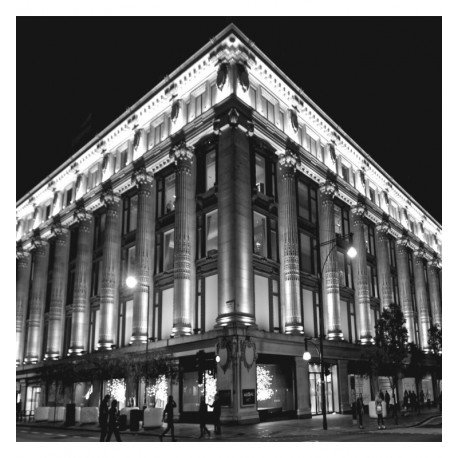

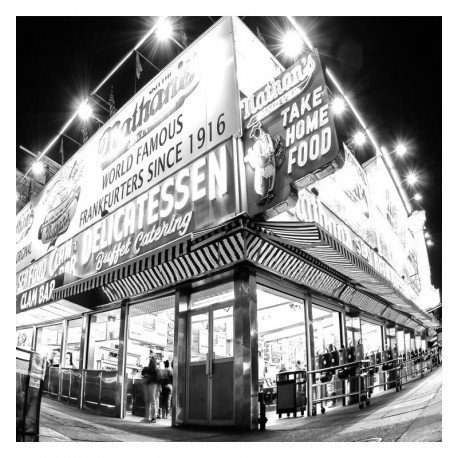

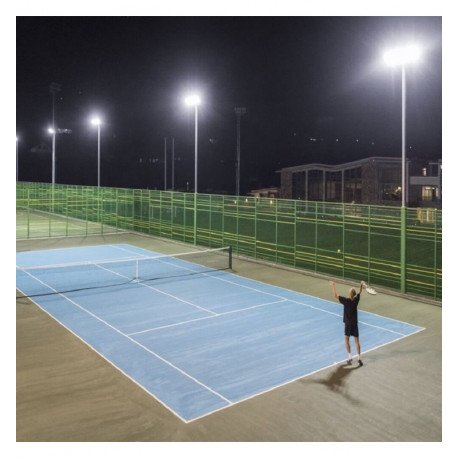

Its 60° beam angle offers focused illumination ideal for medium-distance applications such as security lighting, sports facilities, and architectural highlighting.

Frequently Asked Questions

What type of LED chips does the floodlight use?

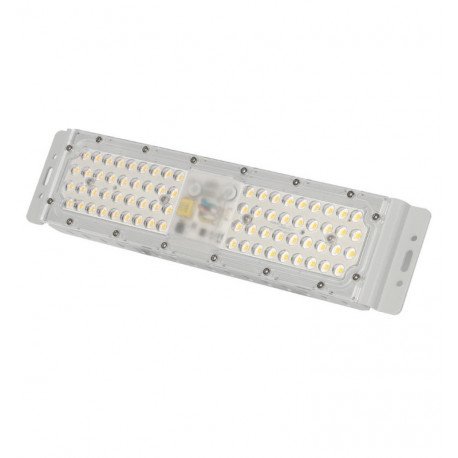

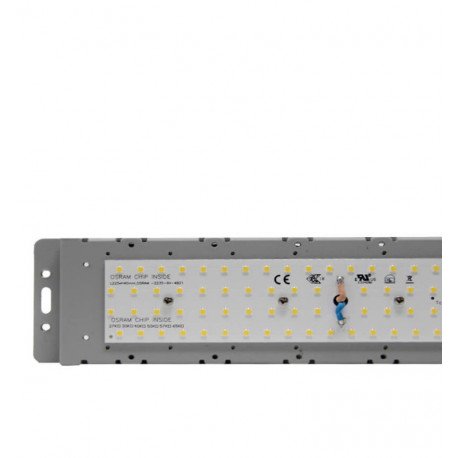

It uses 72 OSRAM SMD3030 3D LEDs with the OS-CORE Sapphire OSRAM chip, ensuring high efficiency and reliable light output.

Is this floodlight suitable for outdoor installations?

Yes, with an IP65 rating and corrosion-resistant housing, it is designed for outdoor use even in challenging environments.

Can the floodlight operate in cold temperatures?

Yes, it is rated to operate down to -20°C, making it suitable for colder climates.

What protection does the floodlight have against impacts?

It has an IK10 impact protection rating, which means it is highly resistant to mechanical impacts and vandalism.}]}

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 305x235x80mm
Rated Power 150W
Rated Voltage 175-265V

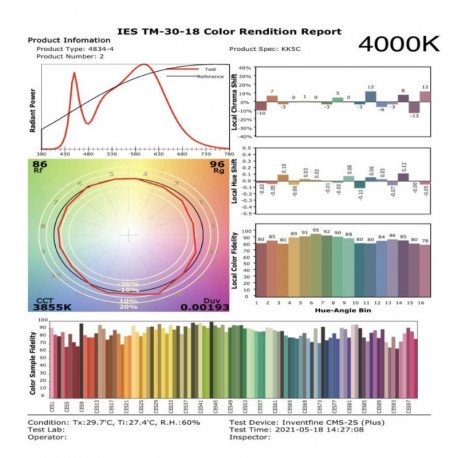

CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,91
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 21000
LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 60º
Luminous Efficacy (Lm/W) 140 Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRONIC

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
