LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker
LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker

LED Floodlight 1200W CORE MAX 1-10V Dimmable No Flicker

Certificates CE, CMIM, RoHS
Construction Material Aluminum +PC
Dimensions (mm) 565x405x165mm
Rated Power 1200W
Beam Angle (º) 20º - 40º - 90º

New product

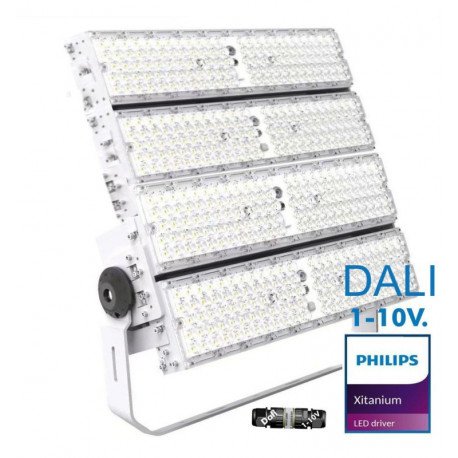

CORE MAX 1200W LED floodlight with Philips Xitanium 1-10V dimmable driver (optional DALI) and no flicker design.

More details

34 Items

1 629,63 € tax incl.
  • 90º
  • 20º
  • 40º

Métodos de pago

Data sheet

Certificates CE, CMIM, RoHS

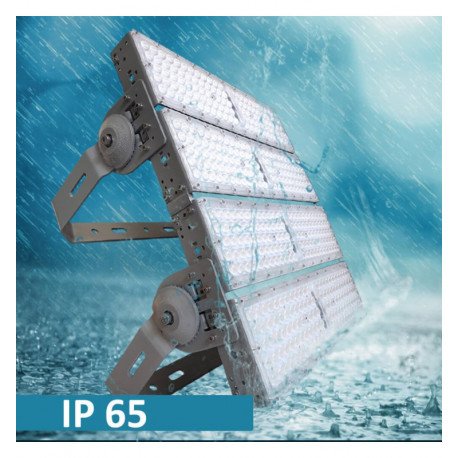

IP Rating IP65-Exterior
Construction Material Aluminum +PC

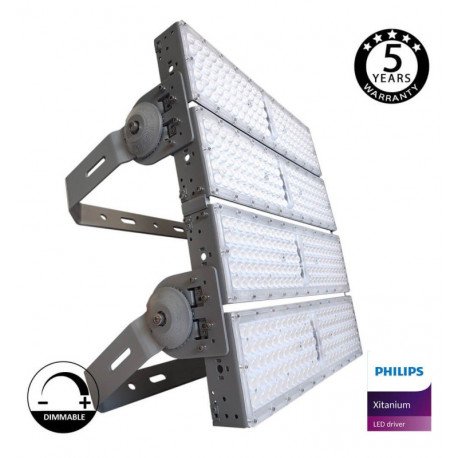

Warranty years 5

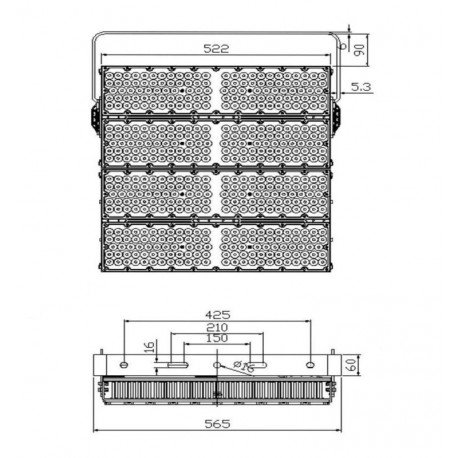

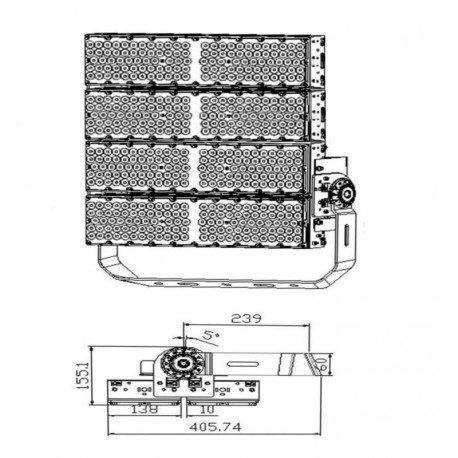

Dimensions (mm) 565x405x165mm
Rated Power 1200W
Rated Voltage 85-305V.

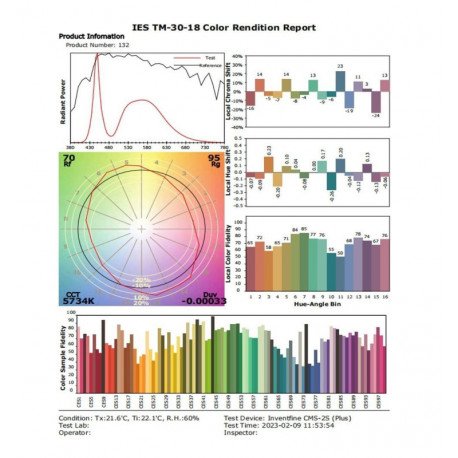

CRI - Color Rendering Index 70
Energy Class (2021-EU-2019/2015) A++

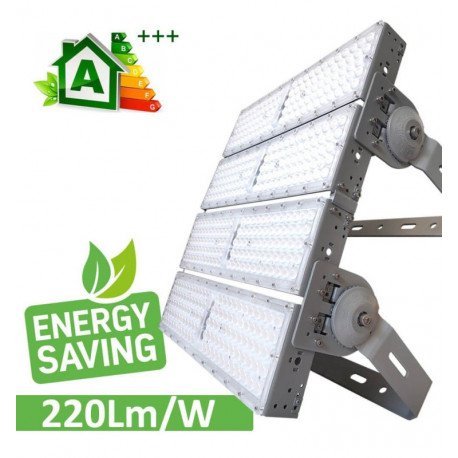

LED Diode Efficacy (Lm/W) 220 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,95
Operating Frequency (Hz) 47/63Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Energy Class (2023 - EU-2019/2015) A
Light Temperature 5000K -5500K
Luminous Flux-Lm 248400 Lm
LED Type SMD 5050/8W/24V BRIDGELUX CHIP
Beam Angle (º) 20º - 40º - 90º
Luminous Efficacy (Lm/W) 207 Lm/W

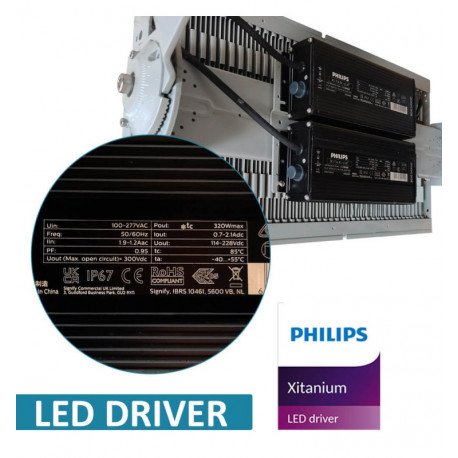

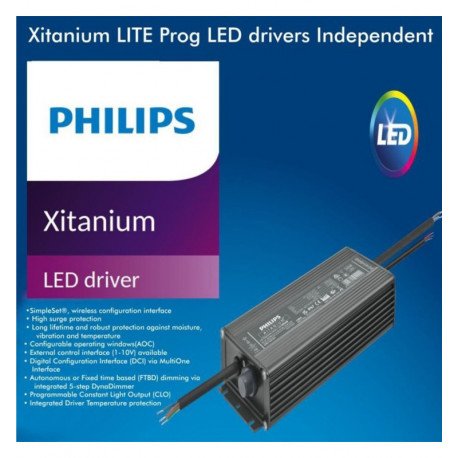

Driver Included Philips Xitanium LITE Prog LED drivers Independent Xi LP 320W 0.7-2.1A S1 WL AUX I230

More info

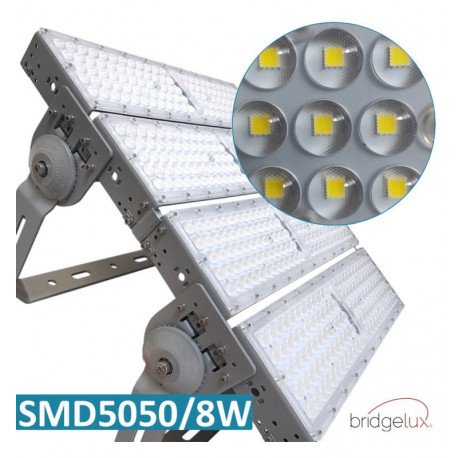

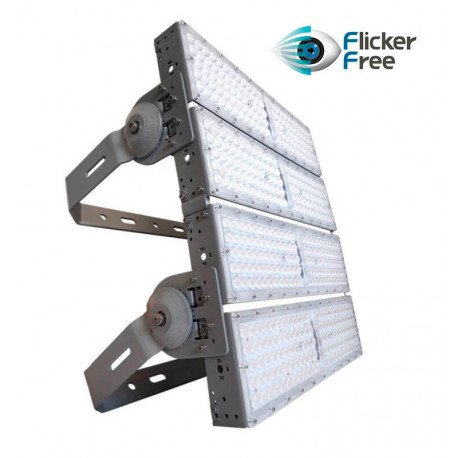

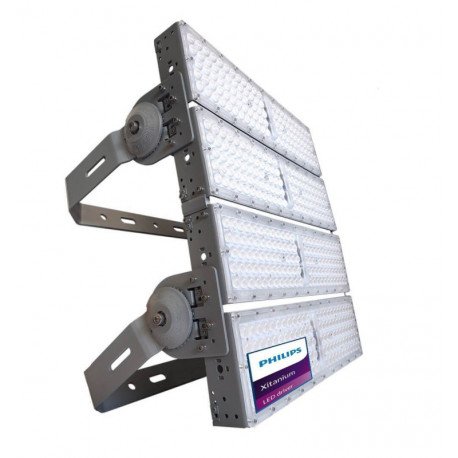

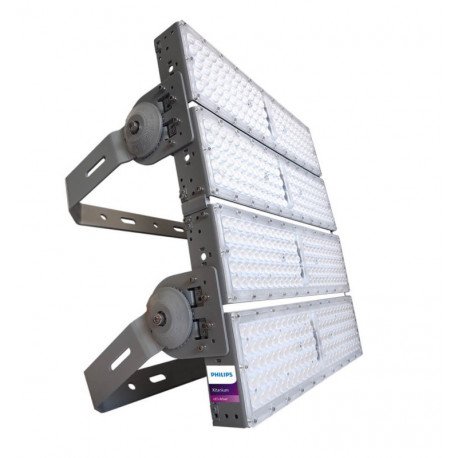

The modular CORE MAX LED floodlight 1200W is designed to deliver maximum lighting performance in demanding applications. It consists of 4 independent 300W modules and includes the Philips Xitanium 1-10V dimmable driver (optional DALI). It integrates SMD 5050/8W/24V LED technology with high-performance BRIDGELUX chips, reaching 220 lm/W efficiency. The modular design optimizes heat dissipation and maximizes lighting output. Available with beam angles of 20°, 40°, and 90° to suit different distances and needs. Class I and no flicker.
