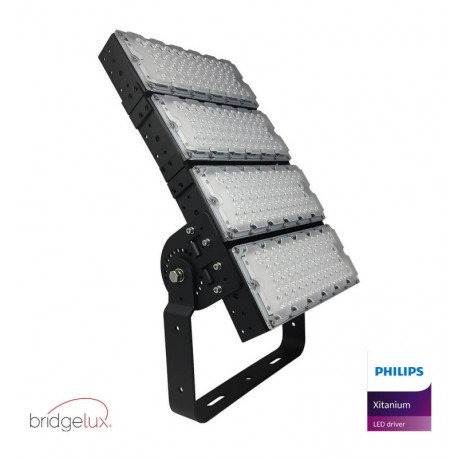

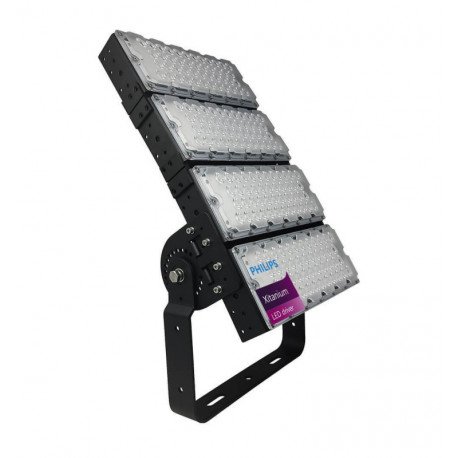

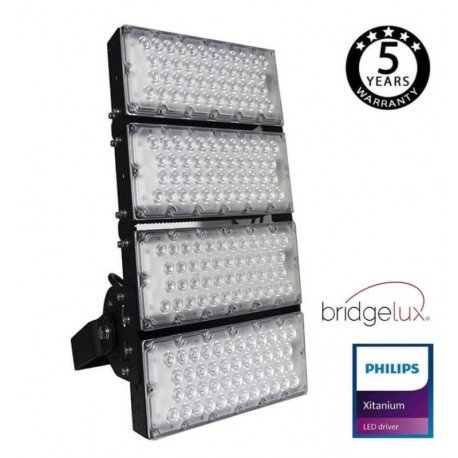

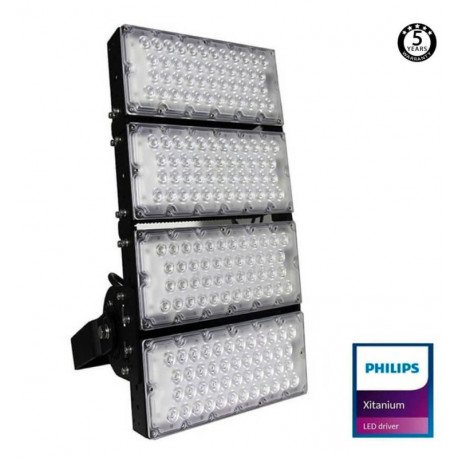

LED Stadium Floodlight 480W IP65 Stadium Matrix

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) 300x500x330mm
Rated Power 480W
Beam Angle (º) 20º - 40º - 90º

New product

The LED Stadium Floodlight 480W IP65 Stadium Matrix delivers powerful 76800 lm (estimated) output with a 160 lm/W efficacy. Featuring robust aluminium and PC construction, IK10 impact protection, and IP65 ingress rating, this floodlight is ideal for outdoor stadium lighting. Available in 20º, 40º, and 90º beam angles, it operates reliably from -20°C to 55°C.

84 Items

Order now and receive it The day after tomorrow

765,98 € tax incl.

Métodos de pago

More info

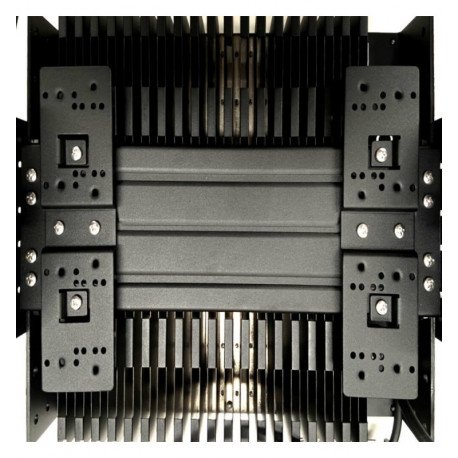

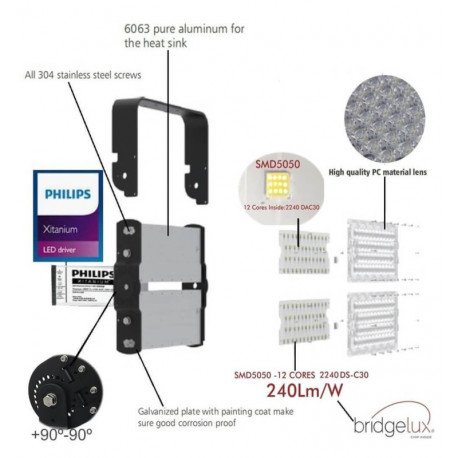

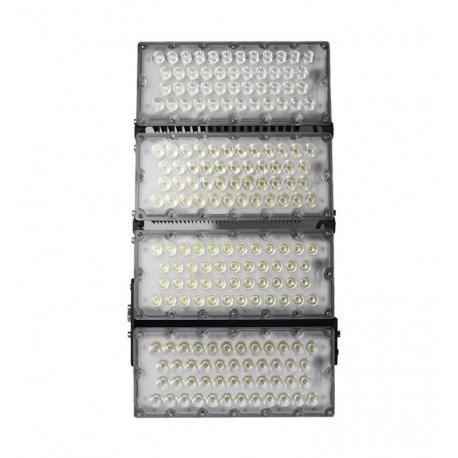

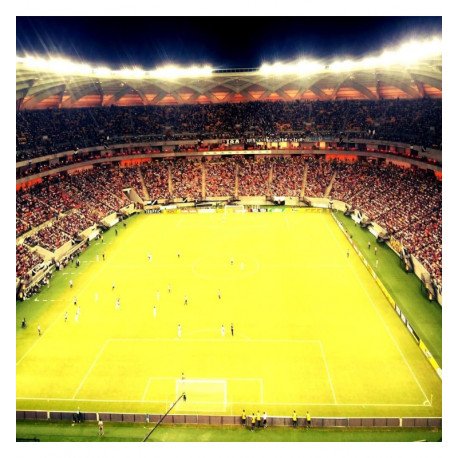

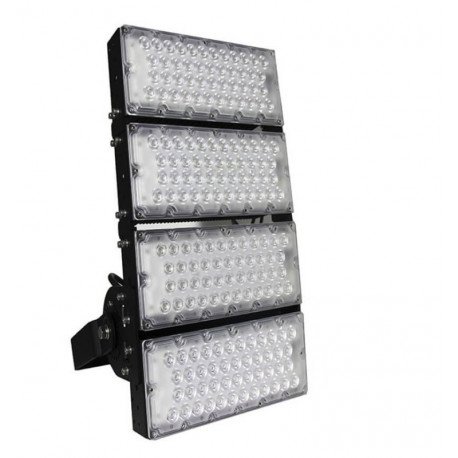

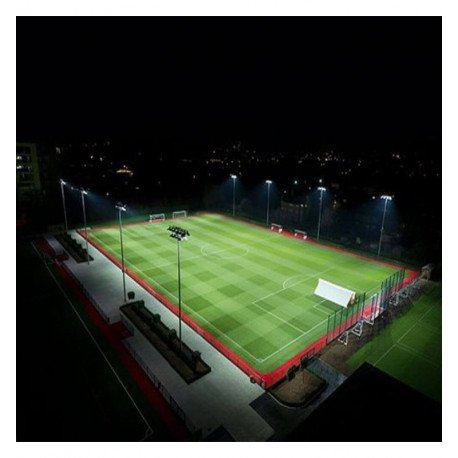

The STADIUM MATRIX LED stadium floodlight is a 480W modular design (2x120W modules) powered by a Philips Xitanium driver. It features SMD 5050 LEDs with BRIDGELUX chips (USA) for efficient high-output illumination suited to long-distance lighting. With an IP65 rating, this LED floodlight is designed for outdoor sports applications such as stadiums, helping maintain brightness where it matters. The included driver mounting plate and arm allow secure installation on the desired surface, and the fixture is adjustable so you can direct the light to the target area.

Robust Construction and Durability

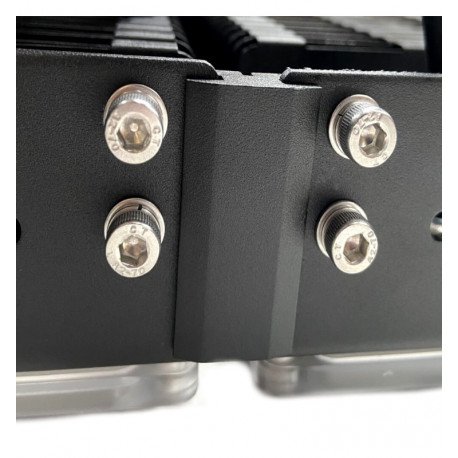

Constructed from aluminium and polycarbonate (PC), this floodlight offers excellent mechanical strength and weather resistance. Its IK10 impact protection rating ensures resilience against mechanical shocks, while the IP65 rating guarantees protection against dust and water jets, making it suitable for demanding outdoor environments.

Optical and Performance Characteristics

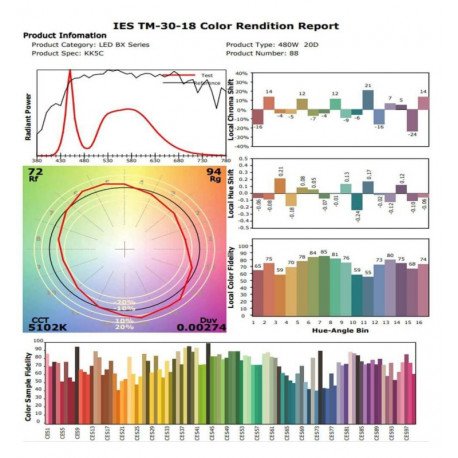

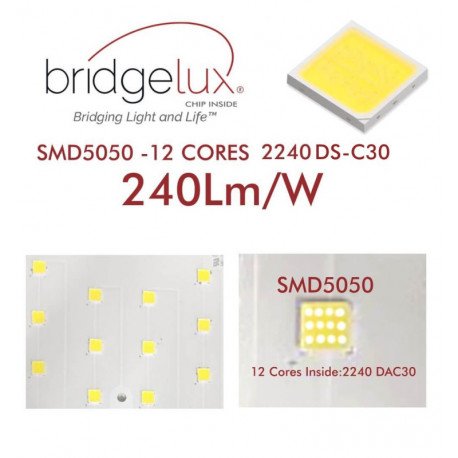

Equipped with high-efficiency SMD 5050 LEDs using BRIDGELUX chips, the luminaire achieves a calculated luminous flux of approximately 76800 lm at 480W power. The product offers three beam angles (20º, 40º, 90º) for tailored light distribution to suit various stadium lighting requirements. Its color temperature is fixed at 5000 K with a CRI of 70.

Electrical and Operational Features

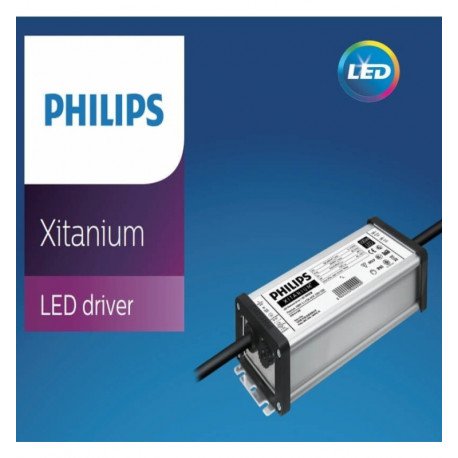

Powered by a reliable PHILIPS XITANIUM driver with a 5-year warranty, the floodlight boasts a power factor of 0.94 and fast startup time of 0.2 seconds. It supports both 50 Hz and 60 Hz frequencies and is rated for operation in temperatures ranging from -20°C to 55°C. The device is also rated for 100000 switching cycles, ensuring long-term operational reliability.

Frequently Asked Questions

What beam angles are available for this floodlight?

This stadium floodlight is available with three beam angles: 20º, 40º, and 90º, enabling light distribution customization for different stadium layouts.

What does the IK10 impact rating signify?

IK10 means the floodlight can withstand strong mechanical impacts, such as 20 joules of energy, providing robustness in harsh outdoor conditions.

What is the estimated luminous flux output?

For the 480W rated power, the LED stadium floodlight has an estimated luminous flux of around 76800 lumens, assuming constant efficacy.

Is this floodlight suitable for extreme weather conditions?

Yes, it is designed to operate reliably in temperatures from -20°C up to 55°C, and it has an IP65 enclosure rating guarding against water and dust.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PC
Warranty years 5

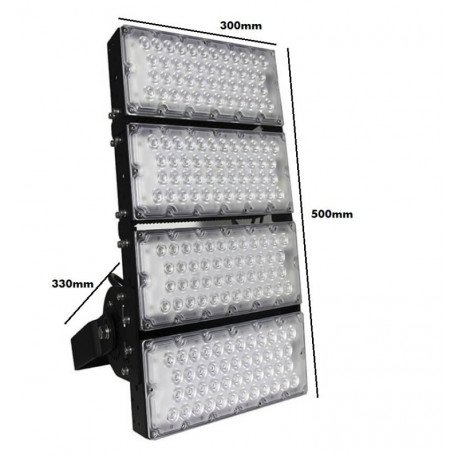

Dimensions (mm) 300x500x330mm
Rated Power 480W
Rated Voltage 220V-240V AC
CRI - Color Rendering Index 70
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 240 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,94
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 5000K
Luminous Flux-Lm 76800 Lm
LED Type SMD 5050-12D BRIDGELUX CHIP 2240 BXCD DS-C47
Beam Angle (º) 20º - 40º - 90º
Luminous Efficacy (Lm/W) 160 Lm/w
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED

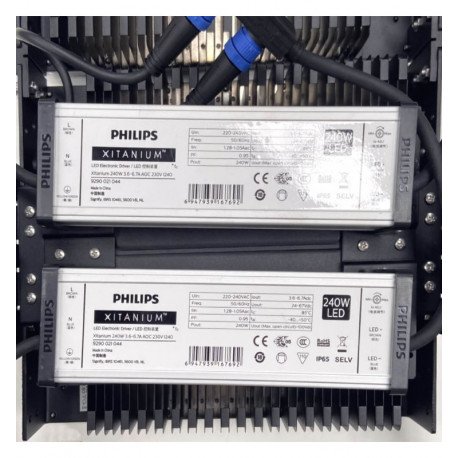

Driver Included PHILIPS XITANIUM 5 YEARS

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
