LED Floodlight 240W Stadium Matrix Outdoor IP65

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) 300x250x330mm
Rated Power 240W
Beam Angle (º) 20º - 40º - 90º

New product

The LED Floodlight 240W Stadium Matrix is a robust outdoor lighting solution featuring aluminum and PC construction, IP65 ingress protection, and IK10 impact resistance. It delivers an estimated 38400 lm output at 5000 K with 70 CRI, powered by BRIDGELUX SMD 5050 LEDs and a PHILIPS Xitanium driver, ideal for stadium lighting applications.

171 Items

Order now and receive it The day after tomorrow

398,79 € tax incl.

Métodos de pago

More info

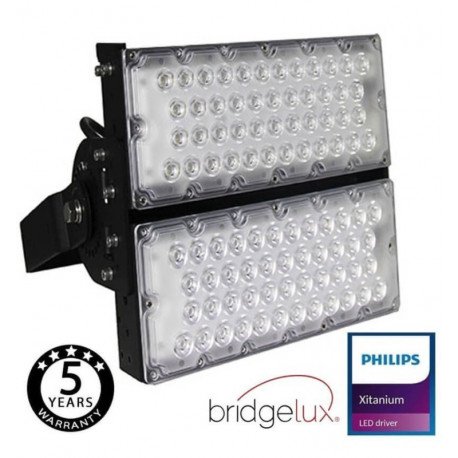

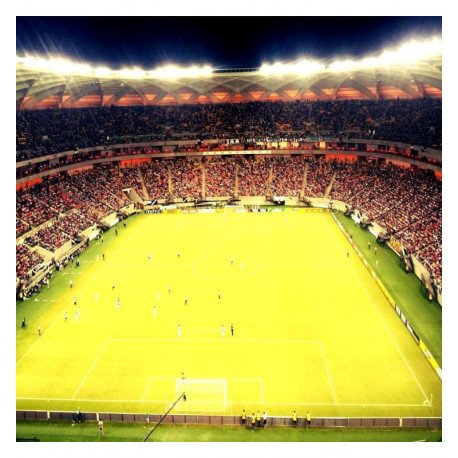

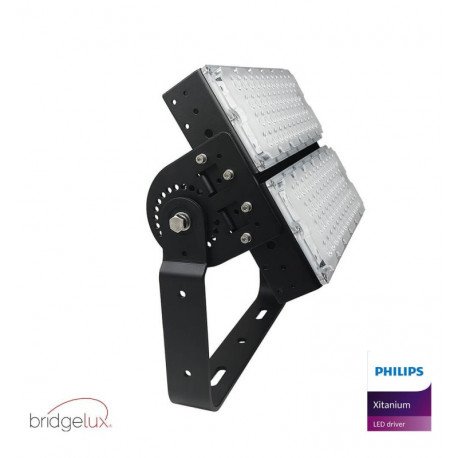

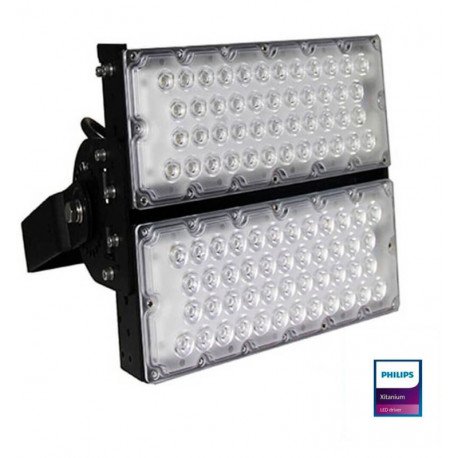

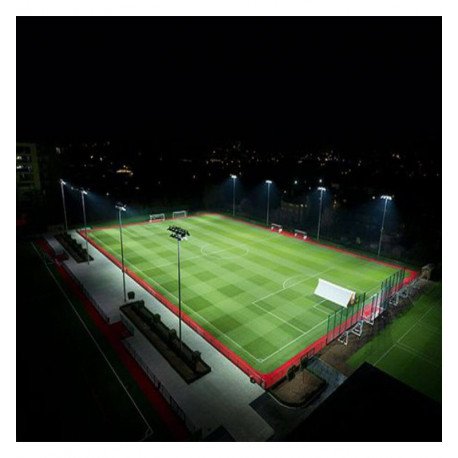

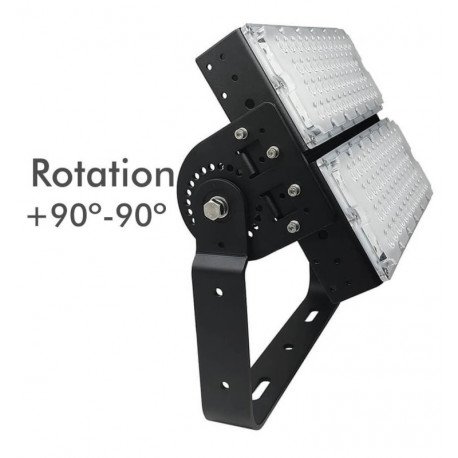

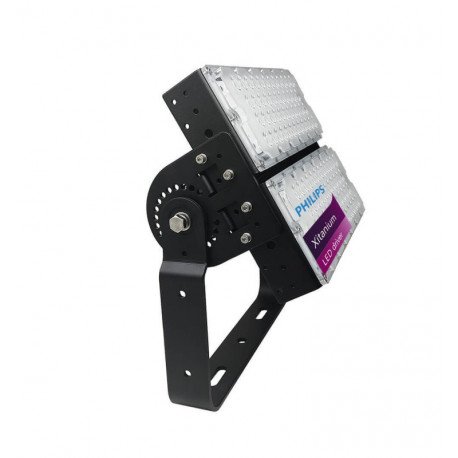

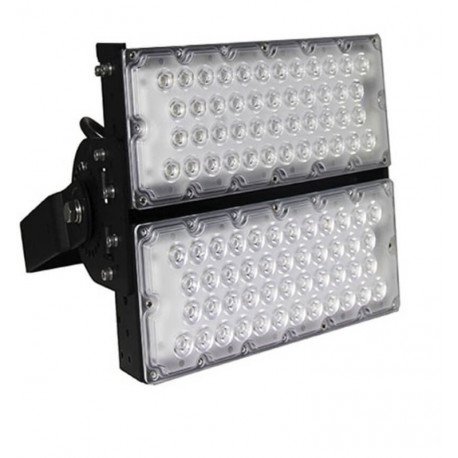

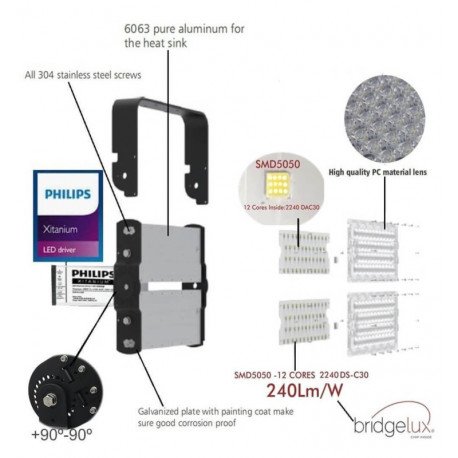

The LED STADIUM MATRIX 240W floodlight features an aluminum housing and a modular design with 2x120W modules to deliver high output and efficiency over long distances. It includes a PHILIPS Xitanium driver to power the modules and uses SMD 5050 technology with BRIDGELUX (USA) chips for strong performance. Supplied with the driver mounting plate and an installation arm for secure fixing, and it is tiltable so you can direct the light exactly where it’s needed. With an IP65 protection rating, it’s suitable for outdoor installations such as stadiums and sports areas.

Optical Performance and Variants

This floodlight is available with three distinct beam angles—20º, 40º, and 90º—allowing customization of light distribution to suit various outdoor settings and target areas effectively. The estimated luminous flux output is 38400 lm at a nominal power of 240 W, yielding high efficiency of 160 lm/W based on the finished luminaire.

Durability and Environmental Resistance

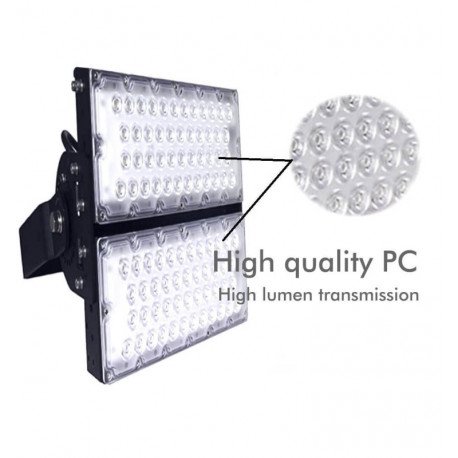

Constructed from aluminum and polycarbonate (PC), this luminaire offers strong mechanical protection rated IK10 against impacts. Its IP65 rating ensures reliable operation in exposed outdoor environments by resisting water jets and dust ingress. The operating temperature range from -20 °C to 55 °C allows it to function in diverse climates.

Electrical and Operational Characteristics

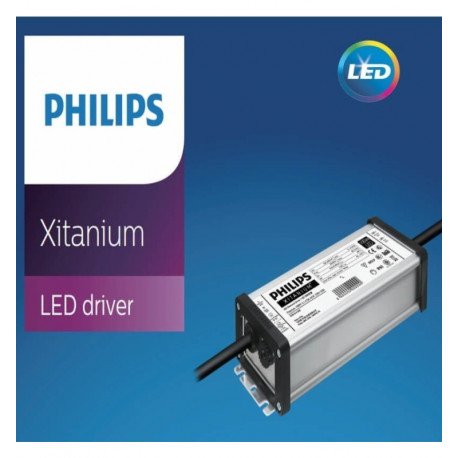

The floodlight’s integrated PHILIPS Xitanium driver ensures consistent performance over its extended 5-year lifecycle. The unit supports both 50 Hz and 60 Hz frequencies, features a power factor of 0.94, and achieves rapid startup of 0.2 seconds for immediate illumination. It is rated for 100000 switching cycles, indicating long-term durability in frequent on/off applications.

Frequently Asked Questions

What types of beam angles can this floodlight be ordered with?

It can be purchased with 20º, 40º, or 90º beam angle options to tailor the light spread for different outdoor areas.

How does the floodlight perform in harsh weather conditions?

The IP65 rating protects it against dust and water jets, and the IK10 rating ensures resistance to physical impacts, making it suitable for outdoor and demanding environments.

What is the expected lifespan of the driver included?

The PHILIPS Xitanium driver is designed to last 5 years, supporting stable performance throughout that period.

Can this floodlight operate in cold climates?

Yes, it operates reliably in temperatures as low as -20 °C, making it suitable for colder outdoor environments.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PC
Warranty years 5

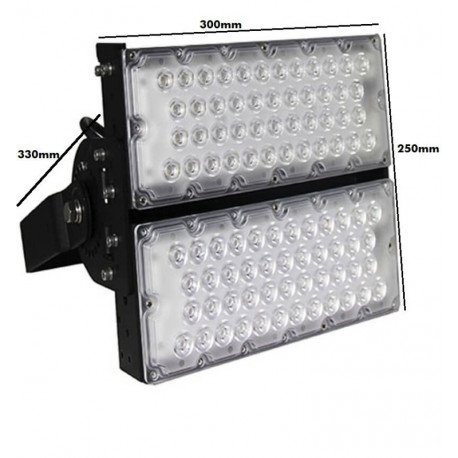

Dimensions (mm) 300x250x330mm
Rated Power 240W
Rated Voltage 220V-240V AC

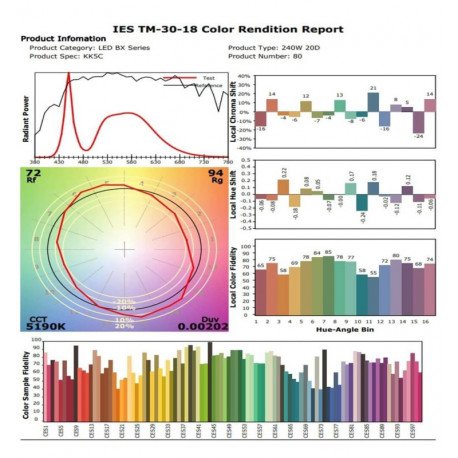

CRI - Color Rendering Index 70
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 240 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,94
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 5000K
Luminous Flux-Lm 38400 Lm

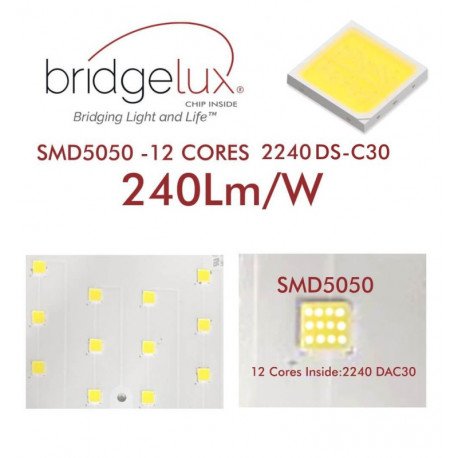

LED Type SMD 5050-12D BRIDGELUX CHIP 2240 BXCD DS-C47
Beam Angle (º) 20º - 40º - 90º
Luminous Efficacy (Lm/W) 160 Lm/w
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included PHILIPS XITANIUM 5 YEARS

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
