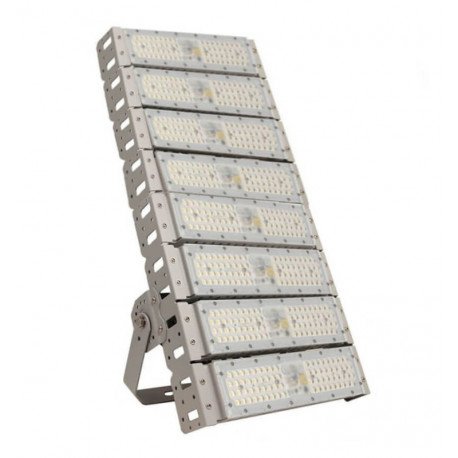

LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D
LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D

LED Floodlight 400W Outdoor 90° OSRAM Chip SMD3030-3D

LED-00027

Certificates CE - ROHS
Construction Material Aluminum +PMMA

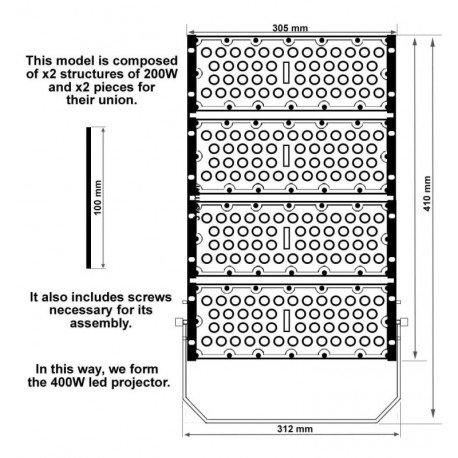

Dimensions (mm) 630x305x55mm
Rated Power 400w
Beam Angle (º) 90°

New product

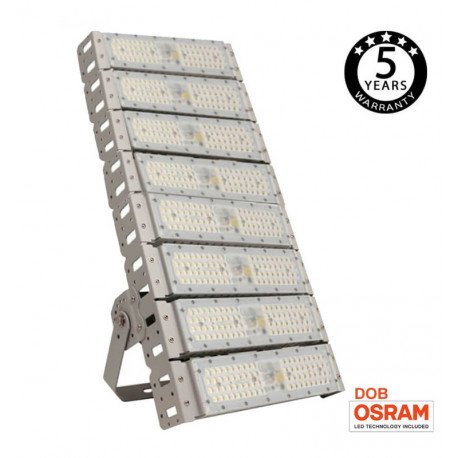

400W DOB MAGNUM OSRAM LED floodlight with OSRAM SMD3030-3D chip and 90° beam angle. 100% 6063 aluminum die-cast housing, pre-assembled.

More details

9 Items

334,13 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5
Dimensions (mm) 630x305x55mm
Rated Power 400w
Rated Voltage 175-265V

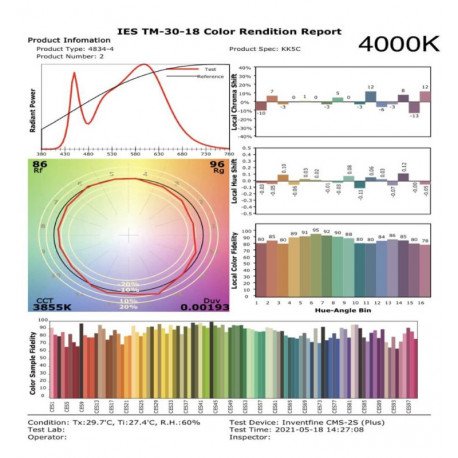

CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 180 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.97
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 56000

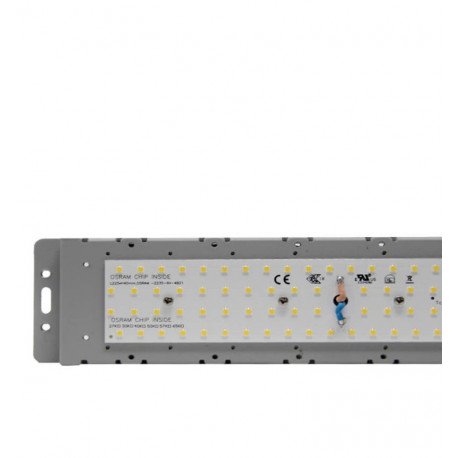

LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 90°
Luminous Efficacy (Lm/W) 140Lm/W

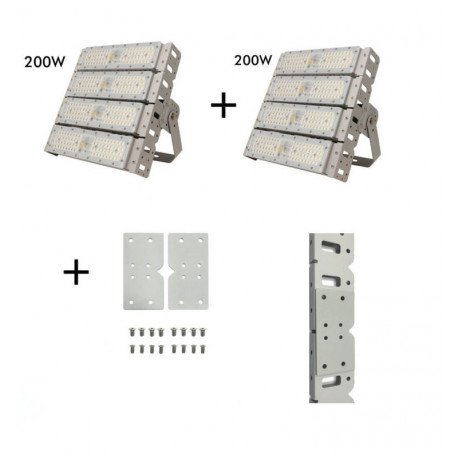

Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED

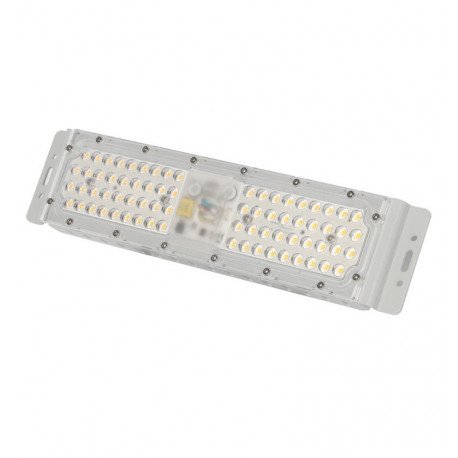

Driver Included DOB GXTRONIC ELECTRIC

More info

The 400W DOB MAGNUM OSRAM LED floodlight with OSRAM SMD3030-3D chip combines high power with a compact design. Its housing and handles are made from 100% 6063 aluminum, oven-painted to help resist salt oxidation, while keeping the unit lightweight to reduce the need for large mounting poles. It features a 90° angle and is supplied pre-assembled. The DOB (Driver On Board) model stands out with the OSRAM 3030-3D triple-core chip, designed to deliver efficient and reliable lighting for indoor or outdoor applications, especially at medium distances.
