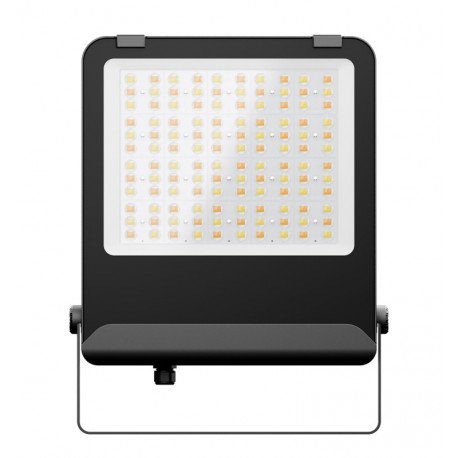

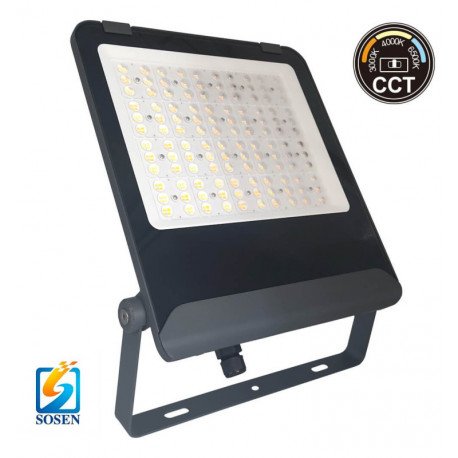

LED Floodlight 200W Outdoor 3CCT IP65 MAXLITE

Certificates CE, CMIM, RoHS
Construction Material Aluminum +Glass

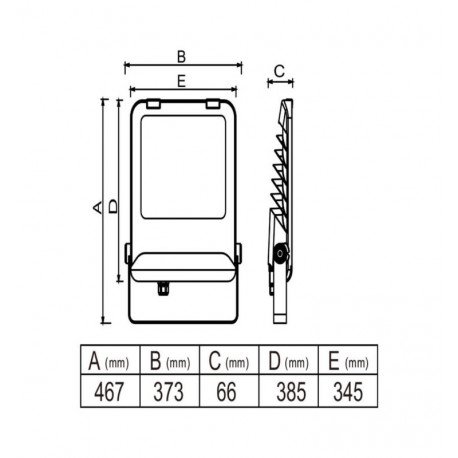

Dimensions (mm) 467x373x66mm
Rated Power 200w
Beam Angle (º) 60º / 90º / 120º

New product

MAXLITE outdoor LED floodlight with adjustable 100 W, 150 W and 200 W power settings and 3000 K, 4000 K or 6500 K color temperature. Available in 60°, 90° and 120° beam versions, with IP65 and IK08 ratings, a SOSEN driver and a 5-year warranty.

763 Items

Order now and receive it The day after tomorrow

128,79 € tax incl.

Métodos de pago

More info

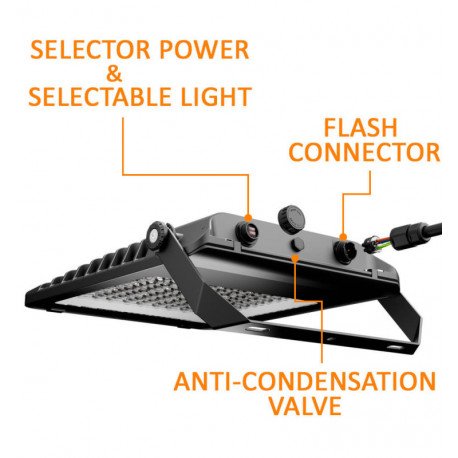

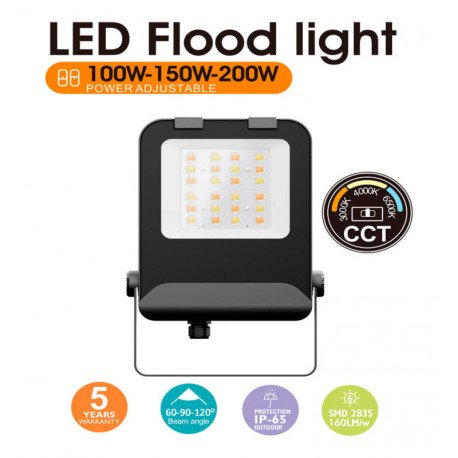

MAXLITE professional LED floodlight 100W - 150W - 200W | 3CCT | SOSEN driver | IP65 | 160 lm/W | 5-year warranty The MAXLITE LED floodlight is designed to deliver versatility, efficiency, and durability for architectural, industrial, and urban lighting projects. Its rugged design and IP65 protection make it a reliable choice for outdoor installations. Adjustable power Using a DIP switch adjustment system, the floodlight lets you select 100W, 150W, or 200W in a single unit, helping optimize energy use based on each installation’s needs. 3CCT technology (3000K/4000K/6500K) Integrated 3CCT allows you to change the color temperature to match the required environment: 3000K, 4000K, or 6500K. Efficiency and warranty With 160 lm/W performance and a SOSEN driver, this floodlight is built for high performance and long service life, backed by a 5-year warranty.

Power settings and estimated light output

The finished luminaire has a stated luminous efficacy of 135 lm/W. Using this value, the estimated luminous flux is 13500 lm at 100 W, 20250 lm at 150 W and 27000 lm at 200 W.

These figures assume constant luminaire efficacy across the power settings. They are calculations, not measurements for each combination of power, color temperature and optic.

Choose the beam version when ordering

The 60°, 90° and 120° optics are purchase variants. Choose the beam version when ordering; the listed angles do not describe an adjustable beam selector on the floodlight.

Power and color temperature are adjustable settings of the equipment. Keeping these choices separate makes it easier to select the product version and then configure its power and light tone.

Materials and electrical specifications

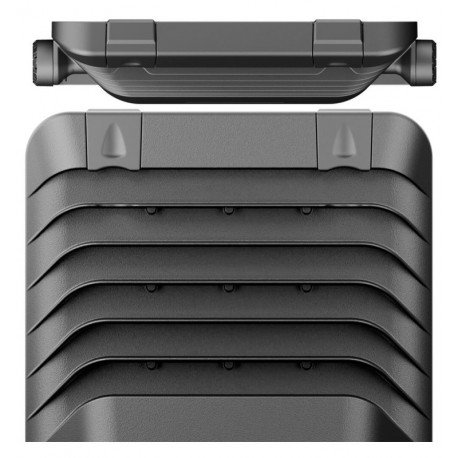

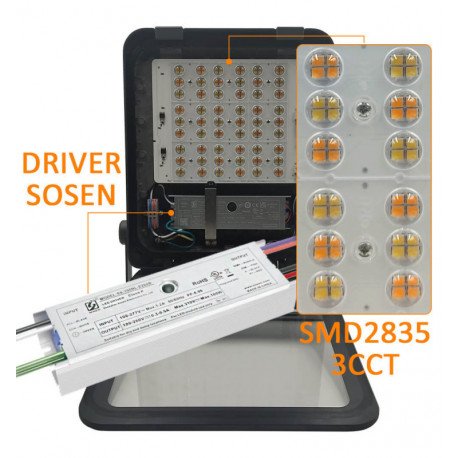

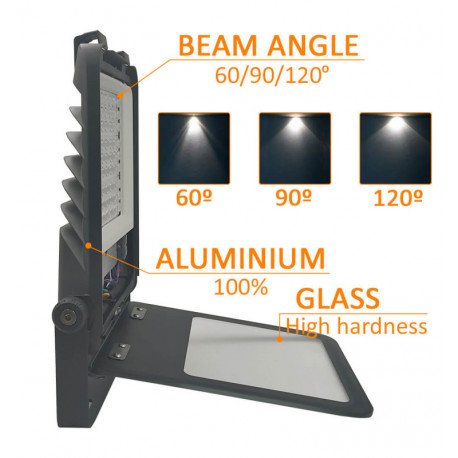

The housing materials listed in the catalog are aluminum and glass. The luminaire has IP65 and IK08 ratings and includes a SOSEN driver.

The stated supply range is 220–240 V, with 50/60 Hz frequency and a power factor of 0.97. The listed operating temperature range is -20 °C to +55 °C. These values are specifications to consider when assessing the installation.

Color temperature and rendering

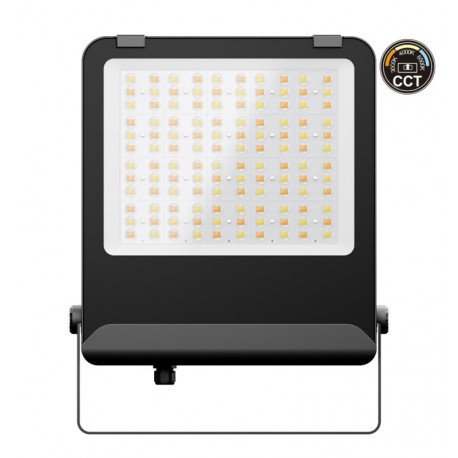

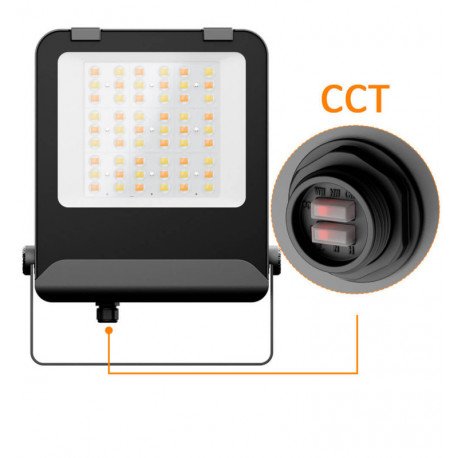

The 3CCT selector provides 3000 K, 4000 K and 6500 K options. The stated color rendering index is CRI >80. Choose the color temperature to suit the desired appearance and the lighting already present in the space.

Frequently asked questions

Do I need a different floodlight for each power setting?

The equipment offers 100 W, 150 W and 200 W settings in the same unit.

How do I choose the beam angle?

Select the 60°, 90° or 120° product version when ordering. Beam angle should be considered together with the mounting position and the area to be lit.

Are the luminous flux figures measured for every configuration?

No. The supplied estimates use the finished-luminaire efficacy of 135 lm/W and assume it remains constant across the power settings. They are not measured values for each optic or color temperature.

How much area can one floodlight illuminate?

There is no single area suitable for every installation. The activity, mounting height, beam version and desired lighting level must be considered along with the luminaire layout.

View technical specifications Hide technical specifications
Certificates CE, CMIM, RoHS
IP Rating IP65-Exterior
Construction Material Aluminum +Glass
Warranty years 5
Dimensions (mm) 467x373x66mm
Rated Power 200w
Rated Voltage 220-240V
CRI - Color Rendering Index +80
LED Diode Efficacy (Lm/W) 160 Lm/w
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.97
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK08
Energy Class (2023 - EU-2019/2015) E
Light Temperature 3CCT SELECT 3000K-4000K-6500K
Luminous Flux-Lm 28000
LED Type SMD 2835
Beam Angle (º) 60º / 90º / 120º
Luminous Efficacy (Lm/W) 135Lm/W
Additional Information Adjustable Power 200W, 150W,100W
Driver Included SOSEN DRIVER

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
