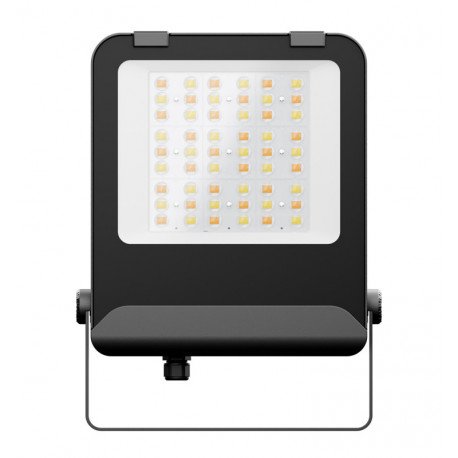

LED Floodlight 100W Outdoor 3CCT IP65 MAXLITE

Certificates CE, CMIM, RoHS
Construction Material Aluminum +Glass
Dimensions (mm) 383x293x61mm
Rated Power 100w
Beam Angle (º) 60º / 90º / 120º

New product

MAXLITE LED Floodlight offers adjustable power settings (50W, 80W, 100W) and three selectable color temperatures (3000K, 4000K, 6500K) in a robust IP65 aluminum and glass housing. It features high efficacy (135 lm/W estimated) and impact resistance (IK08), suitable for demanding outdoor environments.

289 Items

Order now and receive it The day after tomorrow

89,01 € tax incl.

Métodos de pago

More info

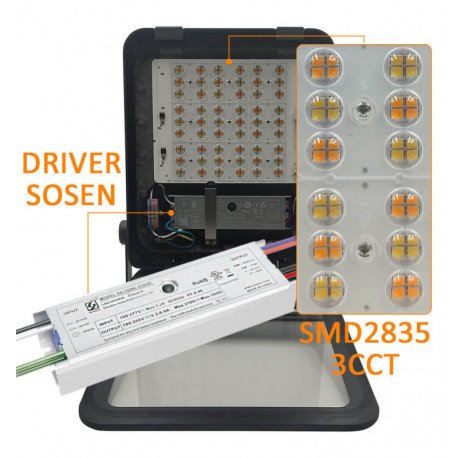

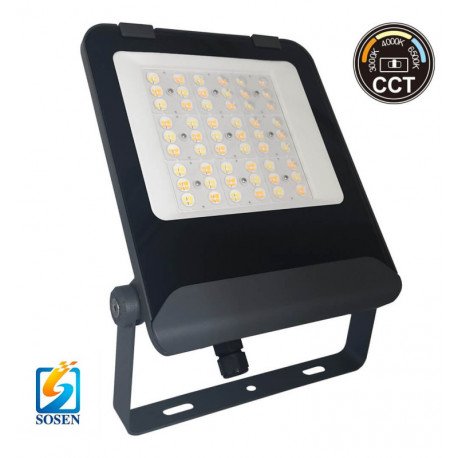

MAXLITE LED Floodlight 50W-80W-100W with 3CCT technology (3000K/4000K/6500K) and SOSEN driver. Power is adjustable via DIP switch to match consumption to your needs (50W/80W/100W) without changing the fixture. Built for demanding outdoor installations with IP65 protection, delivering high performance of 160Lm/W and backed by a 5-year warranty. Ideal for architectural, industrial, and urban projects where versatility and durability are required.

Versatile Optical Options

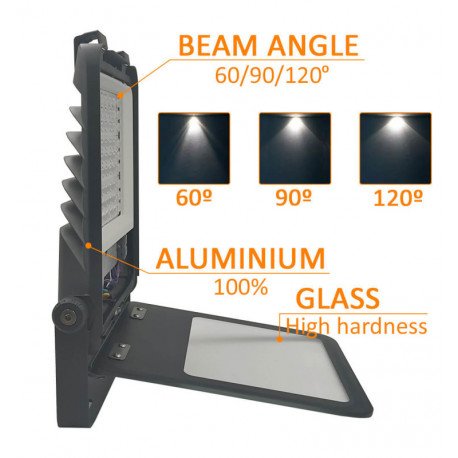

The floodlight provides three beam angle choices: 60º, 90º, and 120º, allowing precise control of light distribution based on installation needs. This adaptability ensures optimal illumination across different outdoor applications, from focused accent lighting to wide-area coverage.

Durable and Reliable Design

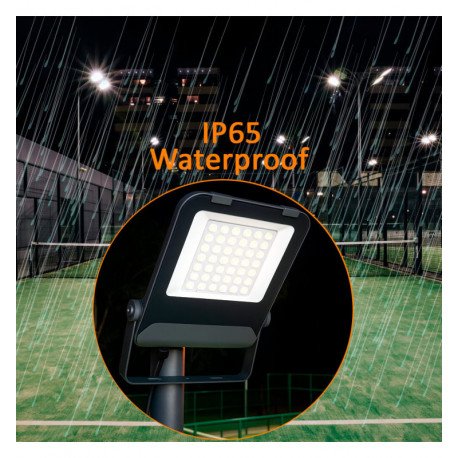

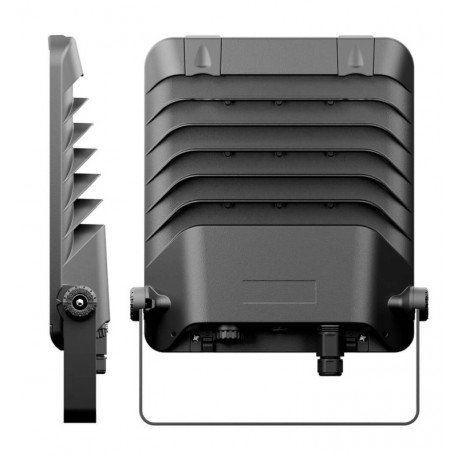

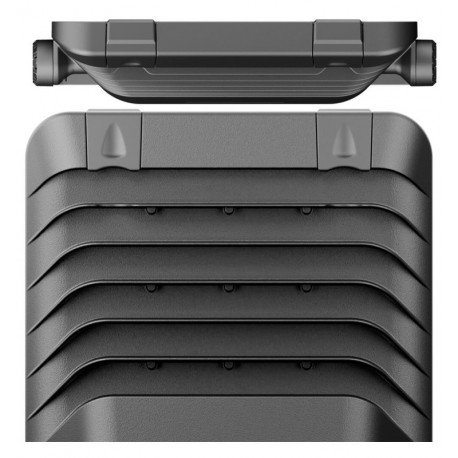

Constructed from aluminum with a glass cover, the luminaire balances durability and quality light transmission. Its IK08 impact rating and IP65 ingress protection certify resistance to outdoor elements and mechanical impacts, making it suitable for harsh environments.

Operational Features

Equipped with a SOSEN driver, the floodlight offers reliable performance with a power factor of 0.97 and quick startup of 0.2 seconds. It operates effectively within a temperature range of -20°C to 55°C and supports power supply frequencies of 50/60 Hz. The long lifespan supports up to 100,000 switching cycles, reducing maintenance needs.

Frequently Asked Questions

Can I change the color temperature after installation?

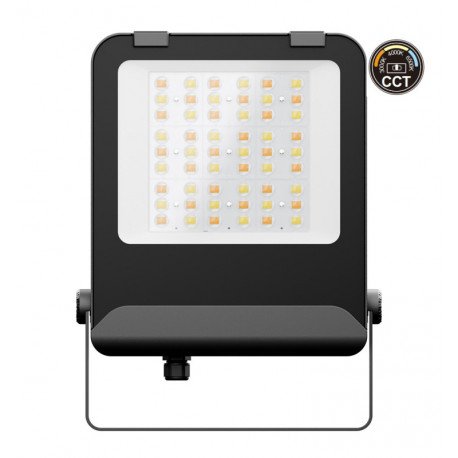

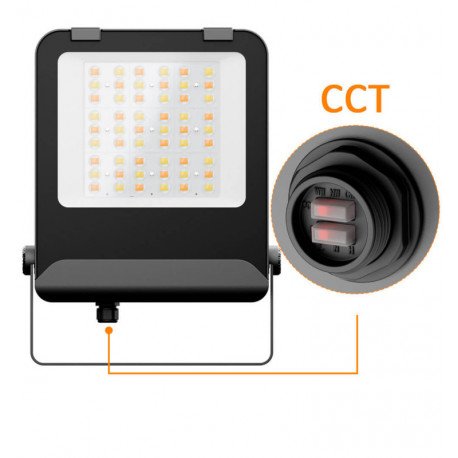

The floodlight features 3CCT technology with selectable CCT values (3000K, 4000K, 6500K) that can be adjusted as needed, providing flexibility in lighting tone.

What mounting environments is this floodlight suitable for?

Thanks to its IP65 rating and IK08 impact protection, this floodlight is suitable for outdoor areas requiring protection against dust, water jets, and impacts.

How do the adjustable power settings affect the floodlight?

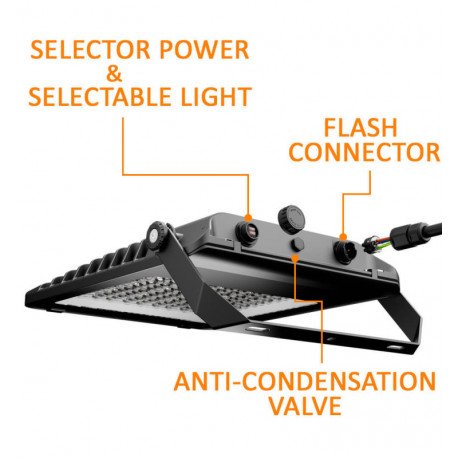

The floodlight allows adjusting power consumption between 50W, 80W, or 100W via a DIP switch without replacing the fixture, enabling tailored energy use according to lighting requirements.

View technical specifications Hide technical specifications
Certificates CE, CMIM, RoHS
IP Rating IP65-Exterior
Construction Material Aluminum +Glass
Warranty years 5

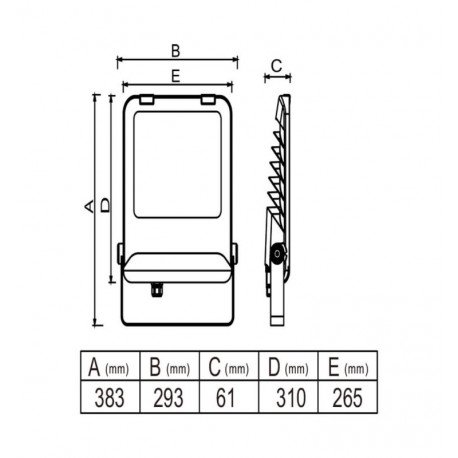

Dimensions (mm) 383x293x61mm
Rated Power 100w
Rated Voltage 220-240V
CRI - Color Rendering Index +80
LED Diode Efficacy (Lm/W) 160 Lm/w
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0.97
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK08
Energy Class (2023 - EU-2019/2015) E
Light Temperature 3CCT SELECT 3000K-4000K-6500K
Luminous Flux-Lm 14000 Lm
LED Type SMD 2835
Beam Angle (º) 60º / 90º / 120º
Luminous Efficacy (Lm/W) 135Lm/W
Additional Information Adjustable Power 100W, 80W, 50W
Driver Included SOSEN DRIVER

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
