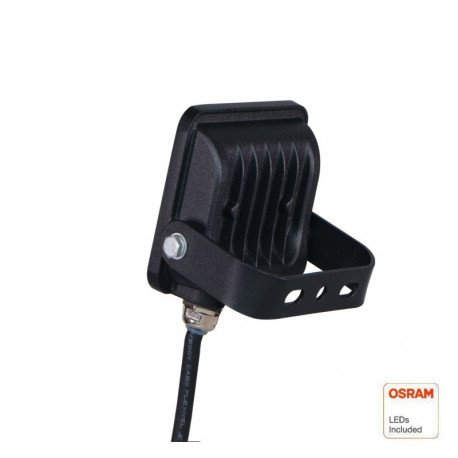

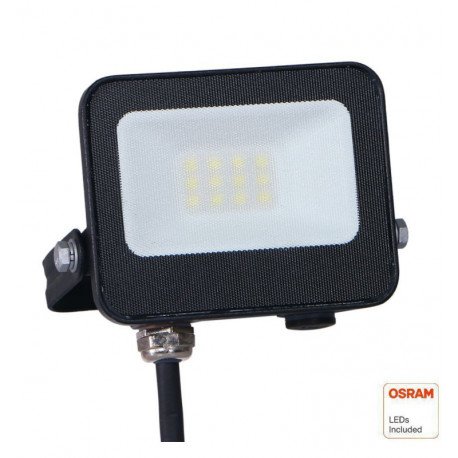

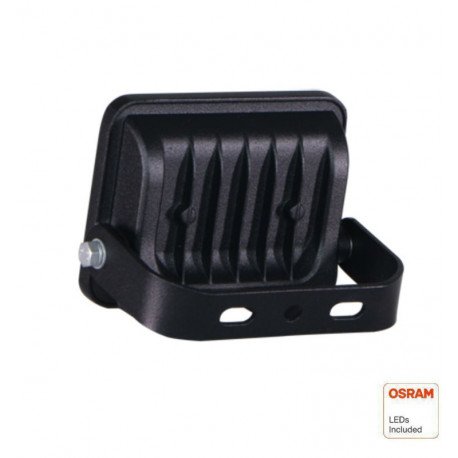

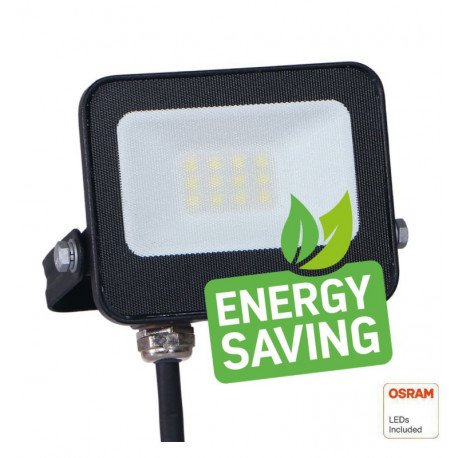

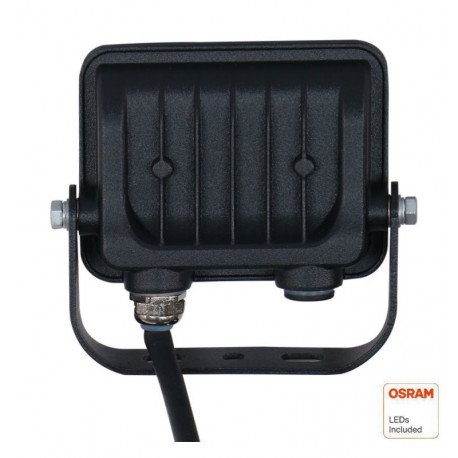

LED Floodlight 10W IP65 ACTION PRO OSRAM Duris

Certificates CE - ROHS
Construction Material Aluminum +Glass
Dimensions (mm) 101x97x26mm
Rated Power 10W
Beam Angle (º) 120º

New product

The 10W ACTION PRO LED floodlight with OSRAM Duris SMD 2835 chip ensures robust outdoor lighting with an IP65 rating and IK07 impact protection. Offering 1100 lm (estimated) at 110 lm/W efficacy, it features aluminum and glass construction, a CRI above 80, and selectable color temperatures of 4000K or 5700K for versatile white light options.

26219 Items

Order now and receive it The day after tomorrow

5,88 € tax incl.

Métodos de pago

More info

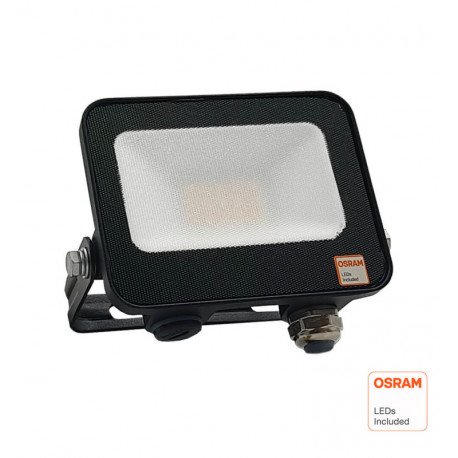

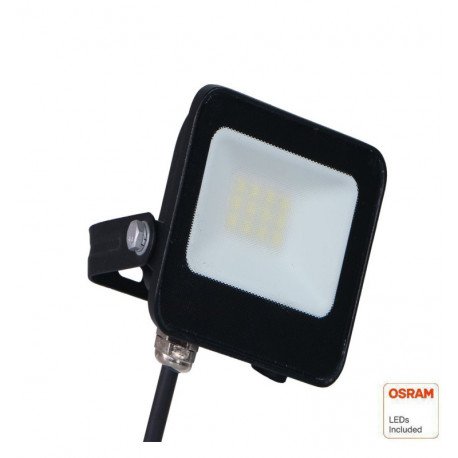

10W ACTION PRO LED floodlight with OSRAM Duris E2835 chip, designed to deliver powerful and efficient lighting for outdoor applications. Built with quality materials such as aluminum and glass, it offers strength and durability. It features SMD2835 OSRAM Duris LEDs with a CRI greater than 80 for more faithful, vibrant color rendering. With an IP65 rating, it’s suitable for outdoor installations where protection against the elements is required.

Durability and Environmental Resistance

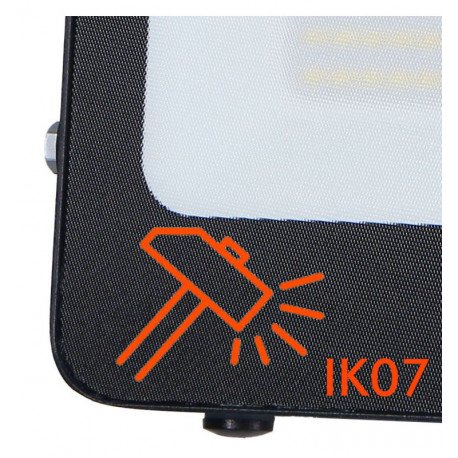

Constructed with high-quality aluminum and glass materials, this floodlight provides excellent robustness and longevity for outdoor environments. Its IP65 rating guarantees reliable protection against dust and water jets, making it suitable for varied weather conditions. Additionally, the IK07 impact resistance rating enhances its durability against mechanical impacts, ensuring sustained operation in demanding surroundings.

Performance and Light Quality

Equipped with OSRAM Duris SMD 2835 LEDs, the floodlight delivers efficient illumination with a luminous efficacy of approximately 110 lm/W. The color rendering index (CRI) exceeding 80 ensures accurate and vibrant color representation for enhanced visual clarity. Users can choose between neutral white (4000K) and cool white (5700K) color temperatures to best suit their lighting needs. Rapid startup time of 0.2 seconds allows immediate full brightness upon activation.

Electrical and Operational Features

Designed to operate within a voltage range of 220V to 240V and a frequency of 50 or 60 Hz, it provides flexible power compatibility. With a power factor of 0.95, the floodlight maintains efficient electrical performance. The device supports a significant number of switching cycles (100,000), contributing to its long operational lifespan. It can function reliably within ambient temperatures from -20°C to 55°C, broadening its applicability across environments.

Frequently Asked Questions

Can I select the color temperature when purchasing the floodlight?

Yes, the product is available with two color temperature options: neutral white at 4000K or cool white at 5700K.

What is the estimated luminous flux of this floodlight?

The estimated luminous flux at 10W power is approximately 1100 lumens, based on a constant efficacy assumption.

Is this floodlight suitable for wet outdoor locations?

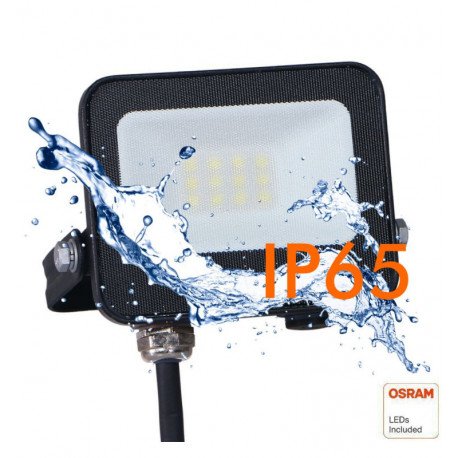

Yes, with an IP65 ingress protection rating, it is designed to resist water jets and dust, making it appropriate for outdoor use.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +Glass
Warranty years 3

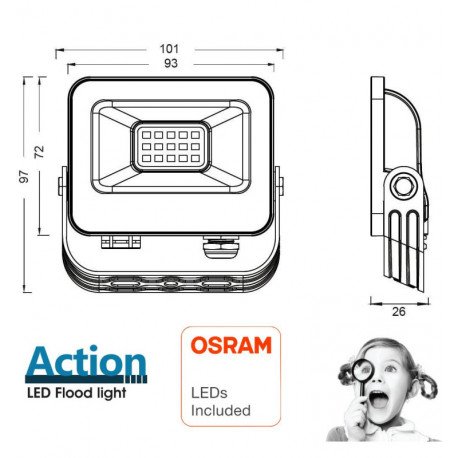

Dimensions (mm) 101x97x26mm
Rated Power 10W
Rated Voltage 220-240V
CRI - Color Rendering Index +80
Energy Class (2021-EU-2019/2015) A+
Estimated LED Diode Life (H) 25000h
Power Factor (PF) 0.95
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK07
Energy Class (2023 - EU-2019/2015) E
Light Temperature 4000K - 5700K
Luminous Flux-Lm 1100

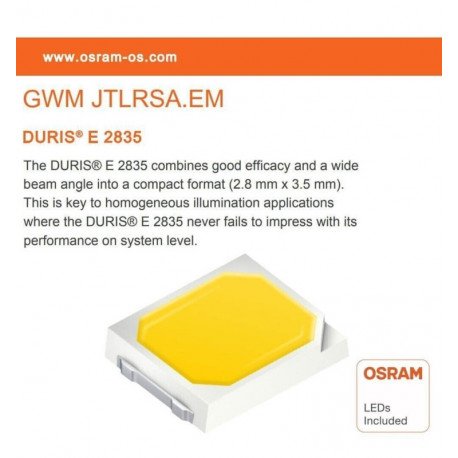

LED Type SMD 2835 OSRAM CHIP
Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 110 Lm/W
Additional Information Surge protector 2K

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
