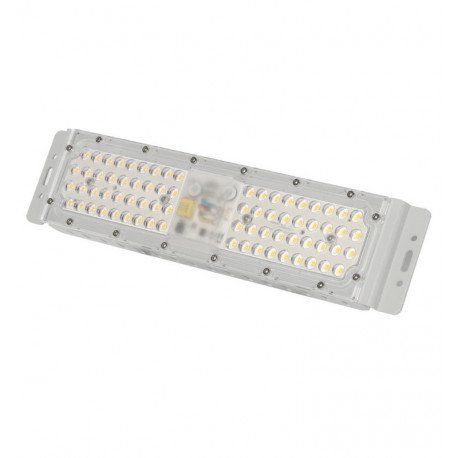

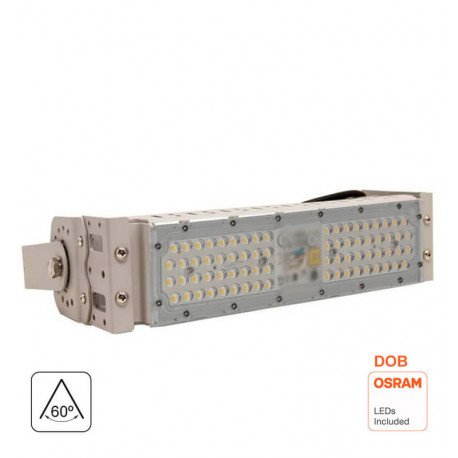

LED Floodlight 50W Outdoor IP65 60° OSRAM 6063 Aluminum

LED-00140

Certificates CE - ROHS
Construction Material Aluminum +PMMA
Dimensions (mm) 305x75x80mm
Rated Power 50w
Beam Angle (º) 60º

New product

This 50W OSRAM LED floodlight delivers bright 6000 lm output with 120 lm/W efficacy, protected to IP65 and impact-resistant with IK10 rating. Built with durable 6063 aluminum housing and PMMA lens, it operates reliably between -20°C and 55°C, ensuring stable performance for outdoor medium-distance illumination.

88 Items

Order now and receive it The day after tomorrow

48,47 € tax incl.

Métodos de pago

More info

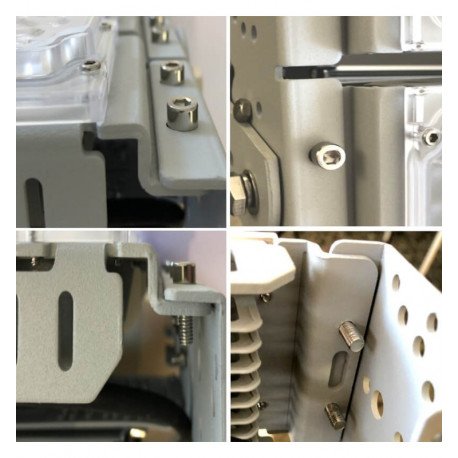

The 50W DOB MAGNUM OSRAM LED floodlight features an SMD3030-3D chip and a 60° beam angle, designed for effective lighting at medium distances. Its housing and handles are made from 100% aluminum 6063 with oven-baked paint to help prevent salt oxidation. A lightweight model built to make installation easier and reduce the need for large mounting poles. Supplied pre-assembled, ready to install.

Durability and Protection

Constructed from high-quality 6063 aluminum and PMMA, the fixture offers robust resistance against environmental elements. Its IP65 ingress protection rating ensures it withstands dust and water jets, while the IK10 impact rating safeguards it from mechanical shocks, making it suitable for demanding outdoor conditions.

Performance and Reliability

Equipped with 72 OSRAM SMD 3030 3D LEDs, this floodlight provides consistent and efficient illumination with a color rendering index (CRI) of 84 and a power factor of 0.91. It supports voltage input from 175 V to 265 V and operates efficiently at standard frequencies of 50 and 60 Hz.

Operational Features

The device has a swift startup time of 0.2 seconds and can endure up to 100,000 switching cycles, contributing to its long service life. It functions reliably within temperatures ranging from -20°C to 55°C, ensuring stable operation under various weather conditions.

Frequently Asked Questions

What beam angle does this floodlight have?

The floodlight has a fixed 60° beam angle, suitable for medium-distance lighting applications.

Can this floodlight operate in cold environments?

Yes, it is designed to operate safely in temperatures as low as -20°C.

Is the LED chip brand specified?

Yes, it uses OSRAM LED chips of model SMD 3030 3D with OS-CORE Sapphire ODB2235S.A technology.

What materials are used in the floodlight construction?

The housing is made of 6063 aluminum with a PMMA lens, ensuring durability and weather resistance.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material Aluminum +PMMA
Warranty years 5

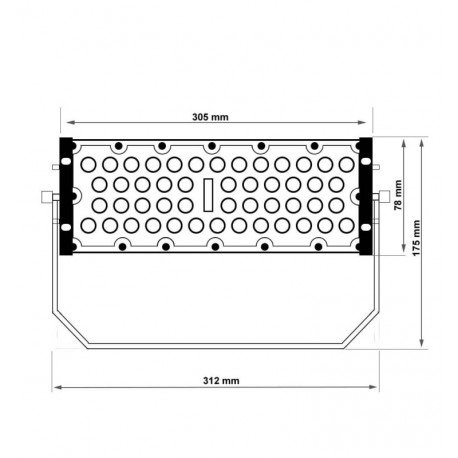

Dimensions (mm) 305x75x80mm
Rated Power 50w
Rated Voltage 175-265V

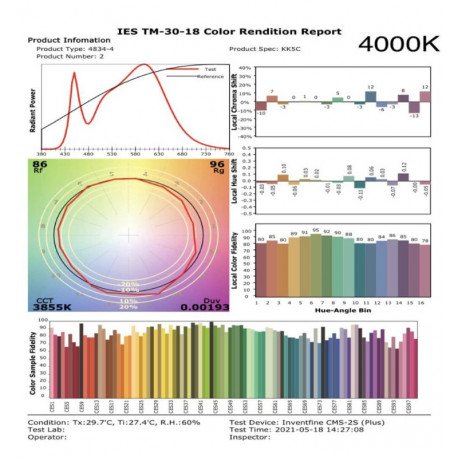

CRI - Color Rendering Index 84
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 140 Lm/W
Estimated LED Diode Life (H) 50.000
Power Factor (PF) 0,91
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK10
Light Temperature 4000K -5000K
Luminous Flux-Lm 7000

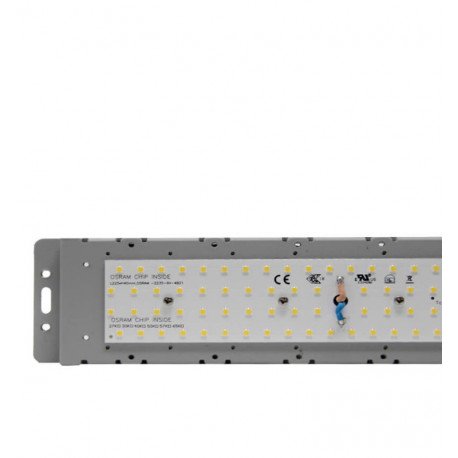

LED Type 72 Diodes SMD 3030 3D (3 Corel) OSRAM Chip OS-CORE Sapphire ODB2235S.A
Beam Angle (º) 60º
Luminous Efficacy (Lm/W) 120 Lm/W
Additional Information THIS PRODUCT IS DELIVERED DISASSEMBLED
Driver Included DOB GXTRONIC ELECTRIC

Outdoor and garden LED lighting for safe and welcoming spaces

Outdoor and garden LED lighting makes terraces, patios, façades, pathways and green areas more usable after dark. A well-planned installation improves visibility and safety, simplifies access to the property and creates decorative environments around gardens, pools and relaxation areas.

At DomiLED you will find outdoor LED lighting solutions for homes, residential communities, hotels, restaurants, shops and professional projects. The correct choice depends on the installation area, surface to be illuminated, required effect and exposure to water, dust and weather conditions.

Types of outdoor LED lighting

  • Outdoor LED wall lights: provide functional or decorative illumination for façades, entrances, porches, terraces and balconies.
  • LED floodlights: deliver a high luminous output for patios, car parks, gardens, façades and working areas.
  • LED bollards and path lights: define pathways, entrances and landscaped areas with light positioned close to the ground.
  • Garden spotlights: highlight trees, plants, walls, sculptures and architectural features.
  • Residential lamp posts: illuminate pathways, gardens, entrances and communal areas from a greater height.
  • Solar LED lighting: provides autonomous light points in locations with suitable exposure to sunlight.
  • LED strips and flexible neon: create decorative lines on terraces, steps, pergolas, façades and outdoor furniture.

How to plan garden lighting

Combine several lighting levels to achieve a balanced result. General illumination supports safe movement, orientation lighting identifies paths and changes in level, and accent lighting highlights trees, plants, walls and decorative features.

It is not always necessary to illuminate the entire garden at the same intensity. Distributing several light points creates depth, avoids excessively bright areas and directs attention towards the most attractive parts of the space.

IP protection for outdoor luminaires

The IP protection rating indicates a luminaire’s resistance to the entry of dust and water. The required rating depends on its location and direct exposure to rain, water jets or moisture.

A luminaire installed under a protected porch does not experience the same conditions as a spotlight exposed to the weather or installed near a swimming pool. Junction boxes, cable joints, power supplies and cable entries must also be suitably protected.

An IP rating does not indicate impact resistance. For paths, car parks and accessible areas, the IK impact rating and strength of the materials may also need to be considered.

Lumens, power and light distribution

Lumens indicate the amount of light emitted, while watts represent electricity consumption. Illuminating a façade or car park requires a greater luminous output than marking a pathway or highlighting a plant.

The beam angle also affects the result. A narrow beam concentrates light on a tree, column or architectural detail. A wide beam distributes illumination across a larger surface and is suitable for patios, walls and circulation areas.

Colour temperature for gardens and façades

Warm white creates a comfortable atmosphere on terraces, in gardens, porches and relaxation areas. It also complements vegetation, wood, stone and traditional façades.

Neutral white provides a more natural and functional appearance for entrances, paths, modern façades and frequently used areas. Cool white creates a greater impression of brightness but should be used carefully to avoid an excessively harsh environment.

Outdoor lighting with motion sensors

Luminaires with a motion sensor can switch on when movement is detected and are practical for entrances, driveways, garages, paths and circulation areas. They also prevent the lighting from remaining switched on unnecessarily.

Before installation, check the detection range, detection angle, switching duration and whether the sensitivity or ambient-light threshold can be adjusted.

Solar garden lighting

Solar lighting combines a panel, battery and LED source to store energy during the day and use it at night. It is suitable for areas where electrical wiring is difficult to install, provided that the solar panel receives sufficient direct sunlight.

Operating time depends on battery capacity, panel power, operating mode and weather conditions. The panel should be installed away from permanent shade and kept clean to maintain its performance.

Safe outdoor electrical installation

Outdoor connections must use components suitable for moisture and weather exposure. Junction boxes, cables, connectors and power supplies should be correctly protected and sized for the installation load.

Work connected to the electrical mains should be completed or inspected by a qualified electrician, particularly near swimming pools, fountains, damp areas and buried installations.

Explore our selection of outdoor and garden LED lighting, wall lights, floodlights, bollards, lamp posts and solar luminaires and create efficient, safe outdoor spaces that can be enjoyed after dark.
