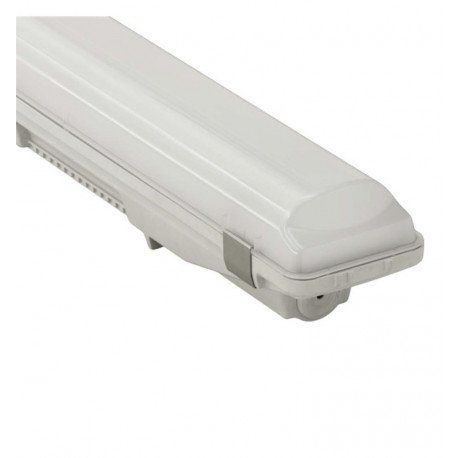

LED Waterproof Batten 120cm Selectable 20-35W IP66

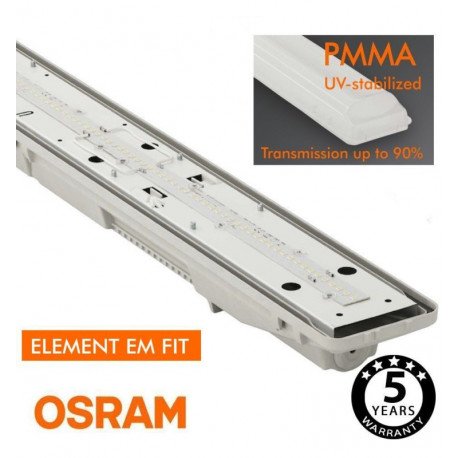

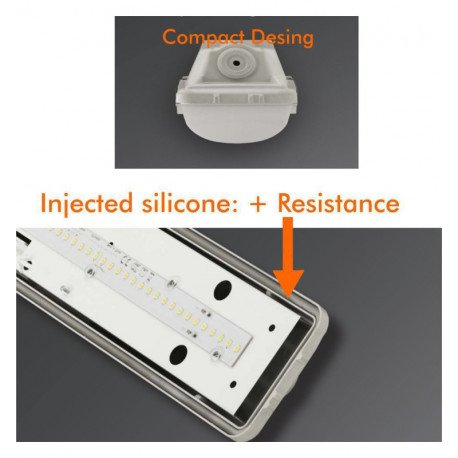

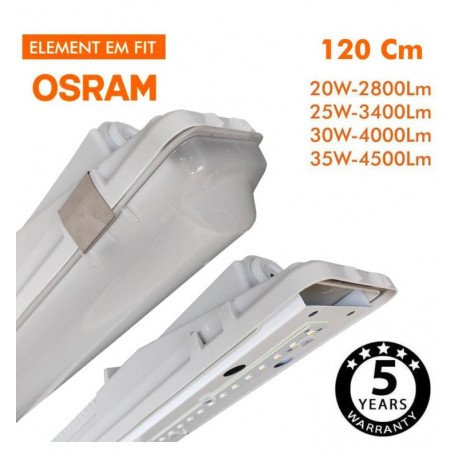

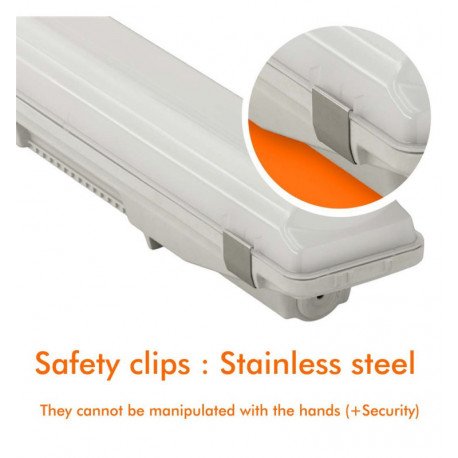

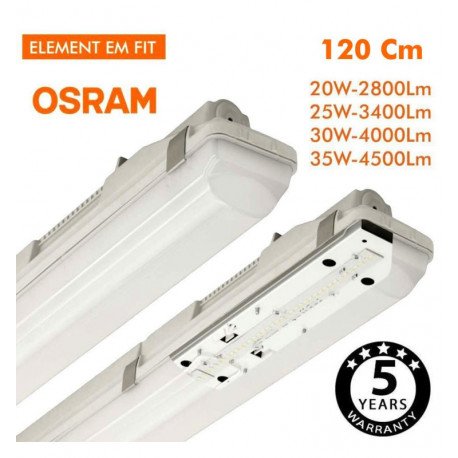

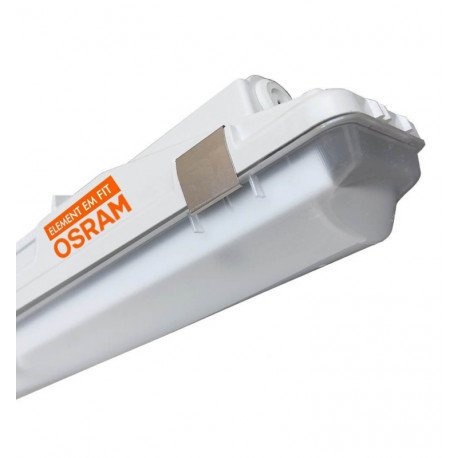

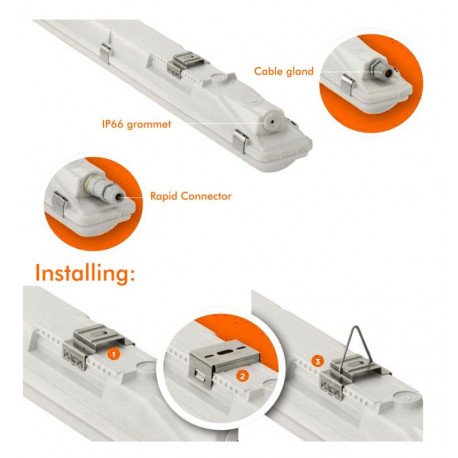

Integrated LED waterproof batten, 120cm, with selectable power settings: 20W, 25W, 30W, and 35W, with OSRAM driver. Its sealed construction, locking system, and diffuser provide high IP66 protection against dust, contamination, and water ingress—ideal for installations in damp and dusty environments. Grey reinforced polyester body (RAL7035).

Durability and Protection

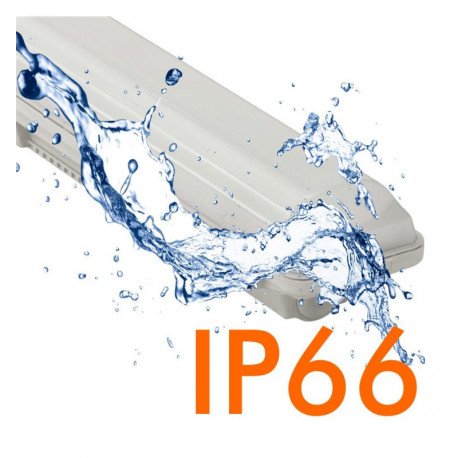

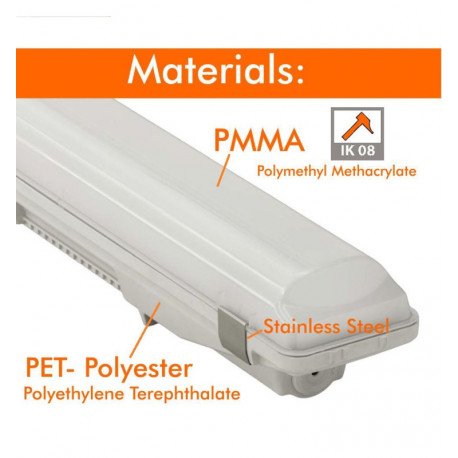

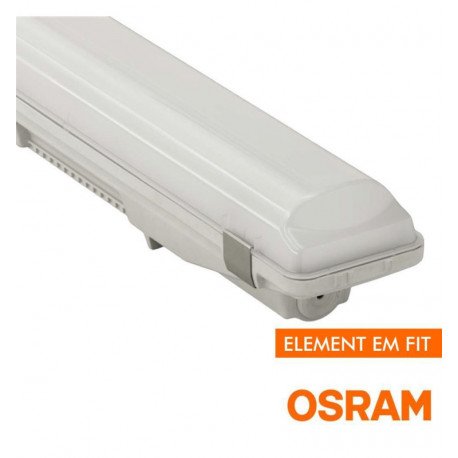

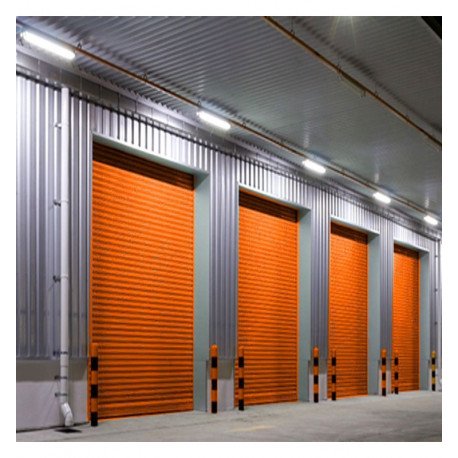

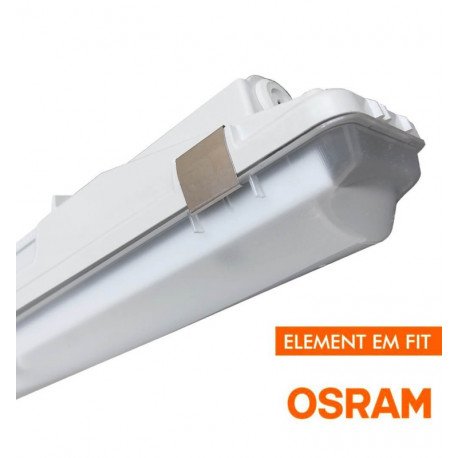

The batten's construction utilizes reinforced grey polyester (RAL7035) and PMMA, providing a robust and corrosion-resistant housing. Its IP66 rating ensures complete protection from dust and powerful water jets, making it well-suited for challenging environments such as industrial or outdoor semi-exposed locations.

Impact resistance is rated IK08, offering good mechanical protection against shocks and accidental impacts, enhancing the fixture's reliability in tough settings.

Optical and Electrical Features

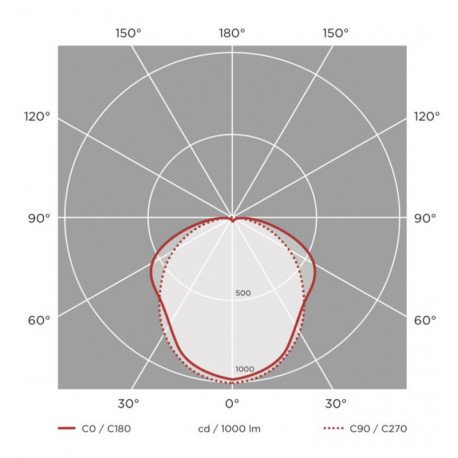

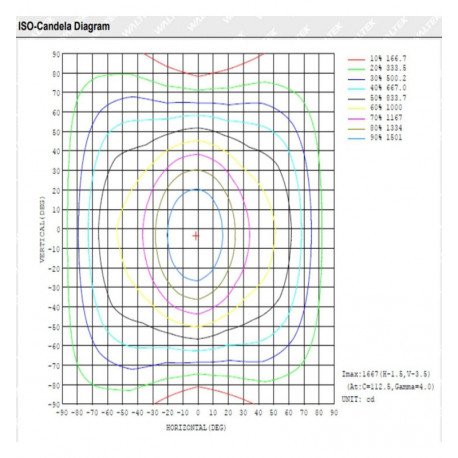

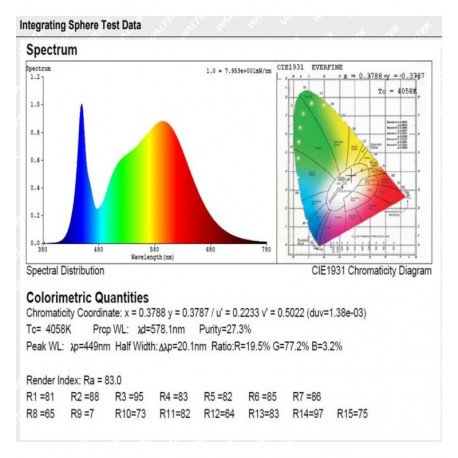

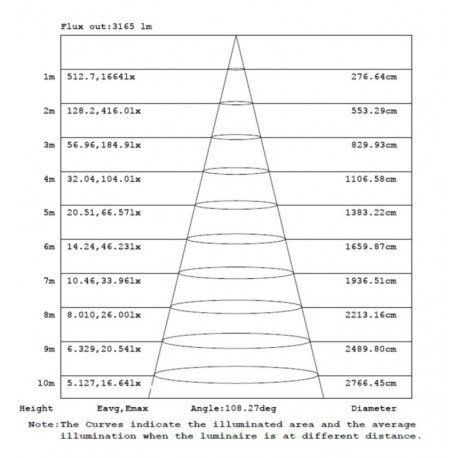

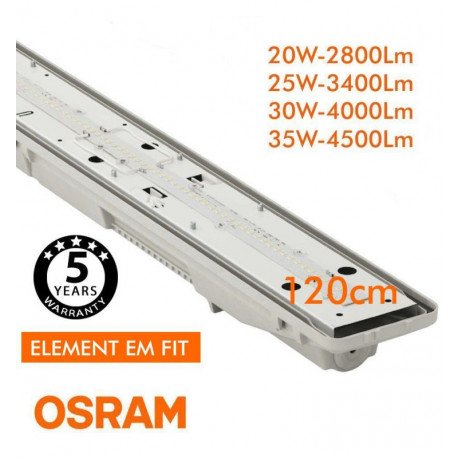

Featuring high-performance SMD 2835 LEDs, the batten delivers consistent light quality with a color rendering index (CRI) greater than 80 and a neutral white color temperature of 4000K. The luminaires have a wide beam angle of 120°, suitable for general lighting applications requiring uniform illumination.

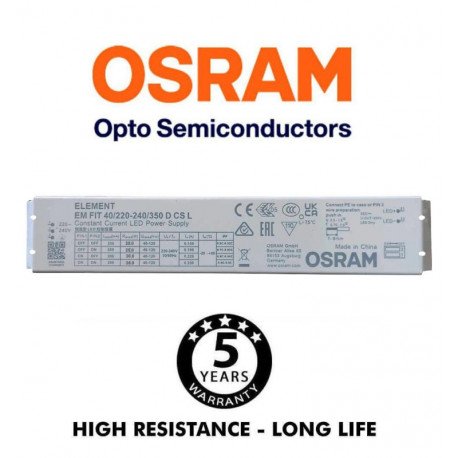

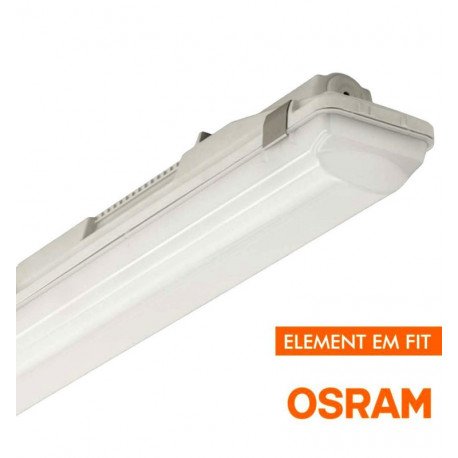

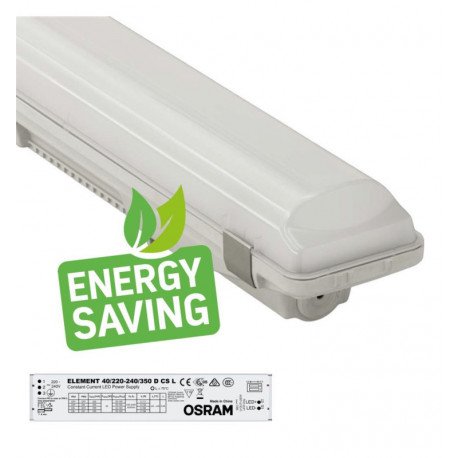

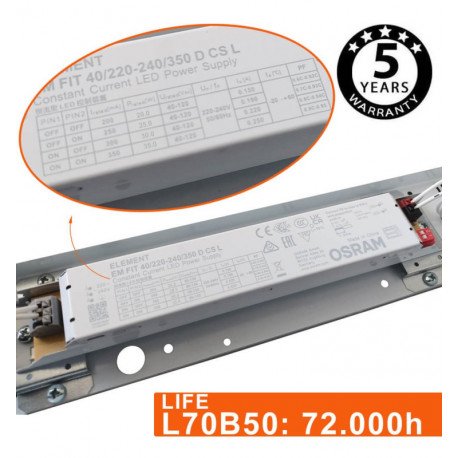

Equipped with a high-quality OSRAM ELEMENT driver, the batten maintains a power factor of 0.93 and supports standard 50/60 Hz mains frequencies. Fast startup time of 0.2 seconds and endurance exceeding 100000 switching cycles provide operational reliability.

Operating Conditions

This LED batten operates efficiently within a temperature range from -20°C up to 55°C, suitable for various indoor and sheltered outdoor environments. The voltage input range adapts to supply variations between 198 and 264 V, ensuring stable performance within typical electrical networks.

Frequently Asked Questions

What makes the batten suitable for dusty and wet environments?

The IP66 rating guarantees protection against dust ingress and powerful water jets, while the sealed construction and locking system prevent contamination and water entry, ensuring durability in harsh conditions.

Can the power settings be adjusted on site?

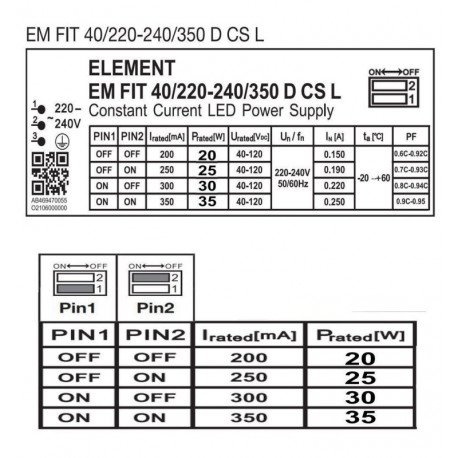

Selectable power settings (20W, 25W, 30W, 35W) allow specifying the desired wattage during installation or ordering, but the fixture does not support dynamic on-site power adjustment.

What kind of maintenance can be expected?

With a long expected lifetime supported by 100000 switching cycles and durable materials, maintenance needs are minimal. Regular cleaning of the diffuser can maintain optimal light output.
