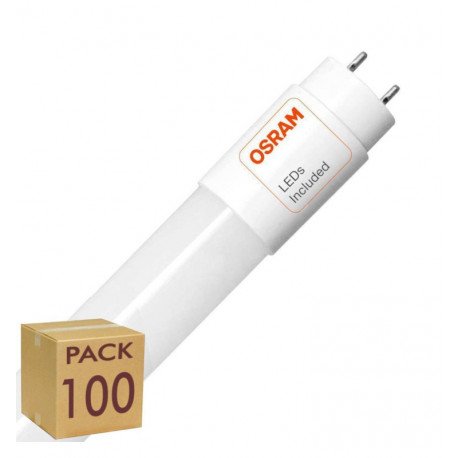

LED Tube 9W 60cm High Brightness (OSRAM Chip)

Certificates CE - ROHS
Construction Material Glass +PC
Dimensions (mm) 600
Rated Power 9W
Beam Angle (º) 300º

New product

9W LED T8 tube, 60cm, high brightness (OSRAM CHIP) for replacing T8 fluorescent tubes. Includes starter/bridge for LED operation.

More details

38 Items

27,82 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP20
Construction Material Glass +PC
Warranty years 3
Dimensions (mm) 600
Rated Power 9W
Rated Voltage 175-265V
CRI - Color Rendering Index +80
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 150Lm/W
Estimated LED Diode Life (H) 25000
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Energy Class (2023 - EU-2019/2015) E
Light Temperature 4000K-6000K
Luminous Flux-Lm 1170 Lm

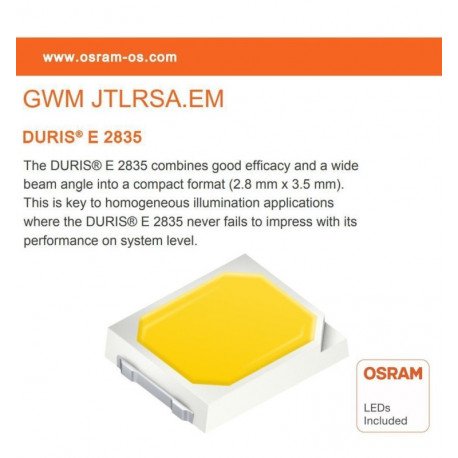

LED Type SMD DURIS E 2835 OSRAM CHIPLED

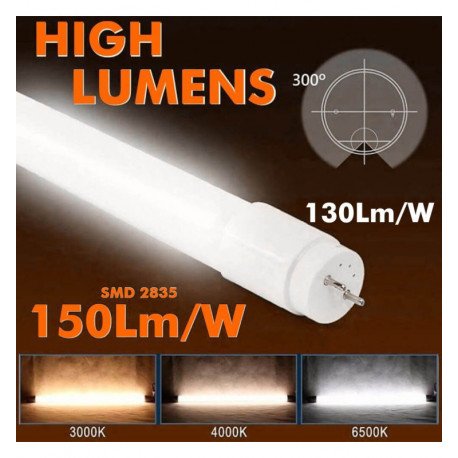

Beam Angle (º) 300º
Luminous Efficacy (Lm/W) 130 Lm/W
Additional Information Connection at one end
Cap T8
Body Color White

More info

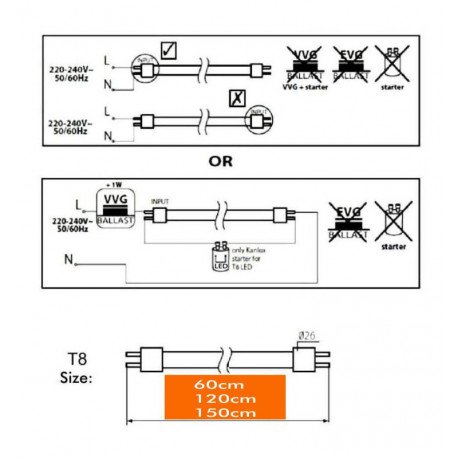

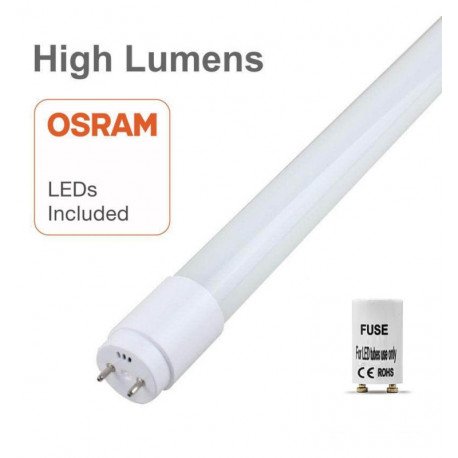

The 9W LED T8 tube (60cm) delivers high brightness and features SMD 2835 diodes with OSRAM CHIP (130 lm/W). It’s an economical solution for replacing T8 fluorescent tubes, with direct mains connection to eliminate remaining power draw from starters and ballasts. Enjoy fast start-up, flicker-free operation, and a longer service life with less maintenance. Includes the bridge for the LED starter and LED igniter. This tube has a single-end connection with printed markings. To optimize energy use, replace the starter and remove the ballast from the older fluorescent tube setup. Includes the “fuse” for changing the starter, with no need to modify the fixture cover.
