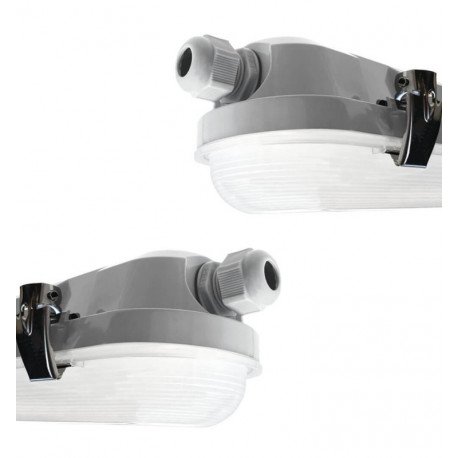

LED High Bay Panel 55W IP66 with Emergency & Radar 150cm 3CCT

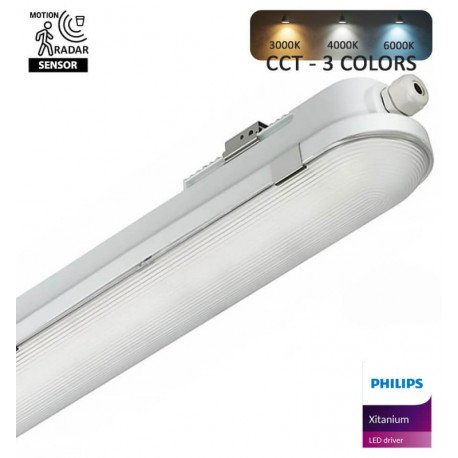

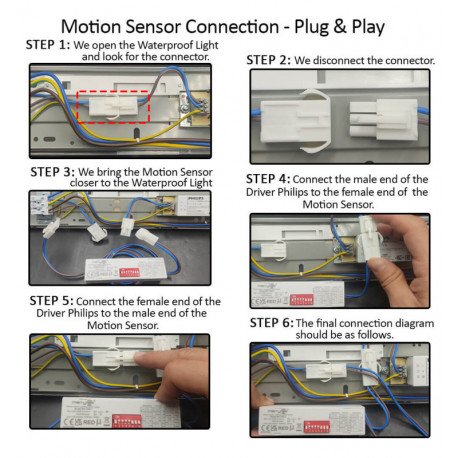

The 150cm COREPLUS EVO LED sealed panel combines efficiency, reliability, and versatility for demanding environments. It includes an integrated emergency light (3W, up to 3 hours of autonomy) and a Plug & Play radar motion sensor for intelligent switching. With 3CCT color temperature selection, you can choose between 3000K, 4000K, or 6000K to match your project needs. It also features a Philips Xitanium driver and IP66 protection, helping deliver uniform, safe lighting even in the event of electrical issues. Selectable power (30W/40W/45W/55W) allows it to adapt to different installations.

Durability and Protection

This high bay panel is engineered for durability, constructed with ABS and Makrolon® 2807 materials, providing strong resistance to impact (IK10) and ingress protection (IP66). These features make it suitable for installation in challenging environments where dust and water exposure are concerns.

Electrical and Operational Features

The luminaire operates efficiently across 50Hz and 60Hz frequencies with a power factor of 0.95. Its fast startup time of 0.2 seconds and rated endurance of up to 100,000 switching cycles make it suitable for environments requiring frequent switching. It performs reliably in temperatures from -20°C to 55°C.

Light Quality and Control

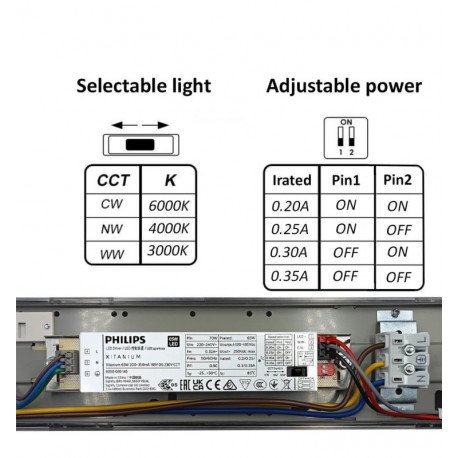

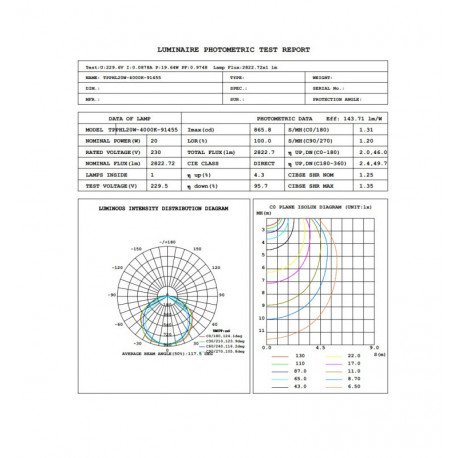

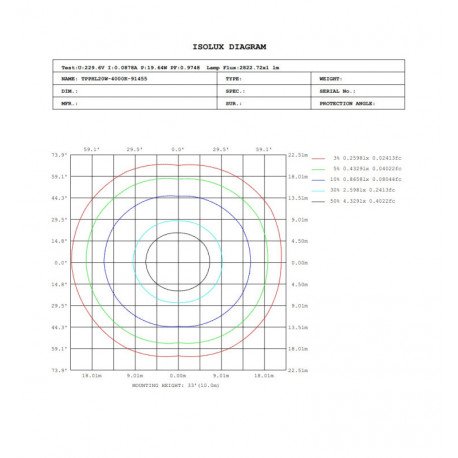

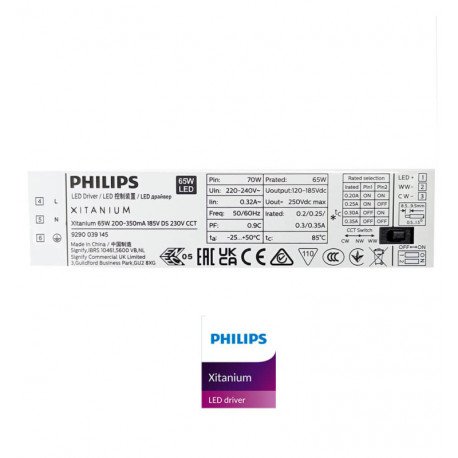

Equipped with SMD 2835 LEDs and a luminous efficacy of 140 lm/W, the panel maintains high light output quality with CRI greater than 80 for good color rendering. The integrated Philips Xitanium non-isolated driver supports seamless switching among three selectable color temperatures: 3000K, 4000K, or 6500K to suit various lighting needs. The beam angle is fixed at 120°, providing wide and uniform illumination.

Optional Add-ons for Enhanced Functionality

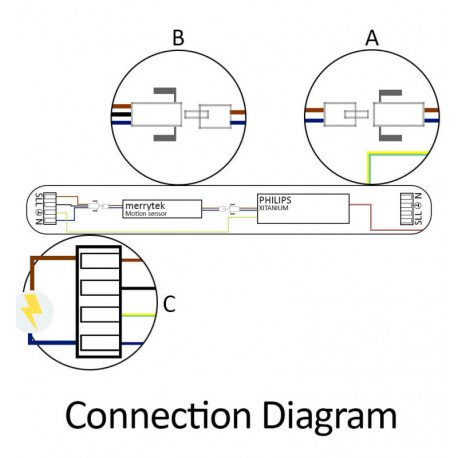

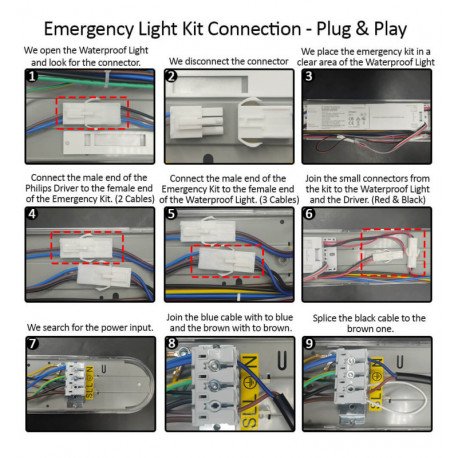

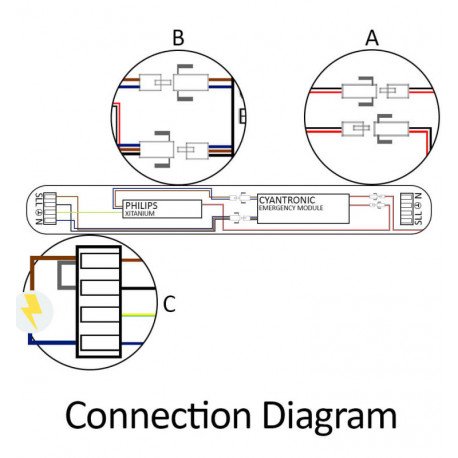

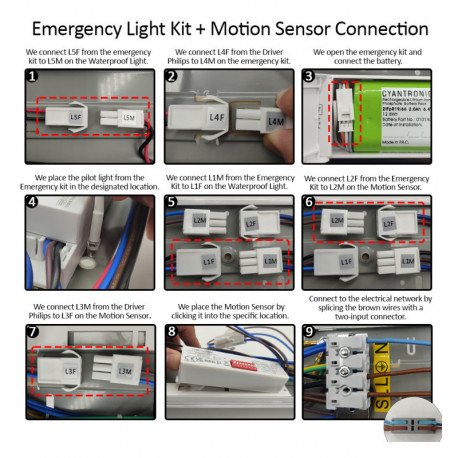

The product can be ordered with optional kits including emergency lighting (3W with up to 3 hours autonomy) and/or a radar motion sensor, offering intelligent control and safety features. These additions enable the luminaire to adapt to specific installation requirements and increase energy efficiency through motion-activated operation.

Frequently Asked Questions

What are the selectable color temperature options?

You can select from 3000K, 4000K, or 6500K color temperatures to best suit your space and application requirements.

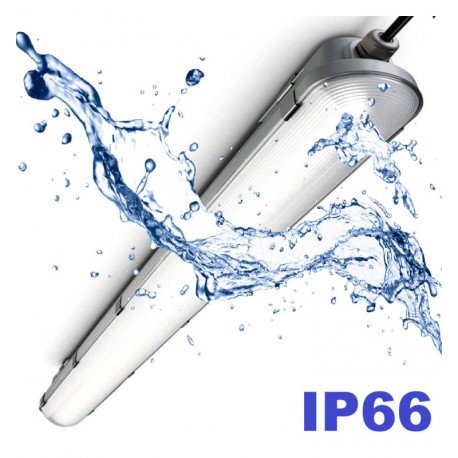

What does the IP66 rating imply for this panel?

IP66 means the panel is dust-tight and protected against powerful water jets, making it suitable for harsh and wet environments.

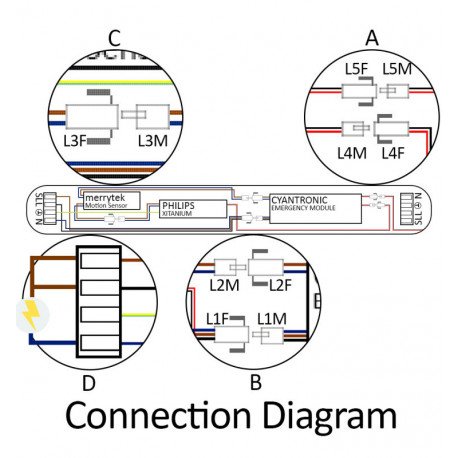

Can the emergency and radar sensor kits be used together?

Yes, there is an option to order the panel equipped with both the emergency kit and radar motion sensor for combined functionality.

What is the expected lifetime in terms of switching cycles?

The luminaire is designed for up to 100,000 switching cycles, ensuring durability in applications requiring frequent on/off use.
