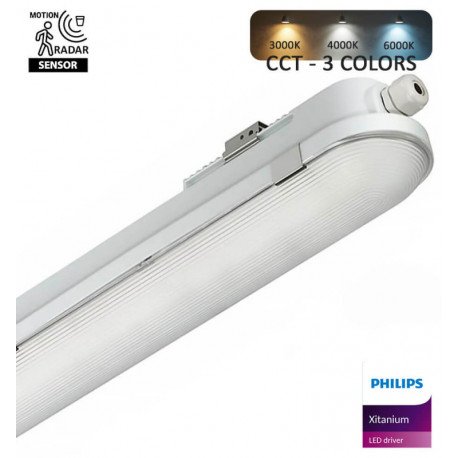

LED High Bay Panel 40W IP66 120cm 3CCT Emergency Radar

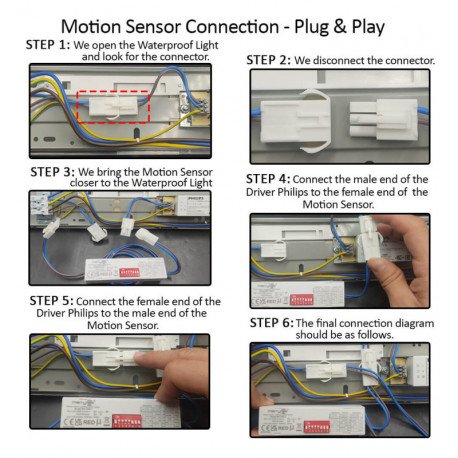

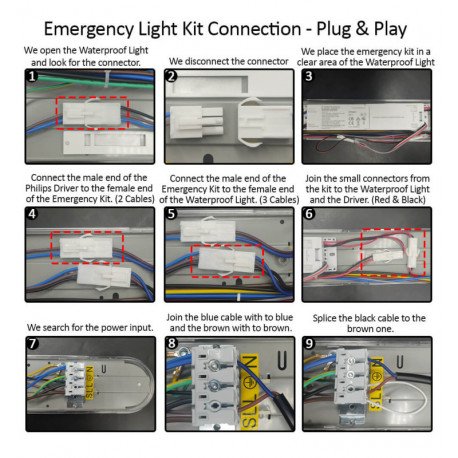

The 120cm COREPLUS EVO LED sealed panel combines efficiency, reliability, and versatility for demanding installations. It features an integrated emergency light (3W, up to 3 hours of autonomy) and a Plug & Play radar motion sensor for smart switching. Power is selectable (25W / 30W / 35W / 40W) and it offers 3 color temperatures (3CCT: 3000K/4000K/6000K) to match each project. Includes a Philips Xitanium driver and IP66 protection, ensuring safe operation in damp or outdoor environments. The COREPLUS EVO range lets you choose the right version: with emergency kit, with radar sensor, or with both functions.

Durability and Environmental Adaptability

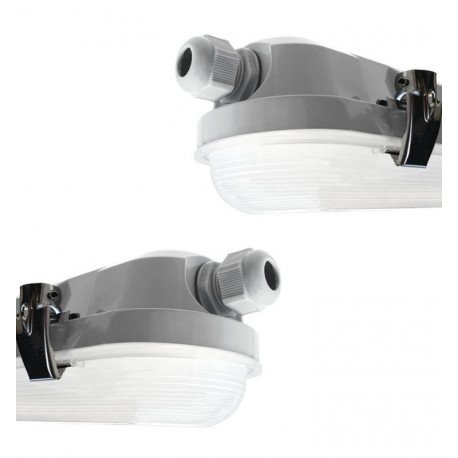

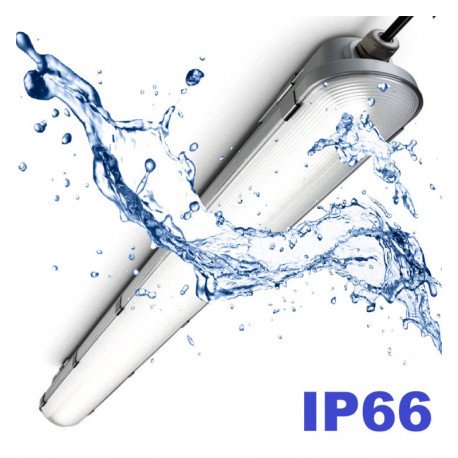

Constructed from ABS and Makrolon® 2807 materials, the panel ensures durability and resistance to impact, validated by its IK10 certification. Its IP66 rating provides protection against dust and powerful water jets, making it ideal for industrial and outdoor applications.

The operating temperature range from -20°C to 55°C allows reliable performance in diverse climates and harsh conditions.

Lighting Performance and Efficiency

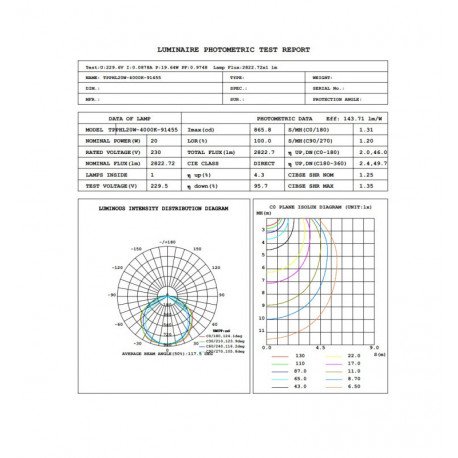

Equipped with SMD 2835 LEDs, the panel achieves high efficiency rated at 140 lm/W (luminaire efficacy declared). Its color rendering index (CRI) is greater than 80, promising good color fidelity for work environments.

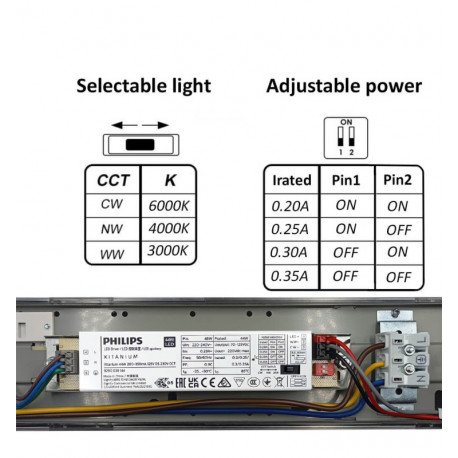

The luminous output can be tailored with selectable color temperatures: warm white (3000K), neutral white (4000K), and cool white (6500K), supporting different atmospheres and tasks.

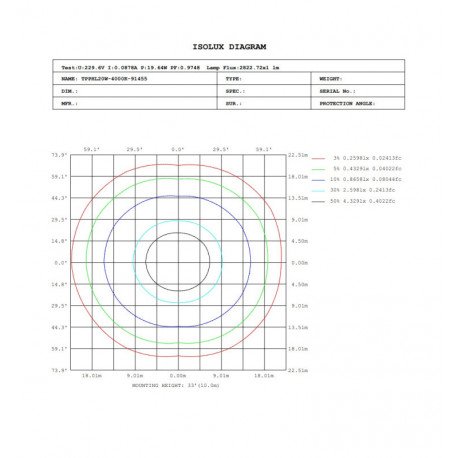

A wide 120° beam angle provides broad illumination suitable for high-ceiling areas.

Smart Features and Usability

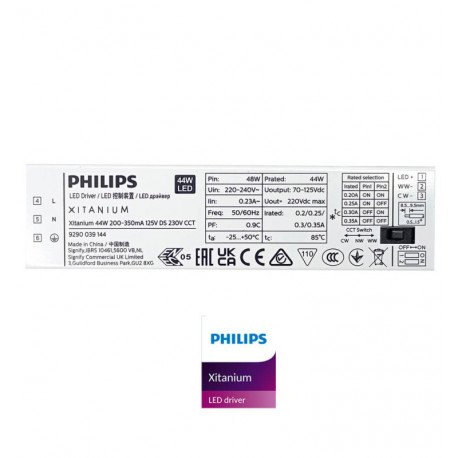

The built-in Philips Xitanium non-isolated driver supports smooth and reliable operation, while the rapid 0.2-second startup time minimizes delays upon switching on.

With a power factor of 0.95, the panel ensures efficient energy use and minimal power distortion.

Switching durability is assured with a rating of 100,000 cycles, indicating long service life under frequent use.

Frequently Asked Questions

Can the color temperature be changed after installation?

Yes, the panel supports selectable 3CCT (3000K, 4000K, 6500K), which can be chosen to suit your project needs before installation.

Is the panel suitable for wet or outdoor locations?

Yes, it features IP66 protection, making it resistant to dust and strong water jets, suitable for damp or outdoor environments.

What are the available options for emergency lighting and motion detection?

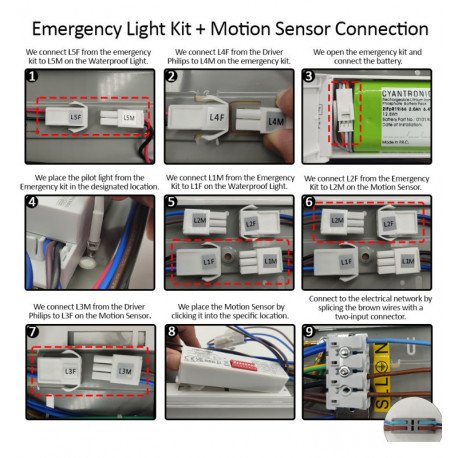

You can select configurations including an emergency kit, a radar motion sensor, or both combined to enhance safety and energy management.
