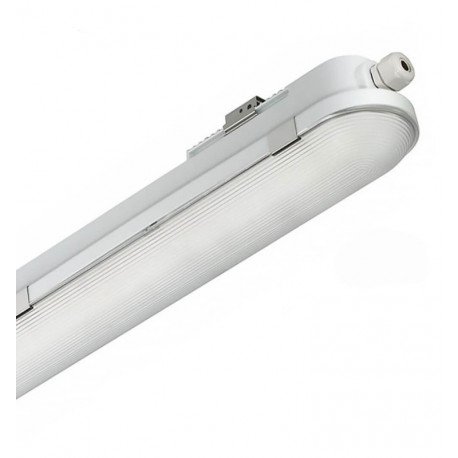

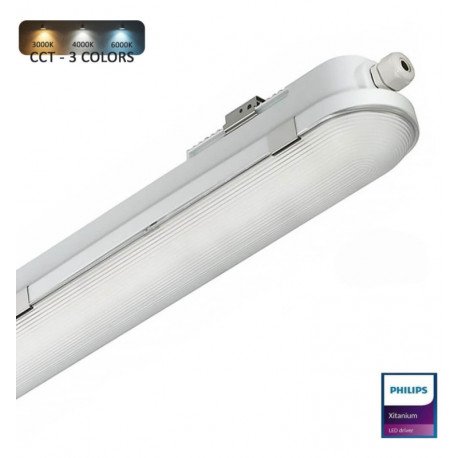

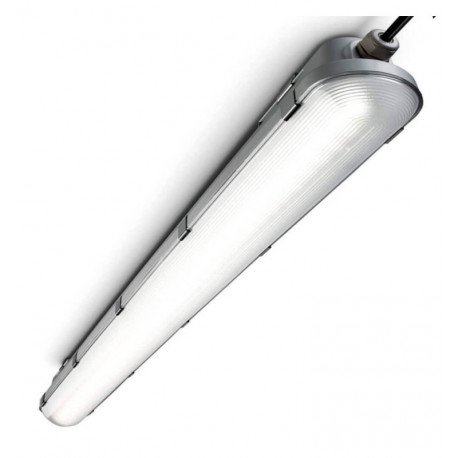

LED Waterproof Panel 20W 60cm 3CCT IP66 COREPLUS EVO

The COREPLUS EVO 60 cm LED waterproof panel combines power and versatility for professional environments. It features a Philips Xitanium driver and LED SMD2835 technology with high efficiency (140 lm/W) and a power factor above 0.9 (FP > 0.9). Choose your color temperature with 3CCT (3000K / 4000K / 6000K) and select the power level (12W / 15W / 18W / 20W). Built for long-lasting performance, it offers IP66 and IK10 protection—ideal for installations that require durability and stable output.

Durable and Weatherproof Design

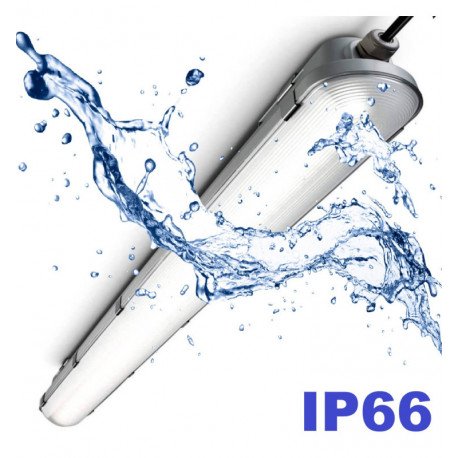

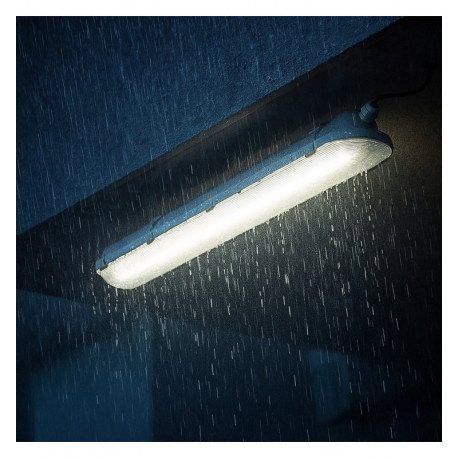

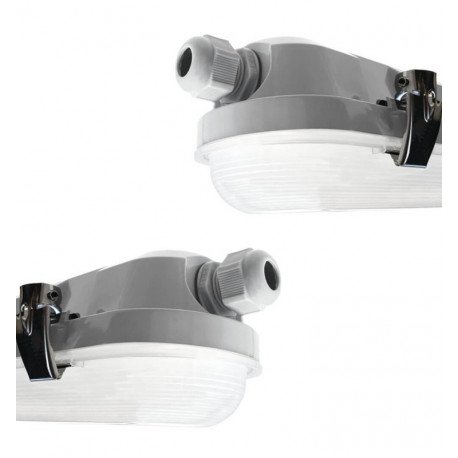

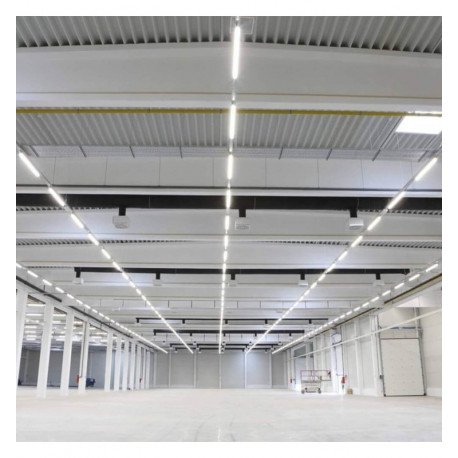

Constructed from ABS and Makrolon® 2807, the panel is built to withstand harsh environments, including exposure to dust and water jets, as ensured by its IP66 rating. Its IK10 impact resistance protects against strong mechanical shocks, making it suitable for industrial and outdoor applications where durability is essential.

High Performance LED Technology

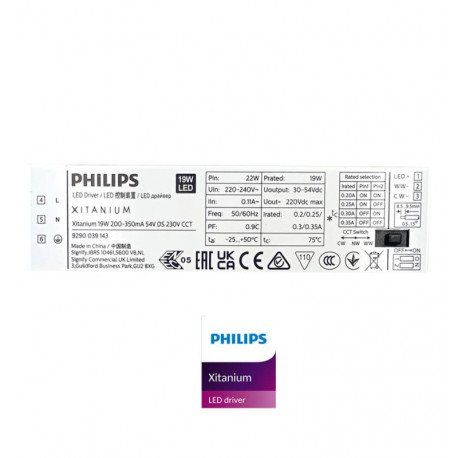

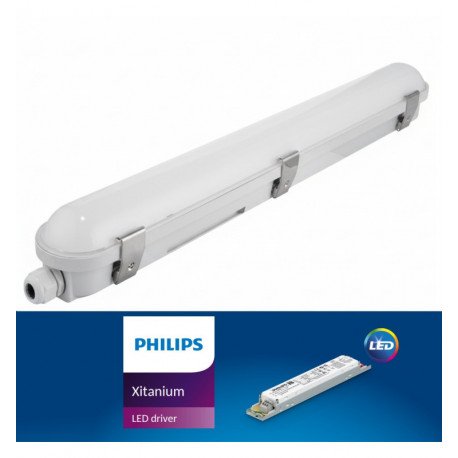

Equipped with SMD 2835 LEDs and powered by a reliable Philips Xitanium Non Isolated driver, the panel offers excellent luminous efficacy of 140 lm/W, providing bright and energy-efficient illumination. The power factor of 0.95 supports efficient power use and reduces energy loss.

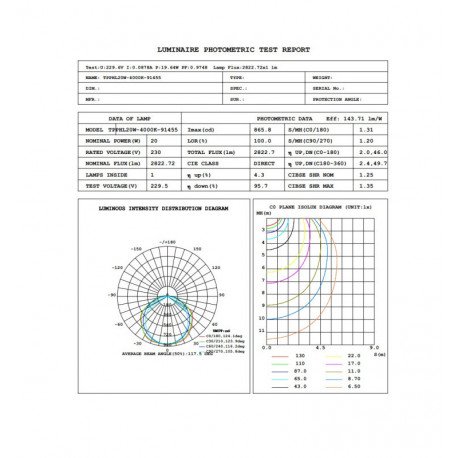

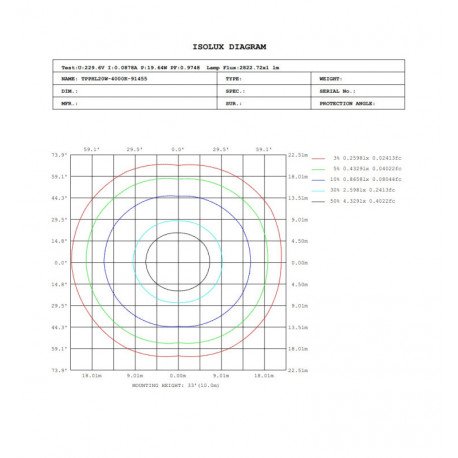

The fixture features a 120° beam angle which ensures wide and uniform light distribution suitable for general lighting needs in varied settings.

Customizable Lighting Experience

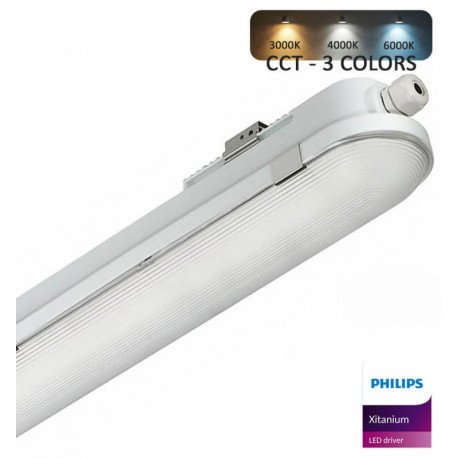

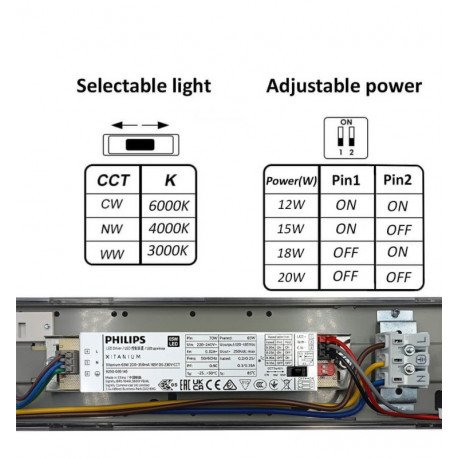

This model includes a 3CCT switch allowing users to select among three correlated color temperatures – 3000K (warm white), 4000K (neutral white), and 6500K (cool white) – enabling flexible adaptation to different atmospheres and tasks. Its rapid startup time of 0.2 seconds offers instant full brightness when turned on, enhancing user convenience.

Reliability and Longevity

Designed to operate reliably in temperatures ranging from -20°C to 55°C, the panel supports diverse climate conditions. It is rated for 100000 switching cycles, which indicates sustained performance through frequent on/off use, minimizing maintenance needs.

Frequently Asked Questions

Can I choose the color temperature after installation?

Yes, the panel features a 3CCT switch that allows you to select between 3000K, 4000K, and 6500K color temperatures either before or during installation.

What type of protection does the panel offer?

The LED panel is rated IP66 for dust and water protection and IK10 for impact resistance, making it suitable for outdoor and industrial environments.

Is the panel suitable for cold climates?

Yes, the operating temperature range is from -20°C to 55°C, allowing use in cold environments within this range.

What is the expected lifetime for switching cycles?

The panel is rated for 100000 switching cycles, supporting frequent on/off operation without compromising performance.
