LED Integrated Square Connector 2W for ARTISTIC LED Batten
Certificates
CE - ROHS
Construction Material
Aluminum +PC
Dimensions (mm)
70x70x40mm
Rated Power
2W
Beam Angle (º)
120°
New product

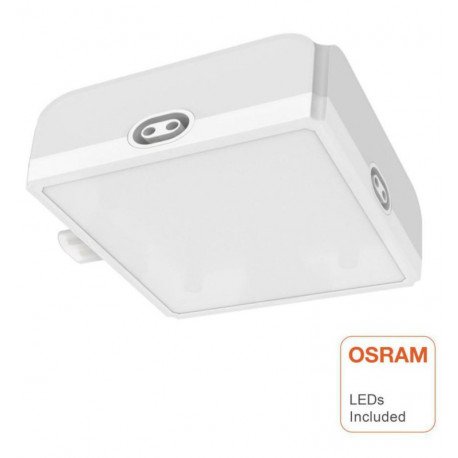

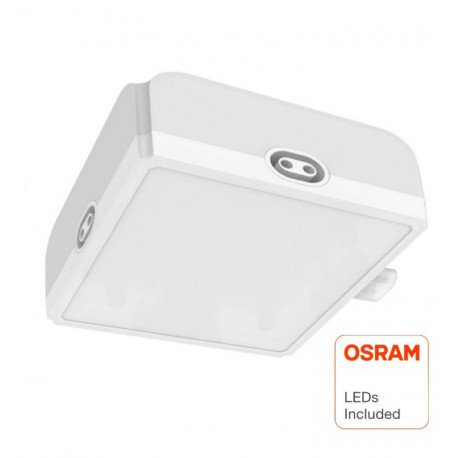

The LED Integrated Square Connector 2W for ARTISTIC LED Batten features a compact 70x70x40mm aluminum and PC body, designed to seamlessly link linear battens with even illumination. It uses SMD 2835 OSRAM chips, offers cold or neutral white CCT options (4000K, 6000K), and delivers an estimated 260 lm output with high efficacy (130 lm/W).
1454 Items
More info

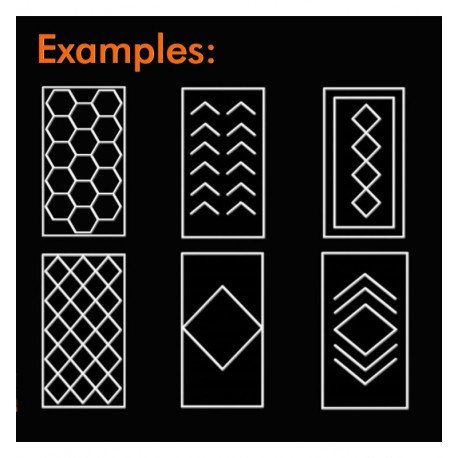

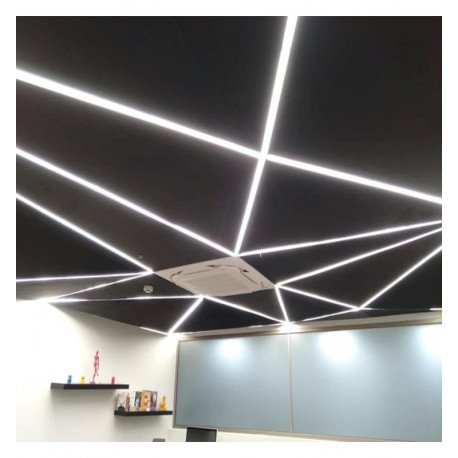

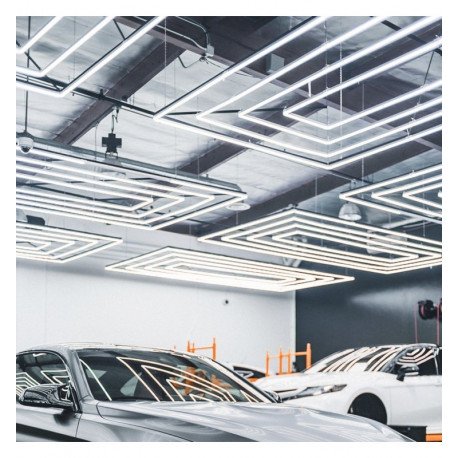

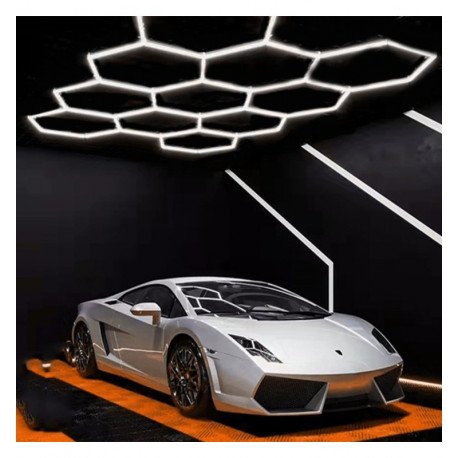

The 2W square integrated LED connector with OSRAM chip is designed for ARTISTIC linear battens. Its square format lets you link up to four battens in a continuous run, creating a distinctive, customizable ceiling lighting setup. It includes the installation accessories needed to make mounting and interconnection easier. With its integrated design, the connection between battens is unified for a clean look and even illumination across the full layout.
Technical Features and Performance

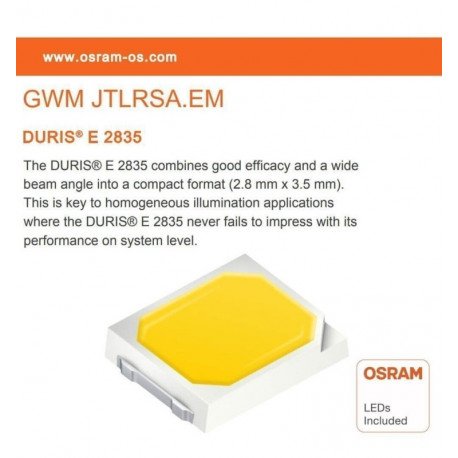

This connector operates efficiently at 2W power with a power factor of 0.97 and supports a voltage range of 220-240V at 50/60Hz frequencies. It employs high-quality OSRAM SMD 2835 LED chips, ensuring a color rendering index (CRI) greater than 80 for good color fidelity. The device delivers an estimated luminous flux of 260 lm, based on a constant efficacy assumption of 130 lm/W.
It supports two color temperature options, cold white (6000K) and neutral white (4000K), enabling adaptable lighting moods. The beam angle is fixed at 120°, providing wide illumination suitable for continuous batten arrangements.
Durability and Operational Parameters
The connector features durable construction with an aluminum and polycarbonate (PC) enclosure, rated at IP20 ingress protection, suitable for indoor environments. It has an operating temperature range from -20°C up to 55°C, ensuring reliable performance in typical indoor conditions.
Designed for extensive usage, the product supports up to 100,000 switching cycles. Its quick startup time of 0.2 seconds provides immediate illumination without noticeable delay.
Frequently Asked Questions
What are the available color temperature options for this connector?
The connector is available in two color temperature options: Cold White (6000K) and Neutral White (4000K).
Can this connector be used outdoors or in damp environments?
No, with an IP20 rating, it is designed for indoor use and does not provide protection against water or significant dust ingress.
How many linear battens can be connected with this product?
Its square design allows linking up to four ARTISTIC LED battens in a continuous and customizable ceiling lighting layout.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP20
Construction Material
Aluminum +PC
Warranty years
3
Dimensions (mm)
70x70x40mm
Rated Power
2W
Rated Voltage
220-240v
CRI - Color Rendering Index
+80
Energy Class (2021-EU-2019/2015)
A+
LED Diode Efficacy (Lm/W)
150Lm/W
Estimated LED Diode Life (H)
40.000
Power Factor (PF)
0.97
Operating Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
Switching Cycles
100.000
Start-Up Time (s)
0,2s
Energy Class (2023 - EU-2019/2015)
E
Light Temperature
4000K-6000K
Luminous Flux-Lm
200
LED Type
SMD 2835 OSRAM CHIP
Beam Angle (º)
120°
Luminous Efficacy (Lm/W)
130Lm/W
