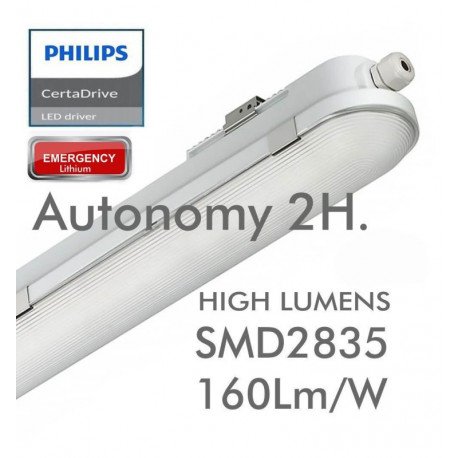

LED Emergency Batten IP-rated 40W CCT 120cm Philips Driver

Durability and Protection

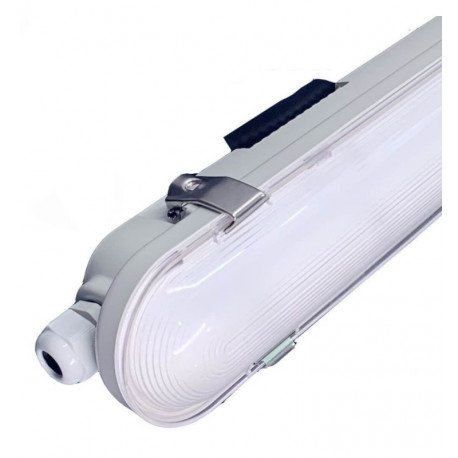

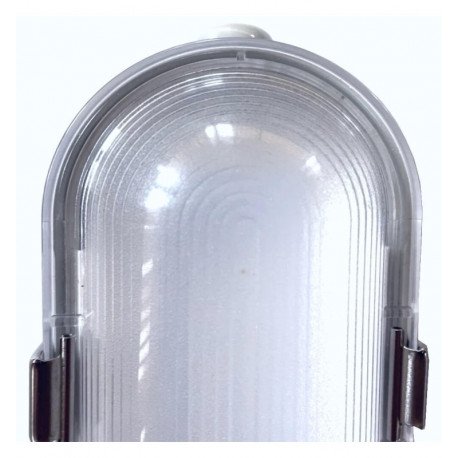

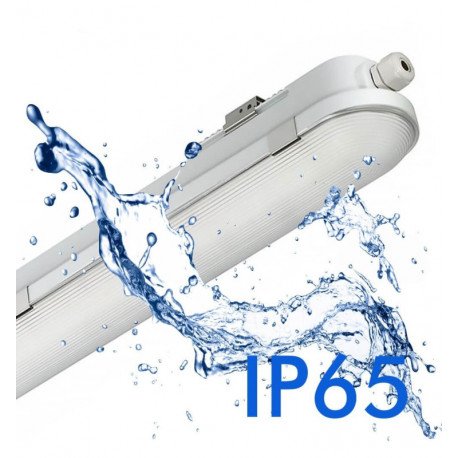

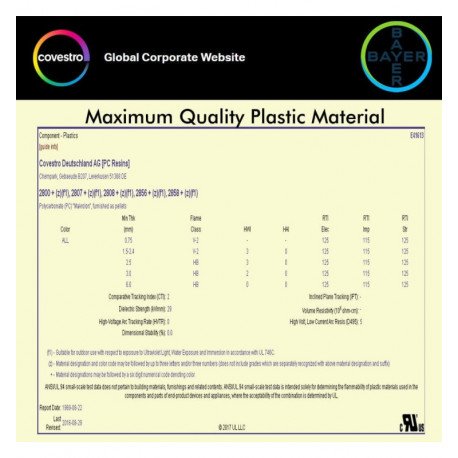

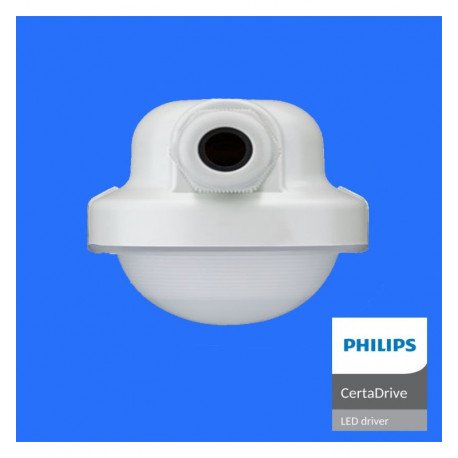

This emergency batten is designed for demanding environments, protected by an IP65 ingress rating ensuring resistance to dust and water splashes, making it suitable for exterior use. The housing combines ABS and Makrolon® 2807 polycarbonate, providing mechanical strength and impact resistance with an IK08 rating, safeguarding the luminaire from accidental impacts.

Electrical and Performance Features

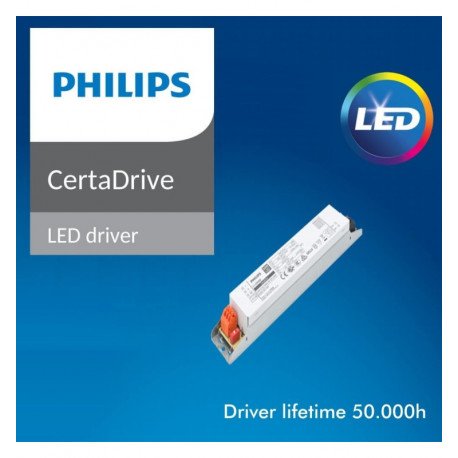

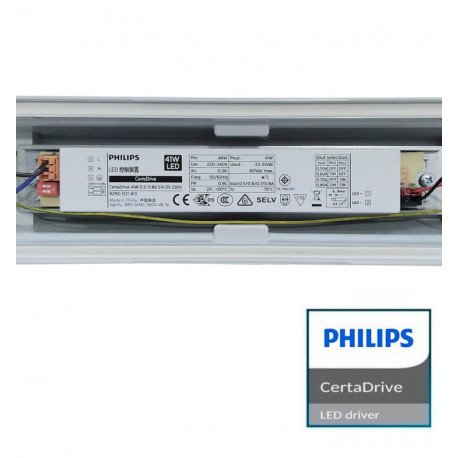

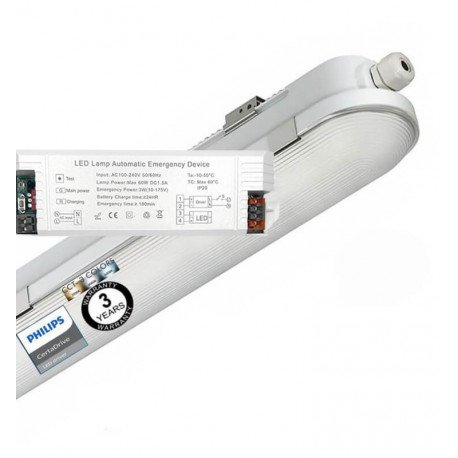

Operating with a wide voltage range of 170–265 V and supporting 50/60 Hz frequency, this luminaire offers flexibility for different electrical systems. The included CertaDrive Linear Isolated LED driver ensures stable operation with a power factor of 0.95. It supports up to 100,000 switching cycles with a quick startup time of 0.2 seconds, ensuring reliable emergency readiness.

Optical and Light Quality Characteristics

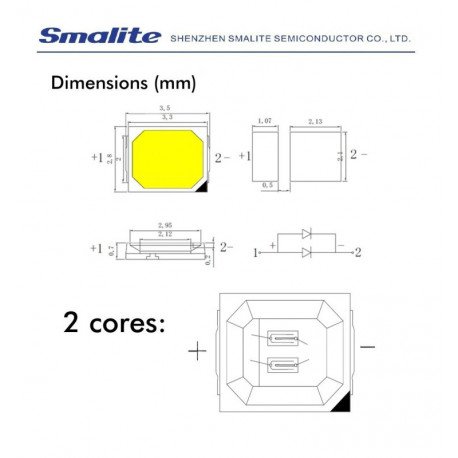

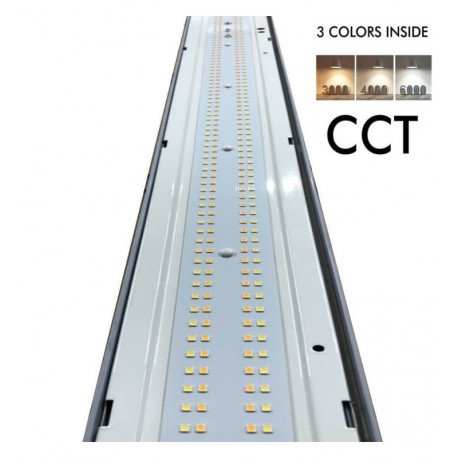

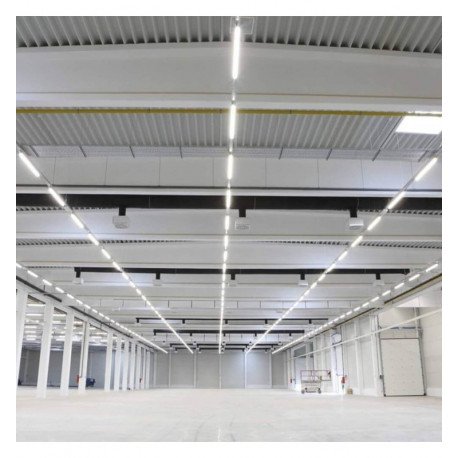

Equipped with SMD 2835 LEDs, the batten provides an estimated luminous flux of 5600 lm at 40 W power consumption, achieving a luminaire efficacy of 140 lm/W. The beam angle of 150° offers broad illumination, ideal for general lighting. The color rendering index (CRI) is 82, delivering good color accuracy suitable for various settings.

Frequently Asked Questions

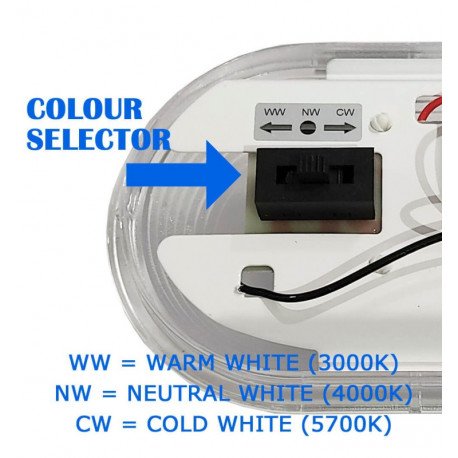

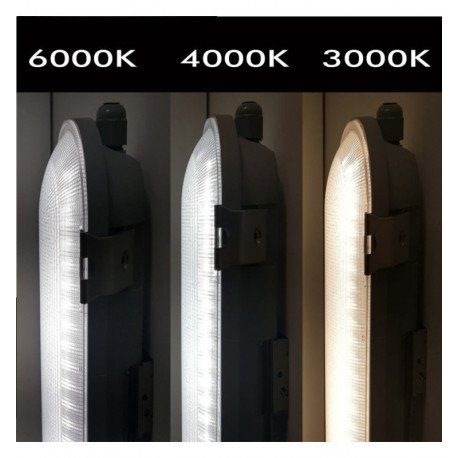

What color temperature options are available for this emergency batten?

It features triple CCT selection with options of 3000K, 4000K, and 6000K, allowing adaptation to different lighting needs.

Is this batten suitable for outdoor installations?

Yes, its IP65 rating and robust ABS plus Makrolon® construction make it suitable for exterior environments where moisture and dust resistance are required.

How long can this batten operate in emergency mode?

The provided data does not specify emergency operation duration; please consult technical support for detailed emergency runtime information.

Can this product handle frequent switching cycles?

Yes, it supports up to 100,000 switching cycles, ensuring durability in demanding operation scenarios.
