LED-00413

Certificates CE - ROHS

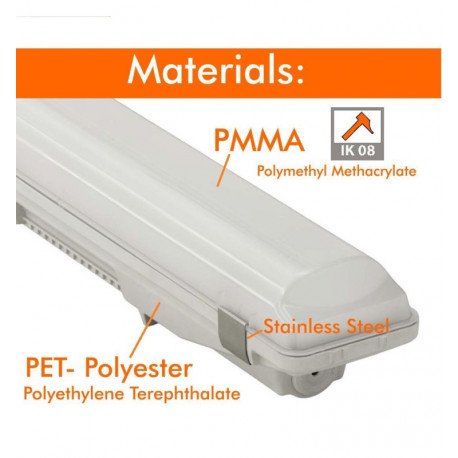

Construction Material PET -Polyester + PMMA - Anti UV

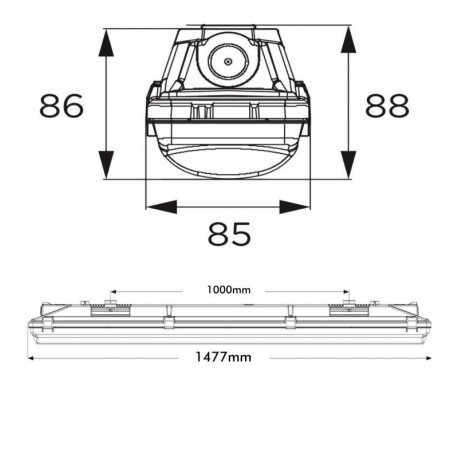

Dimensions (mm) 1477x85x88 mm
Rated Power 25W-32W-38W-44W
Beam Angle (º) 120º

New product

Integrated LED waterproof batten with PIR motion sensor and OSRAM driver. Selectable power 25W-44W, 150cm, IP66.

More details

This product is no longer in stock

90,99 € tax incl.

Métodos de pago

Data sheet

Certificates CE - ROHS
IP Rating IP66
Construction Material PET -Polyester + PMMA - Anti UV
Warranty years 5
Dimensions (mm) 1477x85x88 mm
Rated Power 25W-32W-38W-44W
Rated Voltage 198-264V

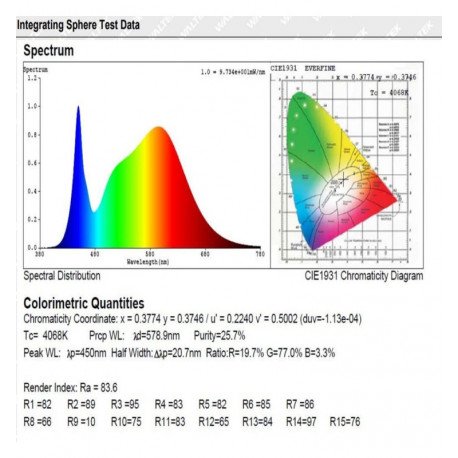

CRI - Color Rendering Index +80
Energy Class (2021-EU-2019/2015) A++
LED Diode Efficacy (Lm/W) 160 Lm/w
Estimated LED Diode Life (H) 72.000h
Power Factor (PF) 0.93
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Switching Cycles 100.000
Start-Up Time (s) 0,2s
Impact Protection (IK) IK08
Energy Class (2023 - EU-2019/2015) D
Light Temperature 4000K

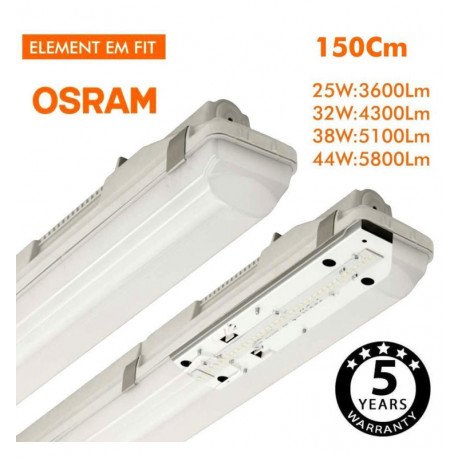

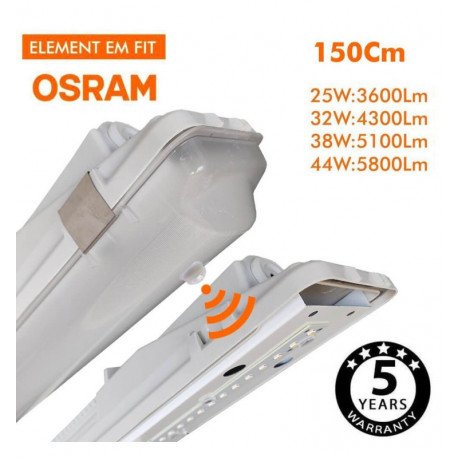

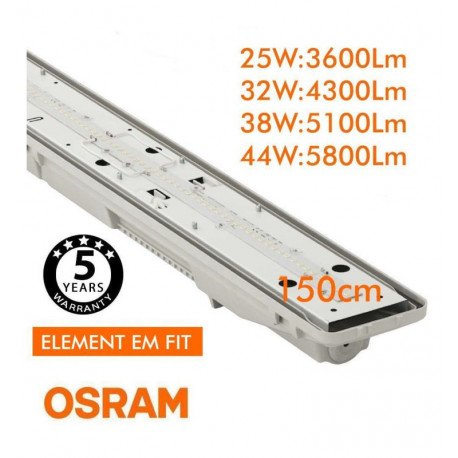

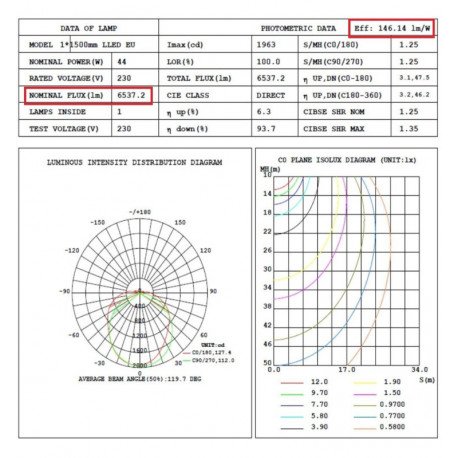

Luminous Flux-Lm 25W:3600Lm-32W:4300Lm -38W:5100Lm-44W:5800Lm
LED Type SMD 2835

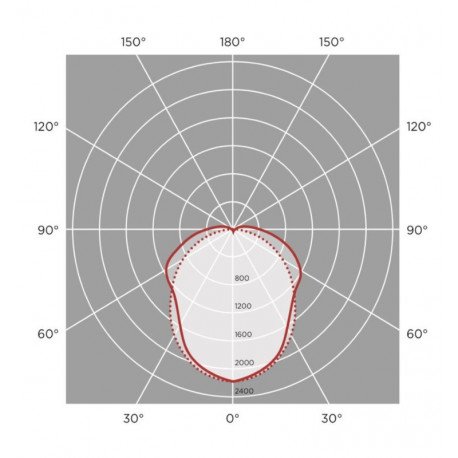

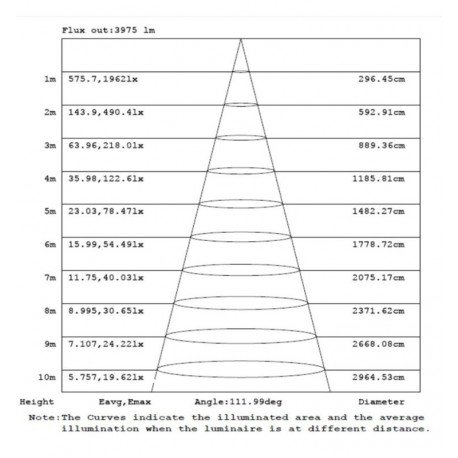

Beam Angle (º) 120º
Luminous Efficacy (Lm/W) 146Lm/W
Additional Information L70B50: 72.000h - L80B10: 50.000h -L90B10: 25000h

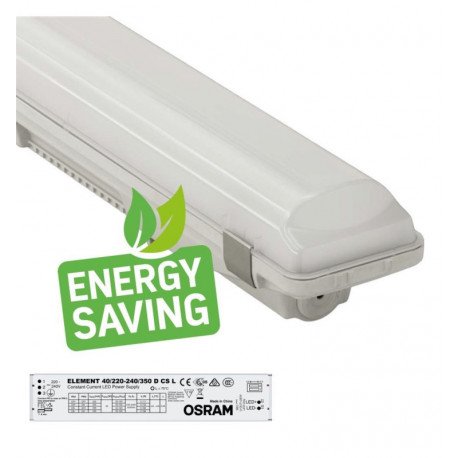

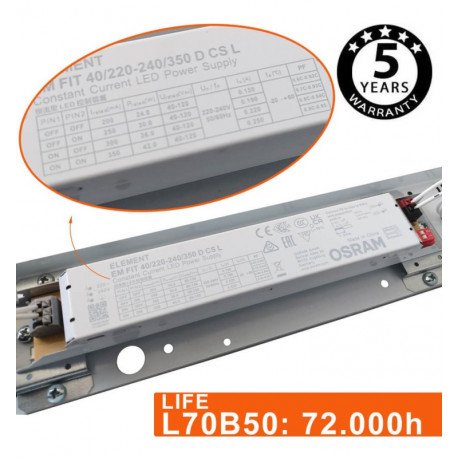

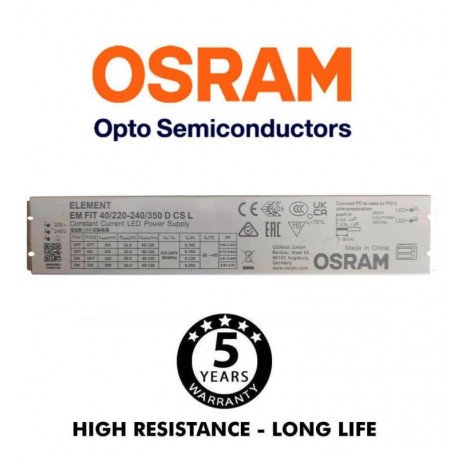

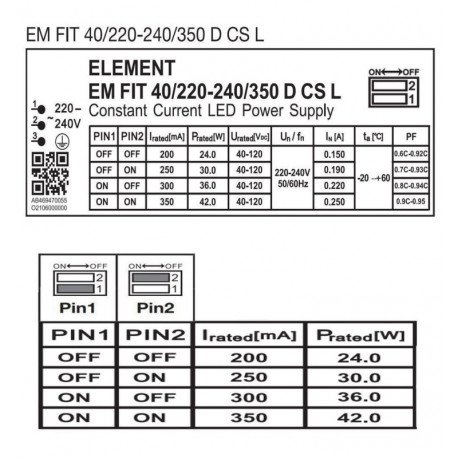

Driver Included OSRAM ELEMENT 40/220-40/350 D CS L

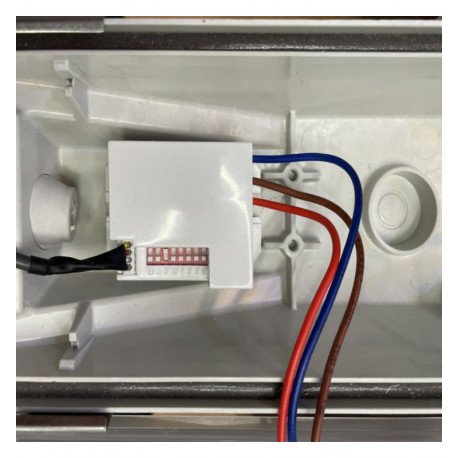

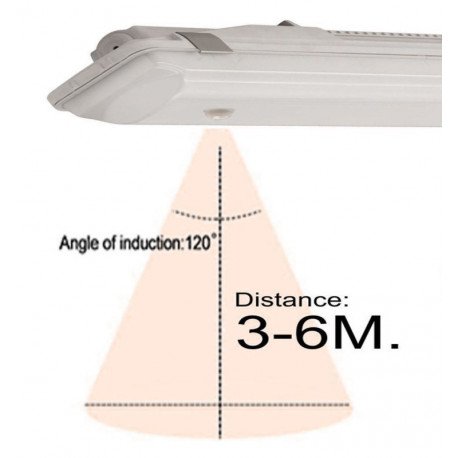

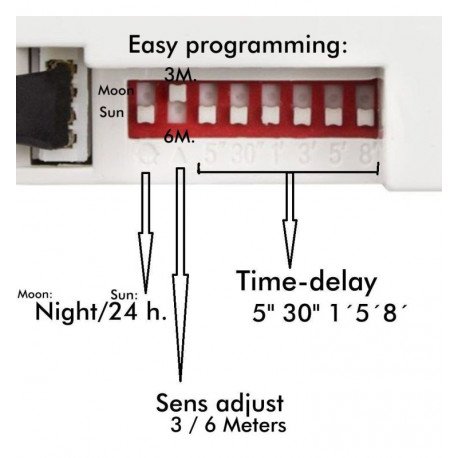

Control Modes PIR: Time: 5"-30"-1min -3 min- 5min-8 min. Ambient Light: 10 LUX/2000LUX

More info

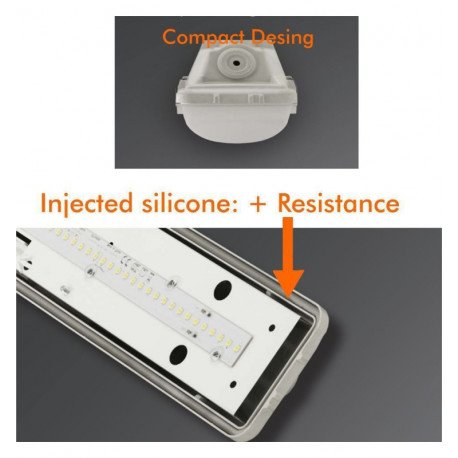

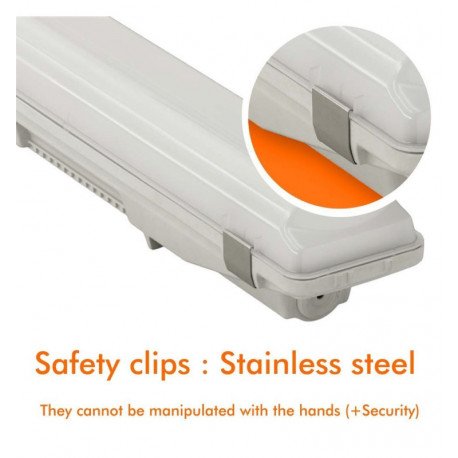

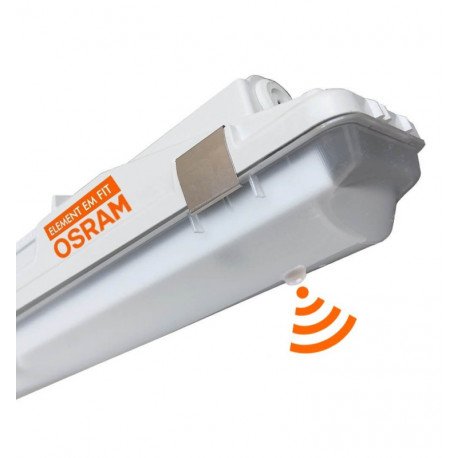

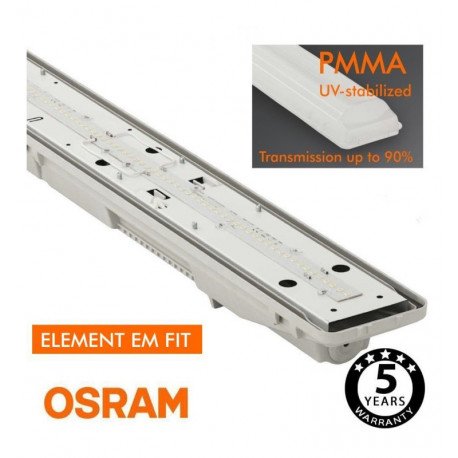

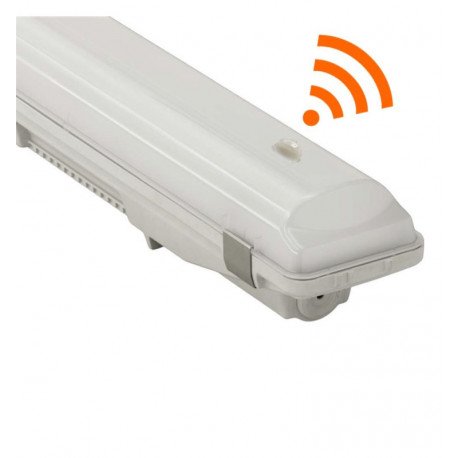

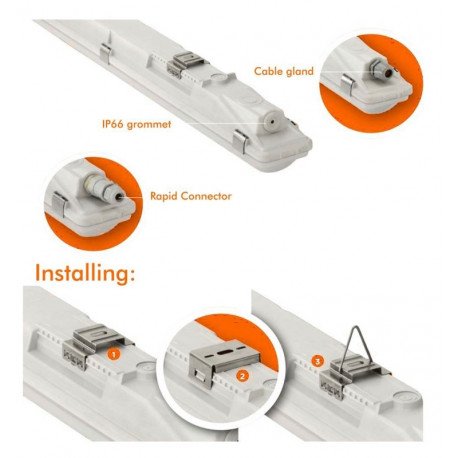

Integrated LED waterproof batten with PIR motion sensor and OSRAM driver, with selectable power settings: 25W, 32W, 38W and 44W. At 150cm in length, its sealed IP66 design makes it suitable for installations in dusty and damp environments, thanks to its gasket construction, locking system and diffuser. Housing in reinforced polyester, light grey (RAL7035).
