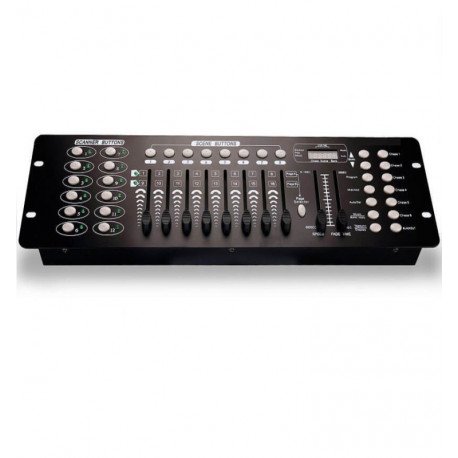

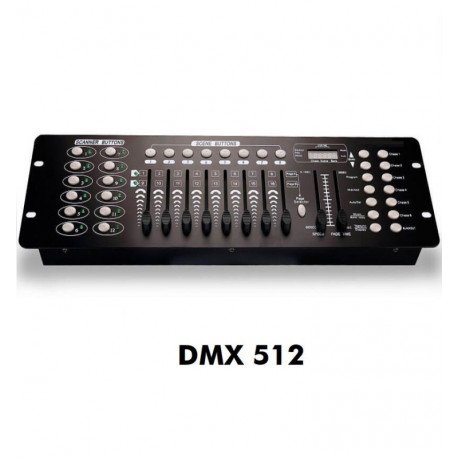

LED DMX512 Controller 192 Channels with 8 Scenes

LED-00082

Certificates CE - ROHS
Construction Material Aluminum +PC
Dimensions (mm) 485 x 135mm x H40mm
Rated Power 4W

New product

The LED DMX512 Controller offers 192 channels and supports 8 programmable scenes for versatile lighting control. Constructed from aluminum and PC, it operates with a nominal power of 4 W, supports 50/60 Hz frequency, and functions reliably between -20°C and 55°C, with IP20 protection for indoor use.

Order now and receive it The day after tomorrow

This product is no longer in stock

132,71 € tax incl.

Métodos de pago

More info

Discover the convenience of this DMX512 lighting controller. With 192 DMX channels and 8 programmable scenes, you can create impressive lighting effects with ease. It also allows you to store up to 240 scenes and control speed with precision. The digital LED display makes configuration simple, so you can keep full control of your lighting without complications.

Durable and Practical Design

This controller is built with an aluminum and PC (polycarbonate) construction, providing a robust yet lightweight design. Its IP20 rating means it is suitable for indoor environments where protection against solid objects is required but no water resistance is guaranteed.

Reliable Operation and Compatibility

With a nominal power consumption of 4 W and compatibility with both 50 Hz and 60 Hz electrical systems, this controller ensures stable performance across various regions. It functions effectively within an operating temperature range from -20°C to 55°C, enabling consistent use in different indoor climate conditions.

User-Centric Features

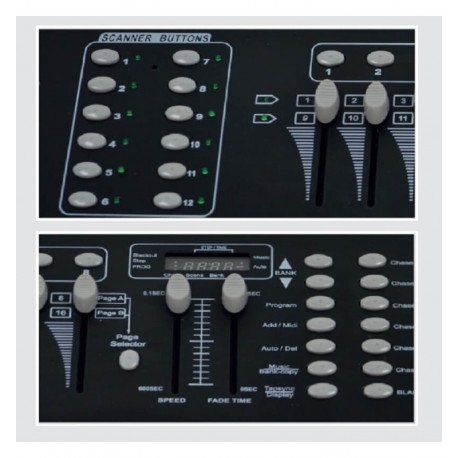

Equipped with a digital LED display, configuring the controller is straightforward, allowing lighting professionals to easily set up and adjust settings as needed. The ability to program and store up to 240 scenes, beyond the 8 main scenes, provides extensive flexibility in creating dynamic lighting environments.

Frequently Asked Questions

What environments is this controller suitable for?

With an IP20 protection rating, this controller is designed for indoor use where it is protected from solid objects but not from water or moisture.

Can the controller operate in different frequency systems?

Yes, it supports both 50 Hz and 60 Hz electrical frequencies, making it compatible with a wide range of regional power supplies.

What materials are used in the construction of the controller?

The controller housing is made from aluminum and polycarbonate (PC), offering durability and a lightweight build.

What is the operating temperature range of this device?

It operates reliably within temperatures from -20°C up to 55°C, suitable for various indoor environments.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP20
Construction Material Aluminum +PC
Warranty years 3

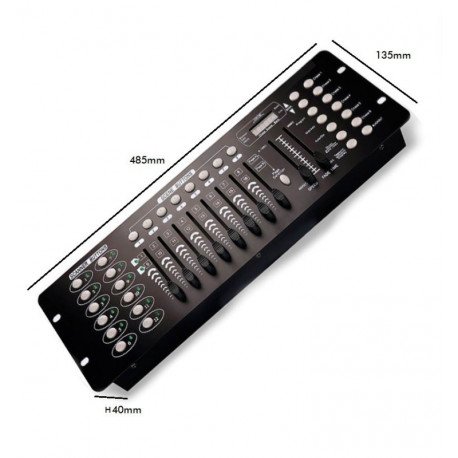

Dimensions (mm) 485 x 135mm x H40mm
Rated Power 4W
Rated Voltage AC 90-230V
Operating Frequency (Hz) 50/60Hz
Temperature Range (ºC) -20°C ~ +55°C
Additional Information LED Digital Display
Control Modes DMX
Number of Channels DMX512 : 192 Channels -Number of sequences: 6

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
