LED COB & SMD IP65 Connector 8-10mm (No Solder)

Certificates CE - ROHS
Construction Material PCB
Dimensions (mm) 35X12mm

New product

A no-solder IP65 connector designed for easy and secure connections of 8-10mm LED COB and SMD strips. Features a transparent housing and side locking clips for quick installation, suitable for various LED lighting projects requiring water resistance and reliable connectivity.

6135 Items

Order now and receive it The day after tomorrow

7,02 € tax incl.

Métodos de pago

More info

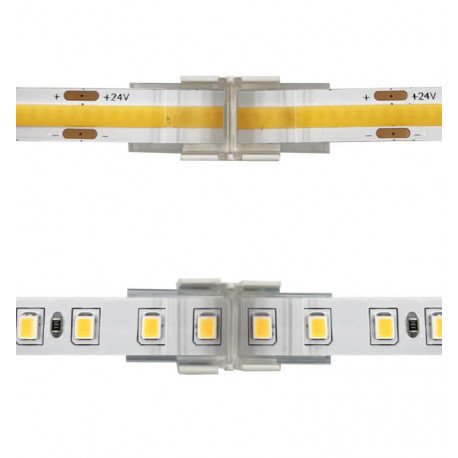

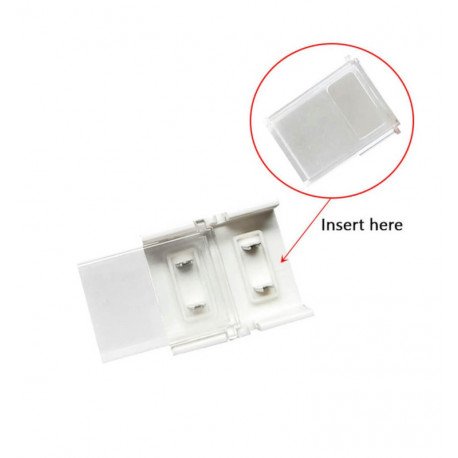

IP65 no-solder connector for LED COB and SMD strips from 8mm to 10mm. The transparent connector allows you to make connections without soldering—simply press the side locking clips. Includes the connection cable to make installation easier. Ideal for use with 8–10mm COB LED strips and 8–10mm SMD LED strips. Please check the connector dimensions if you plan to integrate it into an aluminum or polycarbonate profile. The quick click-style system makes placement especially simple.

Installation and Compatibility

This connector is compatible with LED strips ranging from 8mm to 10mm width, accommodating both COB and SMD types. Its no-solder design simplifies installation by reducing the need for specialized tools and skills. The transparent casing assists in aligning the strips correctly, ensuring a reliable electrical connection.

It is important to verify the connector dimensions relative to your fixture setup, especially when integrating inside aluminum or polycarbonate profiles to maintain a secure and clean installation.

Durability and Protection

Rated IP65, the connector offers protection against dust ingress and low-pressure water jets, making it suitable for both interior and certain exterior applications where moisture resistance is required.

Constructed from durable PCB material, the connector is designed to withstand typical environmental factors related to its protection class, ensuring consistent performance over time.

Packaging Options

Available in individual units and professional packs of two, with variants for 8mm and 10mm widths, allowing selection based on project size and requirements. This flexibility caters to both small-scale and professional installations.

Frequently Asked Questions

Can this connector be used outdoors?

With an IP65 rating, this connector is protected against dust and water jets, making it suitable for outdoor use where it is not directly immersed in water.

Is soldering required to connect my LED strips?

No soldering is needed; the connector uses side locking clips for a simple and secure connection.

What LED strip widths are compatible?

This connector supports LED COB and SMD strips with widths between 8mm and 10mm.

Are cables included with the connector?

Yes, the connector comes with a connection cable to facilitate installation.

View technical specifications Hide technical specifications
Certificates CE - ROHS
IP Rating IP65-Exterior
Construction Material PCB
Warranty years 3
Dimensions (mm) 35X12mm

LED strips and flexible neon for linear and decorative lighting

LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.

At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.

Differences between LED strips and flexible neon

LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.

Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.

How to choose an LED strip

Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.

The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.

Warm, neutral, cool white, RGB and RGBW

Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.

RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.

Installation, cutting and IP protection

LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.

An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.

Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
