LED Strip Connector COB & SMD IP65 8mm-10mm (No Solder)
Certificates
CE - ROHS
Construction Material
PCB
New product
This IP65 rated connector allows easy, solder-free joining of COB and SMD LED strips sized 8mm to 10mm. Its snap-on clip design ensures quick, secure connections while maintaining water resistance, suitable for outdoor or damp environments. Available in 8mm and 10mm widths for flexible installation.
2248 Items
More info

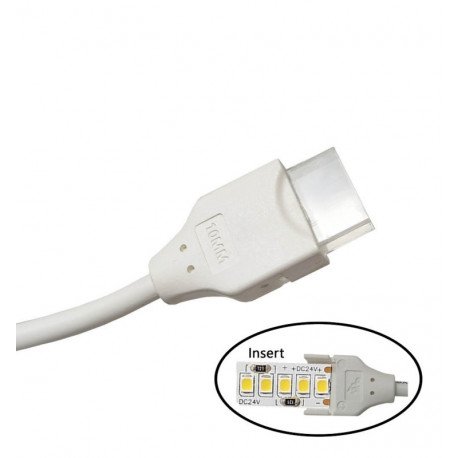

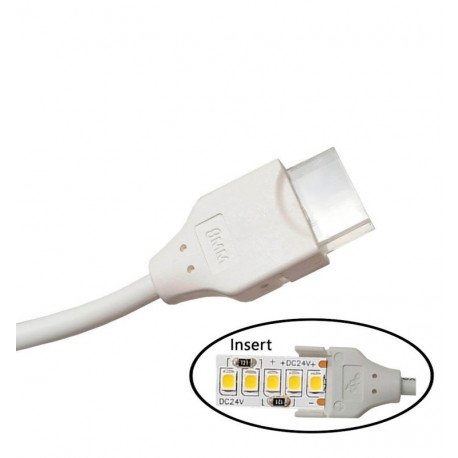

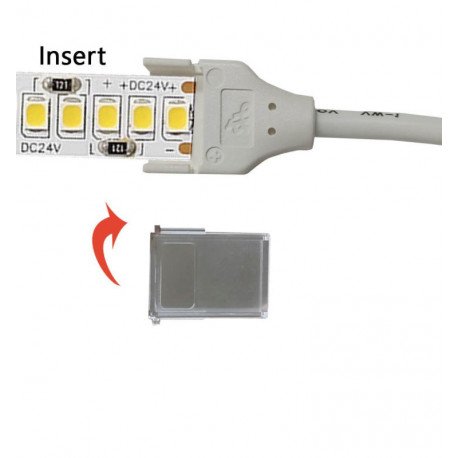

IP65 transparent connector for COB and SMD LED strips from 8mm to 10mm. Make connections without soldering: simply press the connector’s snap-on clips onto the sides. The quick click system makes installation easier and helps maintain IP65 water resistance. Please check the connector dimensions if you plan to integrate it into an aluminum or polycarbonate profile.
Installation and Compatibility
The connector is compatible with LED strips measuring 8mm or 10mm in width, enabling versatility for different lighting setups. Its snap-on design eliminates the need for soldering, simplifying the installation process and reducing setup time.
It is important to verify the connector’s dimensions before use, especially when integrating it into aluminum or polycarbonate profiles, to ensure proper fit and secure connections.
Durability and Use Cases
With an IP65 rating, the connector provides protection against dust and water jets, making it suitable for outdoor or humid environment applications. It supports both COB and SMD LED strip types, broadening its usability across various LED lighting projects.
The robust PCB construction contributes to the connector's mechanical stability and durability during installation and usage.
Frequently Asked Questions
Can this connector be used for LED strips wider than 10mm?
No, this connector is specifically designed for LED strips with widths of 8mm or 10mm. Using it with wider strips is not recommended.
Is any soldering required when using this connector?
No soldering is required. The connector features a snap-on clip mechanism that secures the LED strips quickly and easily.
Does this connector maintain the IP65 water resistance after installation?
Yes, the quick click system is designed to preserve the IP65 rating, ensuring water resistance once the connector is properly installed.
View technical specifications Hide technical specifications
Certificates
CE - ROHS
IP Rating
IP65-Exterior
Construction Material
PCB
Warranty years
3
LED strips and flexible neon for linear and decorative lighting
LED strips and flexible neon make it possible to create continuous lines of light, illuminate furniture and highlight architectural features with a discreet and adaptable installation. They are used in homes, shops, restaurants, hotels, window displays, offices, terraces, signs and decorative projects.
At DomiLED you will find solutions with different power ratings, operating voltages, colour temperatures, brightness levels and IP protection ratings. Before choosing a product, define the required effect, installation length, mounting location and whether you need white, dimmable or colour-changing light.
Differences between LED strips and flexible neon
LED strip lights contain small diodes mounted on a flexible circuit. They are suitable for installation under cabinets, on shelves, around ceilings, inside display cases, along stairs, in aluminium profiles and in areas where the light source can remain concealed.
Flexible LED neon uses a diffusing cover that hides the individual LED points and produces a more uniform line of light. It is suitable for outlines, shapes, signs, façades, decorative walls and applications where the illuminated line remains visible.
How to choose an LED strip
Power consumption per metre and luminous output determine how much electricity the strip uses and how much light it produces. A moderate output may be sufficient for ambient lighting, while worktops, shop displays and working areas usually require a brighter strip.
The operating voltage must also be checked. Low-voltage LED strips require a correctly sized compatible power supply. Calculate the required power according to the consumption per metre and total installation length, including a safety margin so the power supply does not continuously operate at its maximum capacity.
Warm, neutral, cool white, RGB and RGBW
Warm white strips create a comfortable atmosphere in living rooms, bedrooms, restaurants and hotels. Neutral white provides balanced illumination for kitchens, shops and working areas, while cool white creates a brighter and more technical appearance.
RGB LED strips allow different colours to be selected through a controller. RGBW strips also include a dedicated white-light channel, providing more practical white illumination in addition to coloured effects. A compatible controller is required to adjust brightness or change colours.
Installation, cutting and IP protection
LED strips and flexible neon should only be cut at the points indicated by the manufacturer. Before installation, check the length of each section, connection type and required power supply. Long runs may need to be powered from more than one point to prevent a visible loss of brightness.
An aluminium profile for LED strips improves the finish, helps dissipate heat and protects the installation. For bathrooms, terraces, façades and areas exposed to moisture, choose a suitable IP rating and ensure that all connections and ends are properly sealed.
Explore our selection of LED strip lights, flexible LED neon, power supplies, controllers and accessories and find a complete solution for efficient linear and decorative lighting.
